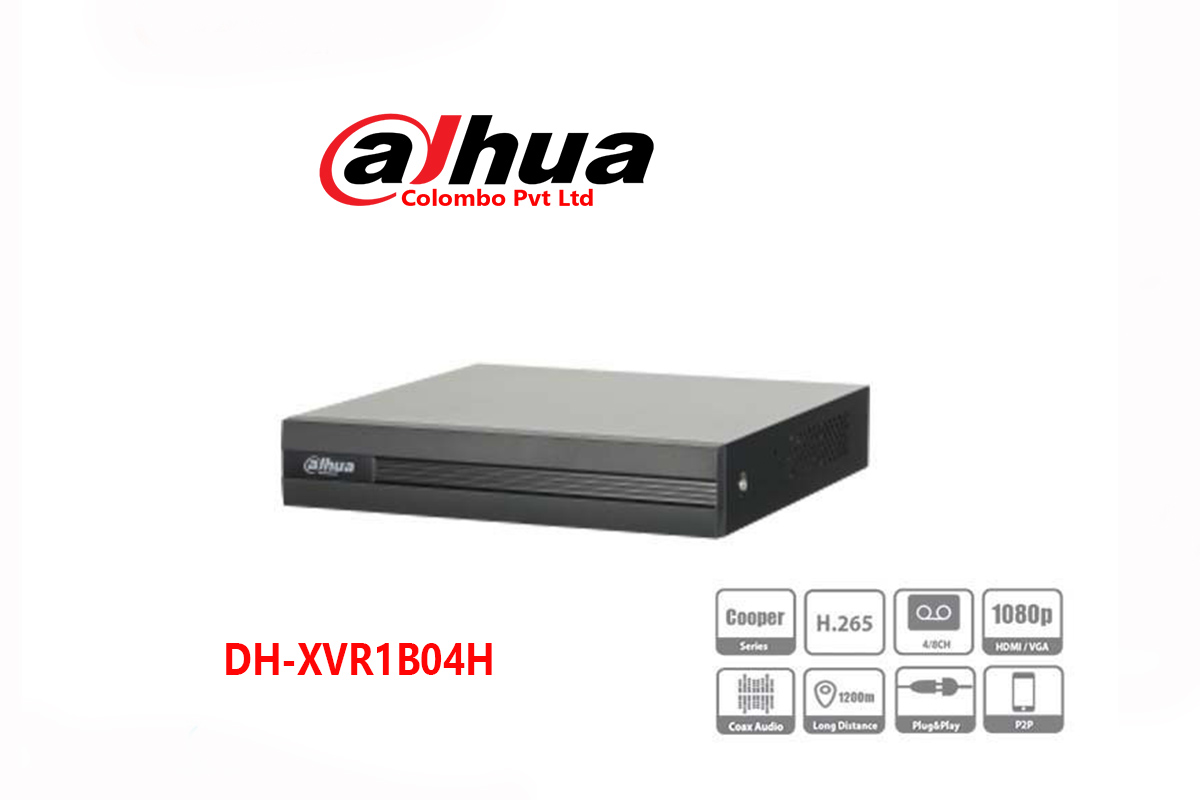

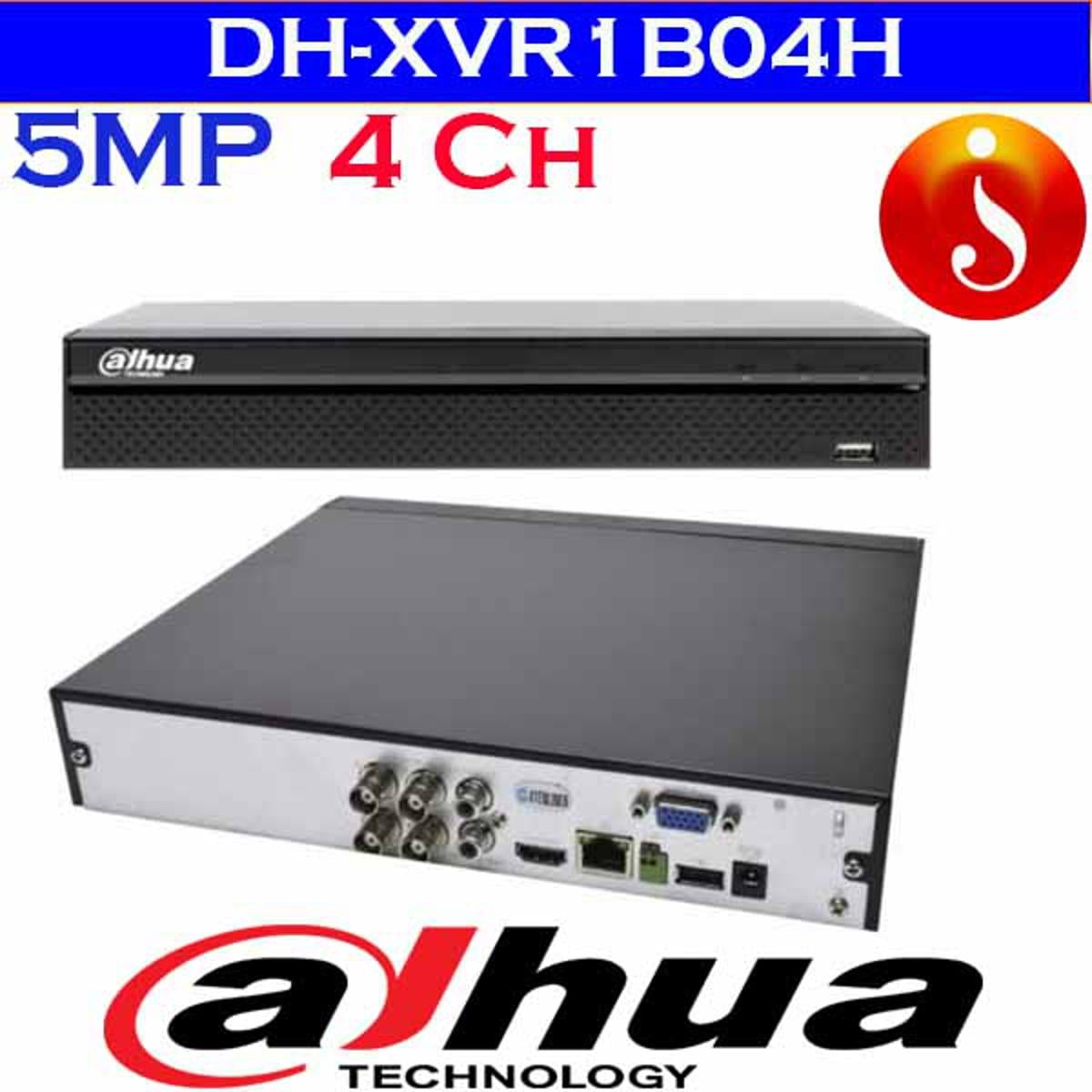

XVR1B04H-I 4 Channel Penta-brid 5M-N/1080p Cooper 1U 1HDD WizSense Digital Video Recorder ( DVR )

XVR1B04H-I
4 Channel Penta-brid 5M-N/1080p
Cooper 1U 1HDD WizSense Digital Video
Recorder ( DVR )

DESCRIPTION
Main Processor    Embedded Processor
Operating System    Embedded LINUX
Video and Audio
Analog Camera Input    4/8 Channel, BNC
HDCVI Camera    5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera    5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera    5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera    PAL/NTSC
IP Camera Input    4+2/8+4CH, each channel up to 6MP
Audio In/Out    1/1, RCA
Two-way Talk    Reuse audio in/out, RCA
Recording
Video Compression    H.265+/H.265/H.264+/H.264
Resolution    5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate    Main Stream:4CH: the 1st channel 5M-N(1~10fps);
8CH: the 1st & 2nd channels 5M-N(1~10fps);

other channels 4M-N/1080P(1~15fps); 1080N/720P/960H/

D1/CIF (1~25/30fps)

Sub stream:

CIF/QCIF (1~15fps)

Video Bit Rate    32Kbps ~ 6144Kbps Per Channel
Record Mode    Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval    1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio Compression    AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate    8KHz, 16 bit Per Channel
Audio Bit Rate    64Kbps Per Channel
