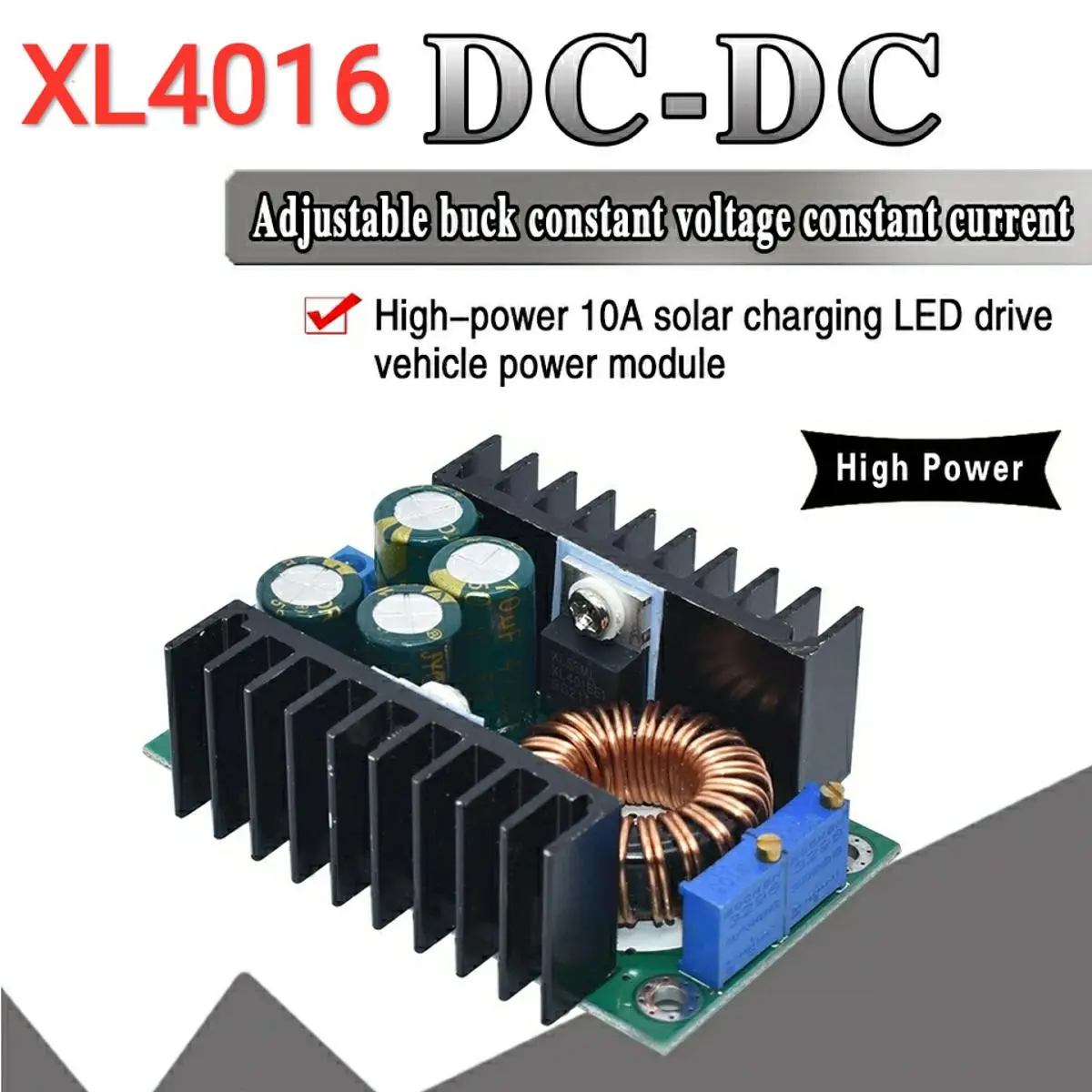

Picture of XL4016 DC-DC 9A 300W Step Down Buck Converter 5-40V To 1.2-35V Adjustable Power Supply Module LED Driver Replace LM2596 XL4015 XL6009 - Multi Plug - Multi Plug

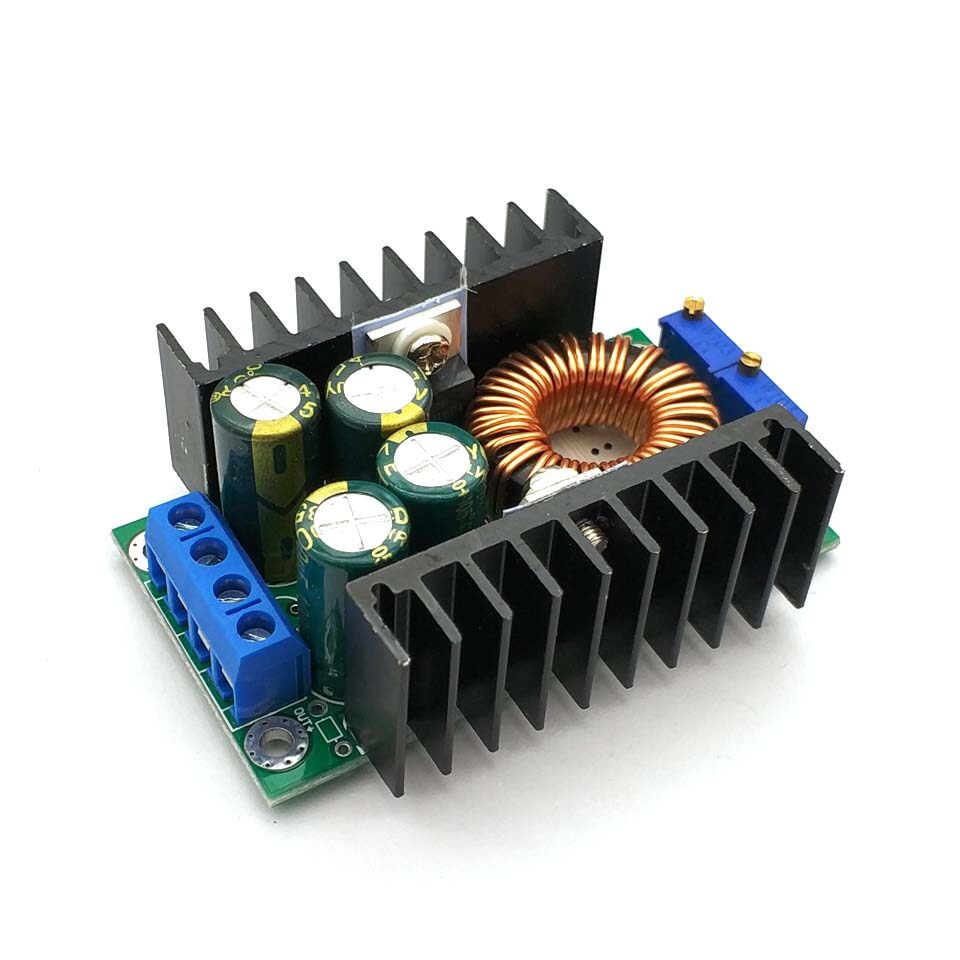

Picture of XL4016 DC-DC 9A 300W Step Down Buck Converter 5-40V To 1.2-35V Adjustable Power Supply Module LED Driver Replace LM2596 XL4015 XL6009 - Multi Plug - Multi Plug

XL4016 DC-DC 9A 300W Step Down Buck Converter 5-40V To 1.2-35V Adjustable Power Supply Module LED Driver Replace LM2596 XL4015 XL6009 - Multi Plug - Multi Plug

Category: Electrical Accessories
SKU: MOS895940
Seller: Module Shop
Tk 499
0 review(s)
  • 1. Module Properties: non-isolated step-down constant current, constant voltage module (CC CV) charging module
  • 2. Input voltage: DC 7-32V
  • 3. Output voltage:DC 0.8-28V continuously adjustable
  • 4. Output Current: 9A 12A (when power tube\'s temperature exceeds 65 degrees, please add cooling fan)
  • 5. Constant current range: 0.2-12A ( adjustable )
  • 6. Turn lamp current: constant current value * ( 0.1 ) , turn the lamp current and constant value linkage, such as constant current value is 3A, turn the lamp current is set to a constant current is 0.1 times (0.1 * 3A = 0.3A).
  • 7. Lowest pressure: 1V
  • 8. Output Power: Maximum power is about 300W
  • 9. Conversion efficiency: up to about 95%
  • 10. Operating frequency: 300KHZ
  • 11. Output ripple: 20M bandwidth
  • 12. Input 24V Output 12V 5A ripple around 50mV (Excluding noise)
  • 13. Output short circuit for protection : Yes, constant current
  • 14. Input Reverse Polarity for Protection: None
  • 15. Output prevent backflow: None
  • 16. Wiring: Terminal
  • 17. No-load current: Typical 20mA (24V switch 12V)
  • 18. Load regulation: ± 1% ( constant )
  • 19. Voltage regulation: ± 1%
  • 20. Dynamic response speed: 5% 200uS
  • 21. Potentiometer adjustment direction: clockwise (increase) , counterclockwise (decrease). the potentiometer(CV) closed to the input voltage is used to regulate voltage, the potentiometer(CC) closed to output voltage is used to regulate current (CC)
  • 22. Operating temperature: Industrial grade (-40 °c to +85 °c) ( please note the actual use of the power tube temperature , high temperature heat strengthened please )
  • 23. Indicator: dual color indicator, charging indicator light is red, the green light means fully charged ( No load is green )
  • 24. Size(approx): 65 x 47 x 22mm(L x W x H)
  • #multi plug
