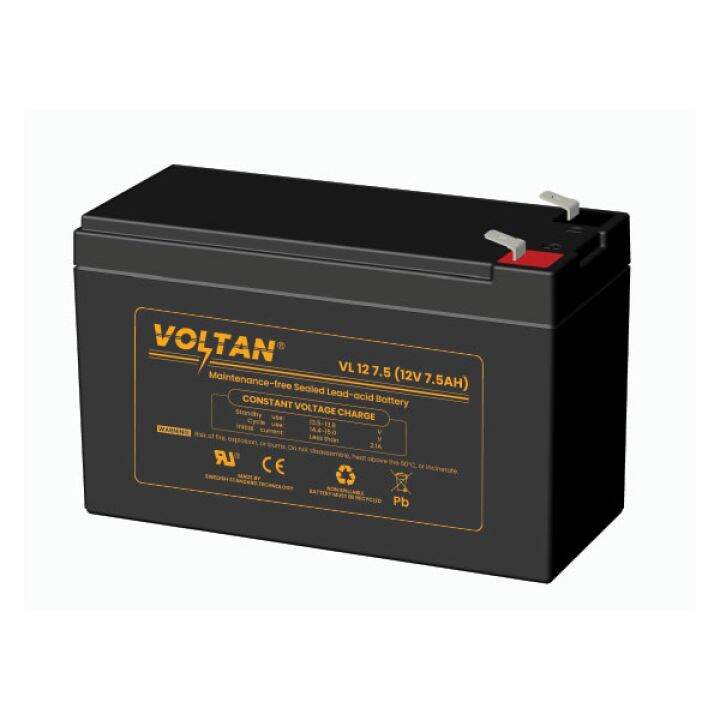

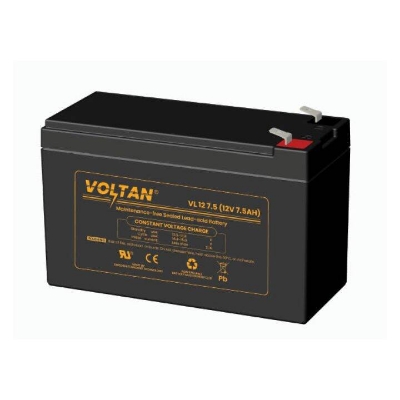

Voltan 12V 7.5AH (6 month official warranty) UPS Battery-Black

Nominal Voltage

12 V

Capacity (25oC)

20HR(10.5V): 7.5Ah

10HR(10.5V): 6.6Ah

1HR(9.60V): 4.58Ah

Dimension

Length: 152±1.5mm (5.98inch)

Width: 67±1mm (2.64inch)

Height: 99±1mm (3.90inch)

Total Height: 105±1mm (4.13inch)

Approx. Weight

2.0kg (4.41lbs)±5%

Terminal type

T1

Internal resistance (Fully charged, 25oC)

Approx. 28mΩ

Capacity affected by Temperature (20HR)

40oC: 102%

25oC: 100%

0oC: 85%

-15oC: 65%

Self-Discharge (25oC)

3 month: Remaining Capacity: 91%

6 month: Remaining Capacity: 82%

12 month: Remaining Capacity: 65%

Nominal Operating Temperature

25oC±3oC(77oF±5oF)

Operating Temperature Range

Discharge: -15oC~50oC(5oF~122oF)

Charge: -10oC~50oC(14oF~122oF)

Storage: -20oC~50oC(-4oF~122oF)

Float Charging Voltage (25oC)

13.60 to 13.80V Temperature compensation: -18mV/oC

Cyclic Charging Voltage (25oC)

14.50 to 14.90VTemperature compensation:-30mV/oC

Maximum Charging Current

2.1A

Terminal Material

Copper

Maximum Discharge Current

105A(5 sec.)

Designed Floating Life (25oC)

5 years+

Warranty

6 Month
