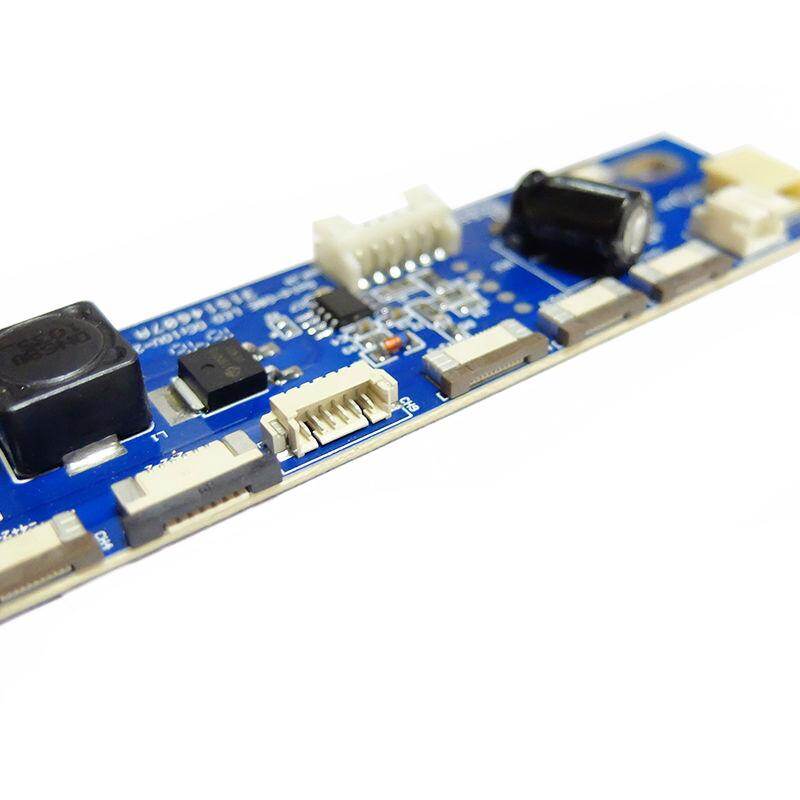

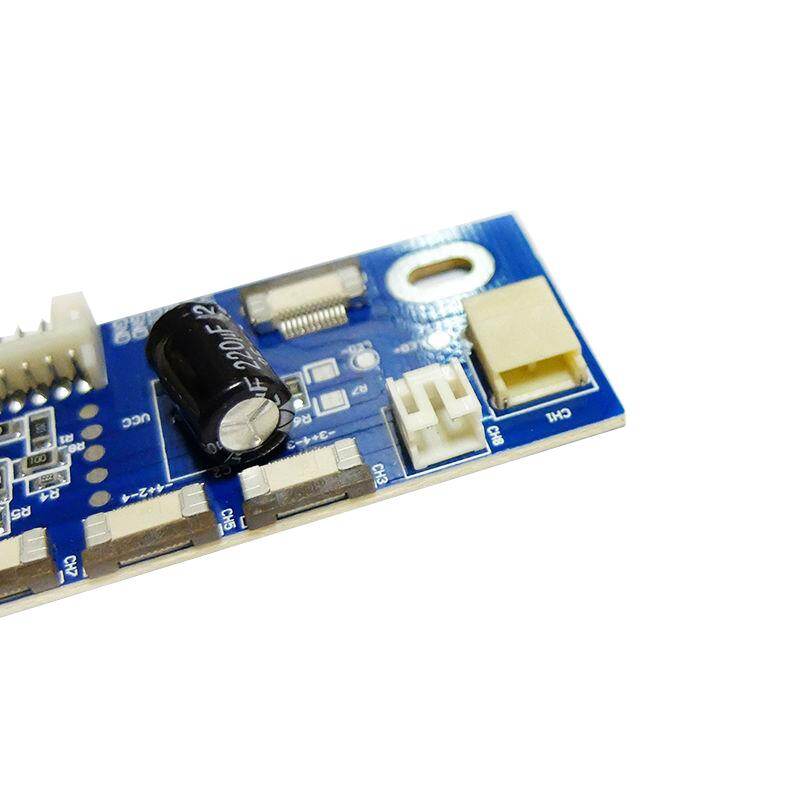

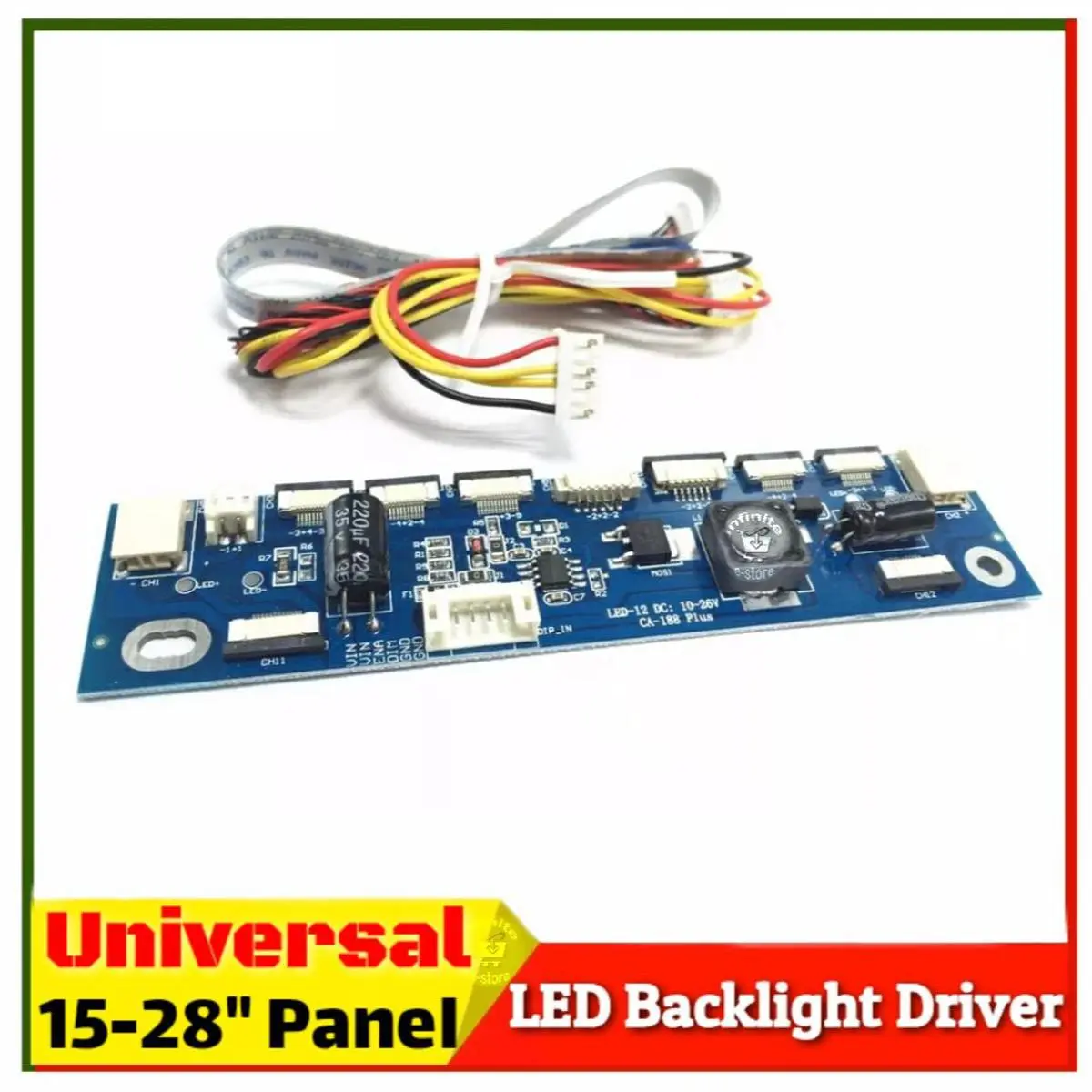

Universal LED Screen Backlight driver Constant Current 12 connecters LED Strip Tester 18.5" to 24" LED Panel Blue

Multifunction Inverter for Backlight LED Constant Current Board Driver Board 12 connecters LED Strip Tester

Specification:

100% Brand New

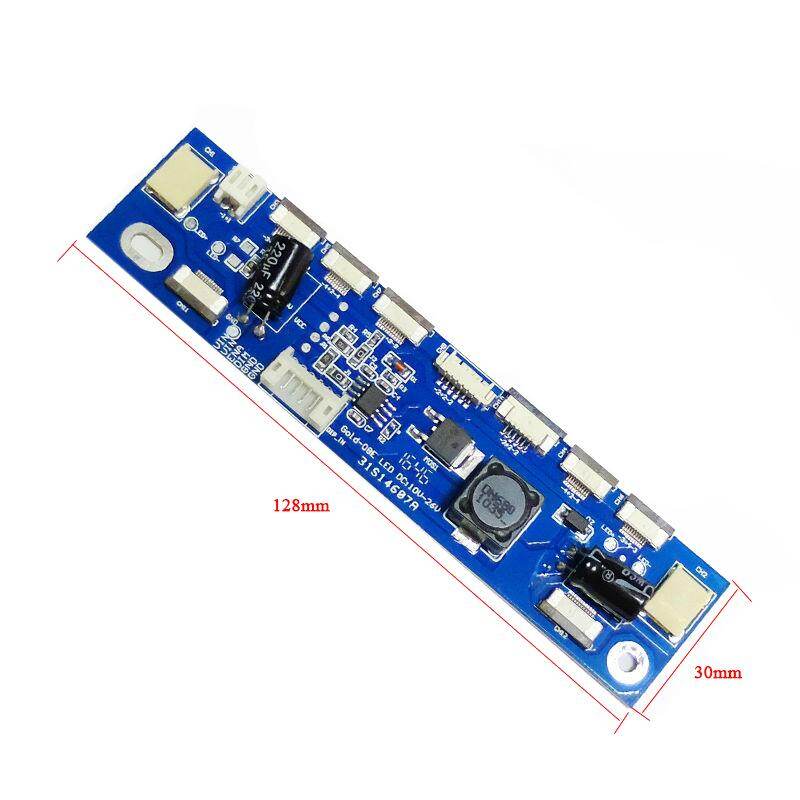

Size : 120mm(L)×30mm(W)

Input Voltage: 6V-20V

Supported: 15inch-24inch panel

Supporting 12 kinds of Definition with 7pcs cables

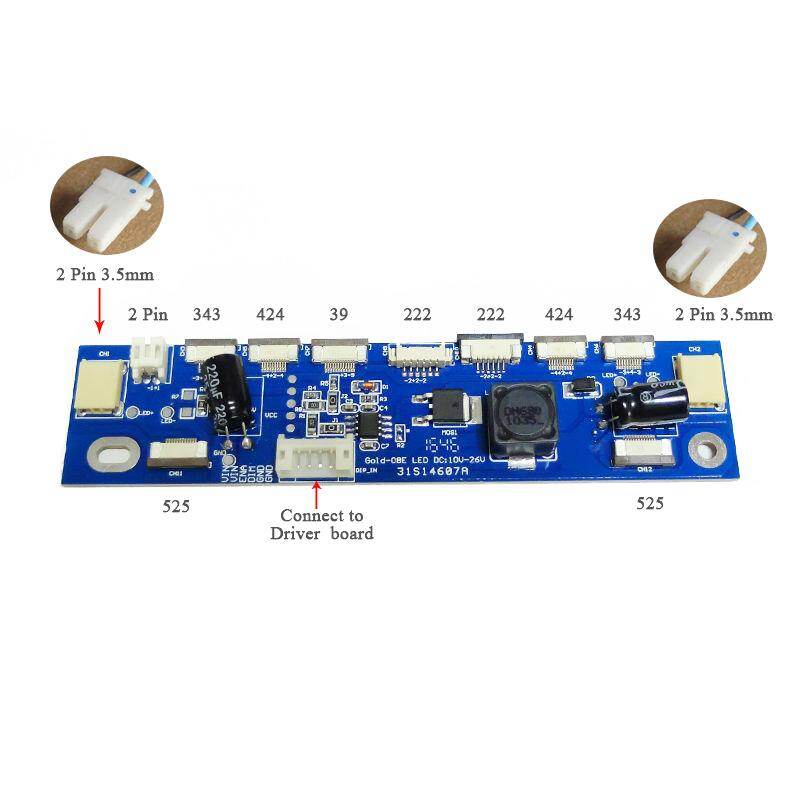

Support LED Port :

-5+2-5: single 12pin

-3+4-3: double or single 10pin

-4+2-4: double or single 10pin

+3-9:12pin

-2+2-2: 6pin,

-1+1:2pin

-2+2-2:1.0 6PIN

-2+2-2:0.5 6pin

2PIN:BH2.0

BH 3.5 double or single BH 3.5

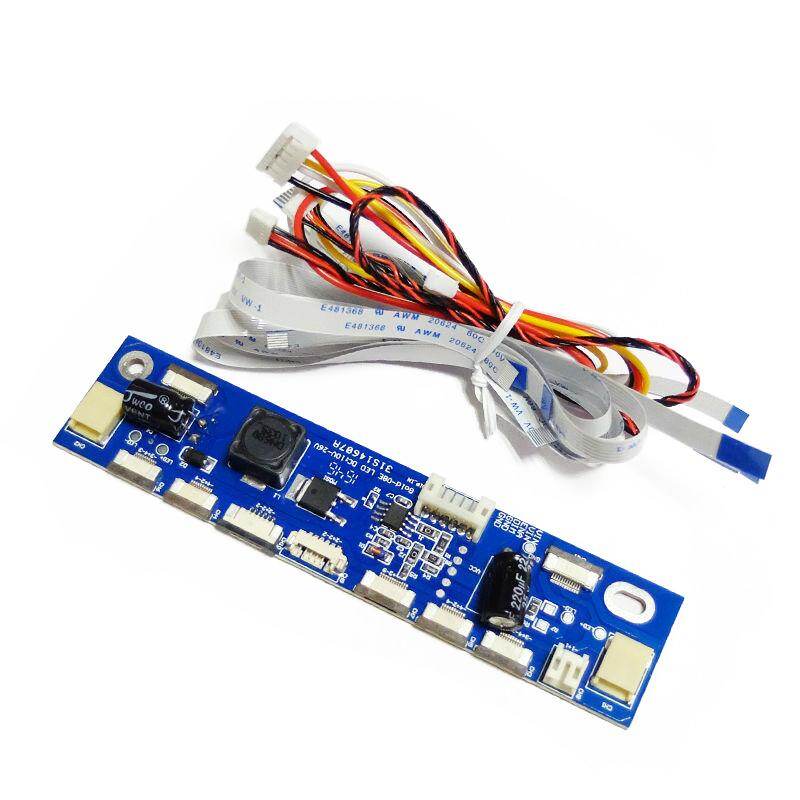

Package include:

1x constant current board

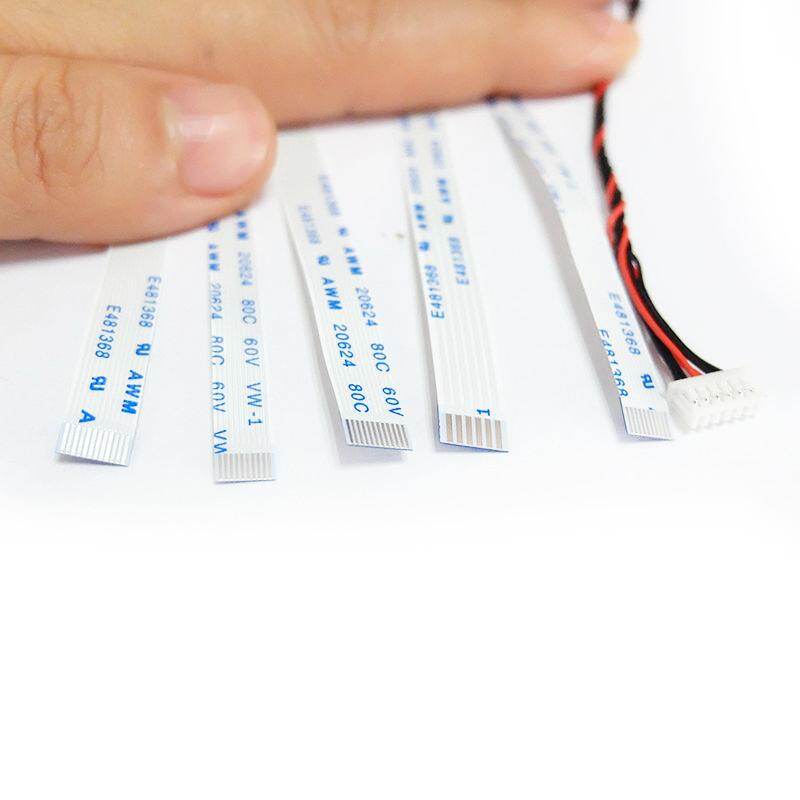

7x cables

Notice:

The connection of leds must pay attention to the interface definition of only the positive and negative points.

the positive input power supply.Don't pick up or wrong!

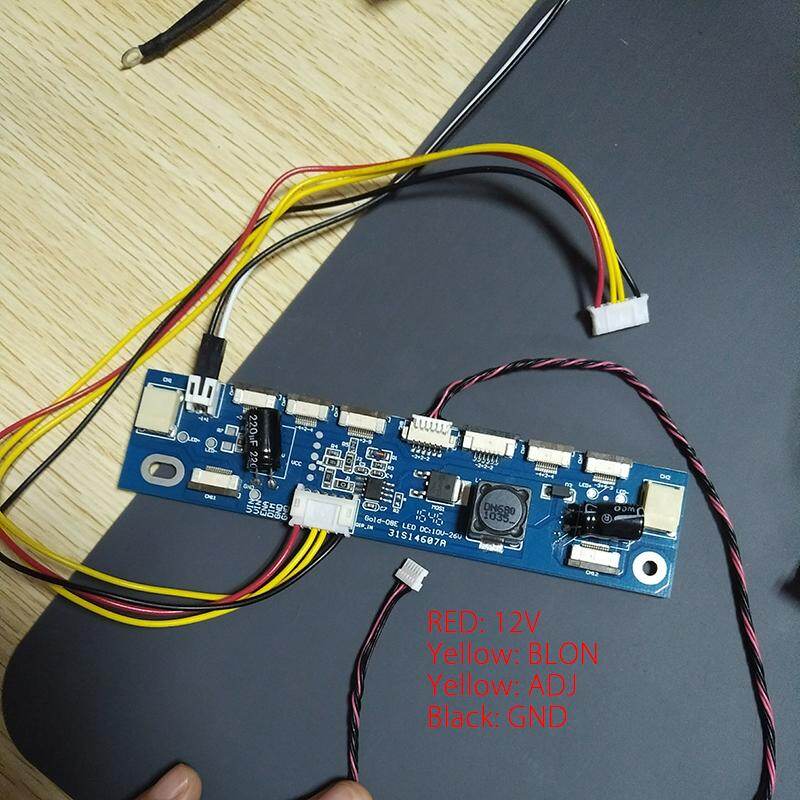

Connection just for reference

• • LED backlight driver for 18.5" to 24" LED panels.
  • Constant current with 12 connectors for LED strips.
  • Ideal for testing LED screen backlight functionality.
  • Compatible with TV, Audio/Video, Gaming & Wearables.
  • Easy to use and reliable.
  • Enhances viewing experience.
  • High-quality product.
  • Perfect for TV accessories.
  • Improves picture quality.
  • Increases energy efficiency.
