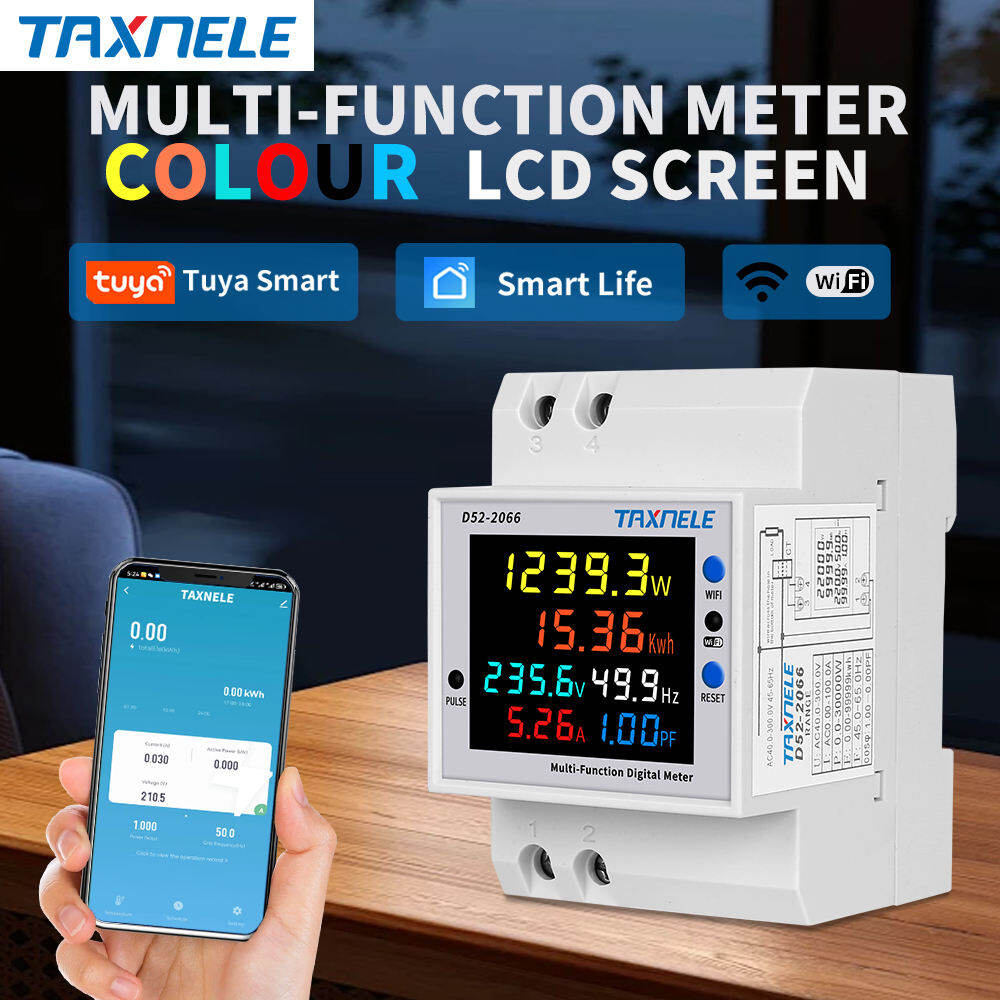

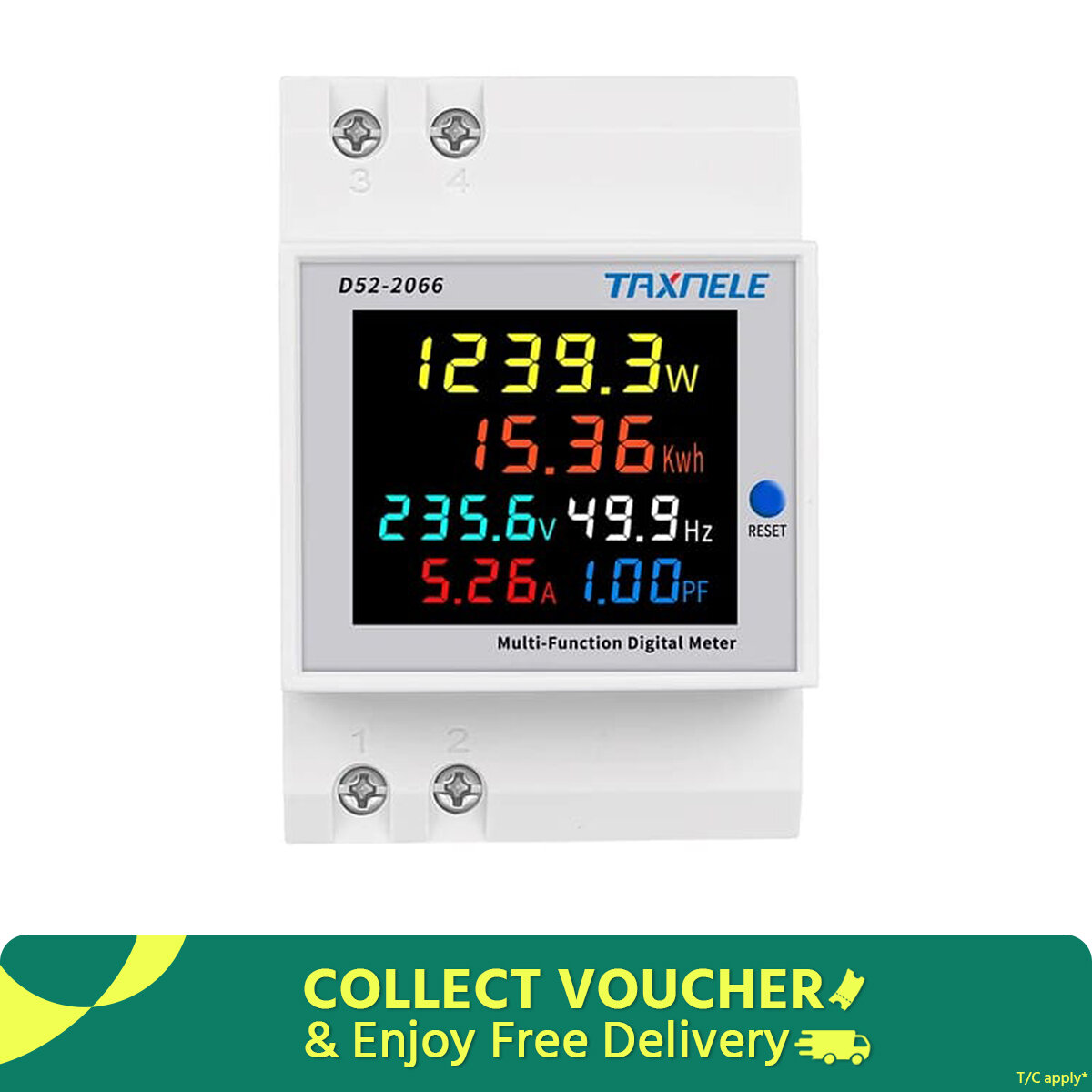

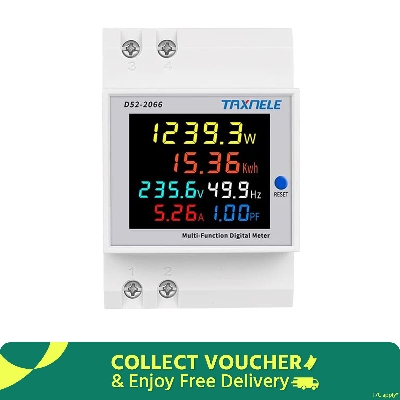

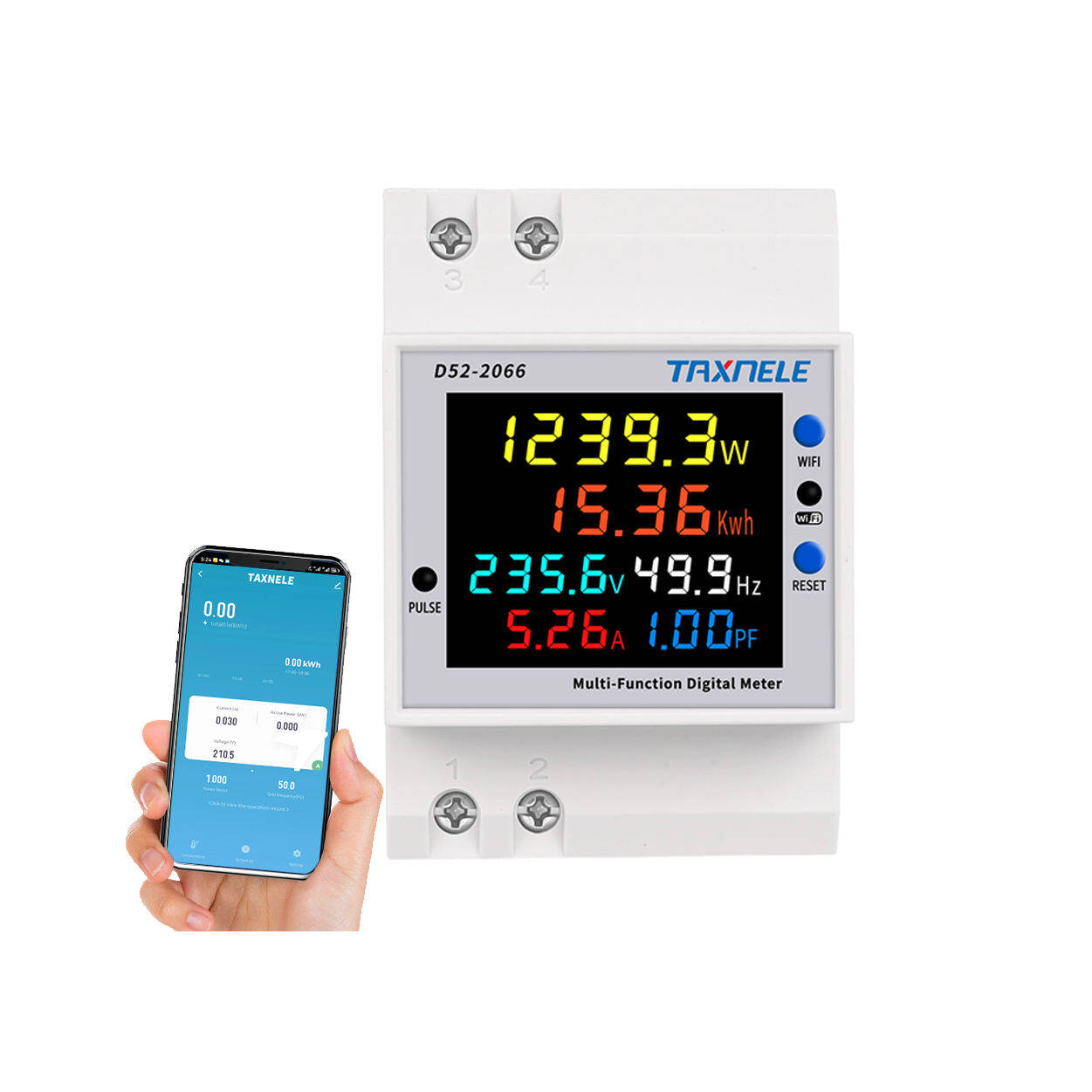

Picture of TAXNELE 6 IN1 Display D52-2066 Smart Meter AC40-300V Built-in CT Monitor Voltage Current Power KWH Electric Frequency Meter
Picture of TAXNELE 6 IN1 Display D52-2066 Smart Meter AC40-300V Built-in CT Monitor Voltage Current Power KWH Electric Frequency Meter
Picture of TAXNELE 6 IN1 Display D52-2066 Smart Meter AC40-300V Built-in CT Monitor Voltage Current Power KWH Electric Frequency Meter
Picture of TAXNELE 6 IN1 Display D52-2066 Smart Meter AC40-300V Built-in CT Monitor Voltage Current Power KWH Electric Frequency Meter
Picture of TAXNELE 6 IN1 Display D52-2066 Smart Meter AC40-300V Built-in CT Monitor Voltage Current Power KWH Electric Frequency Meter
Picture of TAXNELE 6 IN1 Display D52-2066 Smart Meter AC40-300V Built-in CT Monitor Voltage Current Power KWH Electric Frequency Meter
Picture of TAXNELE 6 IN1 Display D52-2066 Smart Meter AC40-300V Built-in CT Monitor Voltage Current Power KWH Electric Frequency Meter
Picture of TAXNELE 6 IN1 Display D52-2066 Smart Meter AC40-300V Built-in CT Monitor Voltage Current Power KWH Electric Frequency Meter

TAXNELE 6 IN1 Display D52-2066 Smart Meter AC40-300V Built-in CT Monitor Voltage Current Power KWH Electric Frequency Meter

Brand
Category: Electric Hardware & Tools
SKU: MPTL1035403
Brand: TAXNELE
Seller: MAXLAN POWER TECHNOLOGY
Tk 3,000
0 review(s)
*

Call For Order : 09613-800800

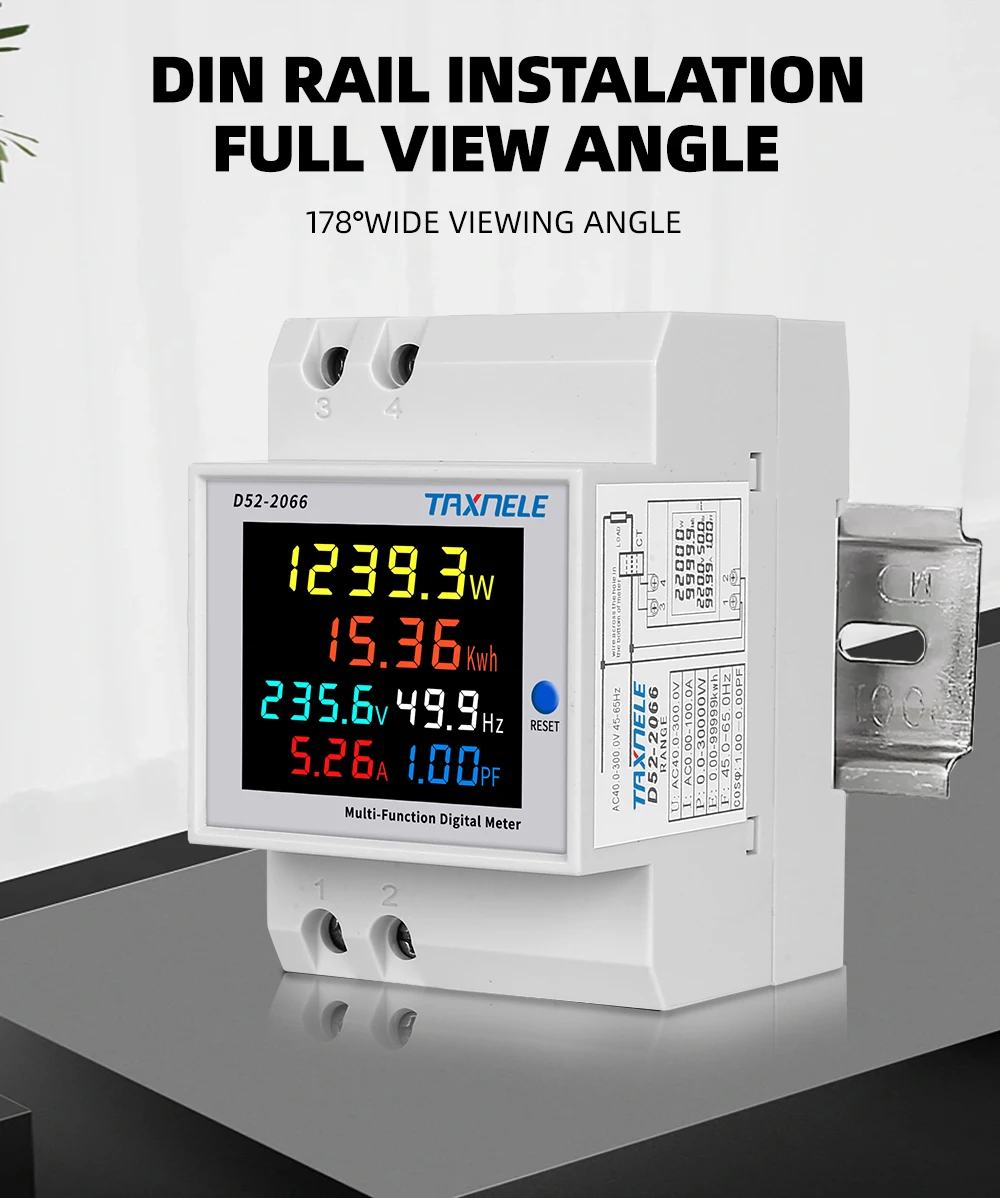

6IN1 Din rail AC monitor 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric energy Frequency meter VOLT AMP

Features: 100% Brand new and high quality!

D52-2066

Good stability, standard size, high precision, easy to install

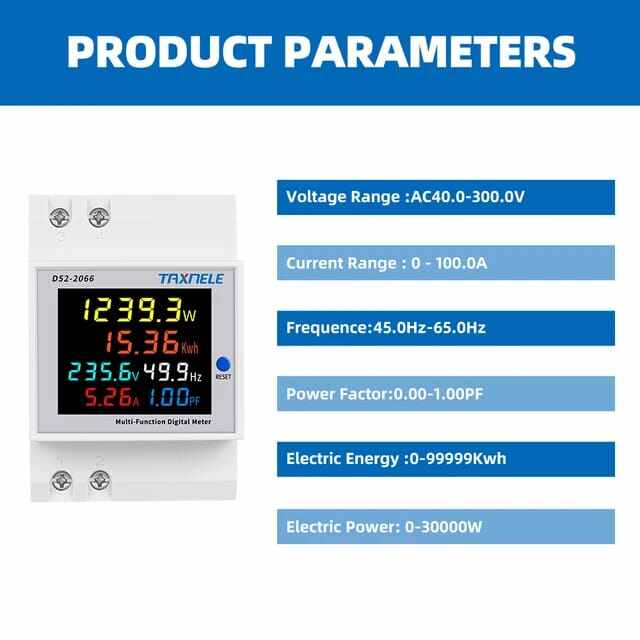

Specifications:

Measurement accuracy1%±2 words
AC voltageAC 40.0-300.0V or AC 250.0-450.0V (You should select one type of the meter in your order)

The measuring range is 40-300V without limitation, and it can be used in grid power, photovoltaic, and inverter current

250-450V can only be used for 380V
AC CurrentAC 0-100.0A, the current resolution is 0.01A.
Frequency45.0Hz – 65.0Hz
Power Factor0.00-1.00PF
Electric Power0-450000W, the electric power resolution is 0.1W when measure electric power between 0-9999.9W, otherwise the electric power resolution is 1W
Electric Energy0-99999kwh, the display of electric energy resolution is 0.01kwh when measure electric energy between 0-999.99kwh, the display of electric energy resolution is 0.1kwh when measure electric energy between 1000.0-9999.9kwh and the display of electric energy resolution is 1kwh when measure electric energy larger than 9999.9kwh
Measurement speedabout 2 times per second



Product display

6IN1 Din rail AC monitor 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric energy Frequency meter VOLT AMP 6IN1 Din rail AC monitor 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric energy Frequency meter VOLT AMP6IN1 Din rail AC monitor 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric energy Frequency meter VOLT AMP6IN1 Din rail AC monitor 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric energy Frequency meter VOLT AMP6IN1 Din rail AC monitor 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric energy Frequency meter VOLT AMP6IN1 Din rail AC monitor 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric energy Frequency meter VOLT AMP6IN1 Din rail AC monitor 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric energy Frequency meter VOLT AMP6IN1 Din rail AC monitor 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric energy Frequency meter VOLT AMP6IN1 Din rail AC monitor 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric energy Frequency meter VOLT AMP6IN1 Din rail AC monitor 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric energy Frequency meter VOLT AMP6IN1 Din rail AC monitor 110V 220V 380V 100A Voltage Current Power Factor Active KWH Electric energy Frequency meter VOLT AMP
