Picture of STC-3028 Combo Pack Incubator Temperature and Humidity Controller Still Body Mist Maker 5 inch AC Cooling Fan For 50-300 egg Incubator
Picture of STC-3028 Combo Pack Incubator Temperature and Humidity Controller Still Body Mist Maker 5 inch AC Cooling Fan For 50-300 egg Incubator

STC-3028 Combo Pack Incubator Temperature and Humidity Controller Still Body Mist Maker 5 inch AC Cooling Fan For 50-300 egg Incubator

Category: Thermometers
SKU: MOS895722
Seller: Module Shop
Tk 2,600
0 review(s)
  • STC-3028 Digital Incubator Controller

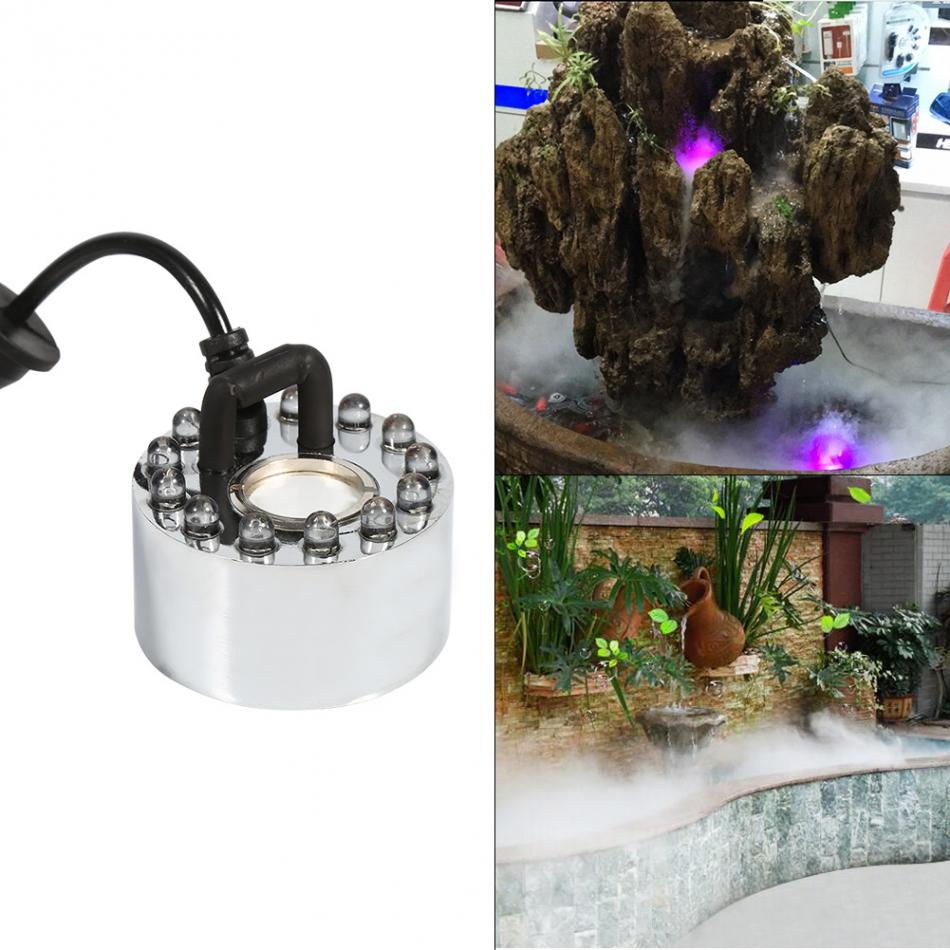

  • You can increase the humidity of the incubator with Ultrasonic Humidifier
  • You can automatically control the temperature and humidity with this 1 controller.
  • Using this circuit you can easily hatch turkey, partridge, quail, chicken eggs.
  • Application field: Incubator, aquarium, hatchery, tobacco factory, dye factory, machine room, refrigerator, compressor, A/C, medicine company etc.
  • STC-3028 Operating Voltage: AC220V 50Hz Control: 10A relay switching AC/DC
  • Input Sensor: AM2320
  • Temperature & Humidity

Call For Order : 09613-800800

STC-3028

Feature:

Be able to control temperature and humidity at the same time.

Be able to connect with humidifier and dehumidifier equipment at the same time.

Be able to connect with refrigeration/ heating and humidifier/dehumidifier equipment at the same time.

Heating/Cooling function could be set separately for refrigeration and heating to protect temperature controller from violent change. Same as humidity Control.

Supporting Temp and Humidity Calibration

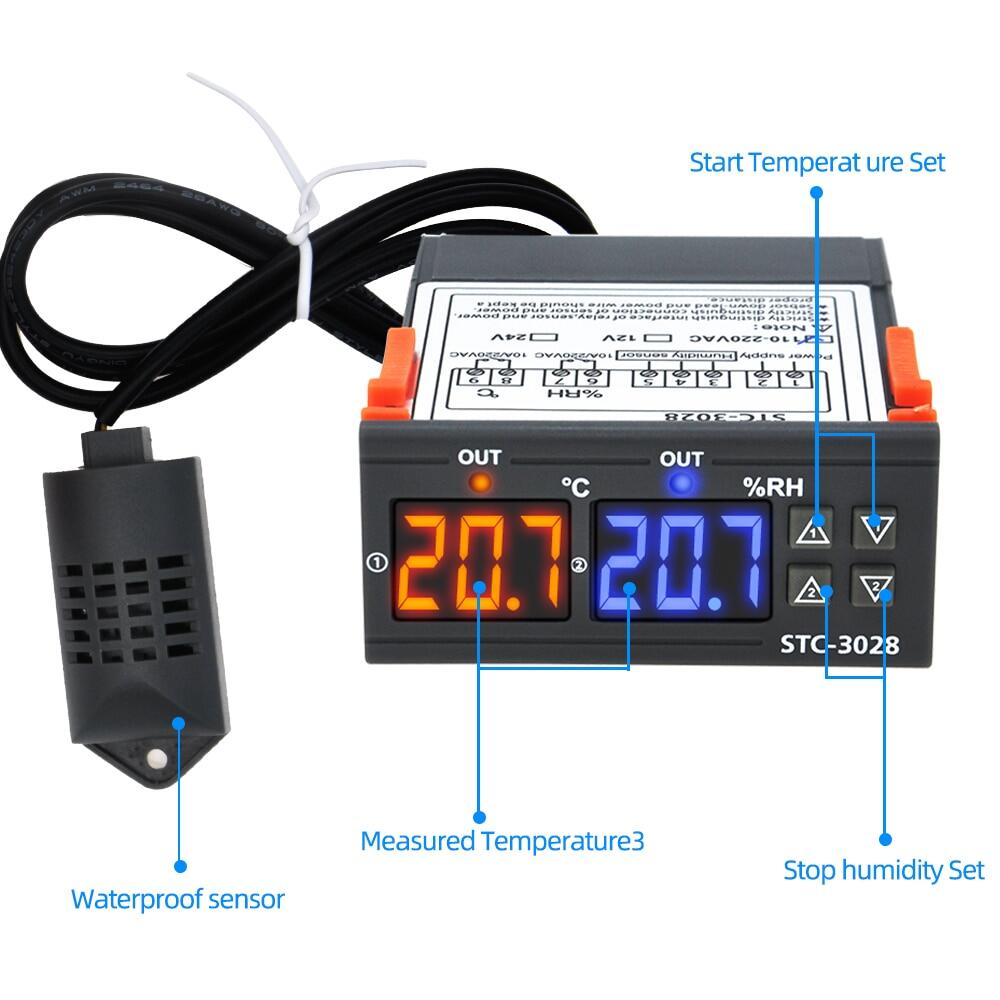

[Dual Display Window] Be able to display measured temperature/humidity and set temp/humidity at the same time

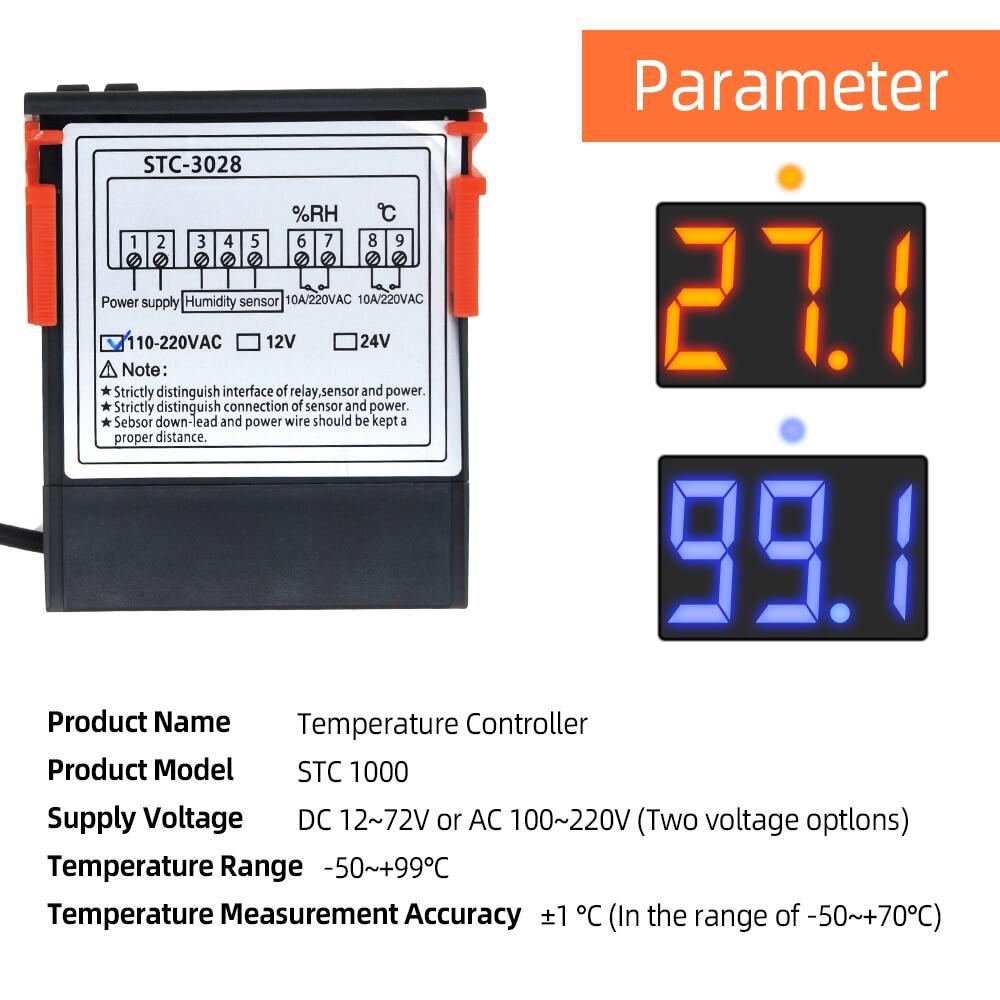

Specification:

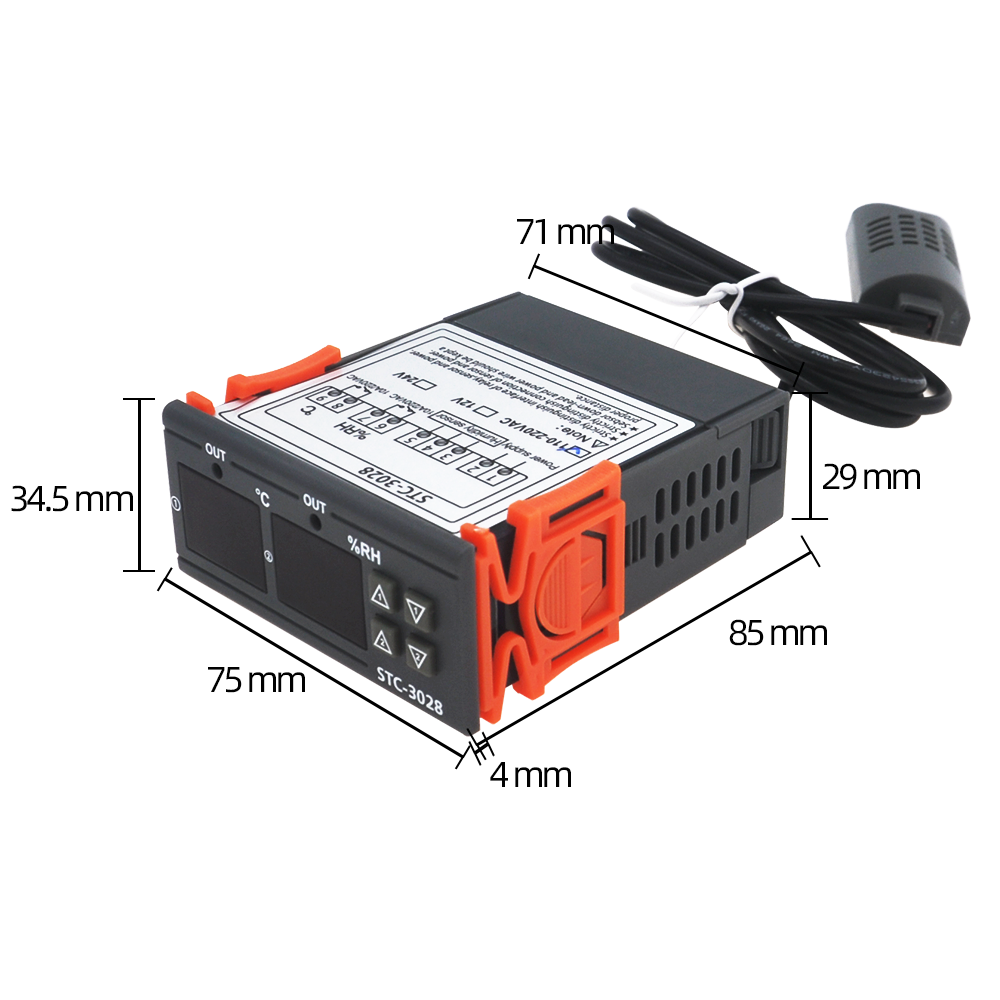

Model: STC-3028

Input voltage: AC110~220V± 10%, DC24V, DC12V

Measuring temperature range: -20°～+80°

Measuring humidity range: 00%RH～+100%RH

Accuracy: ±1°, 0.1%RH

Relay output contact capacity: 10A/240VAC

Sensor length: 1m






  • STC-3028 Digital Incubator Controller
  • You can increase the humidity of the incubator with Ultrasonic Humidifier
  • You can automatically control the temperature and humidity with this 1 controller.
  • Using this circuit you can easily hatch turkey, partridge, quail, chicken eggs.
  • Application field: Incubator, aquarium, hatchery, tobacco factory, dye factory, machine room, refrigerator, compressor, A/C, medicine company etc.
  • STC-3028 Operating Voltage: AC220V 50Hz Control: 10A relay switching AC/DC
  • Input Sensor: AM2320
  • Temperature & Humidity
