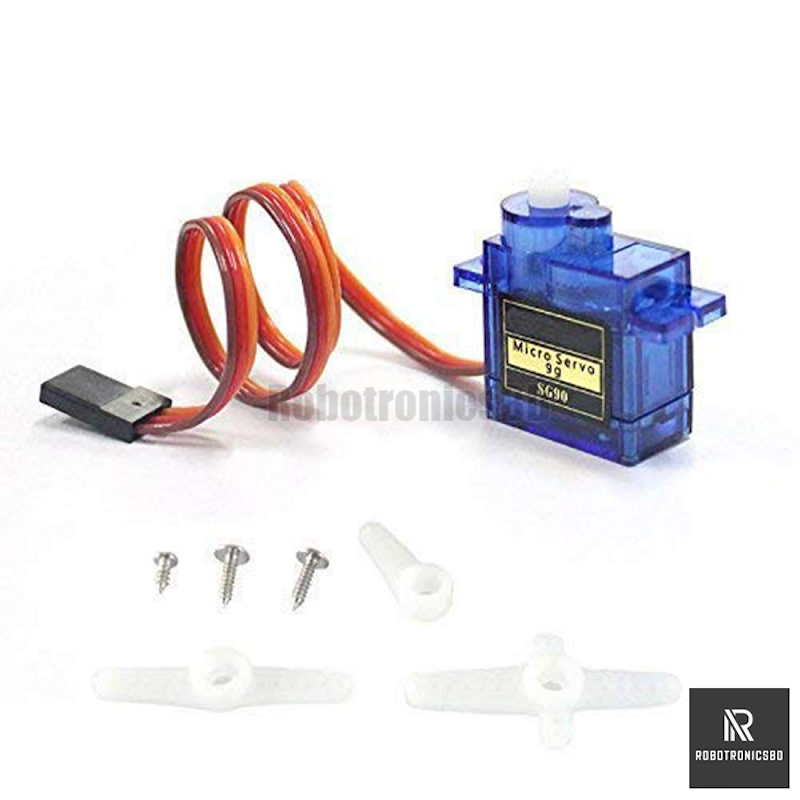

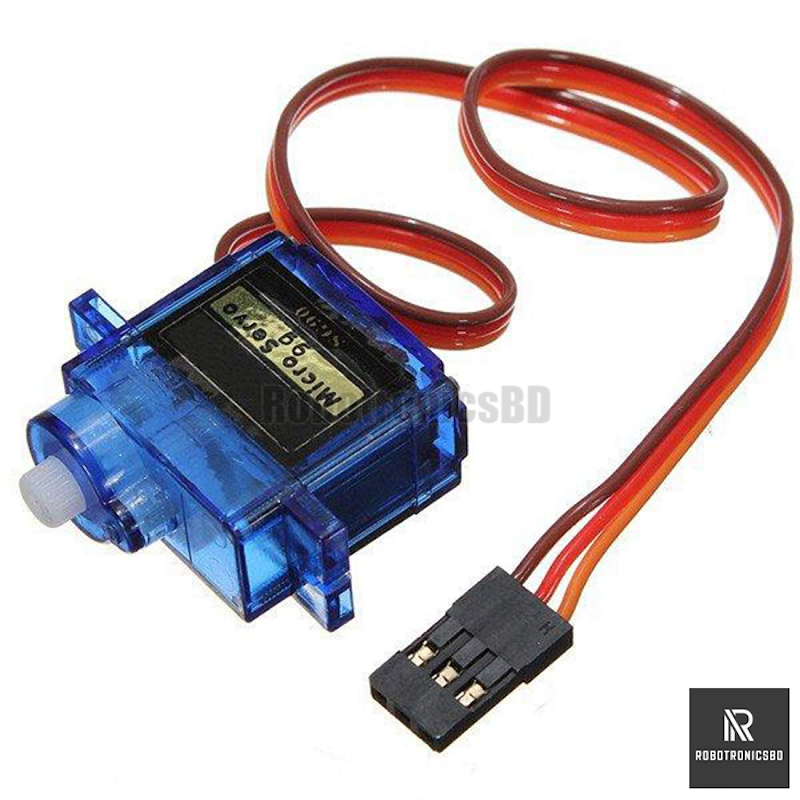

SG90 Micro Servo Motor 9g 180 Degree Rotation with Plastic Gear (1 pcs)

Product Details of SG90 Micro Servo Motor

The SG90 Micro Servo Motor is widely used in hobbyist and educational projects due to its small size, light weight, and affordability. It operates within a voltage range of 4.8V to 6V and provides a maximum torque of 1.2 kg-cm at 4.8V. The motor rotates at a speed of 0.12 sec/60° when unloaded, ensuring quick and responsive movements.

This servo motor is equipped with plastic gears, which contribute to its smooth and quiet operation. The 180-degree rotation capability allows for versatile positioning in various applications, from controlling robot arms to moving camera mounts.

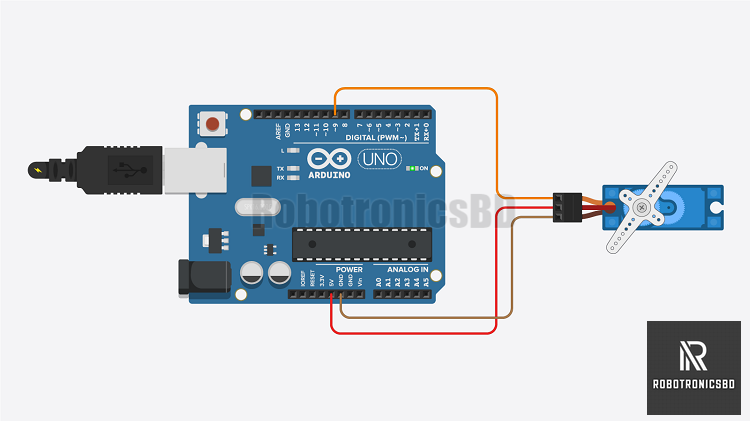

To control the SG90 servo motor, you can use PWM signals generated by microcontrollers like Arduino. The motor responds to these signals by adjusting its shaft position according to the pulse width, enabling precise control over its movements.

Overall, the SG90 Micro Servo Motor is suitable for a wide range of applications requiring precise angular control in small-scale mechanisms. Its ease of use, reliability, and affordability make it a popular choice among hobbyists, students, and makers exploring robotics, model building, and other creative projects.
