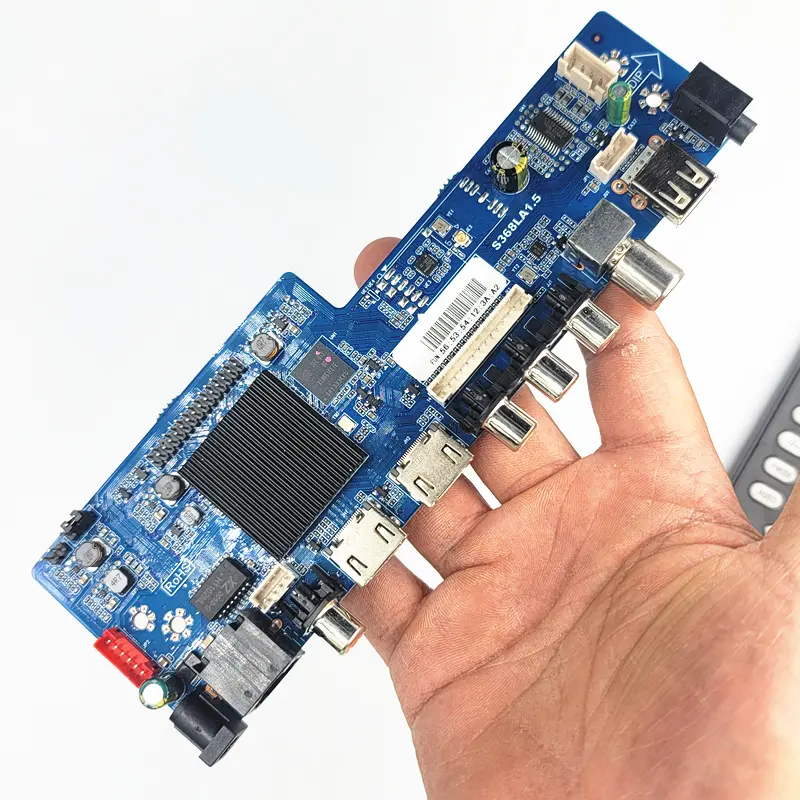

S368A1.5 Android 9 Pie Quad Core Network Smart TV Motherboard 1GB 512MB RAM +8GB 4G ROM + Manu Keyboard Use Old Laptop Screen 10"-24" Display HD and Firmware

1. Power input: DC 12V 3A or 4A or 5A

If you have an LED backlight or a screen 3A lower than 17 inches is enough to drive. If you have an old LCD screen, it is recommended that the current is 4A and 5A. Please do not plug in 12V 1A 1.5A 2A. They can't work with the motherboard, which is easy to cause damage to the motherboard. Please note that.

2.before the motherboard is powered on, please pay attention to insulating the motherboard.

3. Please note that our definition of LVDS interface is the interface of general series motherboard, which is not applicable to some original LVDS interfaces. LVDS definition is marked on the back, please watch carefully.

4. The default screen voltage of the motherboard is in the upper left corner. You can switch 12V/5V/3.3V by jumping cap

Please pay attention to the selection of screen voltage. The wrong selection of 12V 3.3V 5V may damage the motherboard or screen. Please pay attention.

5. please note that the screen cable cannot be inserted reversely, and the reverse power supply is easy to cause damage to the motherboard.Normal VCC represents power supply. If you use general LVDS, the red line represents power supply.

6 The motherboard now supports remote control Qi The resolution can be switched through several digital buttons on the remote control.

The specific operation method is as follows: when you receive the motherboard, the default resolution of our new motherboard is 1920 * 1080

The first boot time is very long. The first power on is in red standby mode. Please use the key board or the remote control to power on, the indicator light turns green, and then wait for the motherboard to enter the system. It is slow to enter the system for the first time, which takes about 90 seconds. Please do not operate in 90 seconds. After 90 seconds, use the remote control to press the signal "source" of the remote control with code to switch the resolution

Factory mode: Press "source 208"

if your screen watermark flower screen, please modify panel-LVDS TI

It can also be adjusted to the screen: Please note that the modified screen needs to be restarted to have effect.

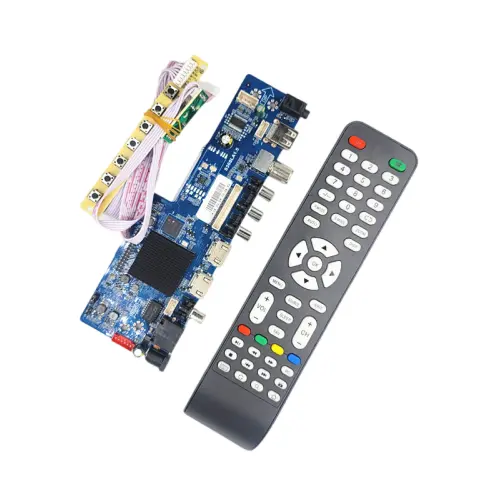

Package included:

1 x S368LA1.5 Smart Board
1 x English Remote Control

1 x IR

1 x 7Key Button

NOTICE: THIS KIT NOT INCLUDE LVDS CABLE !!!!!!

Because different panel with different lvds cable, if you need lvds cable,pls provide your panel model to us so we can check and help you to pick.
