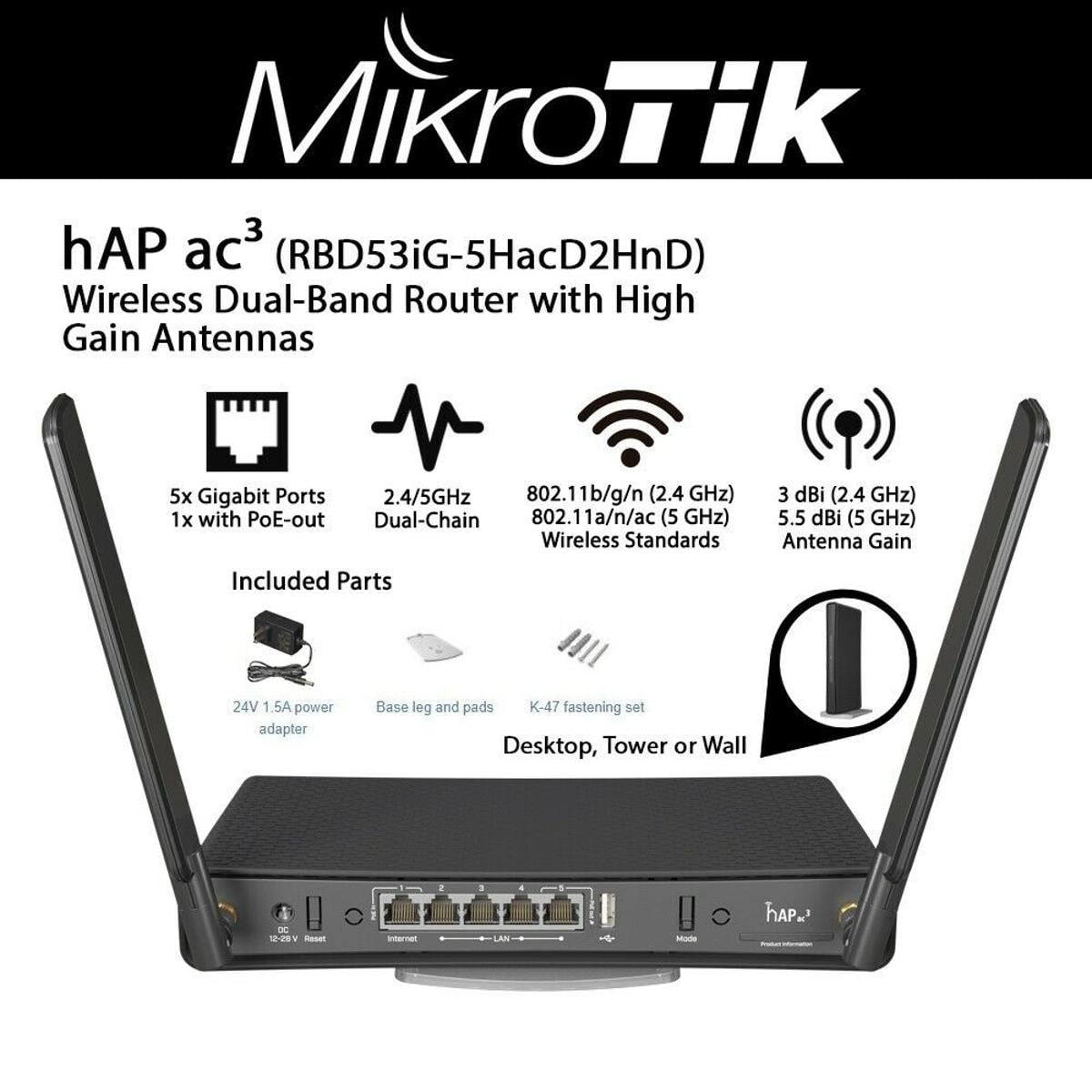

RouterBOARD RBD53iG-5HacD2HnD Dual-band 2.4 / 5GHz 802.11ac 1200Mbps

Specifications
Details
Product code    RBD53iG-5HacD2HnD
Architecture    ARM 32bit
CPU    IPQ-4019
CPU core count    4
CPU nominal frequency    716 MHz
Dimensions    251 x 129 x 39 mm
RouterOS license    4
Operating System    RouterOS
Size of RAM    256 MB
Storage size    128 MB
Storage type    NAND
MTBF    Approximately 200'000 hours at 25C
Tested ambient temperature    -40°C to 70°C
IPsec hardware acceleration    Yes
Suggested price    $109.00
Wireless capabilities
Details
Wireless 2.4 GHz Max data rate    300 Mbit/s
Wireless 2.4 GHz number of chains    2
Wireless 2.4 GHz standards    802.11b/g/n
Antenna gain dBi for 2.4 GHz    3
Wireless 2.4 GHz chip model    IPQ-4019
Wireless 2.4 GHz generation    Wi-Fi 4
Wireless 5 GHz Max data rate    867 Mbit/s
Wireless 5 GHz number of chains    2
Wireless 5 GHz standards    802.11a/n/ac
Antenna gain dBi for 5 GHz    5.5
Wireless 5 GHz chip model    IPQ-4019
Wireless 5 GHz generation    Wi-Fi 5
WiFi speed    AC1200
Ethernet
Details
10/100/1000 Ethernet ports    5
Number of 1G Ethernet ports with PoE-out    1
Peripherals
Details
Number of USB ports    1
USB Power Reset    Yes
USB slot type    USB type A
Max USB current (A)    1
Powering
Details
Number of DC inputs    2 (PoE-IN, DC jack)
DC jack input Voltage    12-28 V
Max power consumption    30 W
Max power consumption without attachments    12 W
Cooling type    Passive
PoE in    Passive PoE
PoE in input Voltage    18-28 V
PoE-out
Details
PoE-out ports    Ether5
PoE out    Passive PoE
Max out per port output (input 18-30 V)    0.5 A
Max total out (A)    0.5 A
Certification & Approvals
Details
Certification    CE, FCC, IC, EAC, ROHS
IP    IP20
Other
Details
Mode button    Yes
Wireless specifications
2.4 GHz    Transmit (dBm)    Receive Sensitivity
1MBit/s    25    -100
11MBit/s    25    -94
6MBit/s    26    -96
54MBit/s    23    -78
MCS0    26    -96
MCS7    22    -73
5 GHz    Transmit (dBm)    Receive Sensitivity
6MBit/s    26    -96
54MBit/s    22    -80
MCS0    26    -96
MCS7    21    -75
MCS9    19    -70
