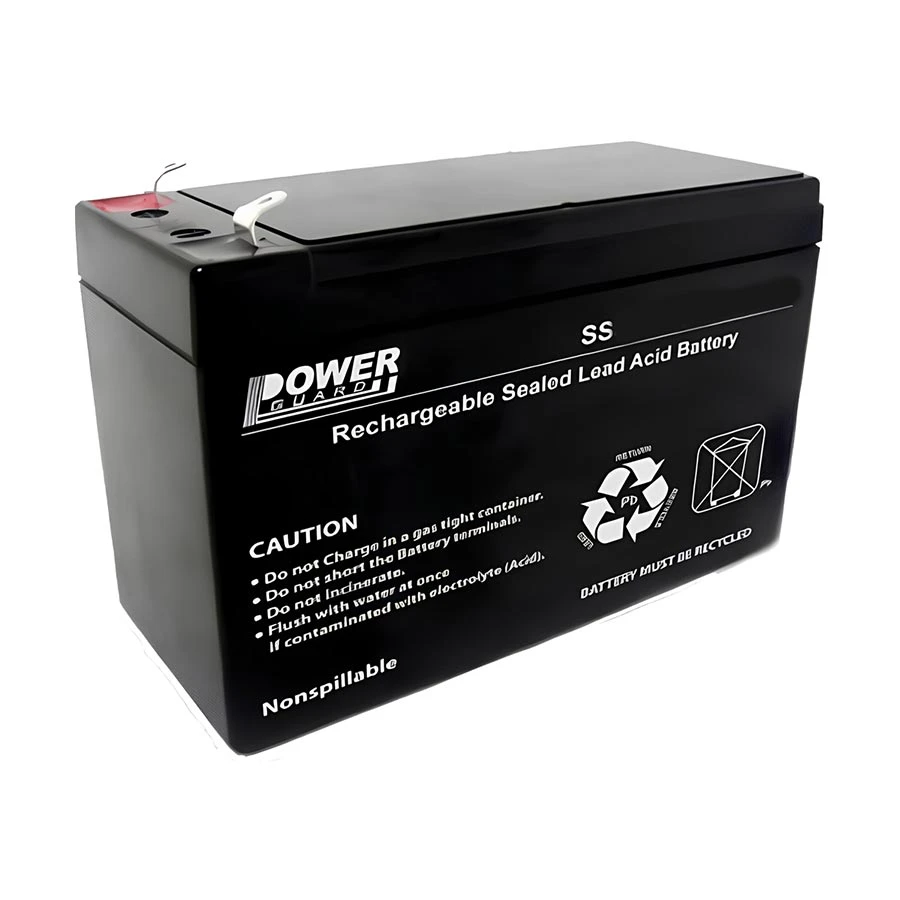

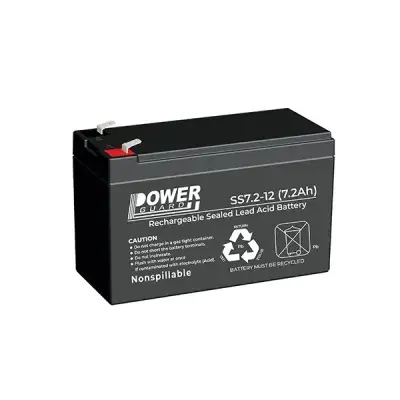

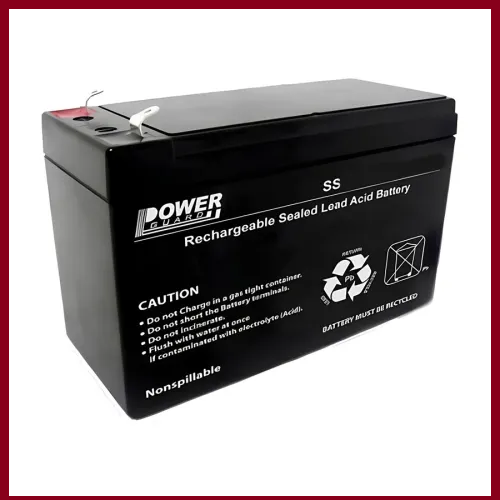

Power Guard 12V 7.2Ah UPS Battery ( 6 Month Warranty )

Brand

POWER GUARD

Model

SS7.2-12 (7.2Ah)

Voltage Per Unit

12

Capacity

7.2Ah@20hr-rate to 1.75V per cell @25oC

Max. Discharge Current

70A (5 sec)

Recommended Maximum Charging Current Limit

2.16 A

Internal Resistance

Approx. 25 mΩ

Operating Temperature Range

Discharge: -20˚C~60˚C

Charge: 0˚C~50˚C

Storage: -20˚C~60˚C

Normal Operating Temperature Range

25oC±5oC

Float charging Voltage

13.7 to 13.9 VDC/unit Average at 25oC

Equalization and Cycle Service

14.6 to 14.8 VDC/unit Average at 25oC

Self Discharge

Up to 6 months at 25˚C. Self-discharge ratio less than 3% per month at 25˚C.

Please charge batteries before using.

Terminal Material

Copper

Terminal

Terminal F1/F2

Container Material

A.B.S. (UL94-HB), Flammability resistance of UL94-V1 can be available upon request.

Designed Floating Life (25oC)

5 years+

Weight

Approx. 2.00 Kg

Warranty

6 Month Warranty
