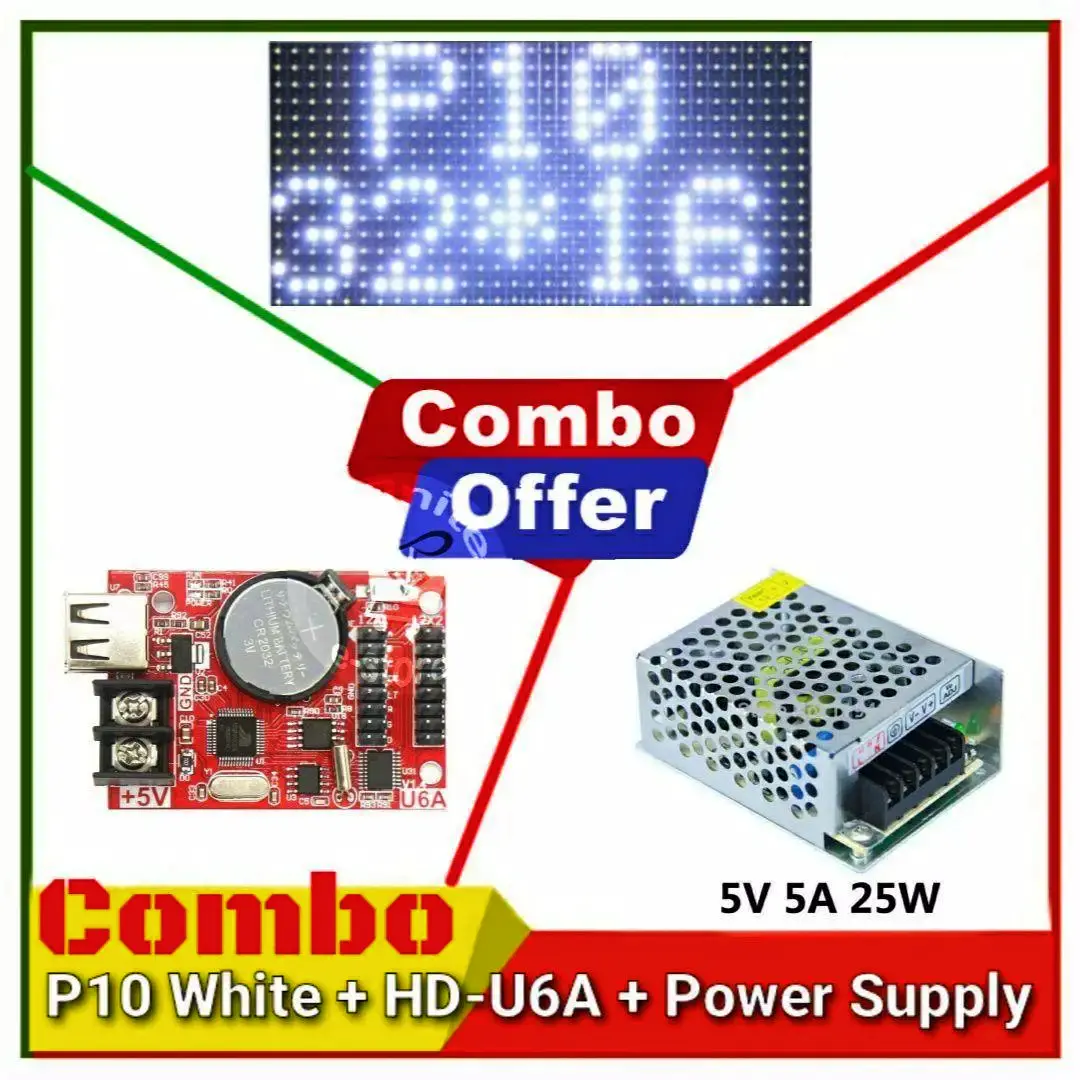

Picture of P10 Red Green White LED module DIP 32*16 + HD-U6A Led Controller + 5V A Power Supply Combo Package for Single color LED display Scrolling message led sign Digital Clock

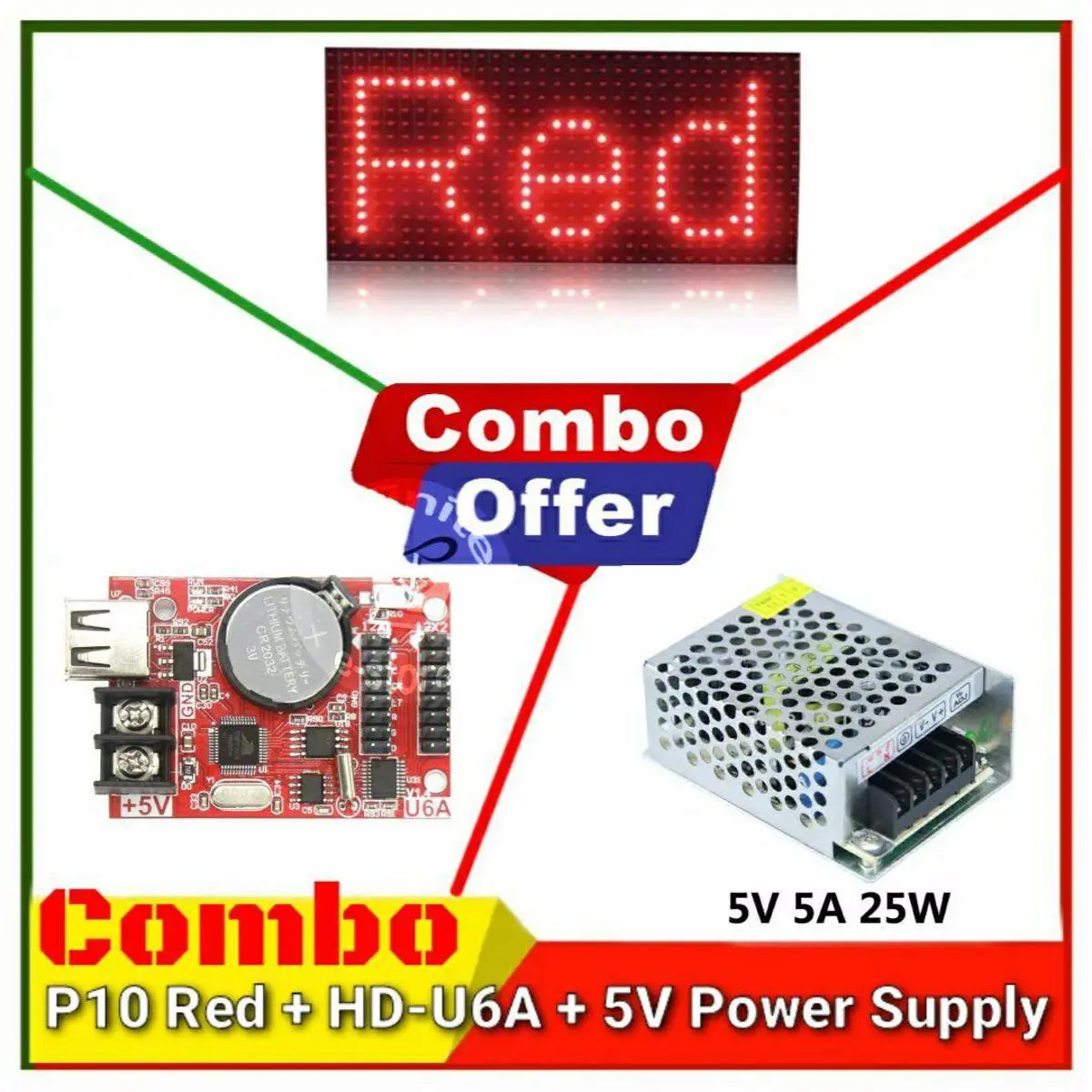

Picture of P10 Red Green White LED module DIP 32*16 + HD-U6A Led Controller + 5V A Power Supply Combo Package for Single color LED display Scrolling message led sign Digital Clock
Picture of P10 Red Green White LED module DIP 32*16 + HD-U6A Led Controller + 5V A Power Supply Combo Package for Single color LED display Scrolling message led sign Digital Clock

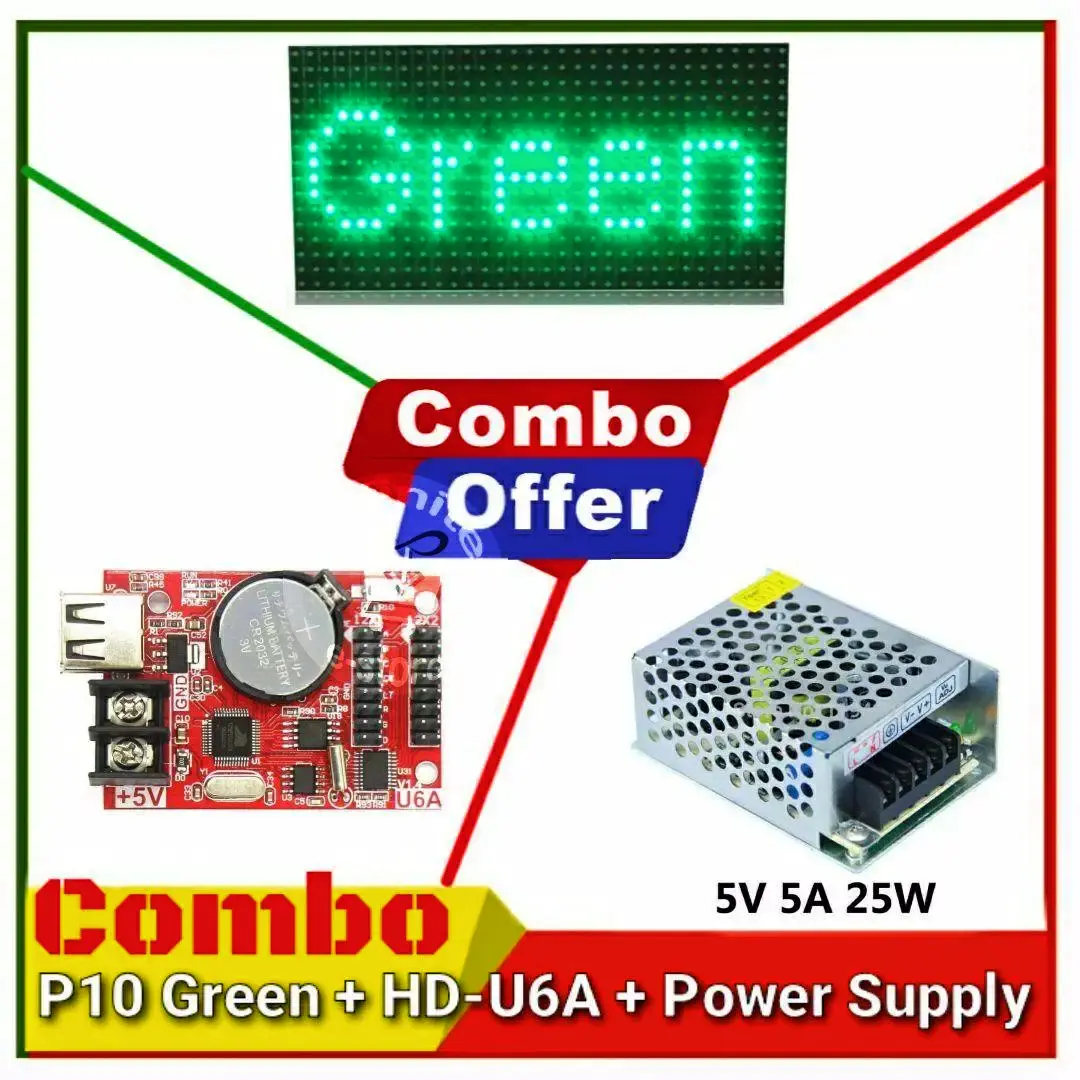

Picture of P10 Red Green White LED module DIP 32*16 + HD-U6A Led Controller + 5V A Power Supply Combo Package for Single color LED display Scrolling message led sign Digital Clock

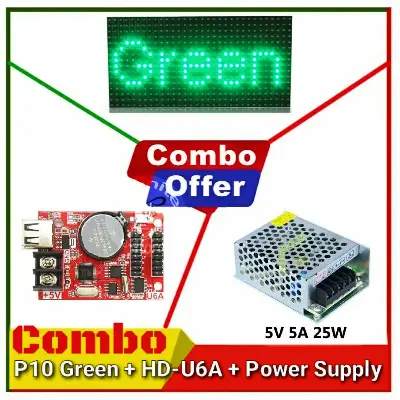

Picture of P10 Red Green White LED module DIP 32*16 + HD-U6A Led Controller + 5V A Power Supply Combo Package for Single color LED display Scrolling message led sign Digital Clock
Picture of P10 Red Green White LED module DIP 32*16 + HD-U6A Led Controller + 5V A Power Supply Combo Package for Single color LED display Scrolling message led sign Digital Clock

P10 Red Green White LED module DIP 32*16 + HD-U6A Led Controller + 5V A Power Supply Combo Package for Single color LED display Scrolling message led sign Digital Clock

Category: Computers, Components & Accessories
SKU: MOS895481
Seller: Module Shop
Tk 1,700
0 review(s)
  • P10 LED Panel চালানোর জন্য কমপ্লিট প্যাকেজ। আপনি শুধু পাওয়ার সাপ্লাইয়ে AC 220V দিলেই রেডি আপনার ডিজিটাল সাইন বোর্ড।
  • প্রথমত আপনার নাম, মোবাইল নাম্বার, সময় ও তারিখ সেট করে দিব যা পর্যায়ক্রমে ডিসপ্লেতে আসবে।
  • আপনি চাইলে আপনার ব্যাবসা, প্রতিষ্ঠান, দোকানের নামে প্রোগ্রাম করে দিব সেক্ষেত্রে Chat Option এ কমেন্টে লিখে দিতে হবে।
  • P10 Combo Package - P10 Panel + HD-U6A LED Controller + 5V 5A Power Supply
  • Model NO.: P10
  • IP Rating: IP65
  • Pixel: 32 x 16 LED
  • Size: 320 x 160
  • Scanning Mode: 1/4 Scan
  • ------------------------------LED Controller---------------------------------
  • Model: Huidu HD-U6A
  • Software Link: https://drive.google.com/file/d/1NxlC_s5y116MRTNem3Wjkmftxi4m9X24/view?usp=sharing
  • Single color control pixels: Max 32*320
  • Dual color control pixels: Max 32*160
  • Communication: USB port
  • Interface: 2xT12
  • Scanning way: 1/16,1/8,1/4, 1/2 scanning and static of monochrome/double color LED display
  • 20 programs are available,which can be switched by buttons or remote control
  • -----------------------5V5A Power Supply-------------------------
  • Input voltage : 85-265V 50-60Hz
  • The output voltage : DC 5V
  • Current: 5A Maximum
  • Power : 0-25W
*

Call For Order : 09613-800800

Function:

1. Excellent visual effect, better viewing effect for text and graphic or video

2. Large viewing angle,both H/V can reach 110 degree;getting vivid effect within any position of the viewing range;

3. High contrast ratio and good evenness, high uniformity,without mosaic

4. Resist of the high temperature and antioxidation and anti-statiic;

5. Any led in each pixel can be respectively replaced, which reduce the cost of the display maintaince.

6. Long using life & MTBF Application: Replacement of Indoor DIP P10 Single color led module, Advertising media LED Display, LED sign, LED video wall, LED screen.

Features:

1. High brightness(DIP LB346);

Module Parameter:

Pixel pitch

10mm

Pixel Density

10,000 dots/m²

Pixel configuration

1R

LED type

DIP346

Module size

320*160mm

Module weight

583g

Module resolution

32*16dots

Module quantity

19.53 pcs/m²

Min. Viewing Distance

≥10m

Brightness

≥3500 cd/m²

Viewing Angle

H≤120° V≤120°

Driving Mode

1/4 scan constant current

Interface

HUB12

Input voltage

4.8-5.5VDC

Max. Power Consumption

220 w/m²

Avg. Power Consumption

80-100 w/m²

Max. Current

2.6-2.9A

Frame rate

60 frames/s

Defective Dots Rate

<0.0001 (LED display line standard: ≤ 0.0003)

Decay Rate

≤5%/year

Brightness Conformity

>95%

MTBF

≥10000 hours

Lifespan

≥100000 hours

Protective function

Over-heat/Over-load /Power-down /Power-leakage/Lightning

-protection etc.

Operating Temperature

-20℃~+50℃

Operating Humidity

10-85% no condensation

Storage Temperature

-30℃~+60℃

Storage Humidity

10-95% no condensation

Control System Parameter

Brightness control

256 levels, automatic adjustment.

Control way

Computer, real-time, off-line, wireless, network etc.

Communication Distance

Cat5 UTP 100 meters, max. 130 meters; or optical fiber.

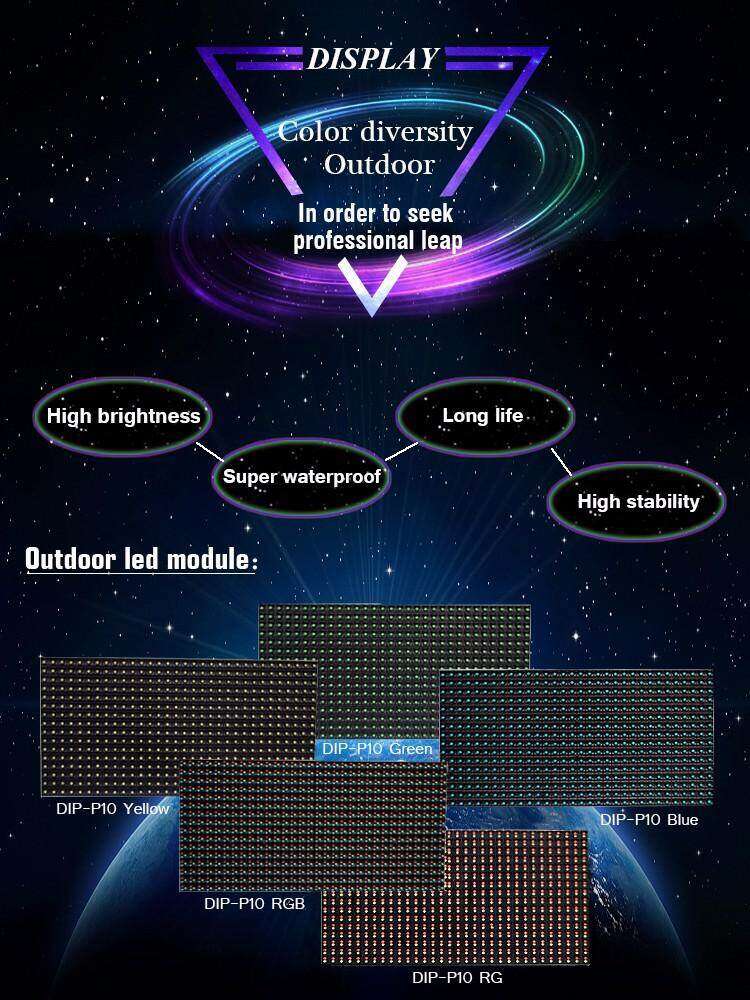

Product show






  • P10 LED Panel চালানোর জন্য কমপ্লিট প্যাকেজ। আপনি শুধু পাওয়ার সাপ্লাইয়ে AC 220V দিলেই রেডি আপনার ডিজিটাল সাইন বোর্ড।
  • প্রথমত আপনার নাম, মোবাইল নাম্বার, সময় ও তারিখ সেট করে দিব যা পর্যায়ক্রমে ডিসপ্লেতে আসবে।
  • আপনি চাইলে আপনার ব্যাবসা, প্রতিষ্ঠান, দোকানের নামে প্রোগ্রাম করে দিব সেক্ষেত্রে Chat Option এ কমেন্টে লিখে দিতে হবে।
  • P10 Combo Package - P10 Panel + HD-U6A LED Controller + 5V 5A Power Supply
  • Model NO.: P10
  • IP Rating: IP65
  • Pixel: 32 x 16 LED
  • Size: 320 x 160
  • Scanning Mode: 1/4 Scan
  • ------------------------------LED Controller---------------------------------
  • Model: Huidu HD-U6A
  • Software Link: https://drive.google.com/file/d/1NxlC_s5y116MRTNem3Wjkmftxi4m9X24/view?usp=sharing
  • Single color control pixels: Max 32*320
  • Dual color control pixels: Max 32*160
  • Communication: USB port
  • Interface: 2xT12
  • Scanning way: 1/16,1/8,1/4, 1/2 scanning and static of monochrome/double color LED display
  • 20 programs are available,which can be switched by buttons or remote control
  • -----------------------5V5A Power Supply-------------------------
  • Input voltage : 85-265V 50-60Hz
  • The output voltage : DC 5V
  • Current: 5A Maximum
  • Power : 0-25W
