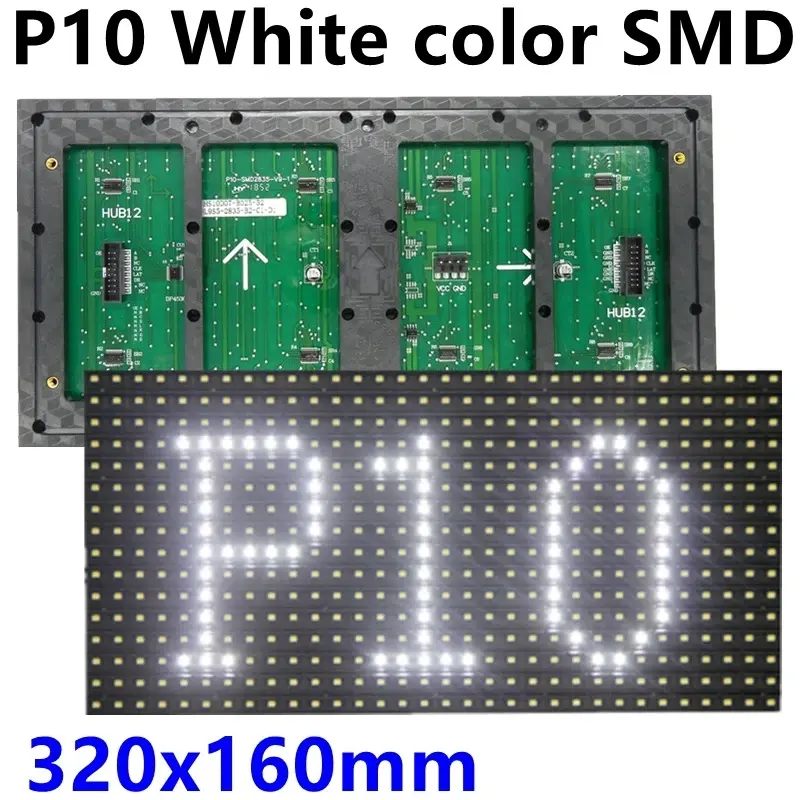

P10 Outdoor White LED module DIP 3216 Pixel 320160mm for Single color LED display Scrolling message led sign 16 x 32 using Controller HD-U6A White

Name: P10 Outdoor White LED module DIP 32*16 Pixel 320*160mm for Single color LED display Scrolling message led sign 16 x 32 using Controller HD-U6A White
SKU: MOS895483
Price: 850.00 BDT
Availability: InStock

Category: Computers, Components & Accessories

SKU: MOS895483

Seller: Module Shop

Tk 850

0 review(s)

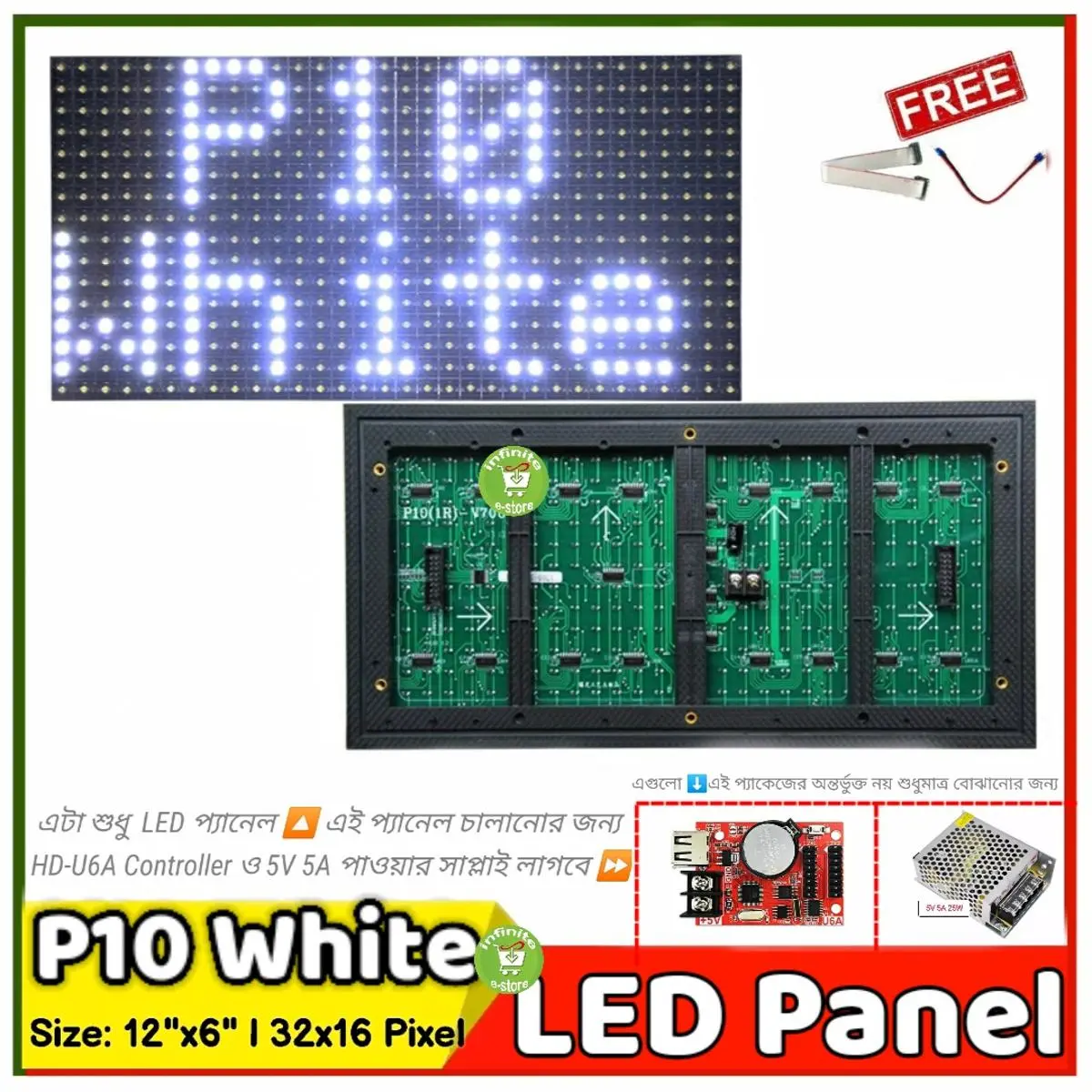

P10 সিঙ্গেল কালার (White) এলইডি প্যানেল। এই প্যানেল চালাতে HD-U6A LED Controller ও ৫ ভোল্টের পাওয়ার সাপ্লাই আপনাকে আলাদা আলাদা ভাবে কিনতে হবে।
Model NO.: P10
IP Rating: IP65
Pixel: 32 x 16 LED
Size: 320 x 160
Pixel Configuration: 1R,1G,1B
Average Power Consumption: 300W / m²
Scanning Mode: 1/4 Scan
Origin: China
Tube Chip Color: single-color
Pixel Pitch: 10mm
Display Function: Text Display
Pixel Density: 10000 dot / m²
If you wanna assemble led display by yourself, your needled panel+power supply+controller, now i list them link for you reference
Controller Link:https://www.daraz.com.bd/products/hd-u6a-usb-port-32320-pixels-single-double-color-led-control-card-asynchronous-controller-max-20pcs-p10-display-module-support-i103964937-s1018696489.html?dsource=share&laz_share_info=266757_100_100_700002492232_127480_0&laz_token=d286f82926f3a35ca0c0a38a2633117e

Call For Order : 09613-800800

Function:

1. Excellent visual effect, better viewing effect for text and graphic or video

2. Large viewing angle,both H/V can reach 110 degree;getting vivid effect within any position of the viewing range;

3. High contrast ratio and good evenness, high uniformity,without mosaic

4. Resist of the high temperature and antioxidation and anti-statiic;

5. Any led in each pixel can be respectively replaced, which reduce the cost of the display maintaince.

6. Long using life & MTBF Application: Replacement of Indoor DIP P10 Single color led module, Advertising media LED Display, LED sign, LED video wall, LED screen.

Features:

1. High brightness(DIP LB346);2. Stable quality;3. Cost-effective;4. Good after-sale.

Module Parameter:

Pixel pitch	10mm
Pixel Density	10,000 dots/m²
Pixel configuration	1R
LED type	DIP346
Module size	320*160mm
Module weight	583g
Module resolution	32*16dots
Module quantity	19.53 pcs/m²
Min. Viewing Distance	≥10m
Brightness	≥3500 cd/m²
Viewing Angle	H≤120° V≤120°
Driving Mode	1/4 scan constant current
Interface	HUB12
Input voltage	4.8-5.5VDC
Max. Power Consumption	220 w/m²
Avg. Power Consumption	80-100 w/m²
Max. Current	2.6-2.9A
Frame rate	60 frames/s
Defective Dots Rate	<0.0001 (LED display line standard: ≤ 0.0003)
Decay Rate	≤5%/year
Brightness Conformity	>95%
MTBF	≥10000 hours
Lifespan	≥100000 hours
Protective function	Over-heat/Over-load /Power-down /Power-leakage/Lightning -protection etc.
Operating Temperature	-20℃~+50℃
Operating Humidity	10-85% no condensation
Storage Temperature	-30℃~+60℃
Storage Humidity	10-95% no condensation

Control System Parameter

Brightness control	256 levels, automatic adjustment.
Control way	Computer, real-time, off-line, wireless, network etc.
Communication Distance	Cat5 UTP 100 meters, max. 130 meters; or optical fiber.

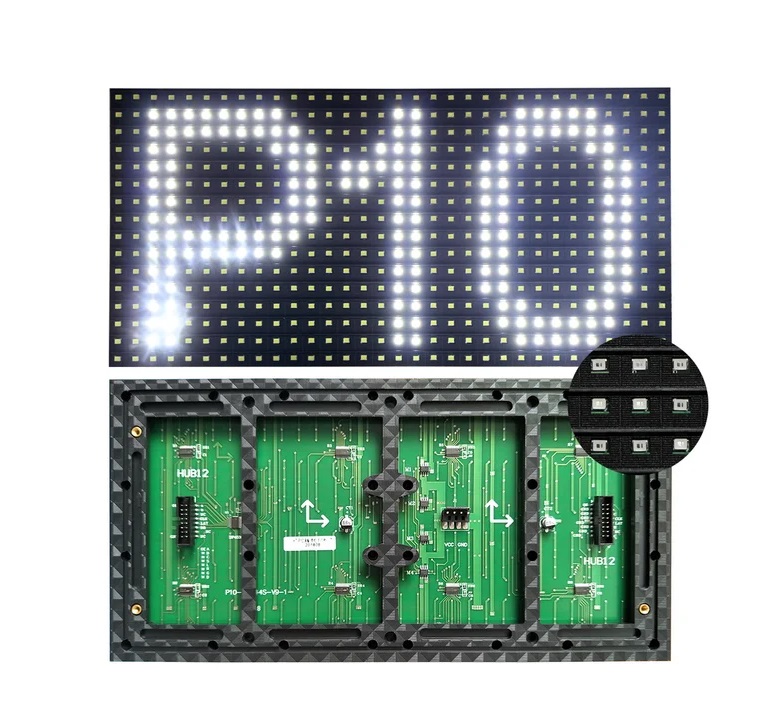

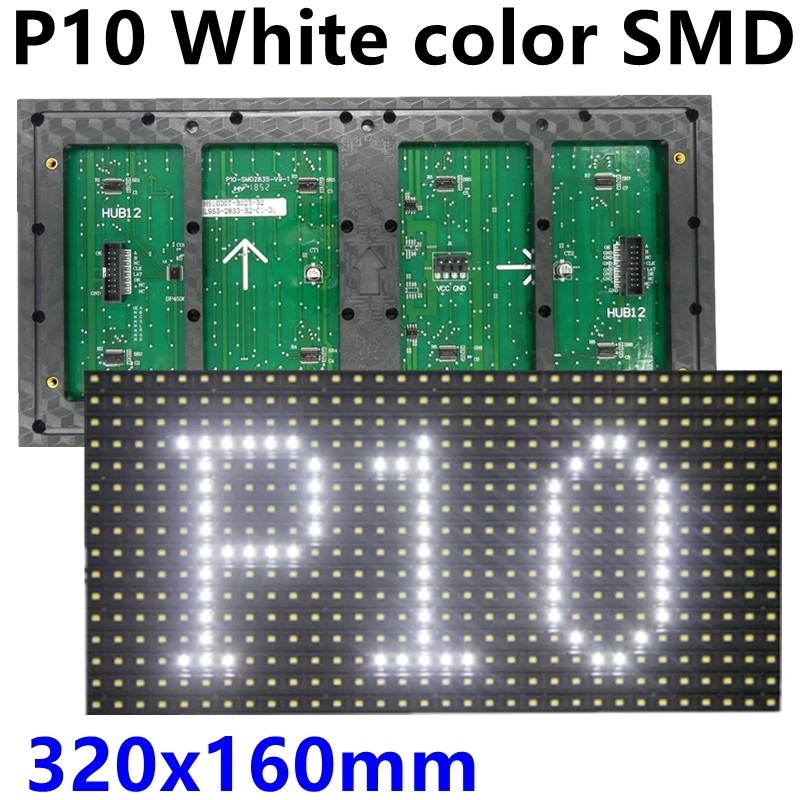

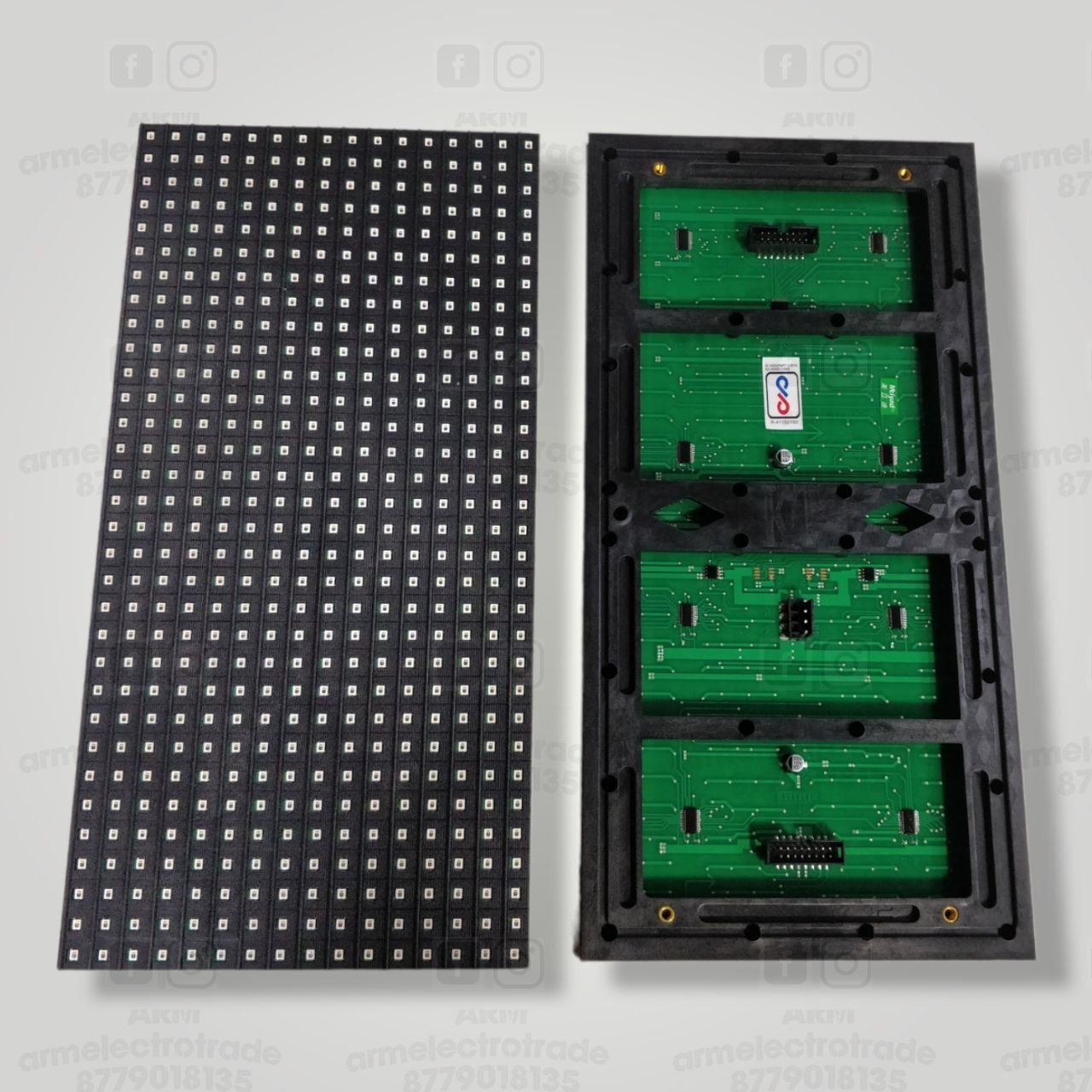

Product show

P10 সিঙ্গেল কালার (White) এলইডি প্যানেল। এই প্যানেল চালাতে HD-U6A LED Controller ও ৫ ভোল্টের পাওয়ার সাপ্লাই আপনাকে আলাদা আলাদা ভাবে কিনতে হবে।
Model NO.: P10
IP Rating: IP65
Pixel: 32 x 16 LED
Size: 320 x 160
Pixel Configuration: 1R,1G,1B
Average Power Consumption: 300W / m²
Scanning Mode: 1/4 Scan
Origin: China
Tube Chip Color: single-color
Pixel Pitch: 10mm
Display Function: Text Display
Pixel Density: 10000 dot / m²
If you wanna assemble led display by yourself, your needled panel+power supply+controller, now i list them link for you reference
Controller Link:https://www.daraz.com.bd/products/hd-u6a-usb-port-32320-pixels-single-double-color-led-control-card-asynchronous-controller-max-20pcs-p10-display-module-support-i103964937-s1018696489.html?dsource=share&laz_share_info=266757_100_100_700002492232_127480_0&laz_token=d286f82926f3a35ca0c0a38a2633117e
