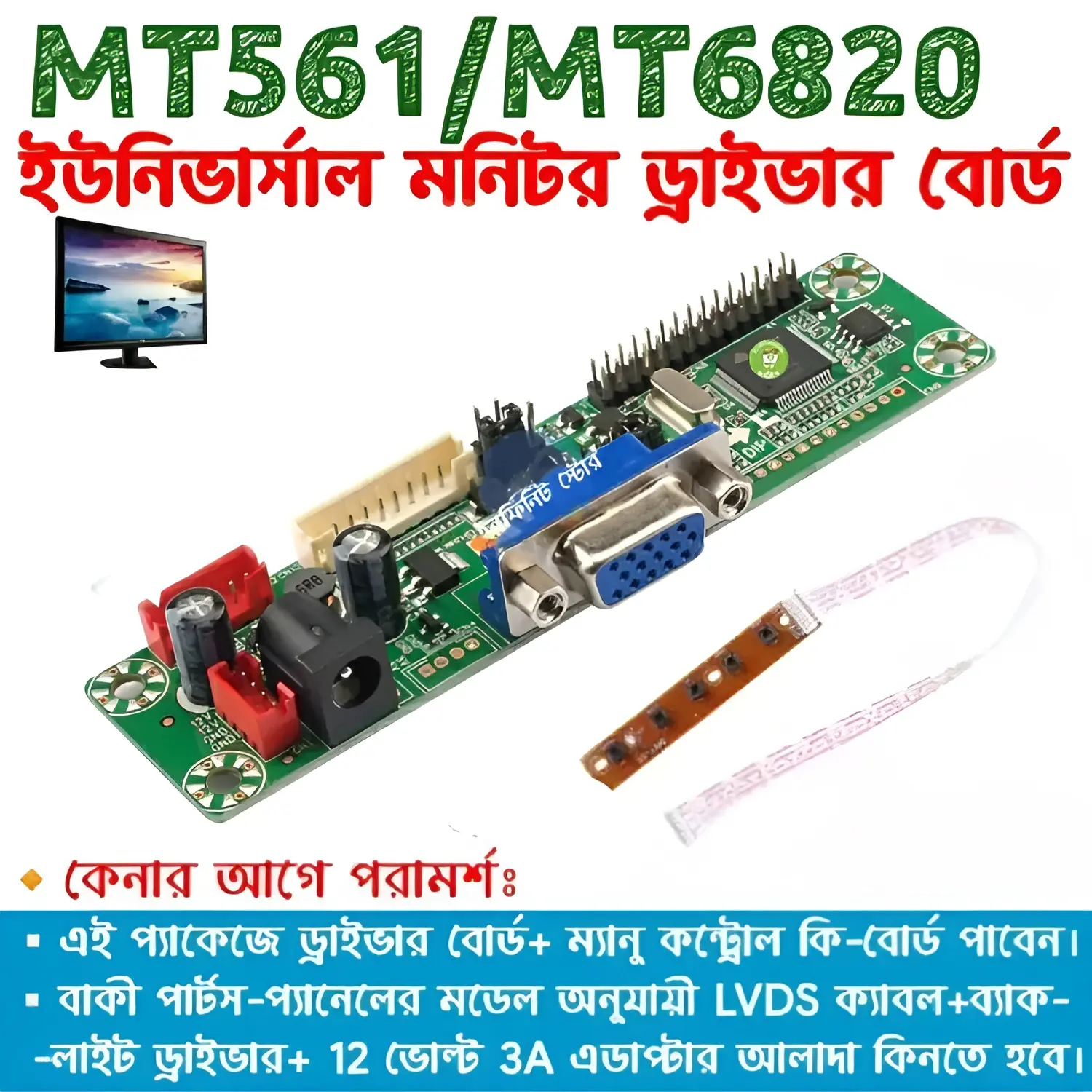

MT6820 MT561 Monitor Motherboard Jumper System Resolution + Manu Control Board for 10.1 to 21.5 inch Monitor Panel

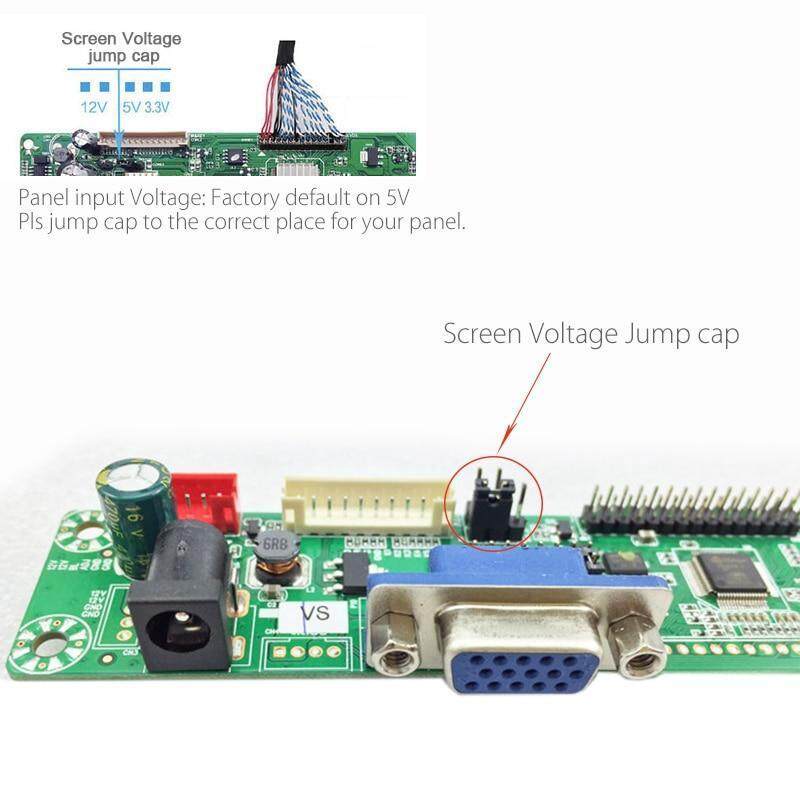

MT6820 / MT168 / MT561 -MD-V2.0 VGA+DC General LVDS LCD Driver Board for 10-42 inch LCD Monitor Panel Jump Cap DC 12V IN 1920x1200Feature:Model: MT561-MDOSD Language:EnglishPanel: 10-42 inch LVDS PanelSingle / Dual LVDS Interface (6/8-bit): 1920 x 1080 Max ResolutionScreen Voltage: 3.3V / 5V / 12VKey definitions, menus, Volume +, Volume -, adjustment / ExitPackage included:1 x LCD Driver Board onlyNotice:The controller board already built-in 25 kinds general programs in the driver board, so you dont need to burn firmwares for it, all you need to do is :1: choose the LCD resolution2: choose the correct screen voltage jump cap.How to choose Resolution for your lcd

25 kinds of jumper cap, without programmer programming, through the ABCDEFG jumper cap settings, which can support most common LVDS LCD screen, jumper Description printed on the back of the board is very convenient, the driver board with high-definition master chip program , Up to 1920 * 1200 resolutionCommon Resolution Panel Jumper Cap Setting:17inch 19inch Panel: 1280*1024 D15.6inch 18.5inch Panel: 1366*768 E19inch wide Panel: 1440*900 C20inch Panel: 1600*900 B+G20.1inch 22inch Panel: 1680*1050 B21.5inch 23.6inch Panel: 1920*1080 A

mean resolution 1920*1080 LVDS cable 8bit single

Supported resolutions:800*600 1024*600 1024*768 1280*1024 1280*1024 1366*768 1400*1050 1440*900 1600*900 1600*1200 1680*1050 1920*1200

Instruction to connect the controller board to the LCD:

Take away the old inverter and old LVDS cable from the LCD panel.Connect the new inverter and LVDS cable to your LCD panel.Connect controller board with PC by VGA cable.Input power of 12V,4A.
