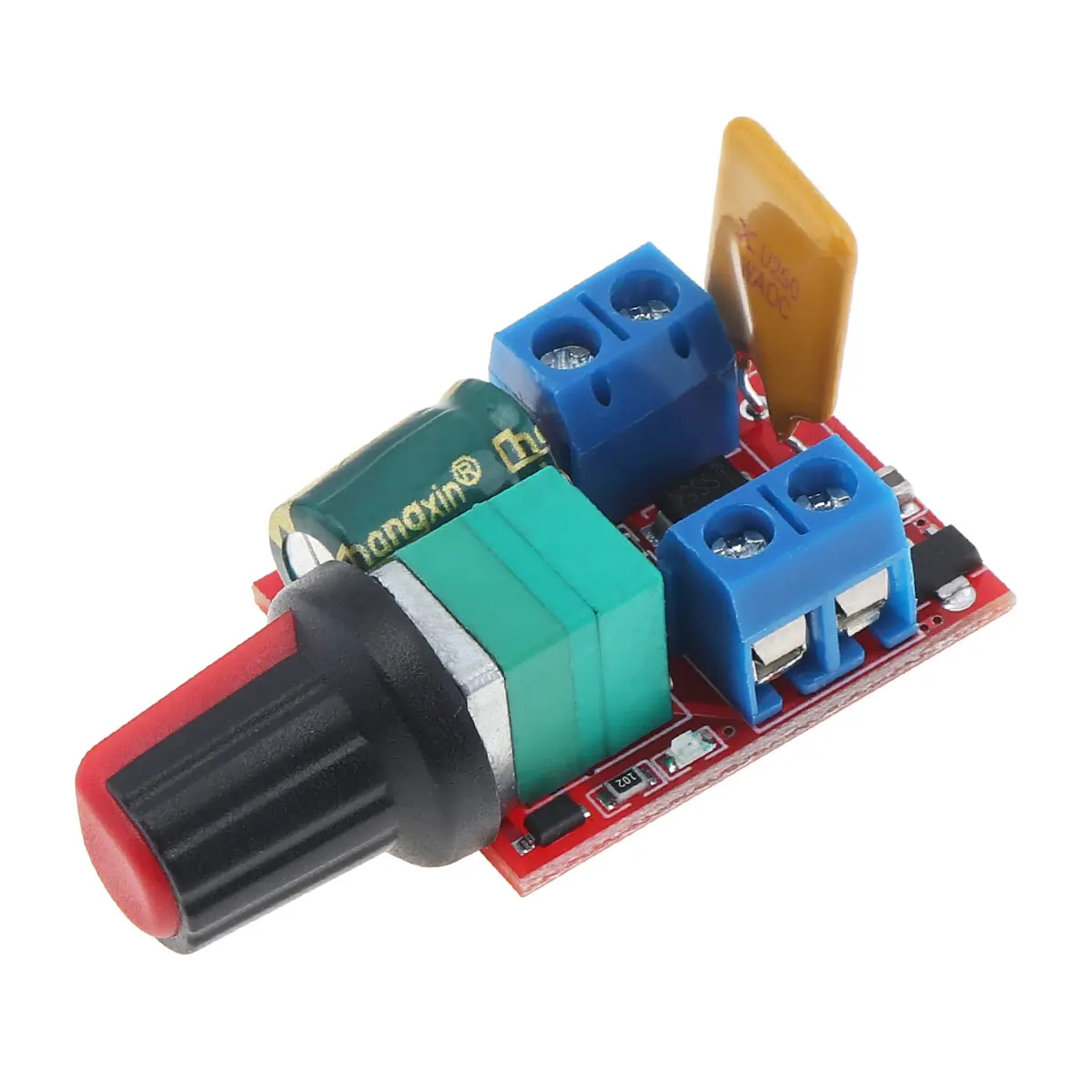

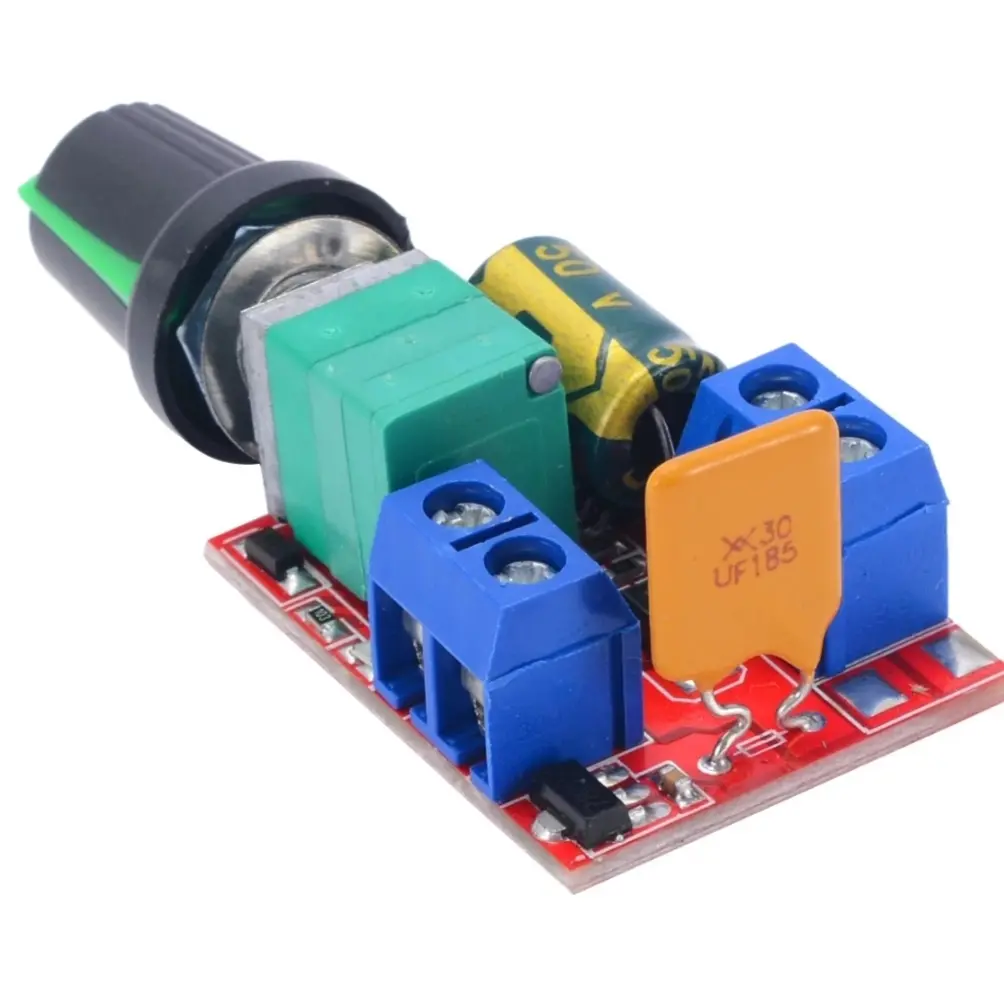

Mini DC Motor PWM Speed Controller Module Speed Control Switch LED Dimmer 90W DC

Category: Electrical Accessories
SKU: MOS896596
Seller: Module Shop
Tk 220
0 review(s)
  • Input supply voltage:1.8V-15VDC
  • The max output power:90W max
  • The max continuous output current :5A max
  • Duty Cycle adjustable: 0%-100%
  • Size: approx. 32*32*15mm/1.25*1.25*0.59''
  • Net weight: approx. 14g
  • Features:
  • This Brand New 1803BK DC Motor Speed Controller allows controlling the direction of a DC the motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully the product adjust from 0%-100%.

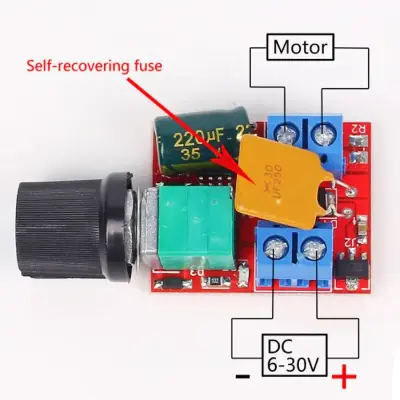

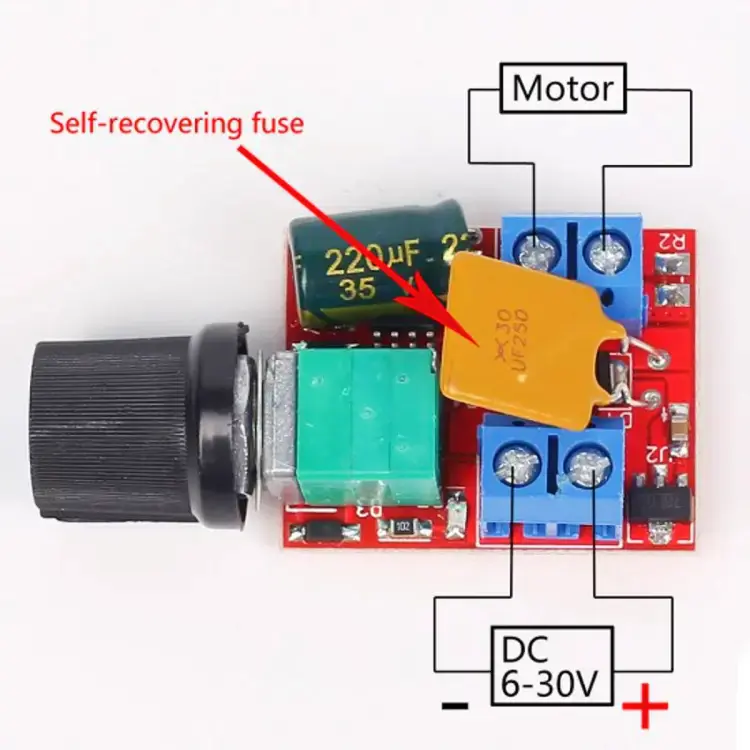

  • With a self-recovery fuse 5a and a Power-On LED light.
  • Enable to provide a continuous current of 5A to your DC motor or other DC load.
  • Note: DC motor speed regulator DC power supply, do not be directly connected to household 220V AC.

  • Please allow 1-3mm differs due to manual measurement.
    Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding

Call For Order : 09613-800800
  • Input supply voltage:1.8V-15VDC
  • The max output power:30W
  • The max continuous output current :2A
  • Duty Cycle adjustable: 0%-100%
  • Size: approx. 32*32*15mm/1.25*1.25*0.59''
  • Net weight: approx. 14g
  • Features:
  • This Brand New 1803BK DC Motor Speed Controller allows controlling the direction of a DC the motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully the product adjust from 0%-100%.
  • With a self-recovery fuse 2A and a Power-On LED light.
  • Enable to provide a continuous current of 2A to your DC motor or other DC load.
  • Note: DC motor speed regulator DC power supply, do not be directly connected to household 220V AC.
  • Please allow 1-3mm differs due to manual measurement.



    Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding





  • Input supply voltage:1.8V-15VDC
  • The max output power:90W max
  • The max continuous output current :5A max
  • Duty Cycle adjustable: 0%-100%
  • Size: approx. 32*32*15mm/1.25*1.25*0.59''
  • Net weight: approx. 14g
  • Features:
  • This Brand New 1803BK DC Motor Speed Controller allows controlling the direction of a DC the motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully the product adjust from 0%-100%.
  • With a self-recovery fuse 5a and a Power-On LED light.
  • Enable to provide a continuous current of 5A to your DC motor or other DC load.
  • Note: DC motor speed regulator DC power supply, do not be directly connected to household 220V AC.

  • Please allow 1-3mm differs due to manual measurement.
    Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding
