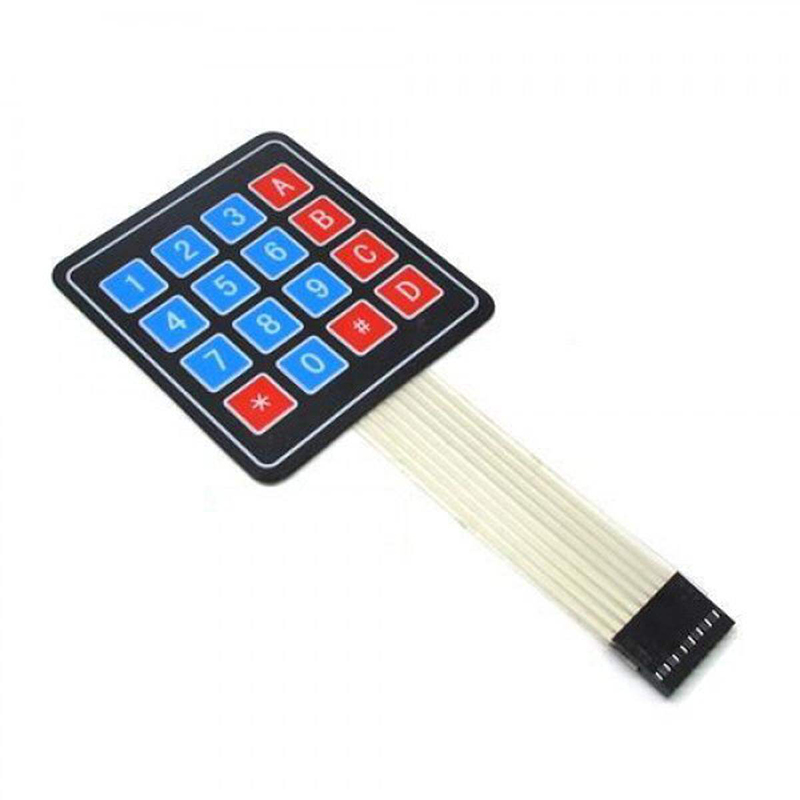

keypad- 4×4 16-Key Switch Keypad for Arduino-Red

Name: keypad- 4×4 16-Key Switch Keypad for Arduino-Red
Brand: No Brand
SKU: ZNTE1047894
Price: 160.00 BDT
Availability: InStock

Category: Computers & Laptops

SKU: ZNTE1047894

Brand: No Brand

Seller: Zannat Engineering

Tk 160

0 review(s)

Pad Size: 3″ x 2-3/4″ x 1/30″ or 77 x 70 x 0.8mm
Cable Length: 3-1/3″ or 85mm
Weight: 9g
Connector: Dupont 8 pins, 0.1″ (2.54mm) Pitch
Mount Style:Self-Adherence
Max. Circuit Rating: 35VDC, 100mA
Insulation Spec.:100M Ohm, 100V
Dielectric: Withstand 250VRms (60Hz, 1min)
Contact Bounce: <=5ms
Life Expectancy: 1 million closures
Operation Temperature: -20 to +40 °C
Sticker / glue on the back side

Call For Order : 09613-800800

4X4 KEYPAD MODULES are available in different sizes and shapes. But they all have same pin configuration. It is easy to make 4X4 KEYPAD by arranging 16 buttons in matrix formation by yourself.

Pin Number	Description
ROWS
1	PIN1 is taken out from 1st ROW
2	PIN2 is taken out from 2nd ROW
3	PIN3 is taken out from 3rd ROW
4	PIN4 is taken out from 4th ROW
COLUMN
5	PIN5 is taken out from 1st COLUMN
6	PIN6 is taken out from 2nd COLUMN
7	PIN7 is taken out from 3rd COLUMN
8	PIN8 is taken out from 4th COLUMN

As given in above table a 4X4 KEYPAD will have EIGHT TERMINALS. In them four are ROWS of MATRIX and four are COLUMNS of MATRIX. These 8 PINS are driven out from 16 buttons present in the MODULE. Those 16 alphanumeric digits on the MODULE surface are the 16 buttons arranged in MATRIX formation.
