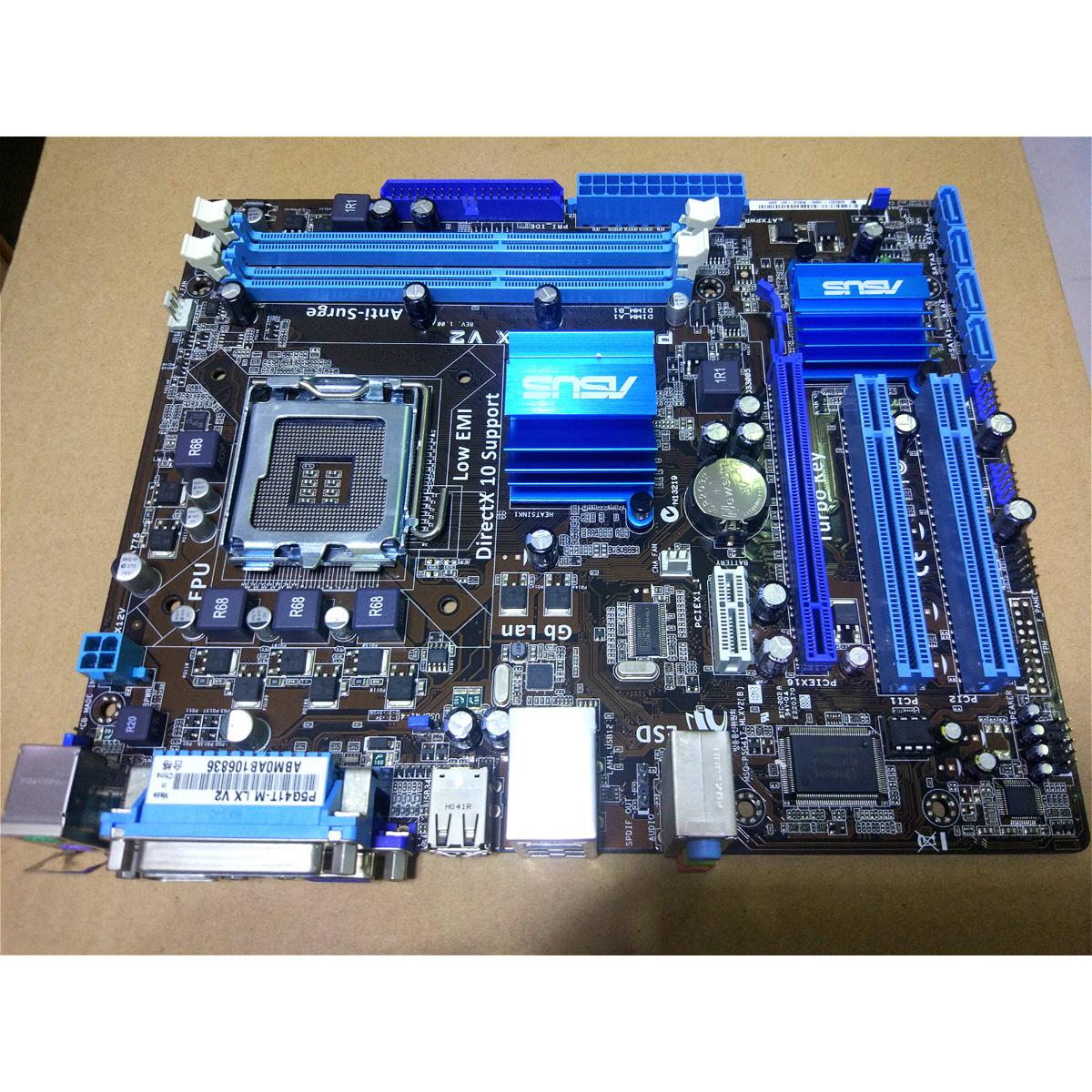

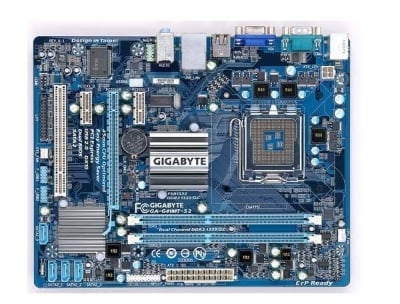

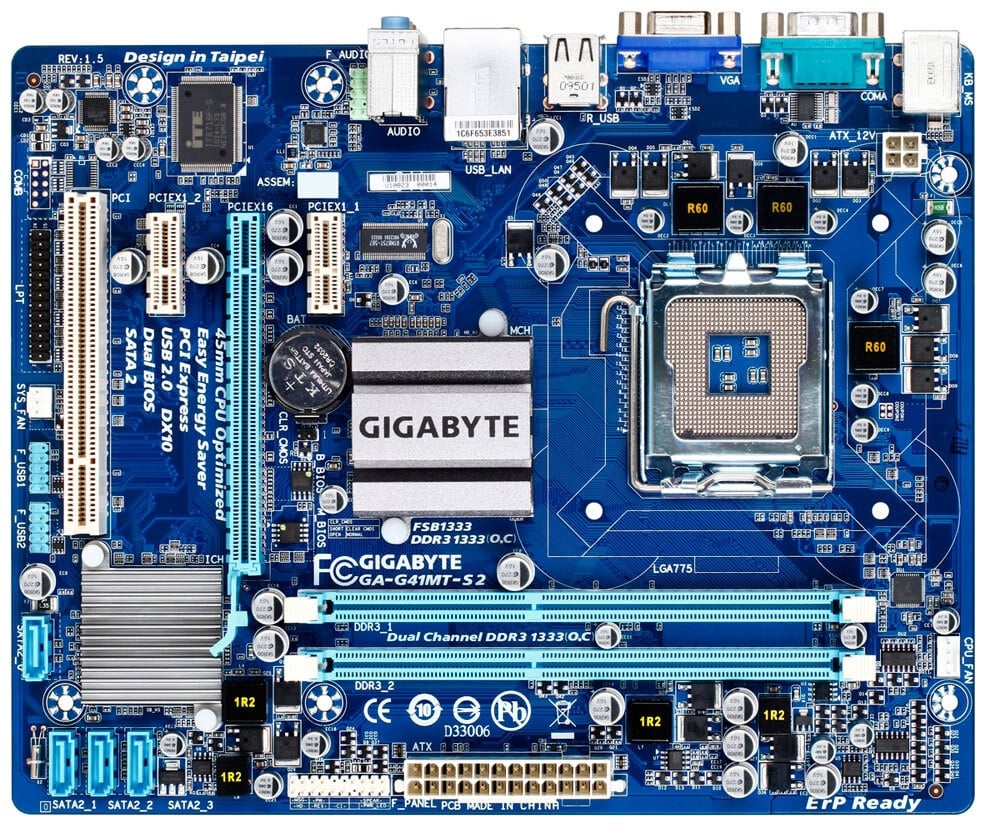

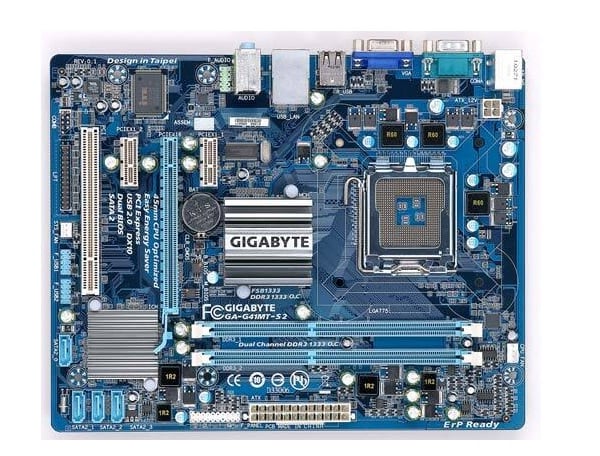

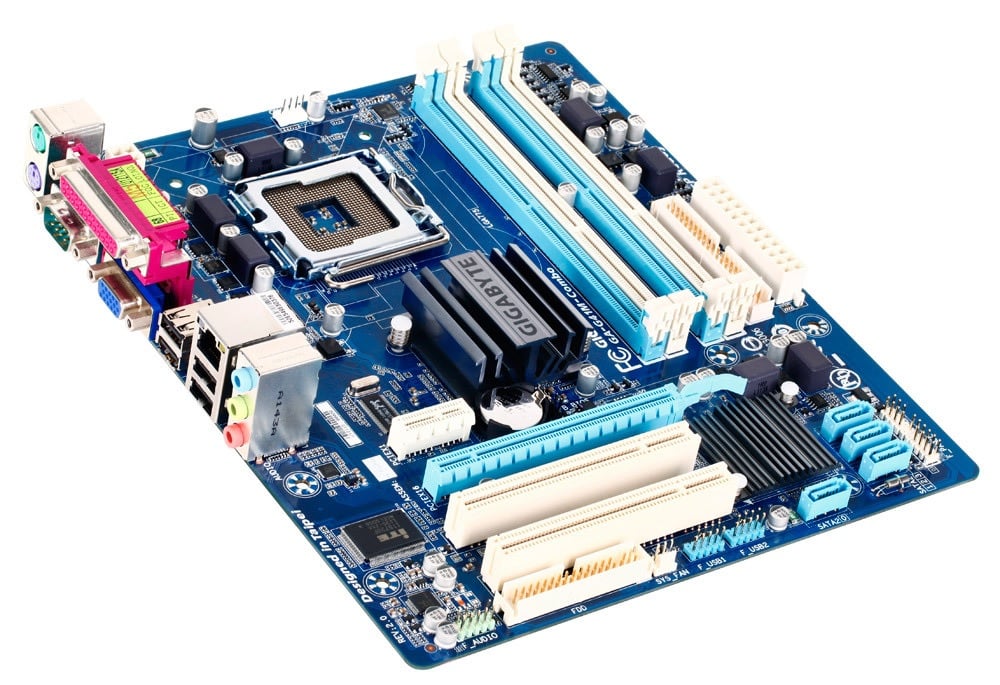

For Desktop Computer ASUS/GIGABYTE/MSI/INTEL G41 Motherboard KOREAN

Brand

• ASUS/GIGABYTE/MSI/INTEL

Model ID

• P5G41T-M LX

Essentials

Form Factor

• Micro-ATX

Socket Type

• LGA 775

Compatible Processors

• Intel Core 2 Quad Processor, Intel Core 2 Duo Processor, Intel Pentium Dual Core Processor, Intel P4 Processor, Intel Celeron Processor

FSB

• 800, 1066, 1333 MHz

Chipset

• Intel G41, Intel ICH7

Chipset Manufacturer

• Intel

Memory

Number of Memory Slots

• 2 Slots

Memory Configuration

• 8 DDR3 Dual Channel DIMM

Memory Frequency

• 1333 MHz

ECC Support

• Non-ECC

Buffered Memory

• Unbuffered

Storage

SATA 3 Gb/s

• Intel ICH7

PATA Ultra DMA

• 1, Intel ICH7

Graphics

Integrated Graphics card

• Intel GMA X4500

Audio

Audio Codec

• Realtek ALC887

Audio Channels

• 8

Audio Features

• Supports Jack-detect, Multi-streaming Teconologies

Connectivity

Ethernet Controller

• Qualcomm Atheros

Ethernet Features

• Gigabit LAN

Expansion Slots

PCI Slots

• 2

PCIe x1 Slots, Generation

• 1

PCIe x16 Slots, Generation

• 1

Internal I/o Headers

SATA 3 Gb/s Headers

• 4

USB 2.0 Headers

• 2

Fan Headers

• 1 (Processor Fan Headers), 1 (System Fan Headers)

Front Panel Headers

• 1

Other Connectors

• 1 x 24-pin EATX Power Connector, 1 x 4-pin ATX 12V Power Connector, 1 x System Panel, 1 x Internal Speaker Connector, 1 x IDE Connector, 1 x S/PDIF Out Connector

Back Panel Ports

USB 2.0 Ports, Controller

• 8

VGA/D Sub Ports

• 1

Audio I/O Channels

• 3

RJ-45 Ethernet Jacks

• 1

PS/2

• 2

General Features

Overclocking

• Overclocking Protection: ASUS C.P.R.(CPU Parameter Recall)

Support CDs

• Drivers, ASUS PC Probe II, ASUS Update

Bundled Software

• Anti-virus Software (OEM Version)

BIOS

• 8 MB Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0, SMBIOS 2.5

Features

• Support Intel 45 nm Multi-core CPU, Supports RGB with Max Resolution 2048 x 1536 (@75Hz), Supports Microsoft DirectX 10, Express Gate and EPU

Advanced Technologies

• ASUS Q-fan Technology

Advanced Features

• ASUS MyLogo 2, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, ASUS Anti-surge, ASUS EPU-l, ASUS Express Gate, Turbo Key, AI NET2

Dimensions

Dimensions

• 201 x 244 mm
