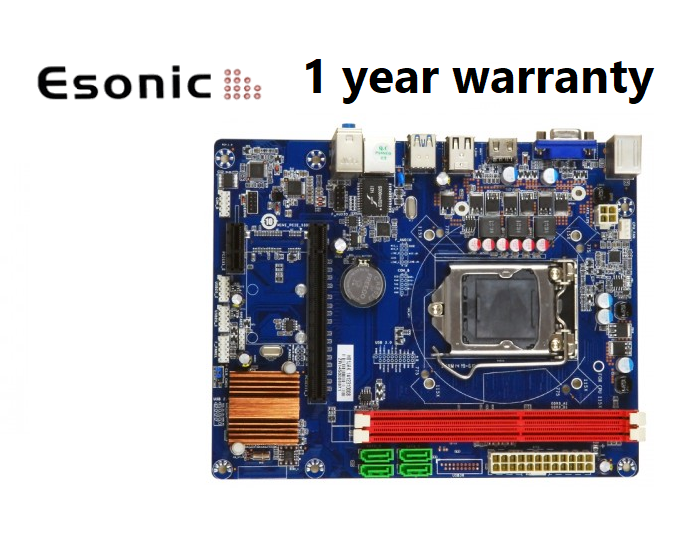

Esonic H81 Motherboard

Esonic H81 Motherboard Basic Information:
Brand

Esonic
Model

H81-JEL
Form factor    Micro ATX; 22.6cm x 17cm
Sockets    LGA1150
Chipset    Intel H81 Express
Supported CPU    Intel Core 4th Gen i7 / i5 / i3 / Pentium / Celeron processors in the LGA1150 package L3 cache varies with CPU
RAM type    Dual Channel DDR3
RAM bus    1600/1333 MHz
RAM max    16GB
RAM slot    2 x 1.5V DIMM
PCI Express slot    1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
SATA port    2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices
Audio chipset    Realtek®  ALC 662 6
Audio channel    2/4/5.1/7.1-Channel
Video chipset    Integrated Graphics Processor
LAN chipset    Realtek® GbE LAN Chip (10/100/1000 Mbit)
LAN speed    10/100/1000Mbps
USB Port    USB 2.0 and USB 3.0 Port
VGA port    1
DVI port    1
