Description: E18-D80NK Adjustable Infrared Sensor Switch

E18-D80NK Adjustable Infrared Sensor Switch 3-80cm Infrared Obstacle Avoidance Sensor E18-D80NK Adjustable Infrared Proximity Sensor Switches 3-80cm Detection Range Smart Car Robot E18-D80NK Infrared Obstacle Avoidance Photoelectric Sensor

The E18-D80NK Adjustable Infrared Sensor Switch 3-80cm is a set of transmitter and receiver in one of the photoelectric switch sensor. The detection distance can be adjusted according to the demand. The sensor has a detection range of 3-80cm.

The Adjustable Infrared Sensor Switch is small, easy to use, inexpensive, easy to assemble and can be widely used in a robot to avoid obstacles, interactive media, industrial assembly lines, and many other occasions.

The switching signal output differs in accordance with the obstacles. It remains low when no obstacles and remains high when there are obstacles. There is a bright light behind the probe to detect the scope of 3cm – 80cm.

Features:

• This is a collection of emission and reception in one photoelectric sensor.
• Detection distance can be adjusted according to requirements.
• The sensor has a detection range, interference by visible light small, easy to assemble, easy to use and so on.

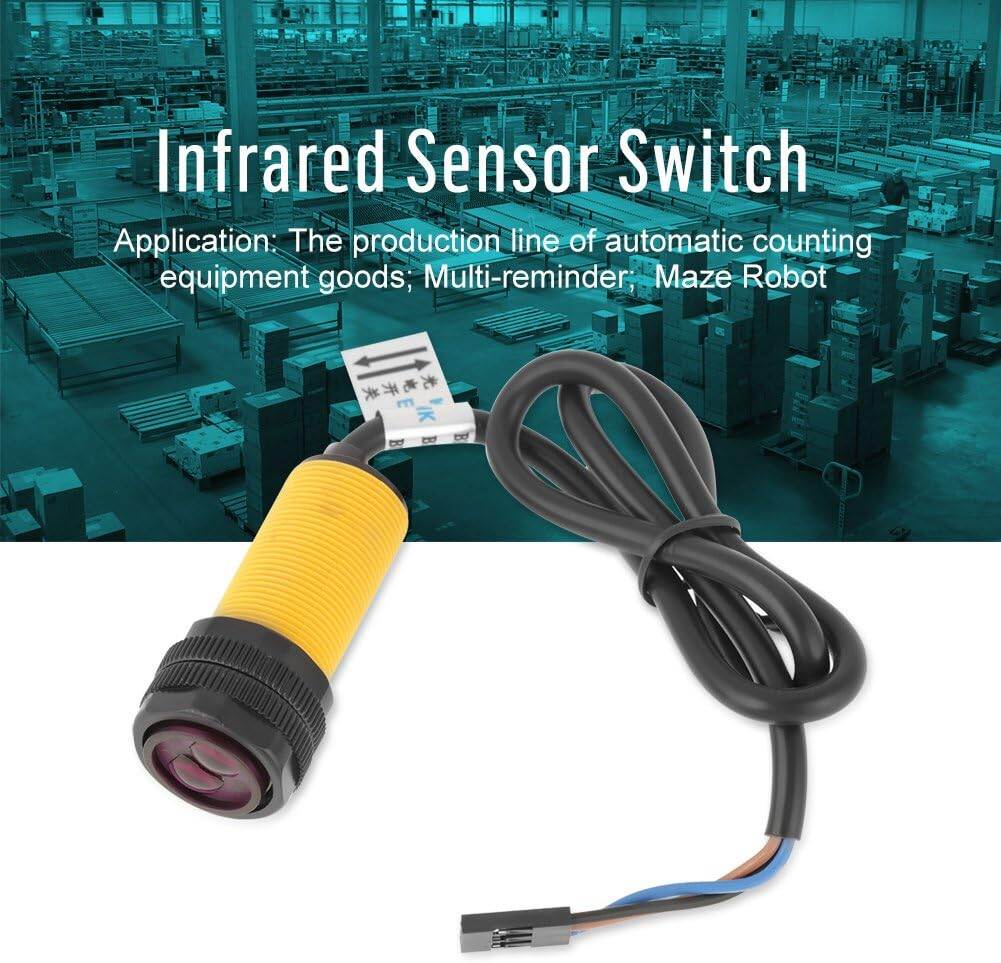

• Can be widely used in robot obstacle avoidance, assembly line and many other automated products.
• Photoelectric sensor (photoelectric switch) NPN normally open.
• E18-D80NK IR Obstacle Avoidance Proximity Sensor E18-D80NK adjustable IR Infrared Proximity Sensor Switch features an IR sensor.
• The E18-D80NK adjustable IR Infrared Proximity Sensor Switch features an IR sensor that can measure distance between 3 to 80 cm. It features an easy to mount chassis, making prototyping much simpler.
• The infared proximity switch module is a reflection-type photoelectric sensor which integrates transmitting and receiving infared beams function. Infrared proximity switches work by sending out beams of invisible infrared light.
• A photodetector on the proximity switch detects any reflections of this light.
• These reflections allow infrared proximity switches to determine whether there is an object nearby.
• Diffuse reflective type.
• Digital output.
• Adjustable detection distance.
• Low consumption.
• Compact size.

Specification:

• Diffuse reflective type
• Light source: Infrared
• Sensing range: 3cm to 80cm (depends on obstacle surface)
• Input voltage: 5VDC
• Current consumption: 100mA
• Dimension: 1.7cm (D) x 4.3cm (L)
• Type :DC 3 Wire NPN-NO (Normal Open)
• Sensory distance regulator and output LED indicator
• Control signal level: High2.3V≤Vin≤5V    Low-0.3V≤Vin≤1.5V

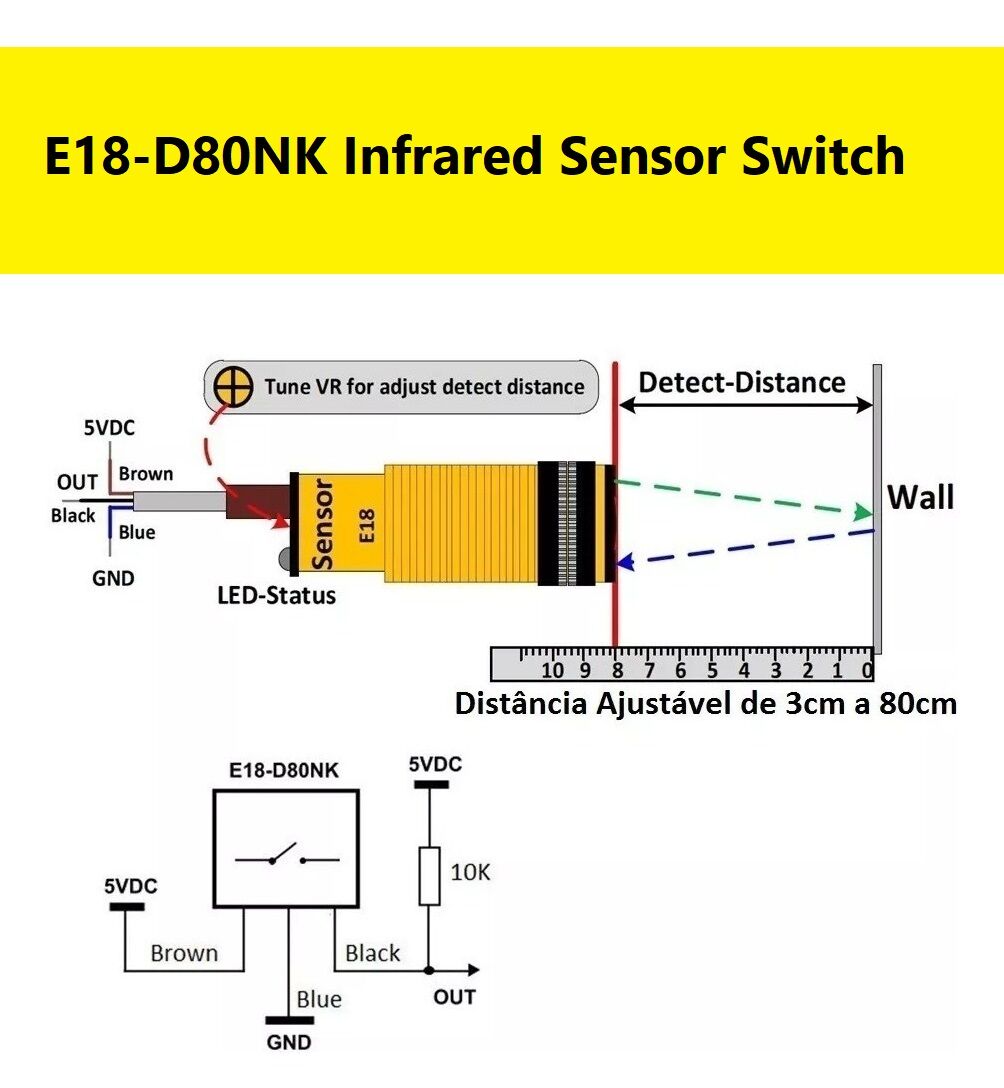

Connection:

• Red wire: +5V
• Green wire: GND
• Yellow wire: Digital output

OR

• Brown wire: +5V
• Blue wire: GND
• Black wire: Digital output.
