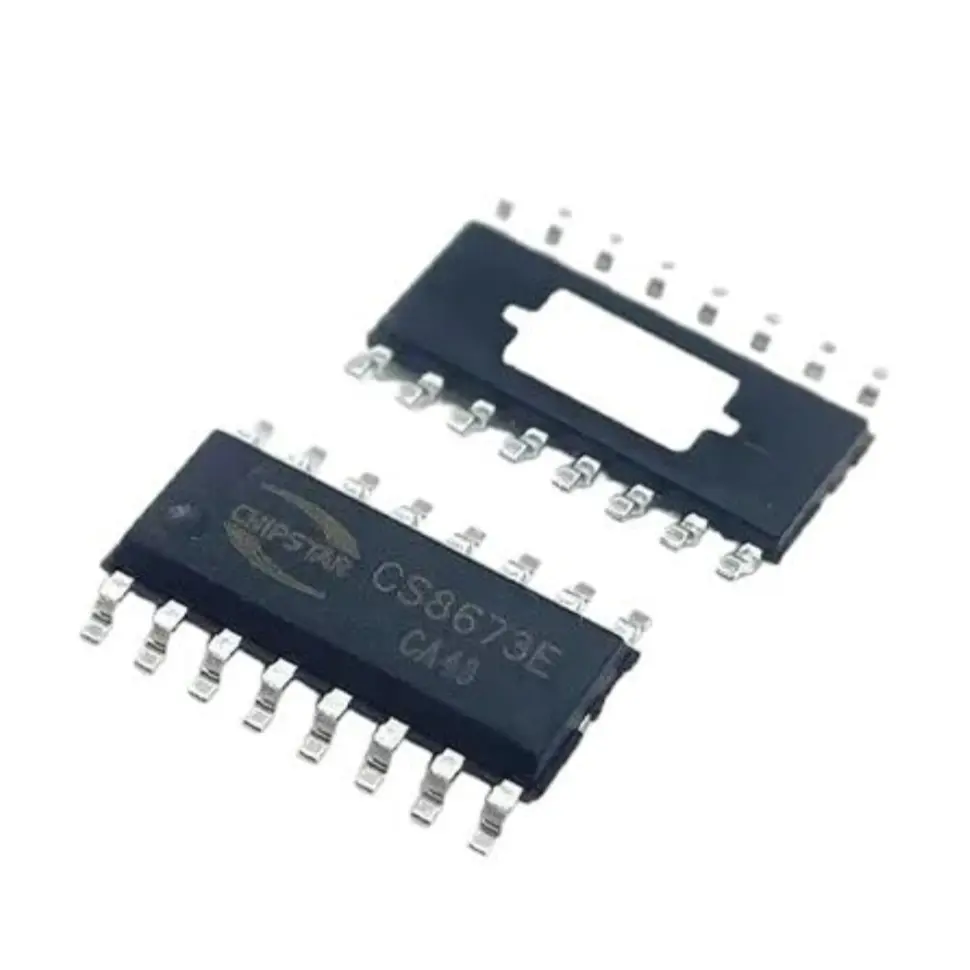

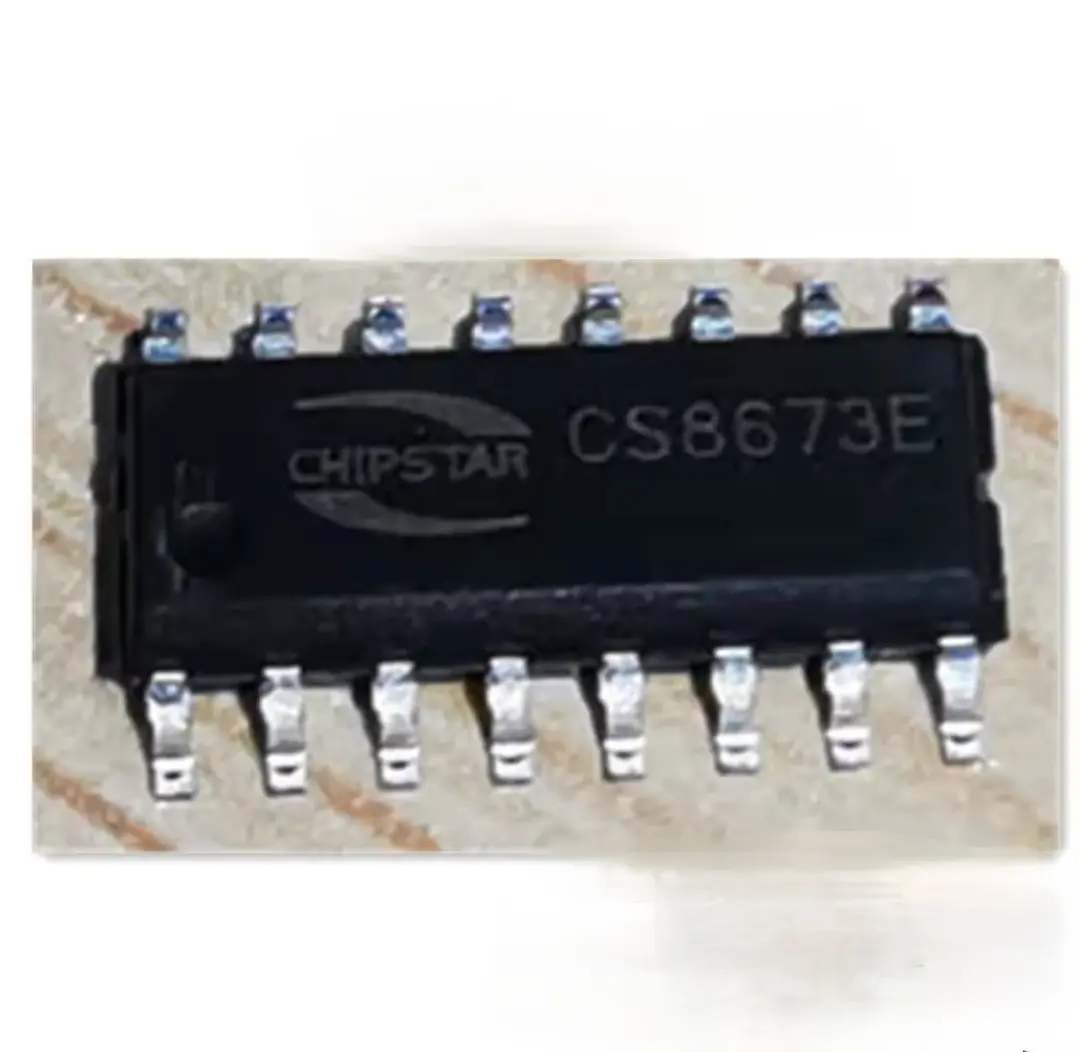

Chipstar cs8673e 16 পিন শক্তিশালী অডিও অ্যাম্প্লিফায়ার চিপ sop16 ব্যবহার করে ZK-502MT CA-502MT ZK-MT21 Black

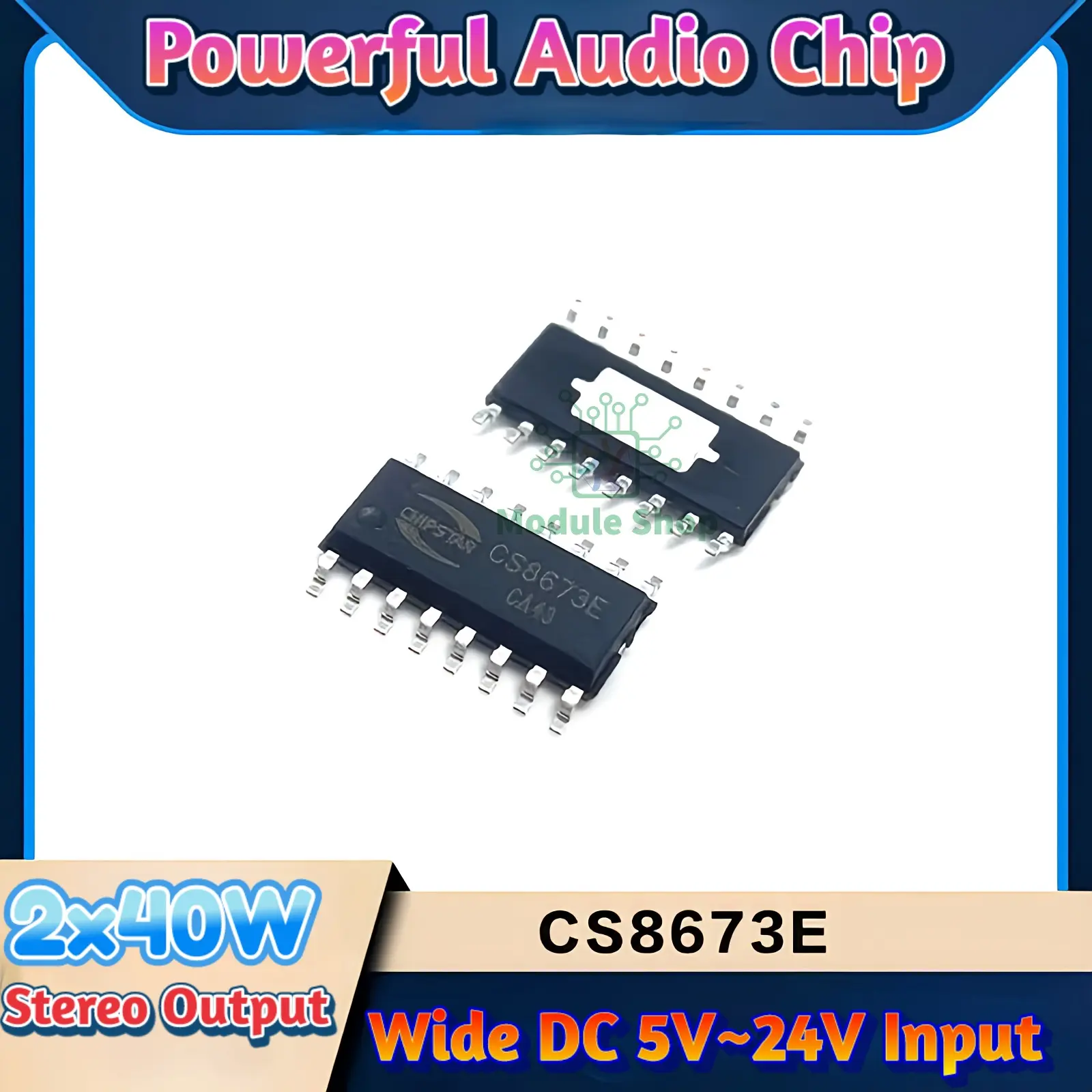

CS8673E

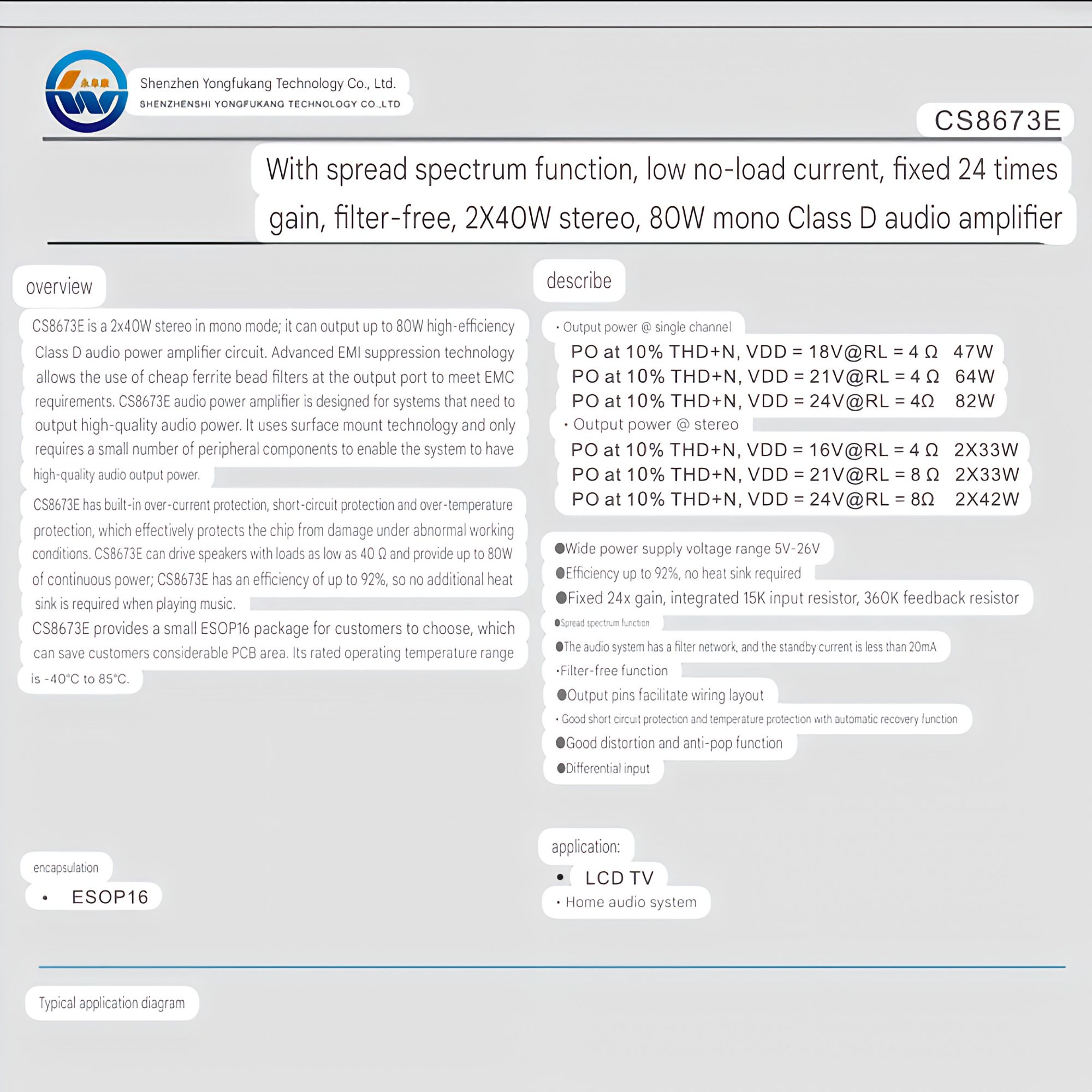

With spread spectrum function, low no-load current, fixed 24 times gain, filter-free, 2X40W stereo, 80W mono Class D audio amplifier

CS8673E is a 2x40W stereo in mono mode; it can output up to 80W high-efficiency Class D audio power amplifier circuit.

Advanced EMI suppression technology allows the use of cheap ferrite bead filters at the output port to meet EMC requirements

CS8673E audio power amplifier is designed for systems that need to output high-quality audio power.

It uses surface mount technology and only requires a small number of peripheral components to enable the system to have high-quality audio output power

CS8673E has built-in over-current protection, short-circuit protection and over-temperature protection, which effectively protects the chip from damage under abnormal working conditions.

CS8673E can drive speakers with loads as low as 400 and provide up to 80W of continuous power; CS8673E has an efficiency of up to 92%, so no additional heat sink is required when playing music.

CS8673E provides a small ESOP16 package for customers to choose, which can save customers considerable PCB area. Its rated operating temperature range is-40°C to 85°C.

Output power @ single channel

PO at 10% THD+N, VDD = 18V@ RL = 4S 47W

PO at 10% THD+N, VDD = 21V@ RL = 4Omega 64W

PO at 10% THD+N, VDD = 24V@ RL = 4Omega 82W

• Output power @ stereo

PO at 10% THD+N, VDD = 16V@ RL = 4Omega 2X33W

PO at 10% THD+N, VDD = 21V@ RL = 8Omega 2X33W

PO at 10% THD+N, VDD = 24V@ RL = 8Omega 2X42W

Wide power supply voltage range 5V-26V

Efficiency up to 92%, no heat sink required

Fixed 24x gain, integrated 15K input resistor, 360K feedback resistor

Spread tpectrum function

The audio system has a hiter network, and the standby current is less than 20mA

Filter-free function

Output pins facilitate wiring layout

Good short circuit protection and temperature protection with automatic recovery function

Good distortion and anti-pop function

Differential input

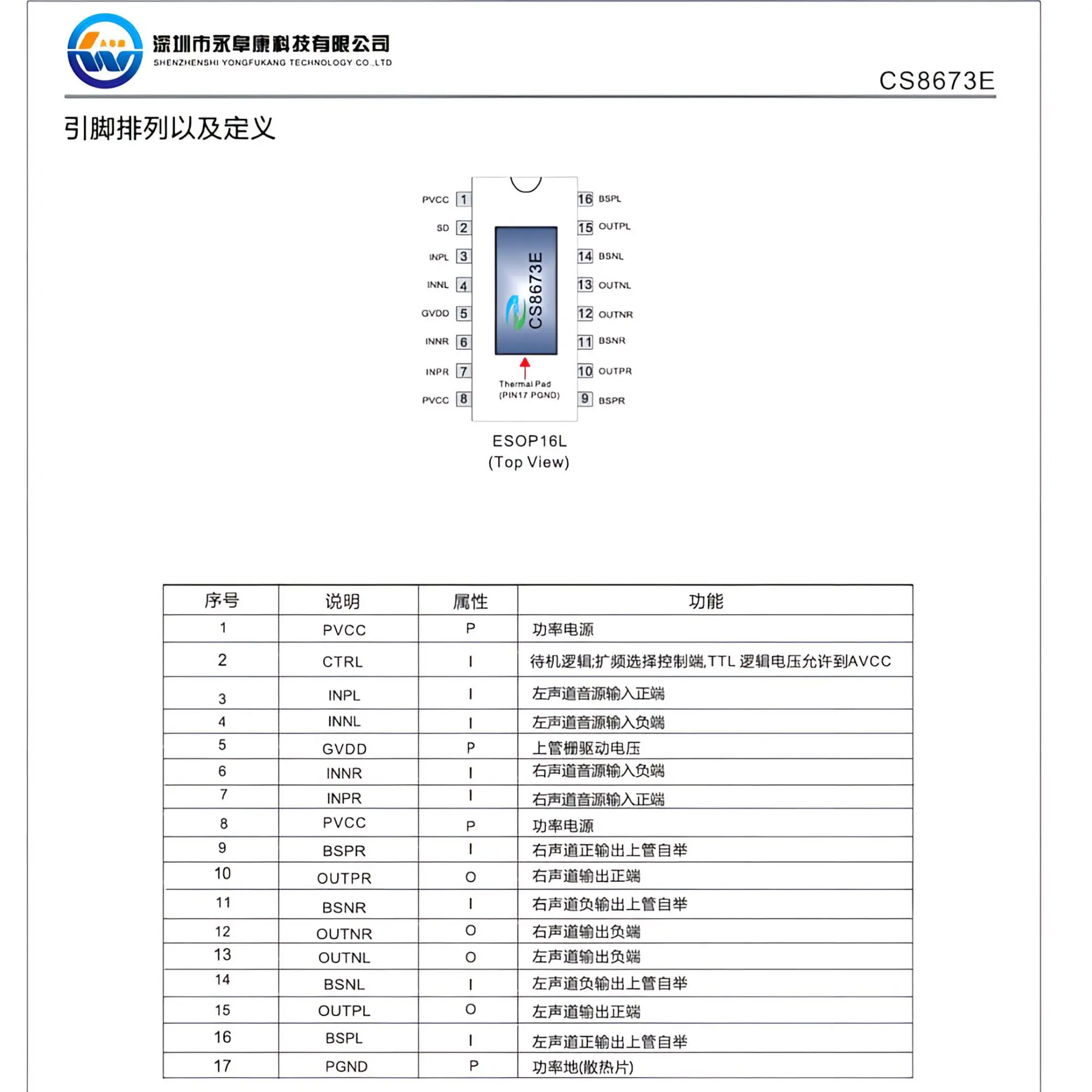

encapsulation

ESOP16

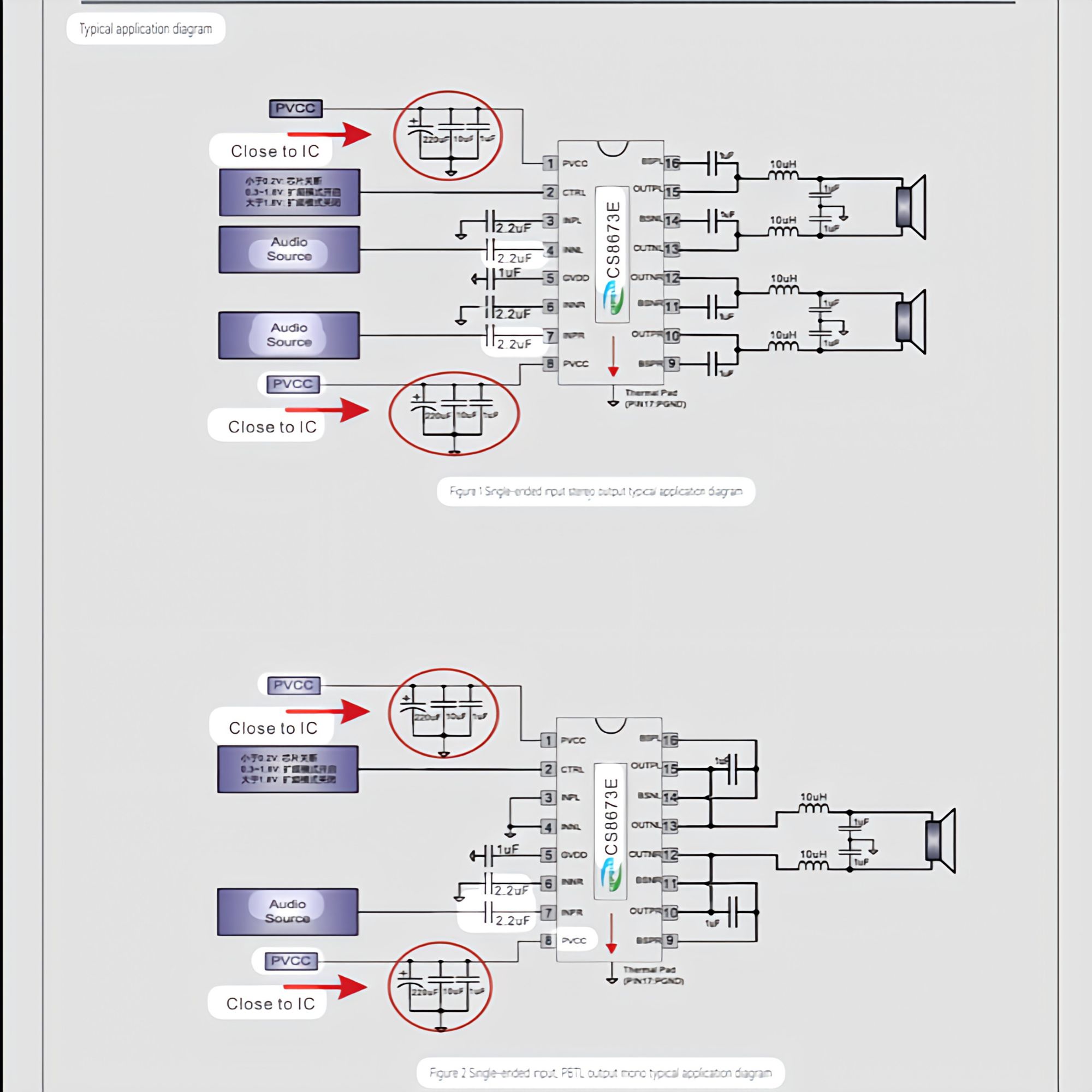

application:

LCD TV

Home audio system
