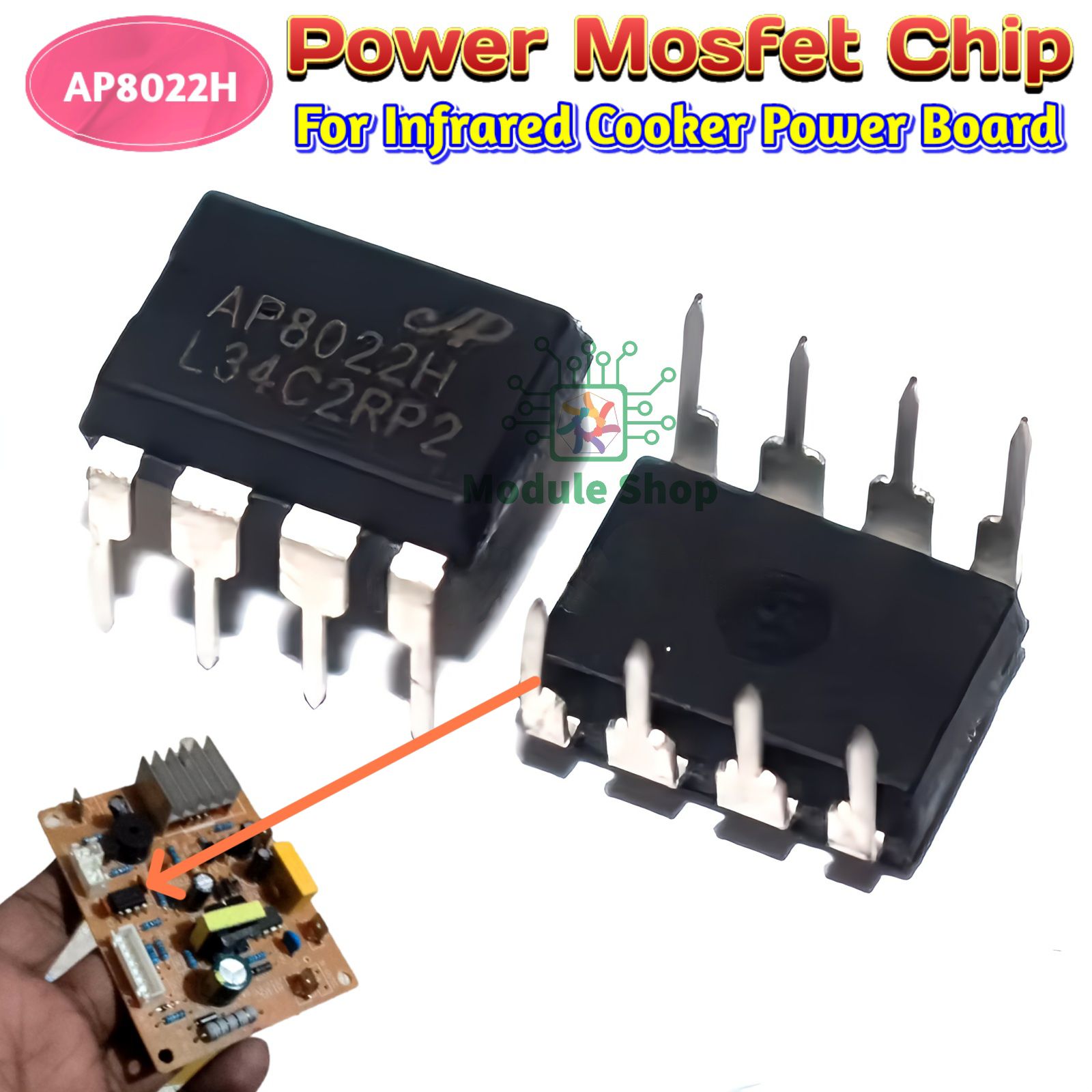

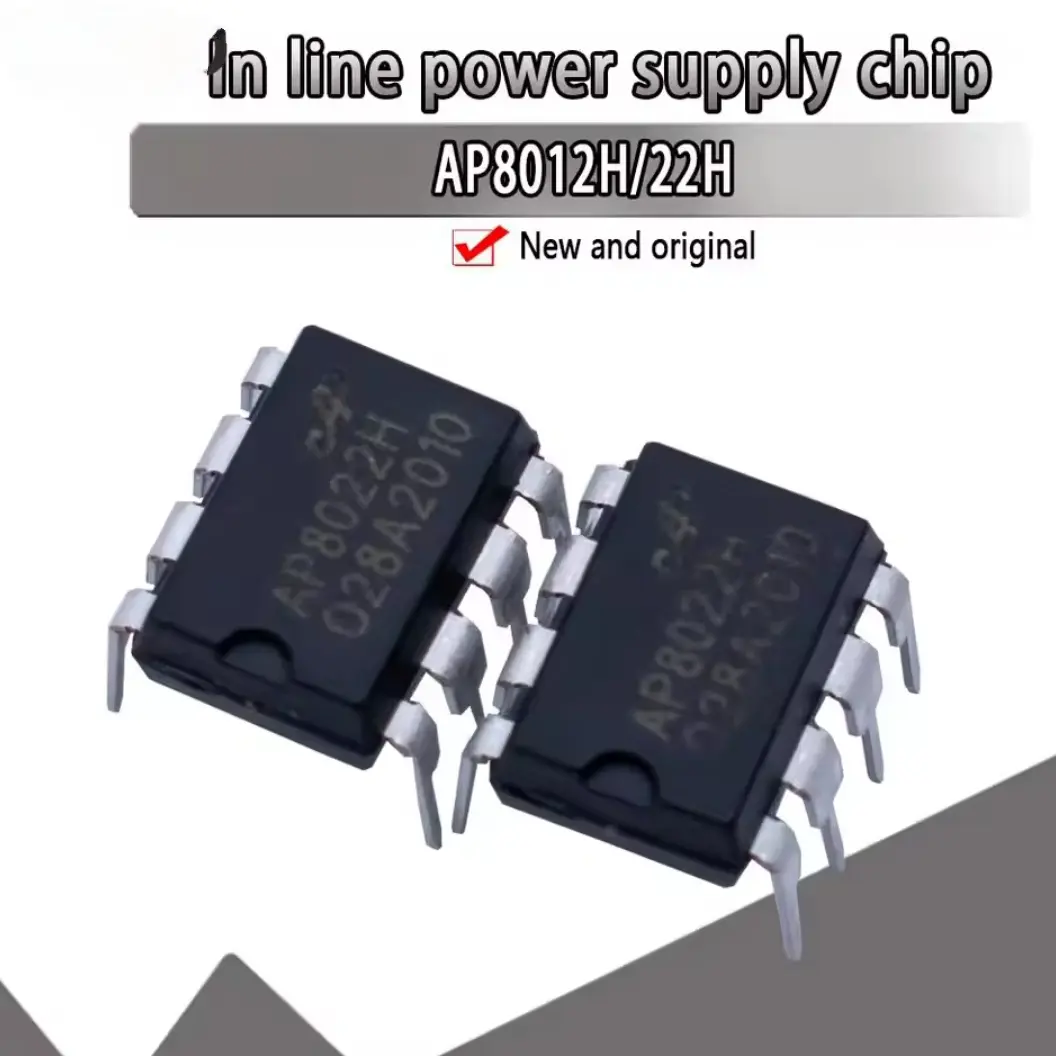

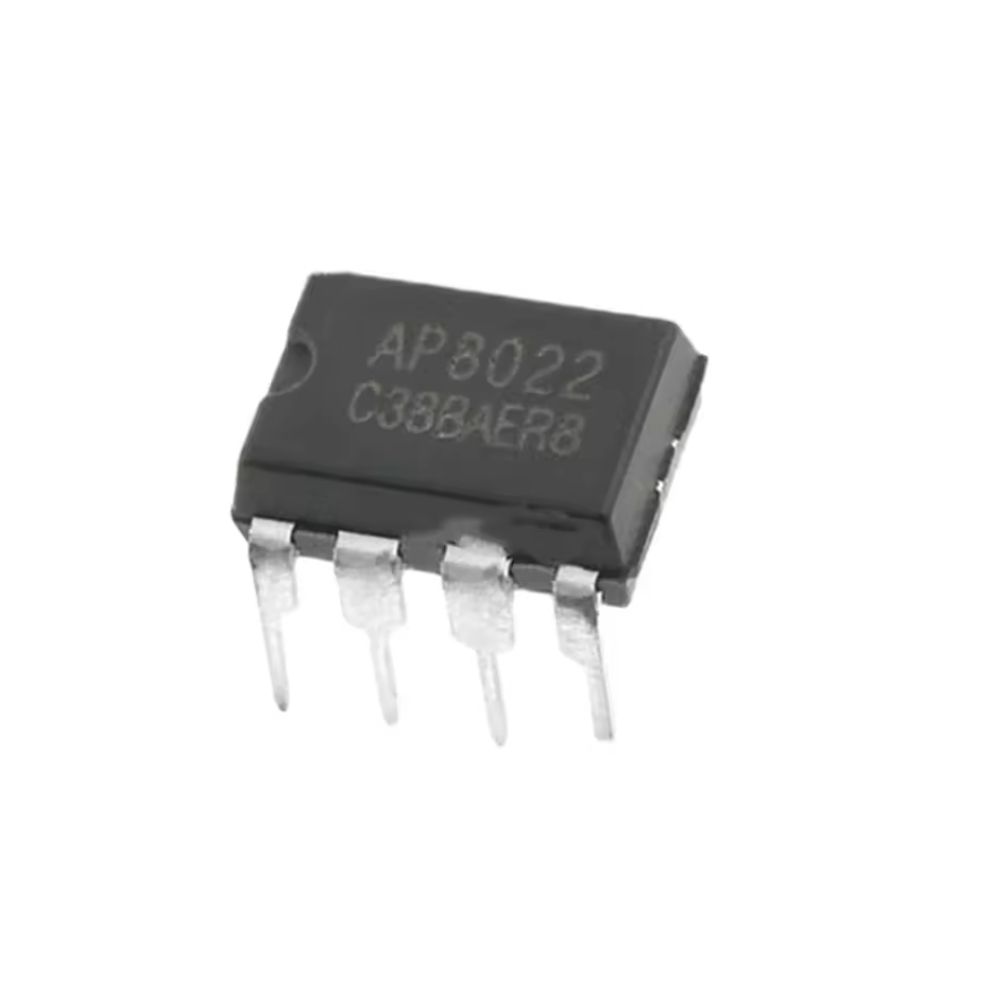

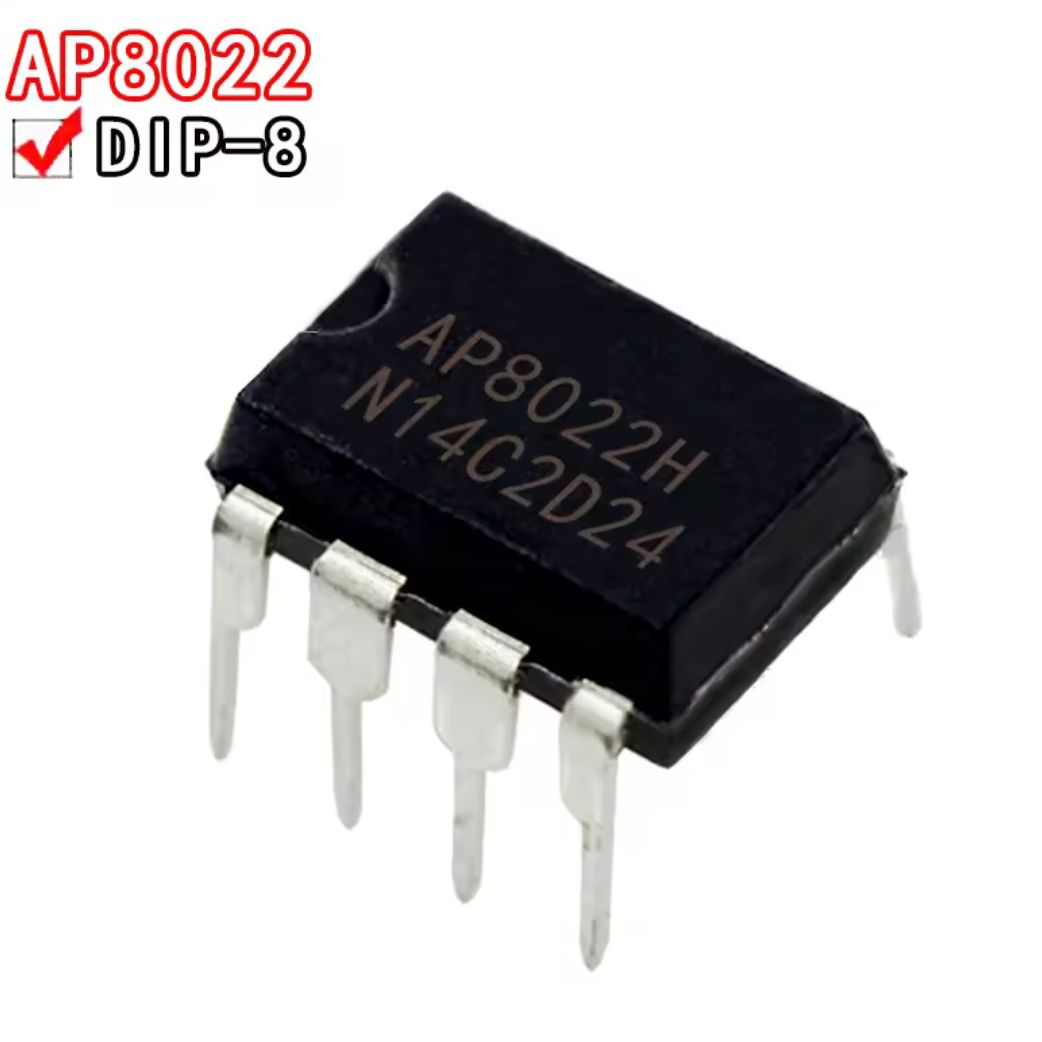

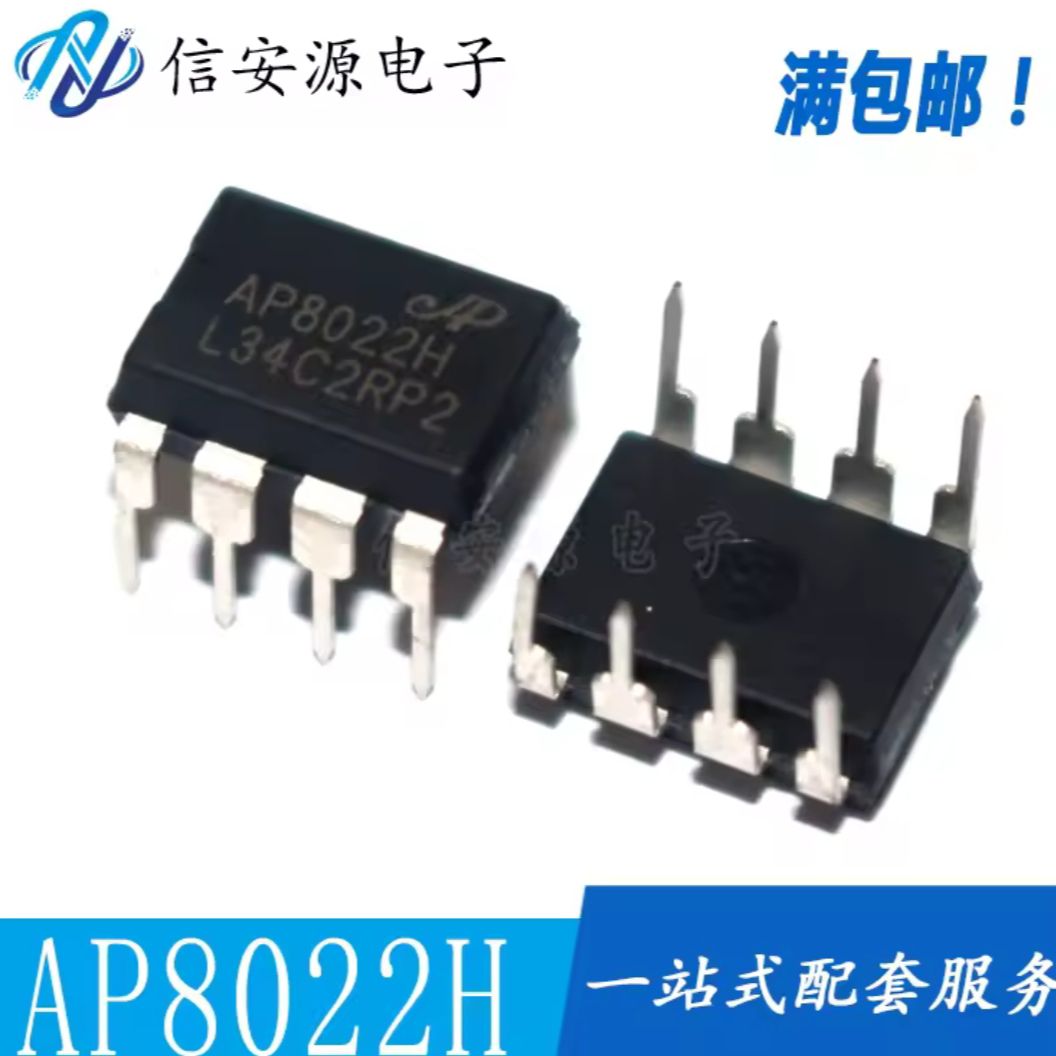

AP8022H PWM Power Mosfet Direct Plug DIP-8 Switching Power Management Module Chip IC for Commonly Used Induction Infrared Cooker Power Baord Black

Category: Infrared Cooker
SKU: MOS896821
Seller: Module Shop
Tk 120
0 review(s)
  • Integrated 800V avalanche-rugged power MOSFET
  • 85V to 265V wide range AC voltage input
  • Semi enclosed steady output power 10W@85~265VAC
  • Frequency modulation for low EMI
  • Burst-mode Operation
  • Built-in Soft Start
  • Internal HV Start-up Circuit
  • Excellent Protection: Over Current Protection (OCP) Over Temperature Protection (OTP) VDD over-voltage protection (OVP)
  • Available in DIP8 Package
  • APPLICATION
  • Electromagnetic Oven power supplies
  • Small household application power supplies
  • DVB/DVD Power

Call For Order : 09613-800800
  • Integrated 800V avalanche-rugged power MOSFET  85V to 265V wide range AC voltage input  Semi enclosed steady output power 10W@85~265VAC  Frequency modulation for low EMI  Burst-mode Operation  Built-in Soft Start  Internal HV Start-up Circuit  Excellent Protection: Over Current Protection (OCP) Over Temperature Protection (OTP) VDD over-voltage protection (OVP)  Available in DIP8 Package APPLICATION  Electromagnetic Oven power supplies  Small household application power supplies  DVB/DVD Power





  • Integrated 800V avalanche-rugged power MOSFET
  • 85V to 265V wide range AC voltage input
  • Semi enclosed steady output power 10W@85~265VAC
  • Frequency modulation for low EMI
  • Burst-mode Operation
  • Built-in Soft Start
  • Internal HV Start-up Circuit
  • Excellent Protection: Over Current Protection (OCP) Over Temperature Protection (OTP) VDD over-voltage protection (OVP)
  • Available in DIP8 Package
  • APPLICATION
  • Electromagnetic Oven power supplies
  • Small household application power supplies
  • DVB/DVD Power
