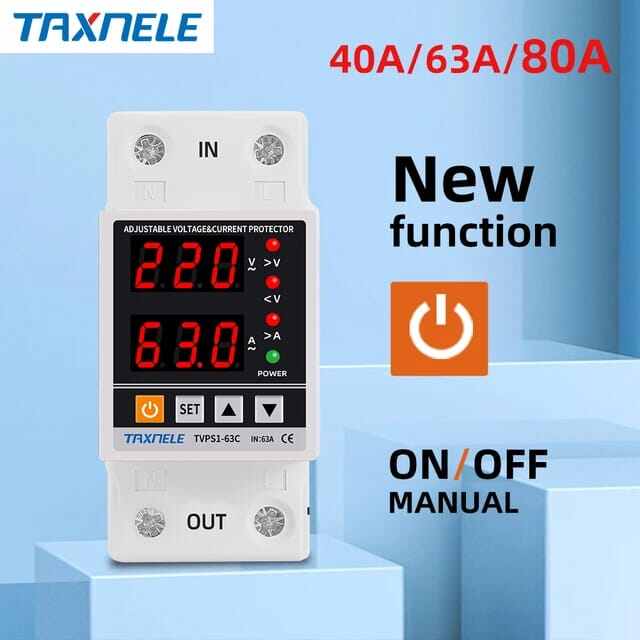

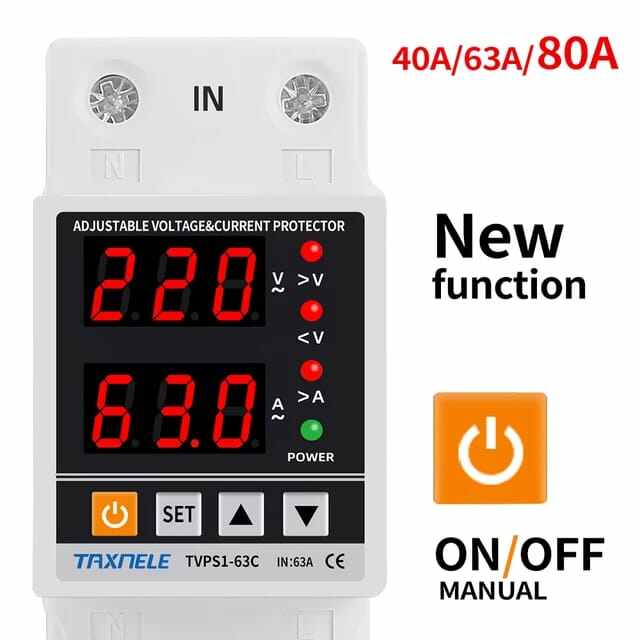

63A 220V Din Rail Digital Dual Display Adjustable Over Voltage Current and Under Voltage Protector Device Relay - White

• Product details of 63A 220V Din Rail Digital Dual Display Adjustable Over Voltage Current and Under Voltage Protector Device Relay

Brand Name: Taxnele

Model Number: Voltage Protection

Input voltage: 80-300V

Output voltage: 220V

Protection: Under And Over Voltage Protection

Main Products: Under And Over Voltage Protection

Display: DIGITAL

Color: AS PIC

Application: General-purpose

Efficiency: High efficiency

Frequency: 50Hz/60Hz

• Product Description
• Dual Display 40A 63A 230V Din Rail Adjustable digital Over Under Voltage Relay Surge Protector Limit Over Current Protection
• NAME
• digital voltage protector
• 1. Over-voltage protection
• 2. Under-voltage protection
• 3. Over-current protection
• 4. Automatic recovery
• 5.Voltage display(voltage measurement)
• 6. Current display (current measurement)

7. Voltage calibration: Voltage +-10% adjustable. A13

8. Current calibration: Current +- 9/5% adjustable A15

9. Restore factory settings: press the down button for more than 12S

10. Fault inquiry: Press the UP button from more than 12S

Product Parameters

1. Model number: TVPS1-63C

2.Power supply: 230VAC 50/60Hz

3. Max.Loading power: 1~40A Adjustable(default:20A)

1~63A Adjustable(default: 40A)

1~80A Adjustable( default: 60A)

4. Over-voltage protection value range: 230V~300~OFF(default:270V)

Over-voltage recovery voltage range: 225V--295V(default:250V)

Over-voltage protection action time: 0.1s~30s(default value:1s)

Over-voltage recovery delay time: 1s~500s(default:30s)

5.Under-voltage protection value range: 140V--210V --OFF(default:170V)

Under-voltage recovery voltage range: 145V--215V (default:190V)

Under-voltage protection action time: 0.1s~30s(default:1s)

Under-voltage recovery delay time: 1s~500s(default:30s)

6.Over-current adjustment range: 1-40A (default:20A) 1-63A (default:40A) 1-80A(default:60A)

Over-current action range: 0.1~30 second (default:1s)

Over-current recovery delay time: 1s~500s(default:30s)

7. Power-on delay time: 1s~500s(default:10s)

8. Power consumption: <2W

9. Electric machinery life: 100,000 times

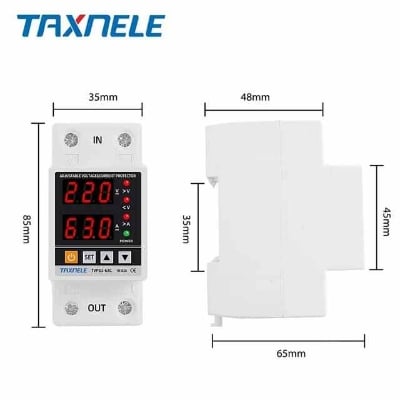

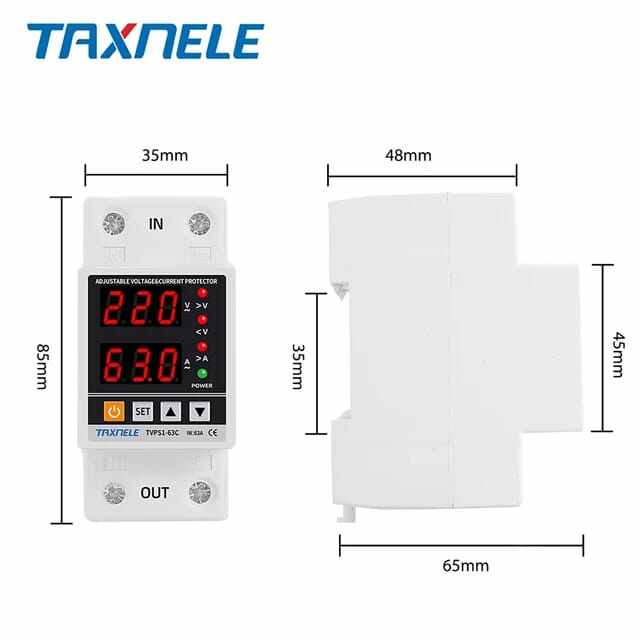

10.Installation: 35mm DIN rail

• 110V Version

1. Model number: TVPS1-63C

2.Power supply: 110VAC 50/60Hz

3. Max.Loading power: 1~63A Adjustable(default:40A)

4. Over-voltage protection value range: 80V~300~OFF(default:145V)

Over-voltage recovery voltage range: 75V--295V(default:140V)

Over-voltage protection action time: 0.1s~30s(default value:1s)

Over-voltage recovery delay time: 1s~500s(default:30s)

5.Under-voltage protection value range: 80V--300V --OFF(default:90V)

Under-voltage recovery voltage range: 85V--305V (default:95V)

Under-voltage protection action time: 0.1s~30s(default:1s)

Under-voltage recovery delay time: 1s~500s(default:30s)

6. Over-current adjustment range: 1-63A (default:40A)

Over-current action range: 0.1~30 second (default:1s)

Over-current recovery delay time: 1s~500s(default:30s)

7. Power-on delay time: 1s~500s(default:10s)

8. Power consumption: <2W

9. Electric machinery life: 100,000 times

10.Installation: 35mm DIN rail
