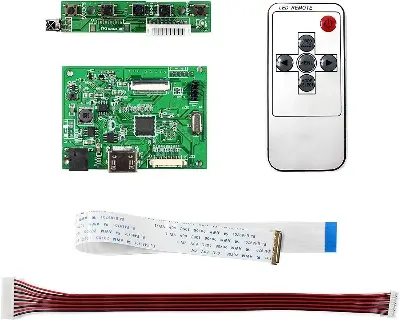

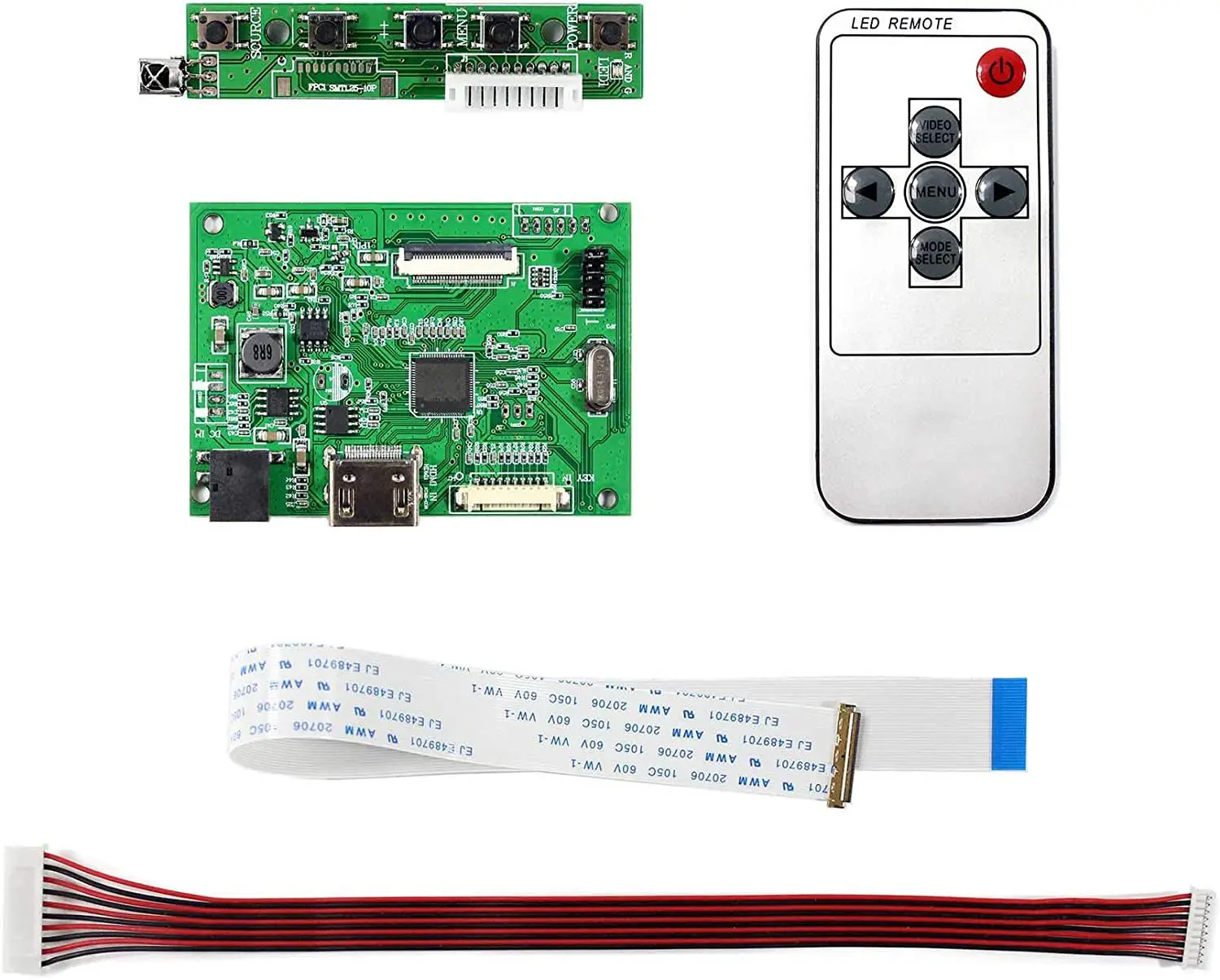

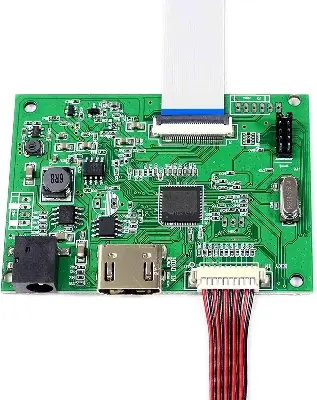

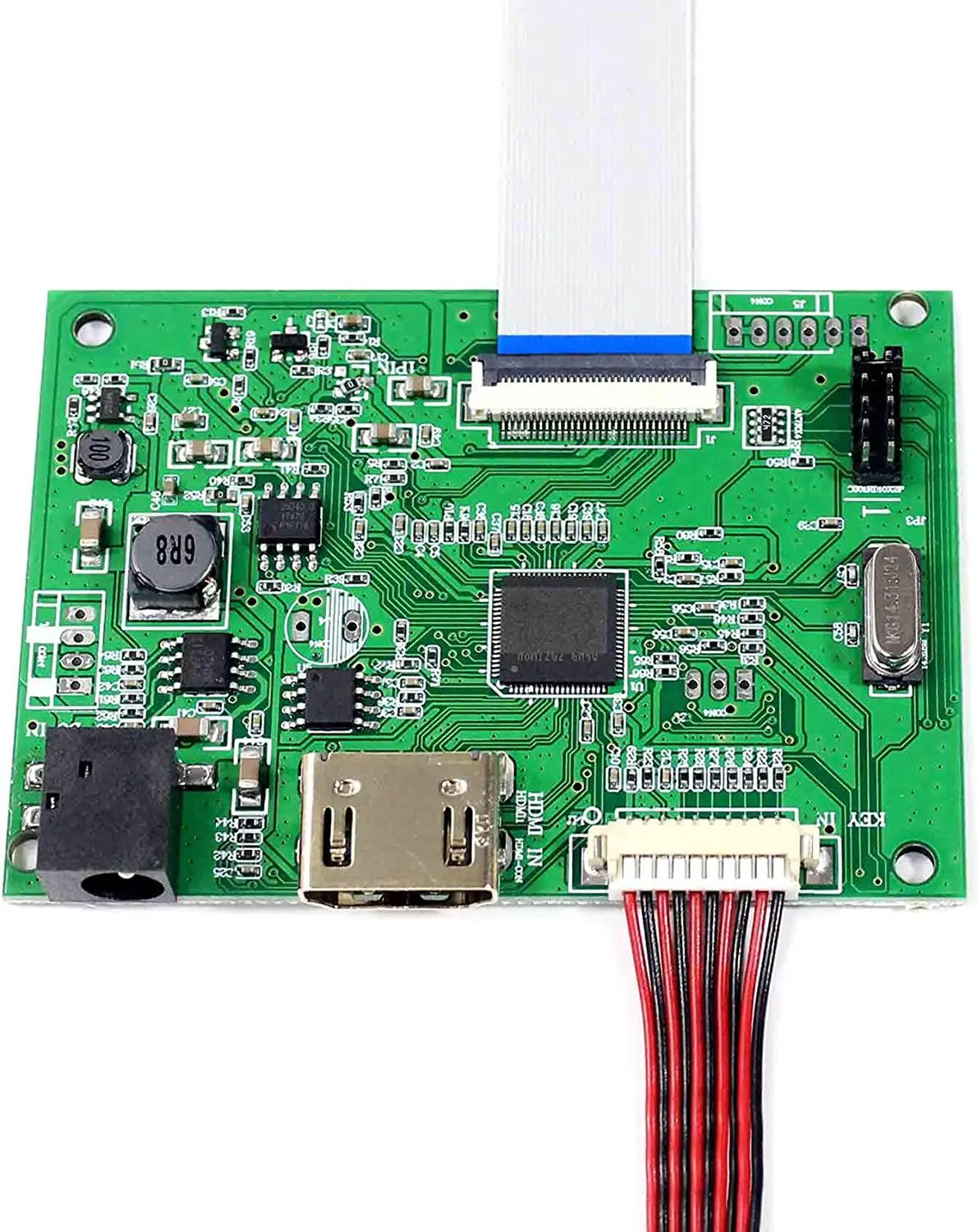

30 Pin eDP Ultra Laptop Screen Driver Controller Board 0.5mm EDP for 11.6" 13.3" 14" 15.6" 17.3 inch 1920x1080 NT156FHM NV156FHM LTN156HL01 N156HGE-EA1 N173HCE-E11 B156HTN03.0 LED Screen eDP 30 pin Controller

Name: 30 Pin eDP Ultra Laptop Screen Driver Controller Board 0.5mm EDP for 11.6" 13.3" 14" 15.6" 17.3 inch 1920x1080 NT156FHM NV156FHM LTN156HL01 N156HGE-EA1 N173HCE-E11 B156HTN03.0 LED Screen eDP 30 pin Controller
SKU: MOS896550
Price: 2600.00 BDT
Availability: InStock

Category: Computers, Components & Accessories

SKU: MOS896550

Seller: Module Shop

Tk 2,600

0 review(s)

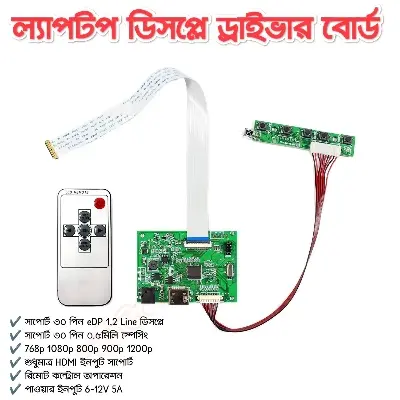

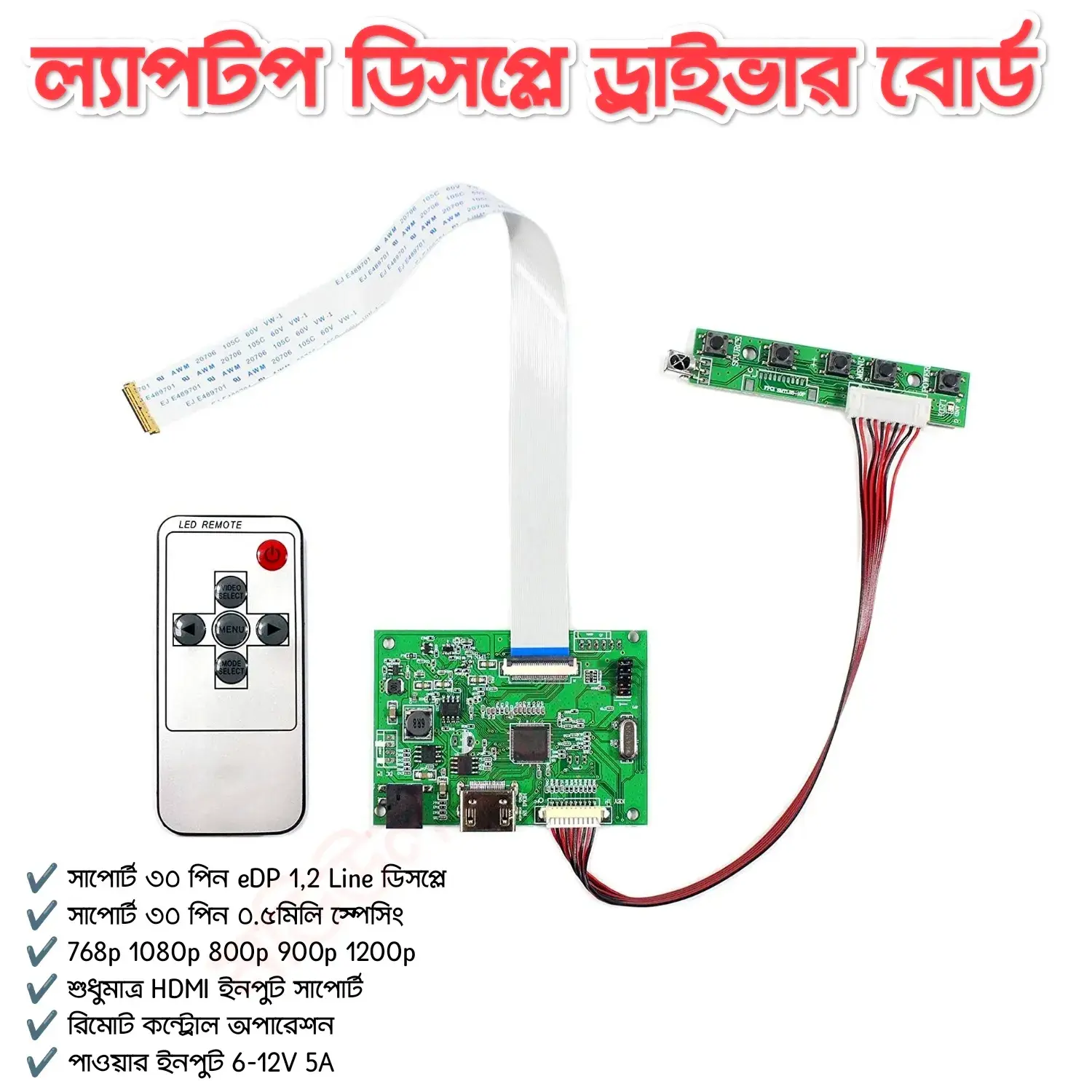

30 Pin Ultra Laptop Display Driver

Only Support HDMI Input

Supply 6-12V DC 5A

Support 30 pin eDP 0.5mm Line Spacing

eDP 30 Pin 1Line and 2 Line Screen

Button Manu Control with LED Indicator

Remote Control ( without battery)

This is a multi-functional universal driver board, 30 pin interface, only need to brush a program, all kinds of screen resolution can be used at the same.

Support wide voltage input, and can work normally between 5V-20V (but need to consider the voltage requirements of external equipment, so as not to damage the externally connected equipment or accessories, this working voltage is only applicable to this driver board).

Standard backlight 6PIN, interface, external screen line definition.

Standard EDP-30PIN output, support resolution

below 1920x1200.

Support upgrade or 4P standard IIC upgrade. Standard large-port universal connector. Using high temperature components, can be used in high temperature environment for a long, but need to

pay attention to ventilation.

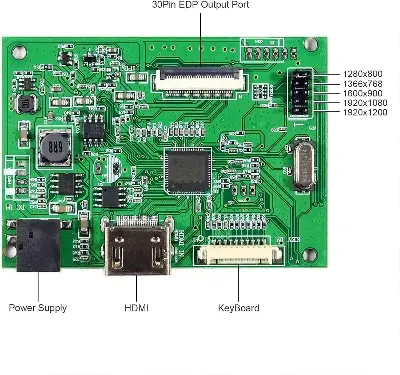

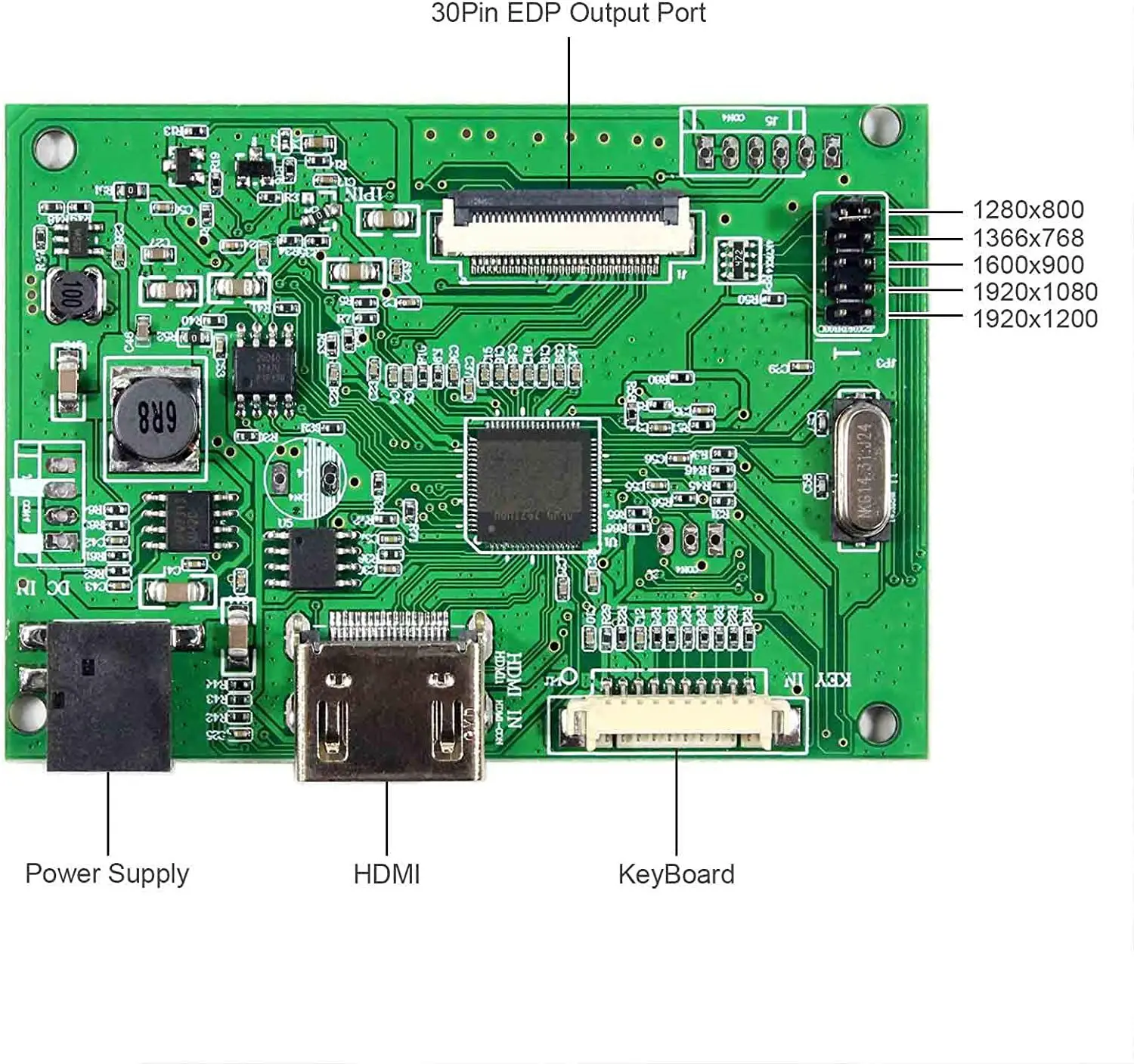

Support remote control function. Support multi-screen parameter selection, maximum support for the corresponding resolution of 10 kinds of LCD screen, no need to write another program. Do not need to update the driver, directly use the jump way, you can directly select a variety of resolution screen parameters, support multi-screen ginseng jumper selection, 1920 * 1200 , 1920 * 1080 , 1600 * 900 , 1366 * 768 , 1280 * 800 , five common resolution LCD screens on the market. Specifications:

Item Type: Driver Board

Material: Plastic+Metal

Size: 73x54mm/2.8x2.1in

Color: Green

Call For Order : 09613-800800

This is a multi-functional universal driver board, 30 pin interface, only need to brush a program, all kinds of screen resolution can be used at the same.
Support wide voltage input, and can work normally between 5V-20V (but need to consider the voltage requirements of external equipment, so as not to damage the externally connected equipment or accessories, this working voltage is only applicable to this driver board).
Standard backlight 6PIN, interface, external screen line definition.
Standard EDP-30PIN output, support resolution
below 1920x1200.
Support upgrade or 4P standard IIC upgrade. Standard large-port universal connector. Using high temperature components, can be used in high temperature environment for a long, but need to
pay attention to ventilation.
Support remote control function. Support multi-screen parameter selection, maximum support for the corresponding resolution of 10 kinds of LCD screen, no need to write another program. Do not need to update the driver, directly use the jump way, you can directly select a variety of resolution screen parameters, support multi-screen ginseng jumper selection, 1920 * 1200 , 1920 * 1080 , 1600 * 900 , 1366 * 768 , 1280 * 800 , five common resolution LCD screens on the market. Specifications:
Item Type: Driver Board
Material: Plastic+Metal
Size: 73x54mm/2.8x2.1in
Color: Green
