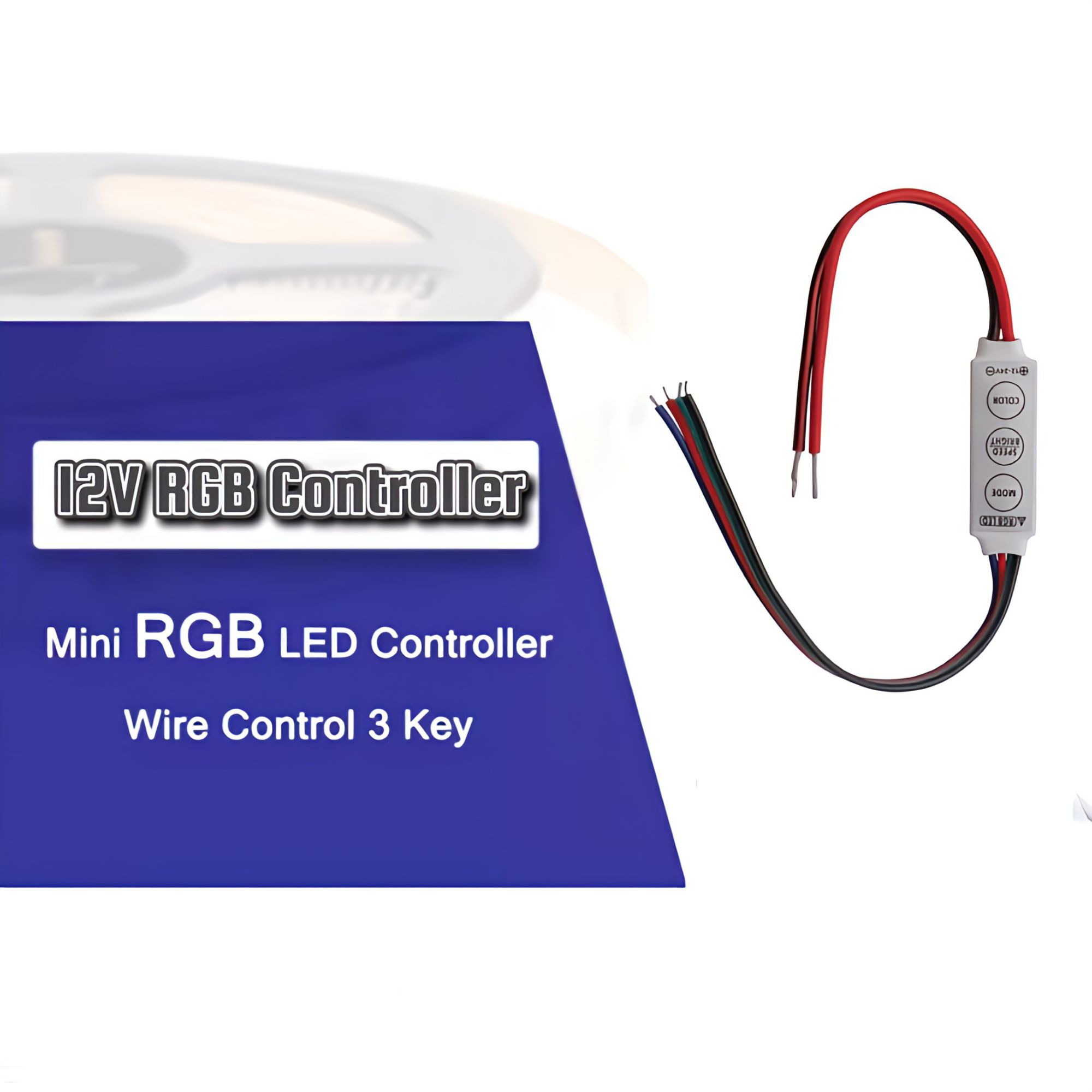

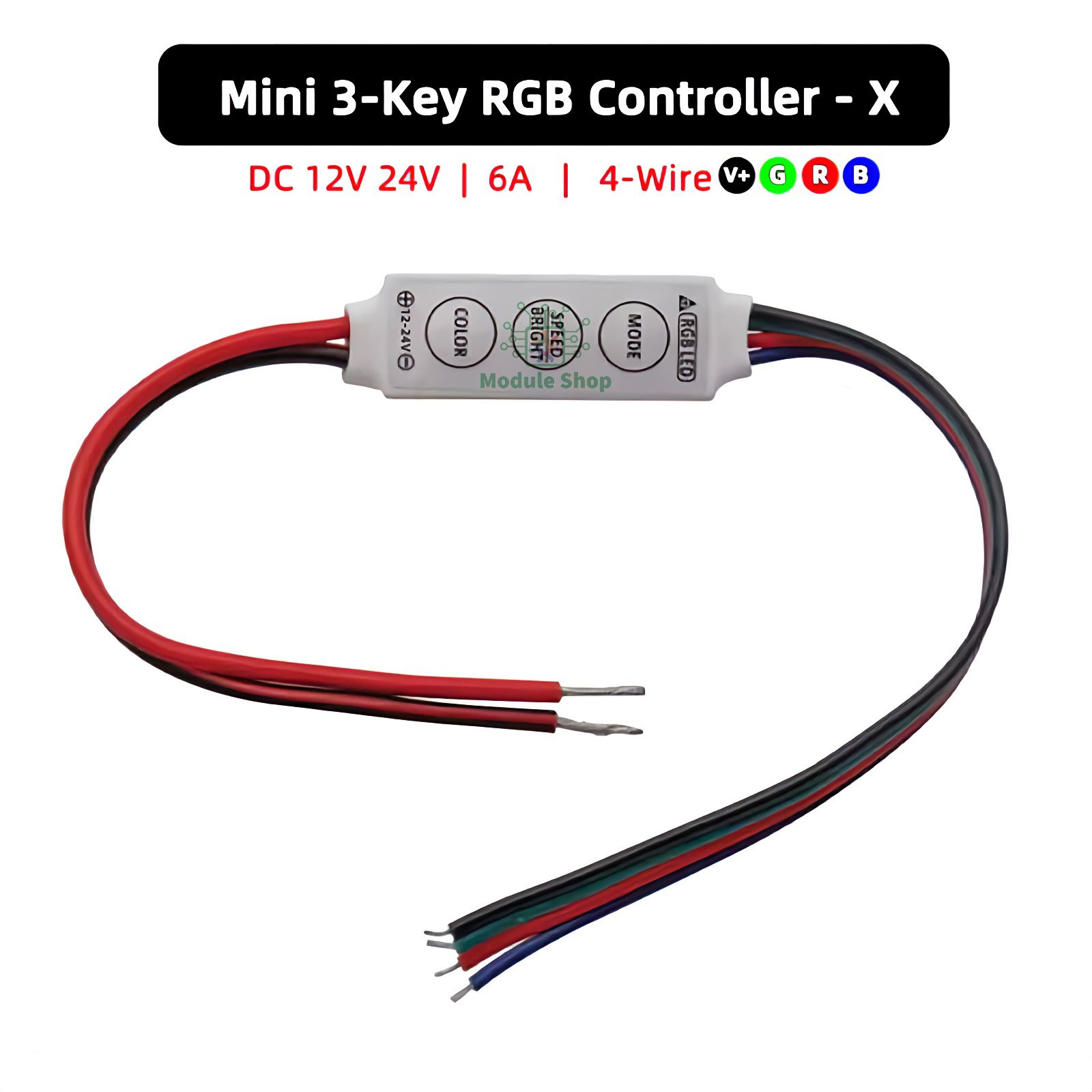

3-Key Mini RGB Controller 2A * 3CH USB 5V DC 12V 24V 4-Pin 4-Wire 3-Channel CE RoHs Small Volume PWM Output Signal LED Dimmer Multicolor

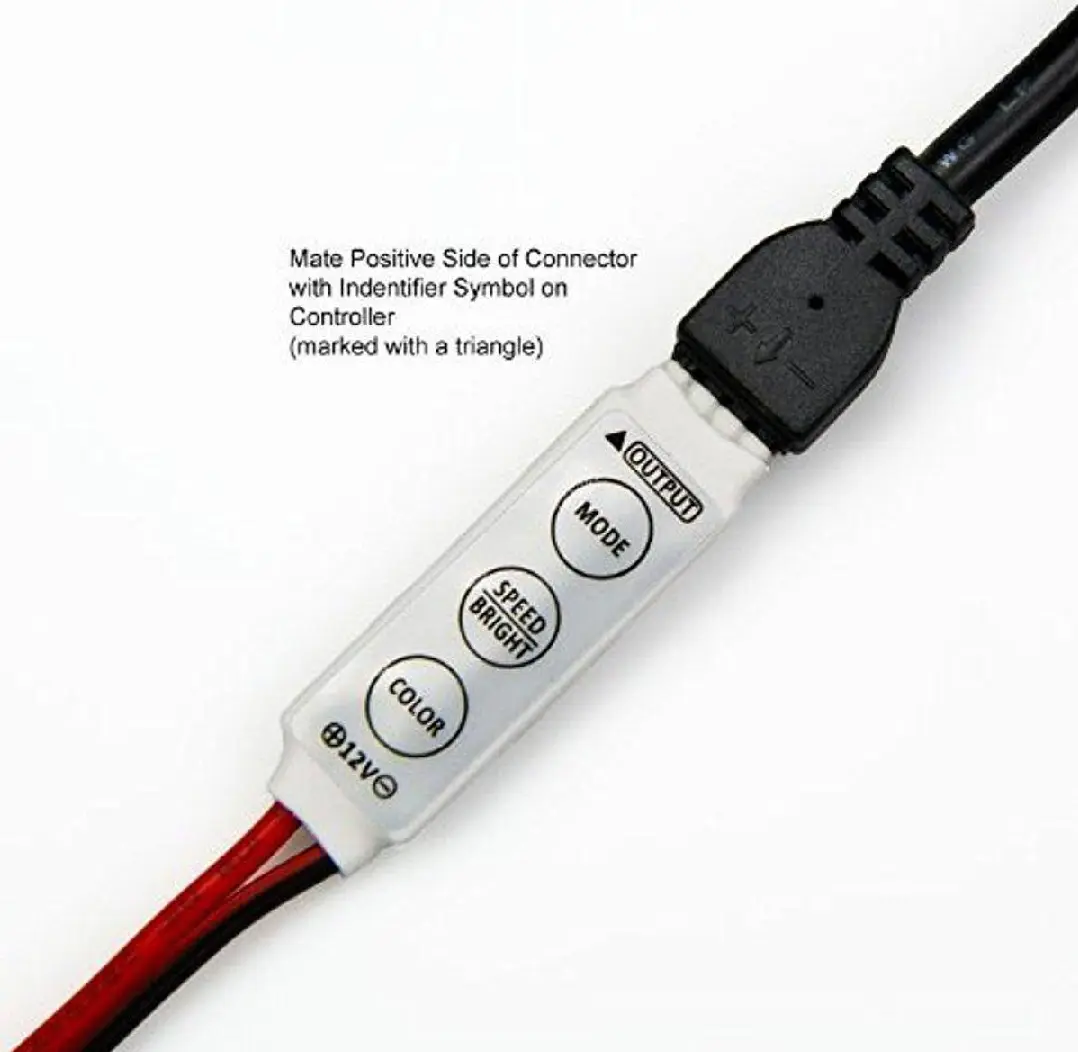

▶Mini LED Controller: Mini 3-button MINI RGB controller. Manual button, DC Powered. Interface type: 4PIN pin.

▶Product Parameters: Working Voltage:5V USB / 12-24V DC; Max Output Current: 3*2A; Max Output Power: 144W(24V).

▶3-Key Functions: MODE: Dynamic modes switch; SPEED/BRIGHT: Adjust the speed(dynamic modes) or brightness(static modes); COLOR: Static color replacement.

▶Functional Advantage: According to customer requirements to achieve 19 kinds of dynamic effects, 20 kinds of static effects; Dynamic speed and brightness adjustable and other characteristics.

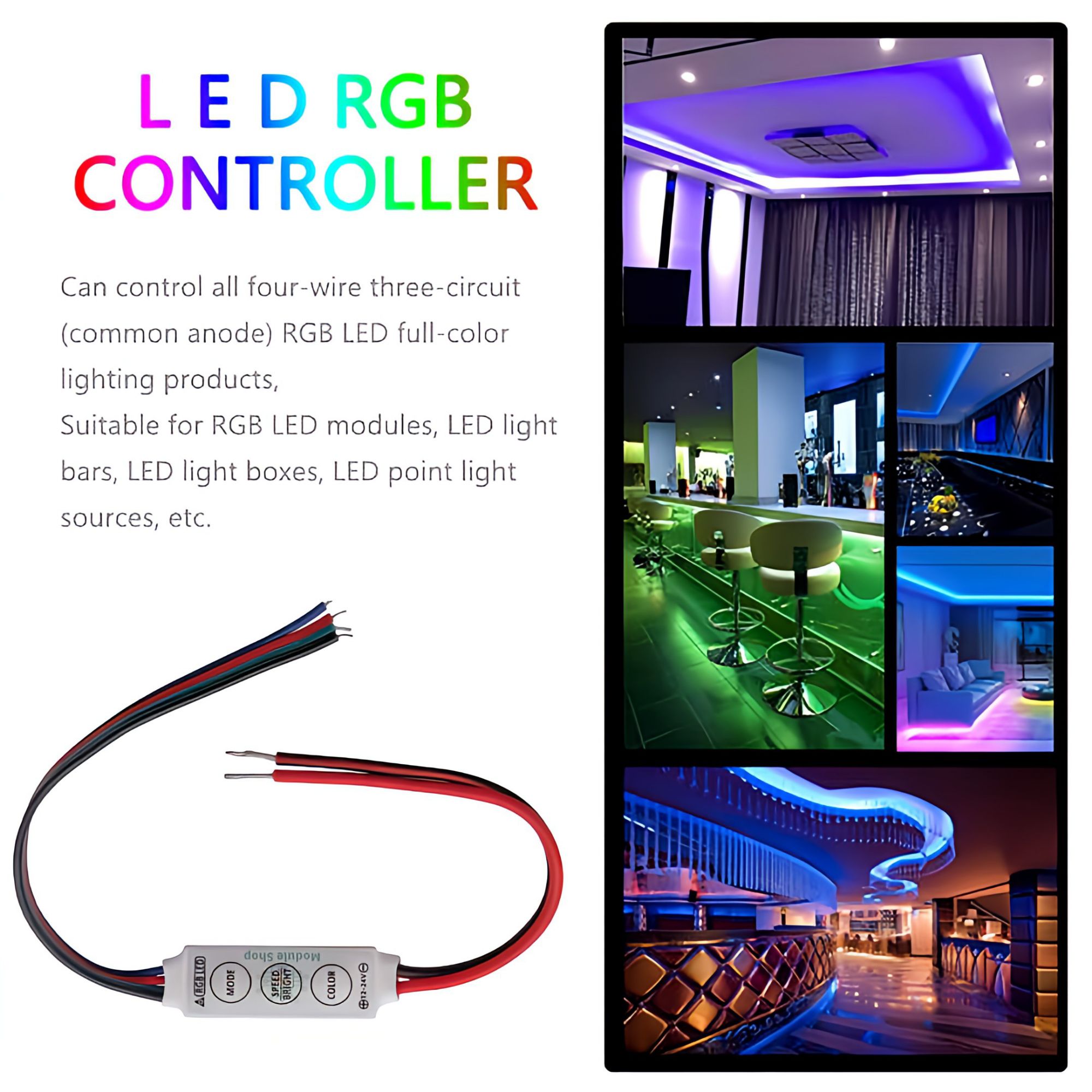

▶Applicable Light Bar Types: For 3528 5050 5630 RGB LED Strip Light. Suitable for electrical installation, compatible with automotive, marine and household LED light strips or LED bulbs.

Key Description:

MODE key: Dynamic mode key Press it to switch the dynamic effect Press and hold the Mode button for more than one second to switch to Demo mode In Demo mode, variable dynamic modes are automatically demonstrated in one cycle

SPEED key: Function adjustment key Press this key in dynamic mode to adjust the speed of dynamic mode Each time you press it, you can switch speeds In Color mode, you can adjust the brightness of the light bar You can switch the brightness level each time you press it

COLOR key: Static color key Press the color key to switch between a variety of static colors, each time to switch a static color

On/Off function: Hold down the speed key for about 1 second to turn off the machine, then press any key to return to the state before shutdown
