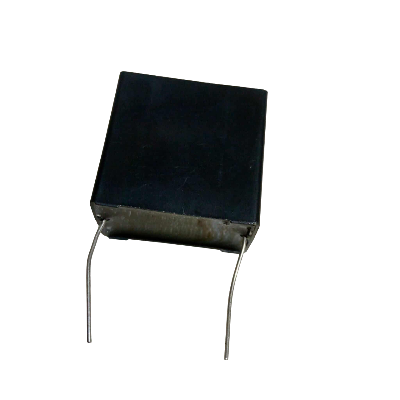

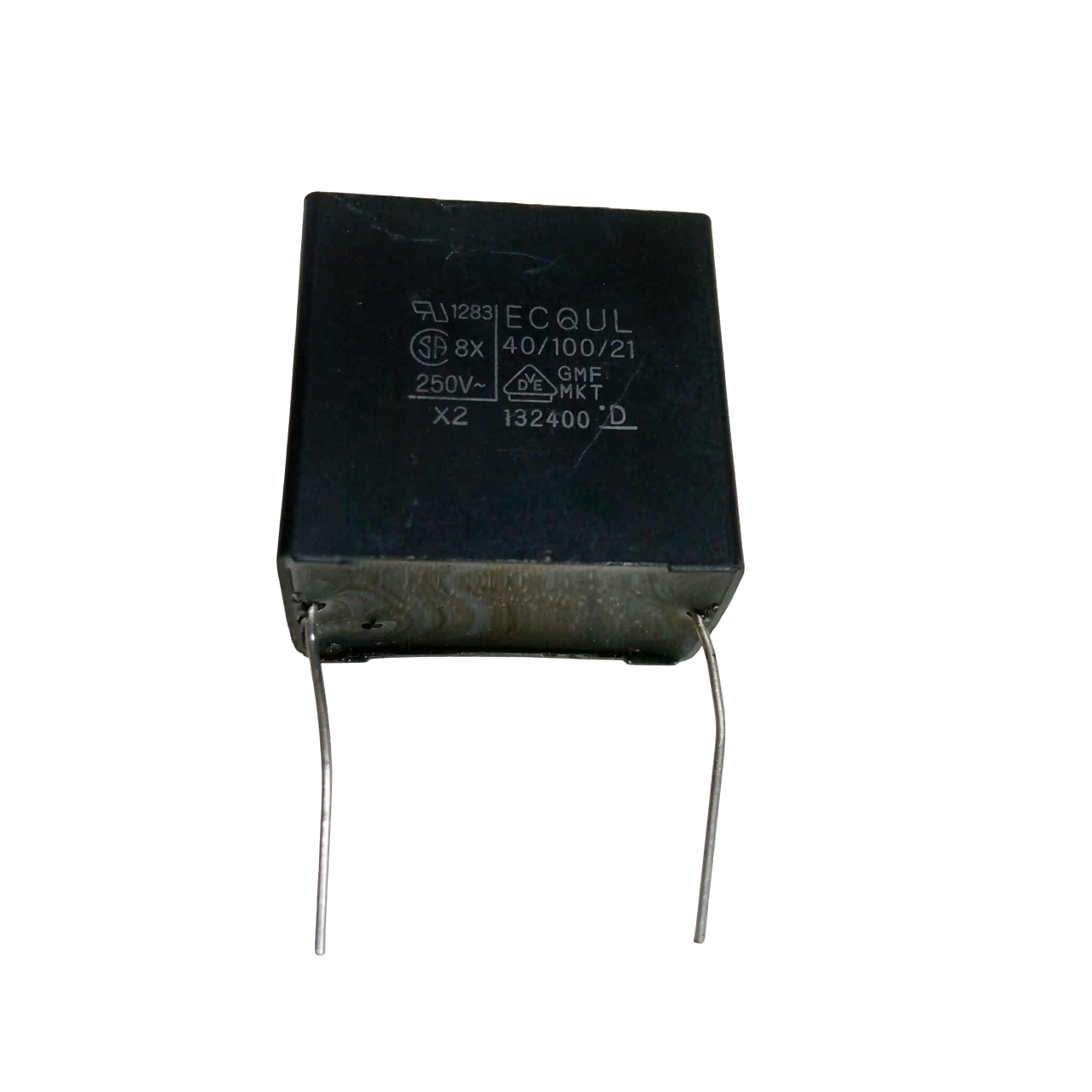

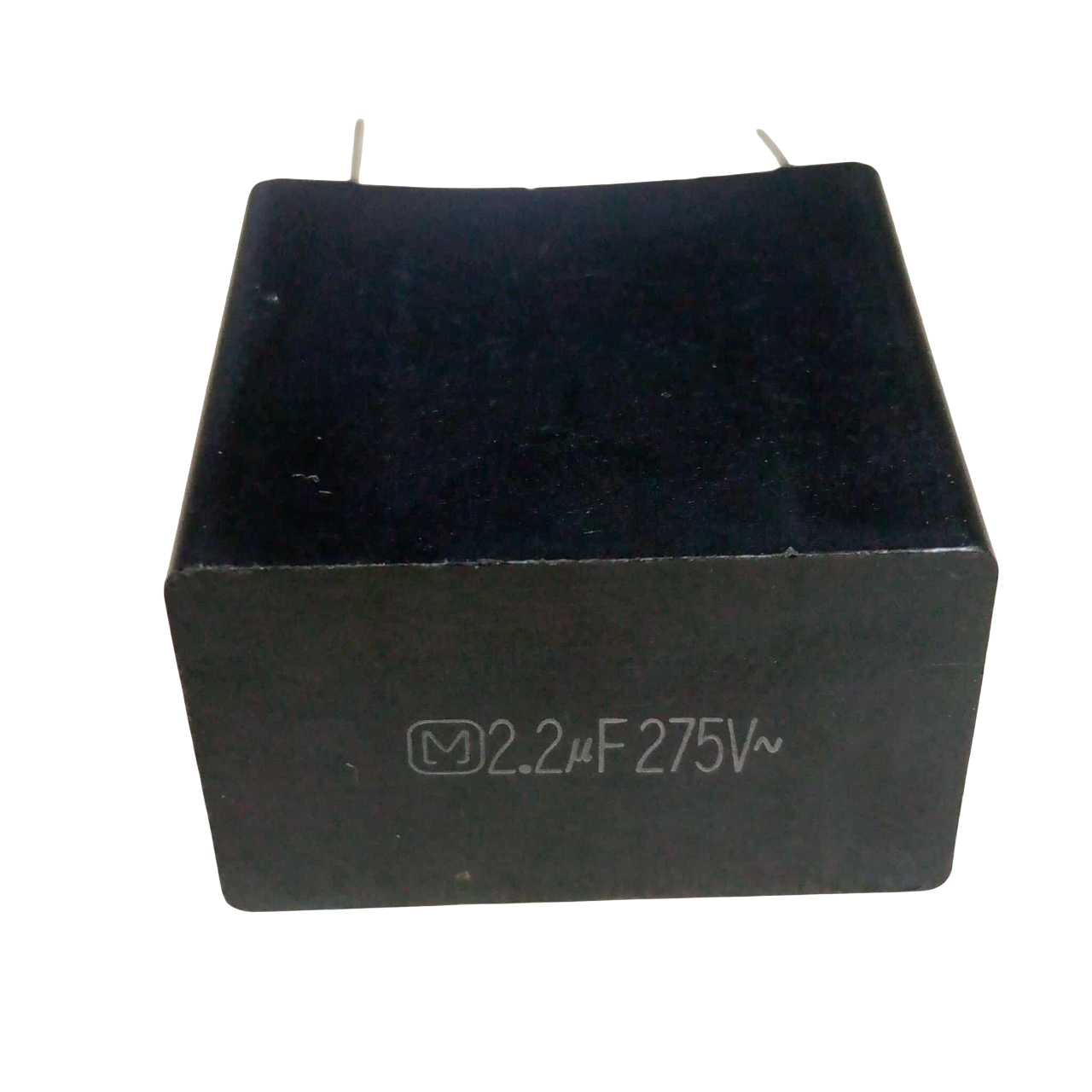

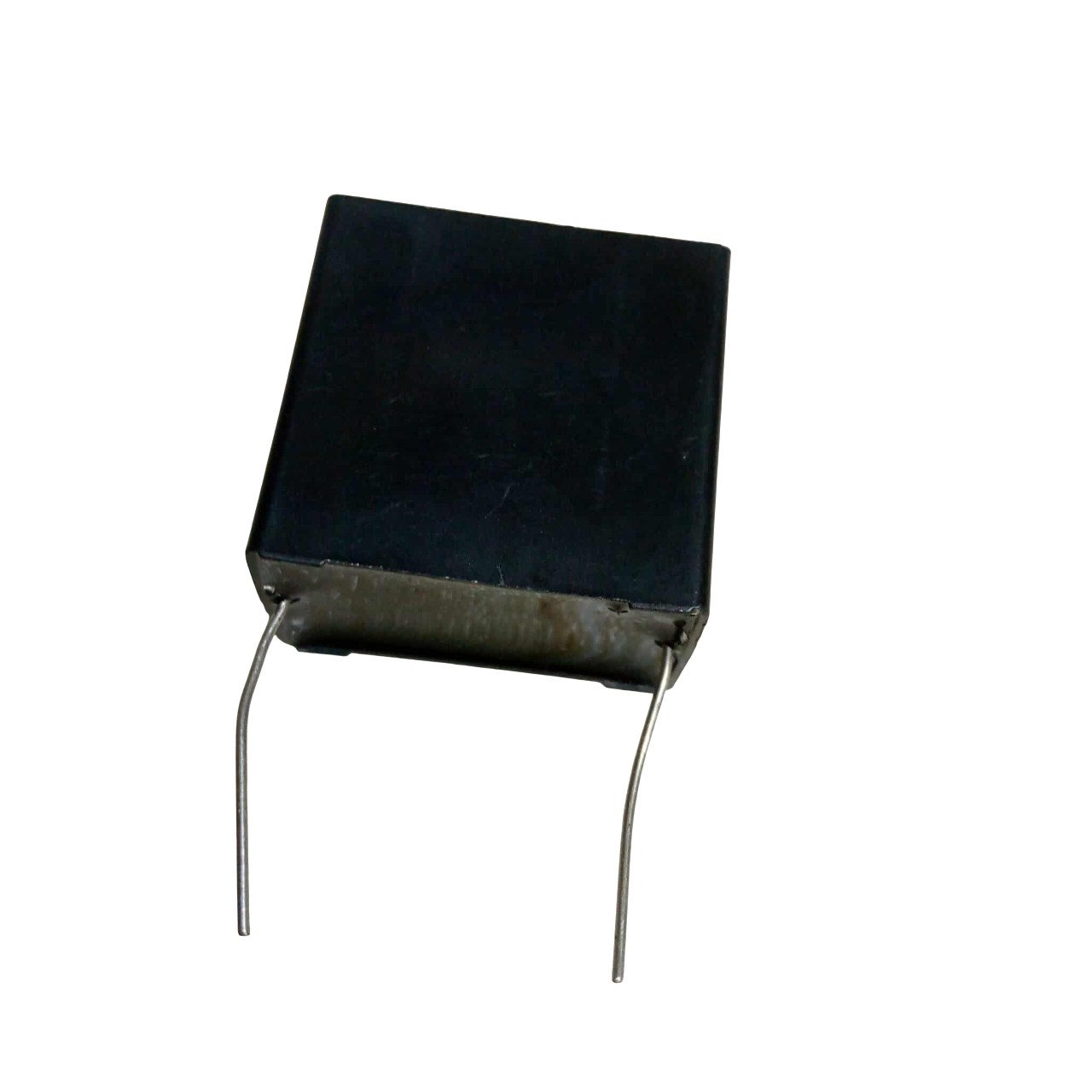

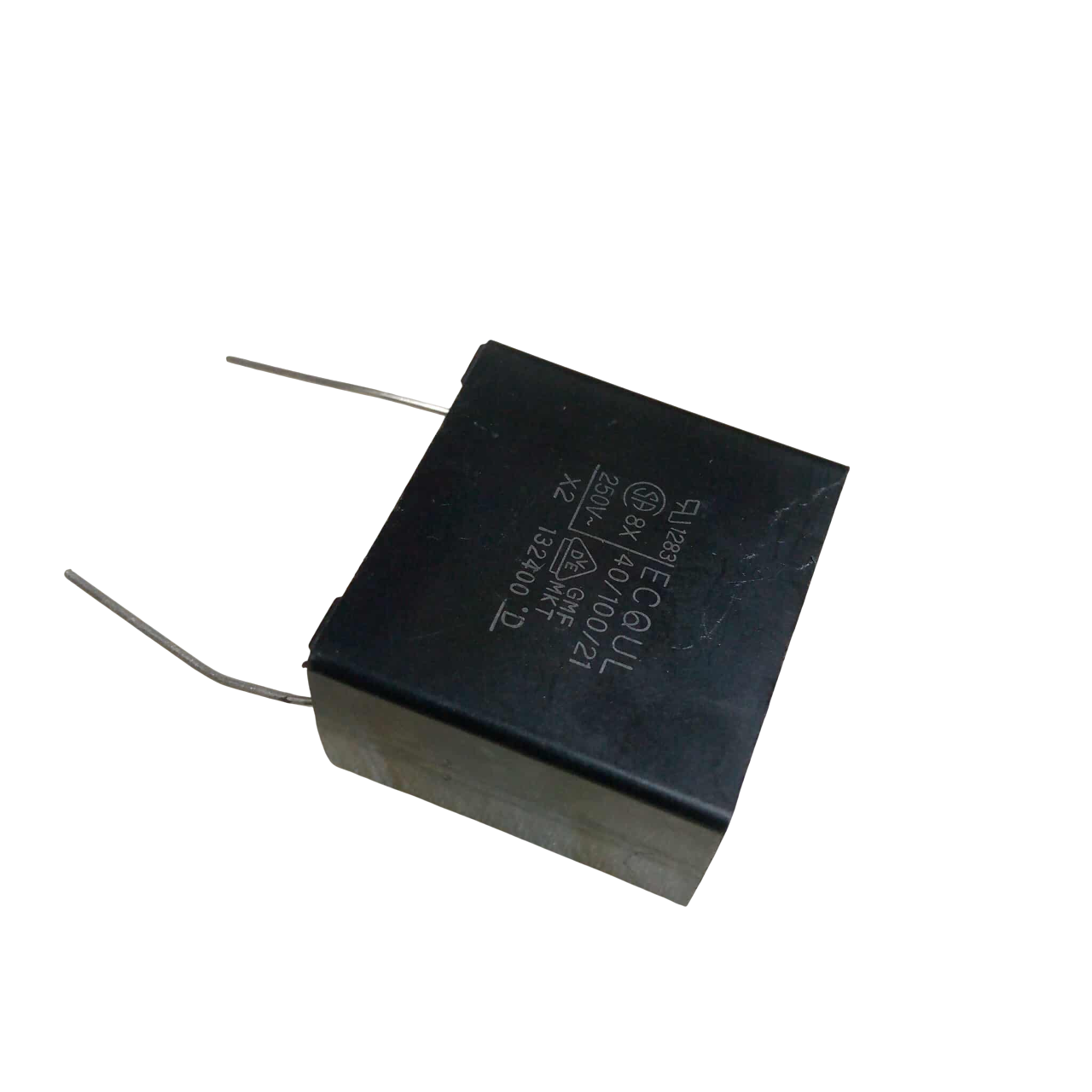

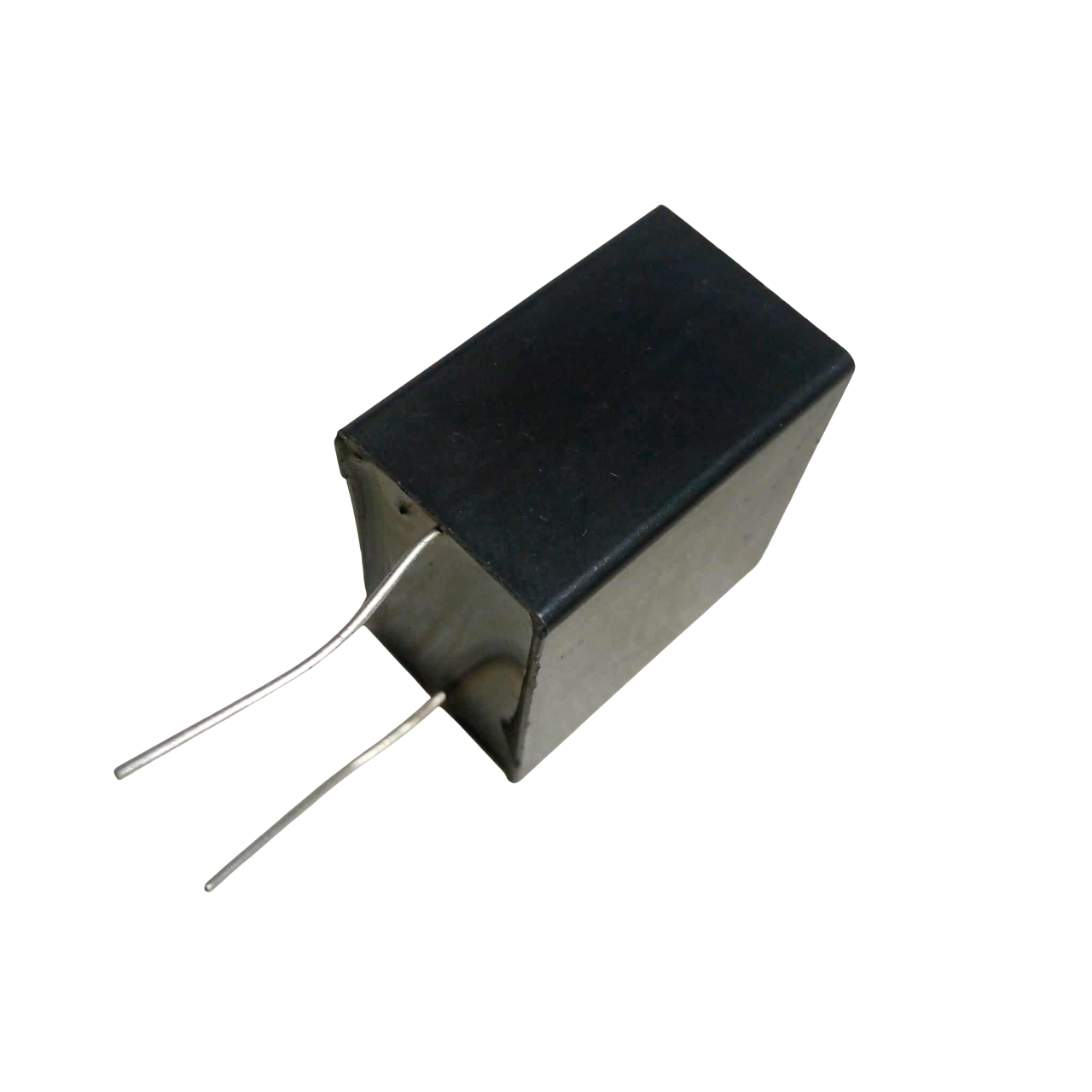

2Pcs- 2.2uF 275V Polyester Box Type Capacitor

Description: 2.2uF 275V Polyester Box Type Capacitor

A 2.2µF 275V Polyester Box Type Capacitor is a non-polarized capacitor commonly used in AC applications, especially for filtering, coupling, and interference suppression. Here’s a detailed overview:

Basic Specifications:

Key Features:

• Polyester film dielectric: Good stability and insulation resistance.
• Box Type casing: Offers better protection from environmental factors.
• Self-healing property: In case of dielectric breakdown, the film can “self-heal” without shorting.
• Non-polarized: Can be used in AC circuits without polarity concern.
• Low ESR and ESL: Suitable for high-frequency applications.

Typical Applications:

• AC interference suppression
• Snubber circuits
• EMI/RFI filtering
• Power supplies
• Audio and signal coupling/decoupling

Example Dimensions: (approximate for 2.2µF 275V AC)

• Length: ~26mm
• Width: ~11mm
• Height: ~20mm
• Lead Pitch: 22.5mm (can vary)
