XH-M601 Battery Charging Control Board 12V Intelligent Charger Power Supply Control Module Panel Automatic Charging/Stop Power Green

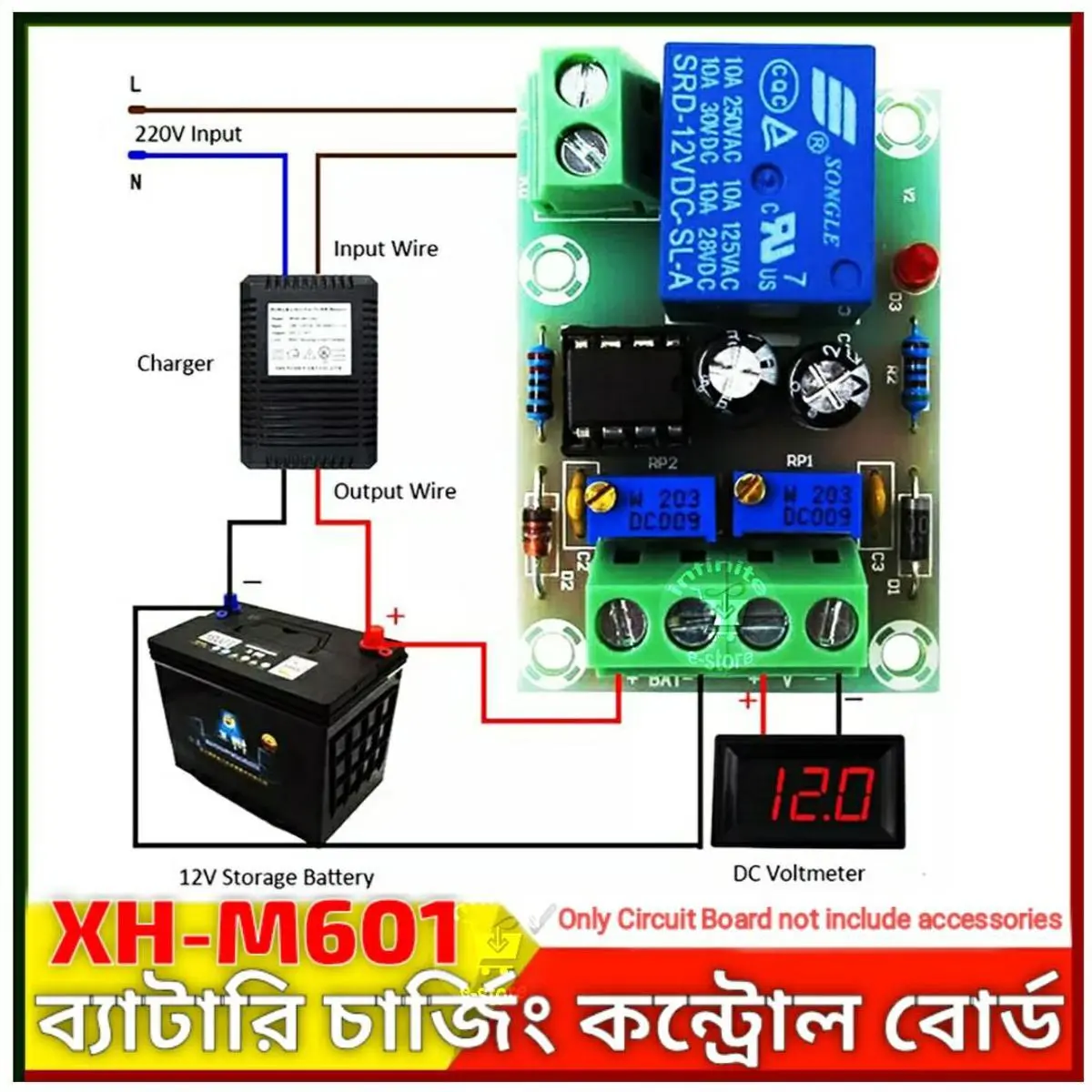

Model: XH-M601Power Supply: 13.8V-14.8VRelay closing voltage: 12.4VRelay off voltage: 14.8VVoltage error:±0.1VVoltage detection: DC voltmeterCharging type: 12V batteryPotentiometer adjustment: RP1 RP2 (carefully adjusted)PCB Board Size: 65mm x 52mm x 30mm / 2.56" x 2.05" x 1.18" (L x W x H)Note:1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!2. Please allow 0.5-1cm measuring deviation due to manual measurement.1 cm = 0.3937 "RP1 regulates the battery start charging voltage (low voltage setting: clockwise high, counterclockwise low) factory setting is 12.4VRP2 regulates battery disconnect charge voltage (low voltage setting: clockwise high, counterclockwise low) factory set to 14.8V

• Name:12V charger power control board
• Model:XH-M601
• Power Supply Voltage:13.8-14.8V
• Relay Operating Voltage:12.4V
• Relay Disconnect Voltage:14.8V
• Voltage Tolerance:+/-0.1V
• Voltage Detection Way:DC voltmeter
• Charging Type:12V storage battery
• Potentiometer Adjustment:RP1 RP2
• 10.Size:50*32*18mm
• Potentiometer Adjustment:
• RP1:adjust storage battery start charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)
• RP2:adjust storage battery disconnect charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)
