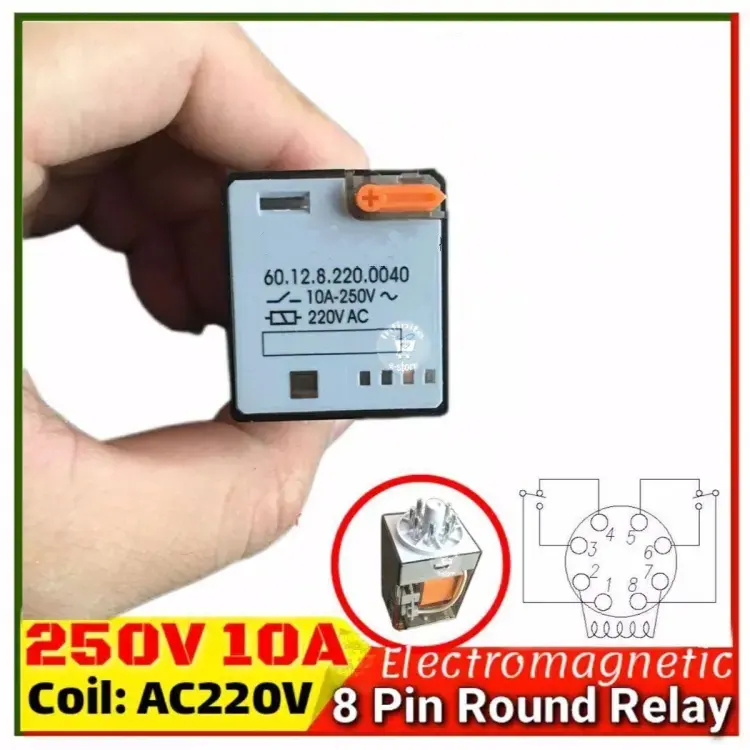

Relay 220VAC 10A Mini Electromagnetic Relay 60.12.8.220.0040 General Purpose Relay Coil Voltage AC 220V 2 pole 8 Pin Round Use for Household and Industrial Similar Finder Fender MK2-P1 Dark Grey

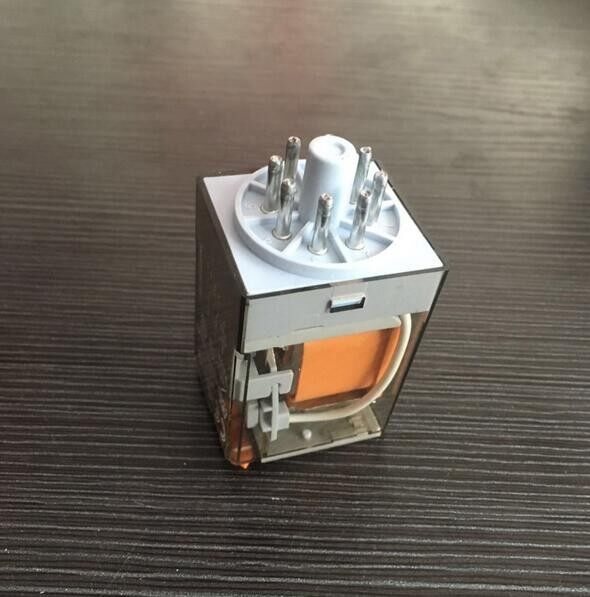

60.12.8.220.0040 Finder Type 220V 10A Mini Electromagnetic Relay Finder Relay General Purpose Relay

General Purpose Relay: 60.12, 60.13

Coil voltage: DC6-110V, AC6-240V

Contact SpecificationContact form2Z,2H,2D 3Z.3H,3D

Contact resistance≤100MΩ(1A 6VDC)

Contact materialAgCdO

Contact capacity10A 250VAC/28VDC

Technical SpecificationInsulation resistance≥500MΩ.500VDC

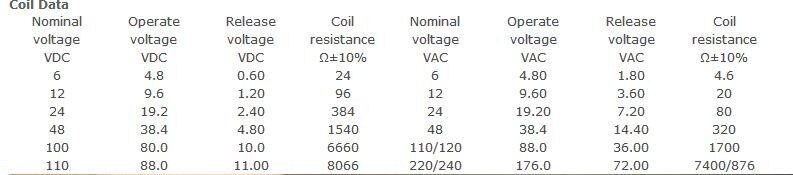

Dielectric strengthBCC ≥1500VAC 1minBOC ≥1000VAC 1minOperate / Release time≤20ms/20msTerminal typeSocket mountingCoil SpecificationRated coil power 1.5w/2.5VACoil DataNominal voltage
VDCOperate voltage
VDCRelease voltage
VDCCoil resistance
Ω±10%Nominal voltage
VACOperate voltage
VACRelease voltage
VACCoil resistance

• 10 A General purpose relay
• 2 & 3 pole changeover contacts
• Size:34.7*34.7*52
• Terminal layout:2Z
• Contact capacity:AC: 10A 220V DC: 10A 28V
• Contact resistance(mΩ):≤50mΩ
• Insulation resistance(mΩ):≥500mΩ
• Dielectric strength:BOC: 2000VAC BCC: 2000VAC
• Coil nominal voltage:AC: 6 to 240V DC: 6 to 125V
• Coil nominal power:AC: ≤3.5VA DC: ≤2W
• Electrical life(OPS):100,000 times
• Mechancial life(OPS):10,000,000 times
• Operating temperature(oC):-40+70℃
• Weight(g):≤125g
• Cadmium Free contacts (preferred version)
• AC coils & DC coils
• UL Listing (certain relay/socket combinations)
• Contact material options
• Lockable test button with mechanical flag indicator (preferred version)
