Video Link:Â https://youtu.be/HiPnnhEUlqk

DESCRIPTION

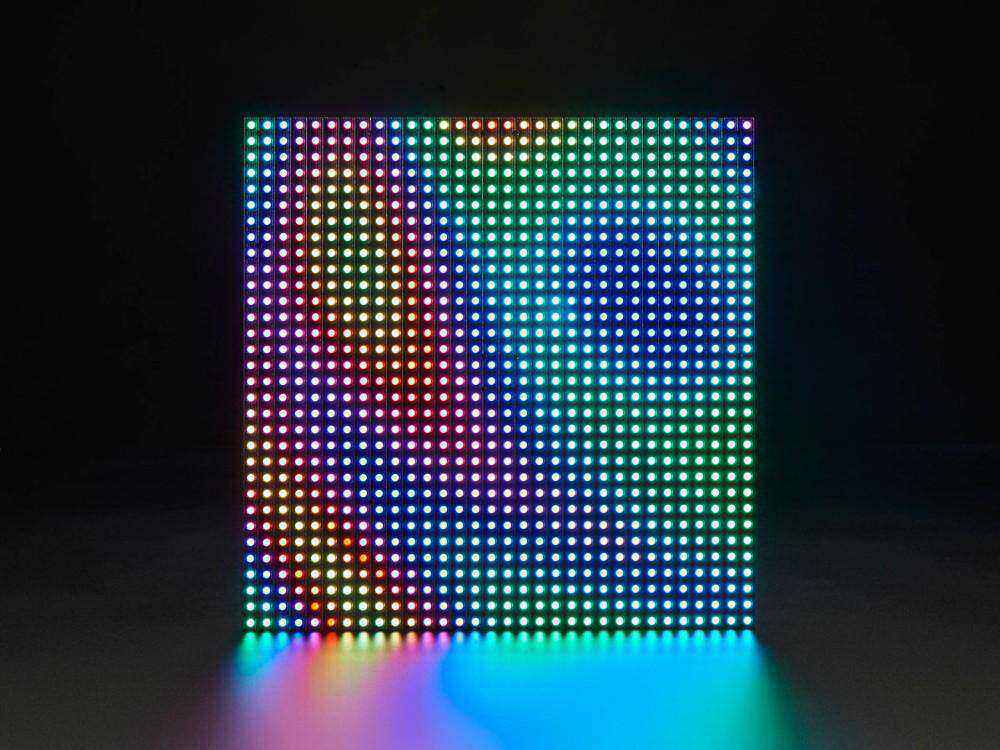

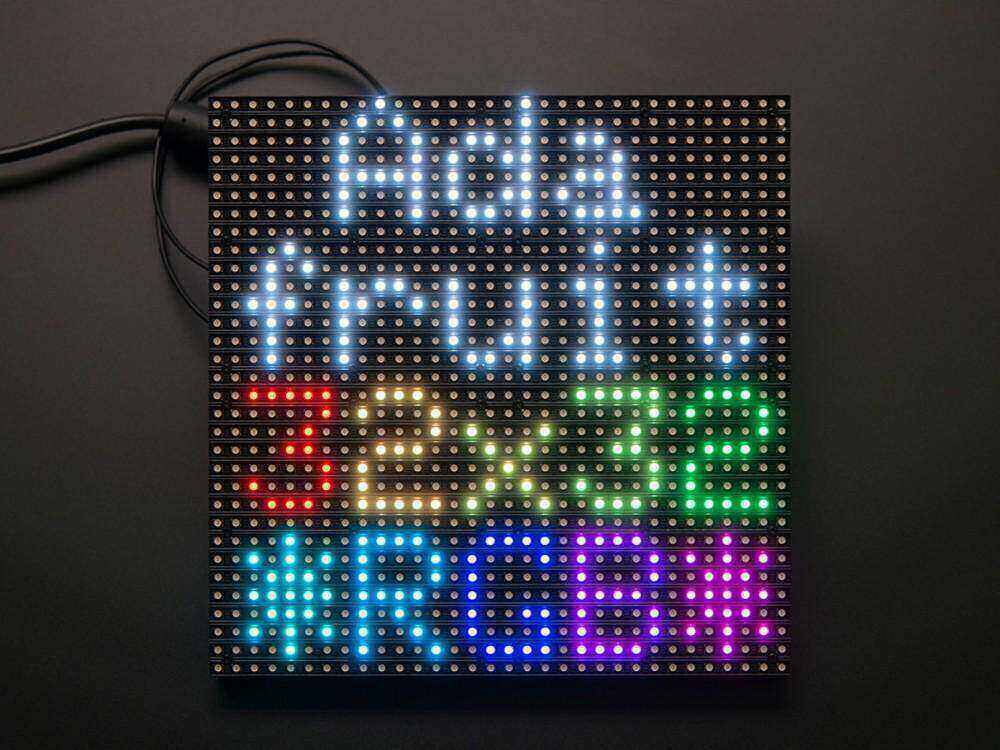

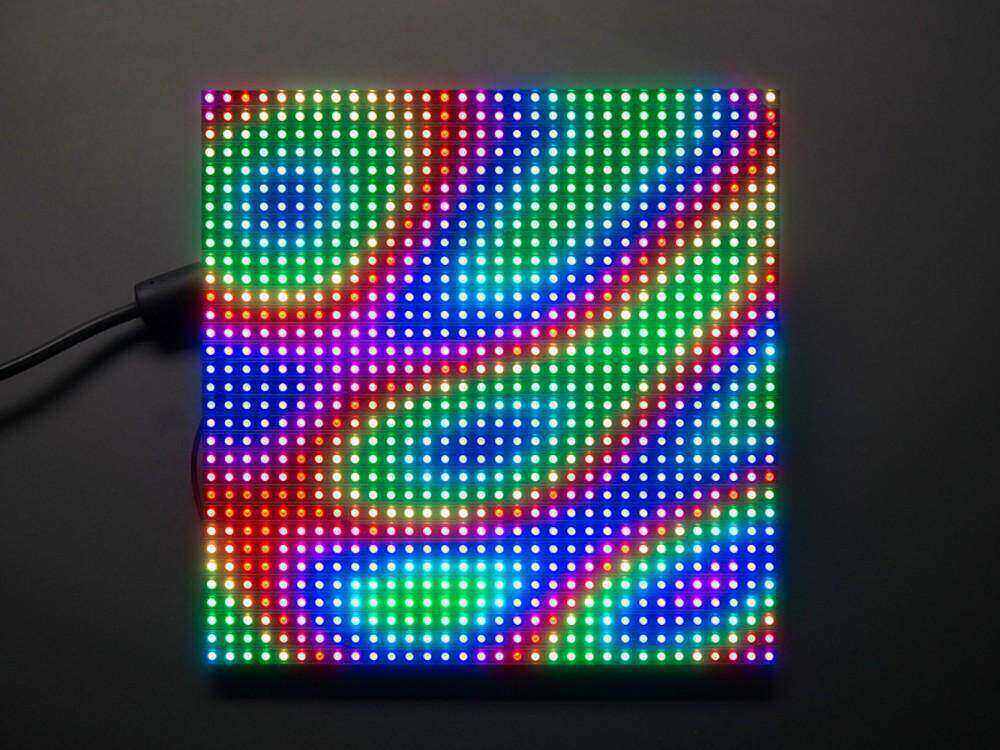

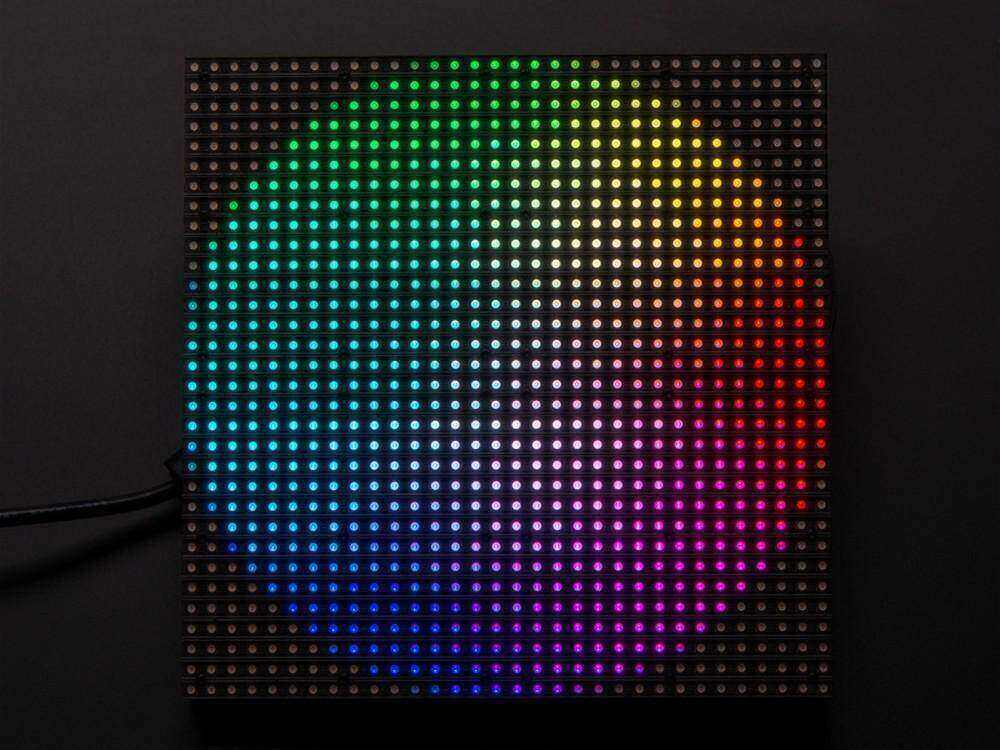

Bring a little bit of Times Square into your home with this sweet 32 x 32 square RGB LED matrix panel. These panels are normally used to make video walls, in rental led display market or to display animations or short video clips for personal. We thought they looked really cool so we picked up them from our factory. Our Factory is the suppier for Absen, all led display products are High quality to export oversea which let the world more colorful.

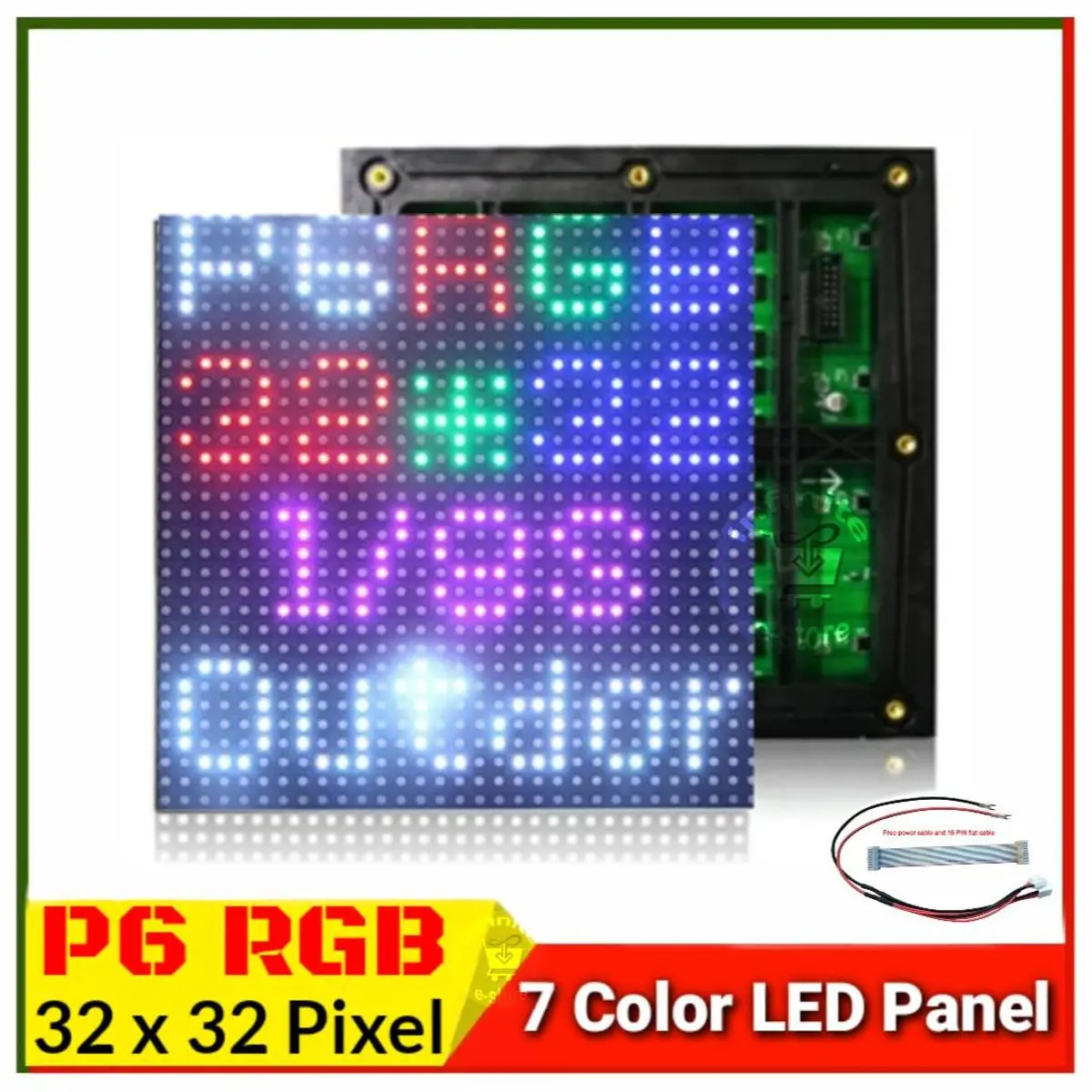

They have 1024 bright RGB LEDs arranged in a 32x32 grid on the front on a 6mm grid. On the back there is a PCB with a set of dual IDC connectors (one input, one output: in theory you can chain these together) and 12 16-bit latches that allow you to drive the display with a 1:16 scan rate.





These displays are technically 'chainable' - connect one output to the next input.

These panels require 13 digital pins (6 bit data, 7 bit control) and a good 5V supply, up to 2A per panel. We suggest our 2A regulated 5V adapter and then connecting a 2.1mm jack. Please check out our tutorial for more details!

Â

PRODUCT SHOW

Arduino Mega, Raspberry Pi, BBB or other device that can handle displaying to RGB matricies and has plenty of RAM.

TECHNICAL DETAILS

• Dimensions: 192mm x 192mm x 14mm / 7.5" x 7.5" x 0.55"

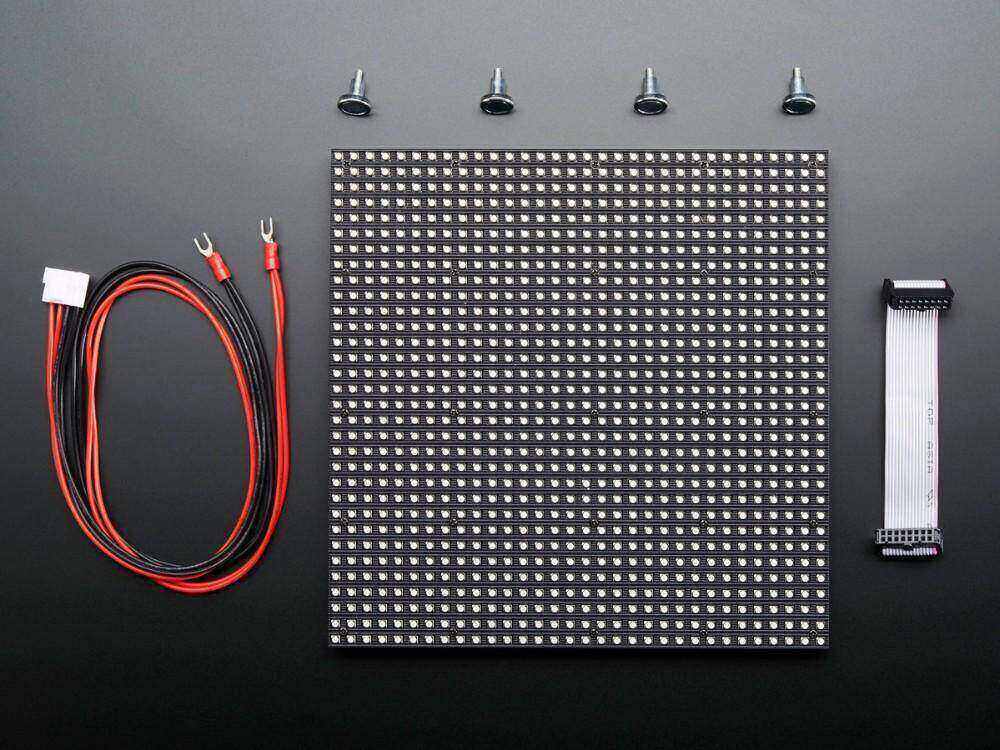

• Panel weight with IDC cables and power cable: 357.51g



• 5V regulated power input, 2A max (all LEDs on)



• 5V data logic level input



• 2000 mcd LEDs on 6mm pitch



• 1/16 scan rate



• Indoor display, 150 degree visibility



• Displays are 'chainable' - connect one output to the next input-you can assmble it to a video wall big display screen

• P6 LED Panel
• Applucation: Digital LED Tv, Full Color Signboard widely use in Stadium, advertisement, banks, security exchane, stations, shopping malls, postal offices, schools, restaurants, enterprises , highway etc.
• Model: P6 7 Color LED Display Module
• Pixel: 32x32 Pixel
• Dimensions: 192mm x 192mm x 14mm / 7.5" x 7.5" x 0.55"
• Panel weight with IDC cables and power cable: 357.51g
• 5V regulated power input, 2A max (all LEDs on)
• 5V data logic level input
• 2000 mcd LEDs on 6mm pitch
• 1/16 scan rate
• Indoor display, 150 degree visibility
• Displays are 'chainable' - connect one output to the next input-you can assmble it to a video wall big display screen
