Mini Router Uninterruptible Power Supply Board 12.6V Battery Charging Board 3S Lithium Battery Input 5V/9V/12V Output 40W DC UPS for Router Onu CCTV DVR XVR Multicolor

Name: Mini Router Uninterruptible Power Supply Board 12.6V Battery Charging Board 3S Lithium Battery Input 5V/9V/12V Output 40W DC UPS for Router Onu CCTV DVR XVR Multicolor
SKU: MOS897009
Price: 600.00 BDT
Availability: InStock

Category: IPS & Batteries

SKU: MOS897009

Seller: Module Shop

Tk 600

0 review(s)

Features:
1. Supports 4-way output, allowing simultaneous power supply to multiple devices, meeting various needs.

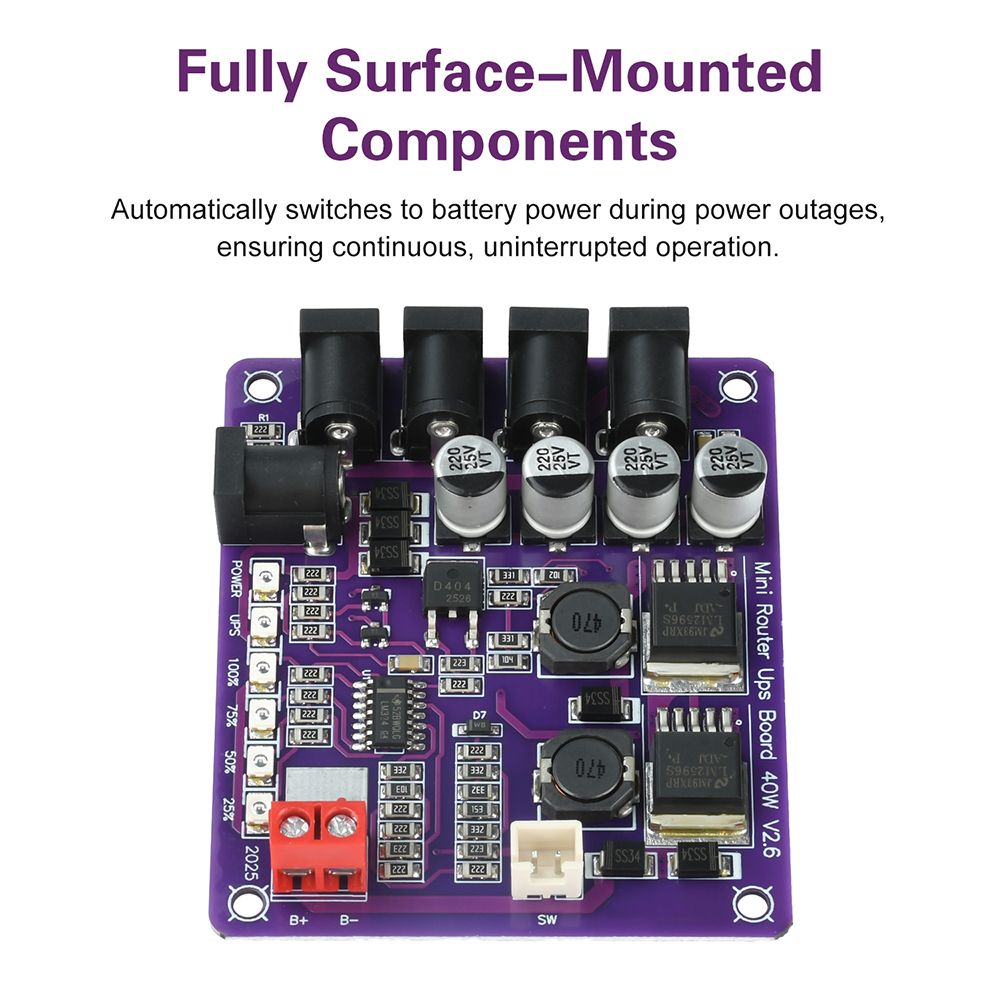

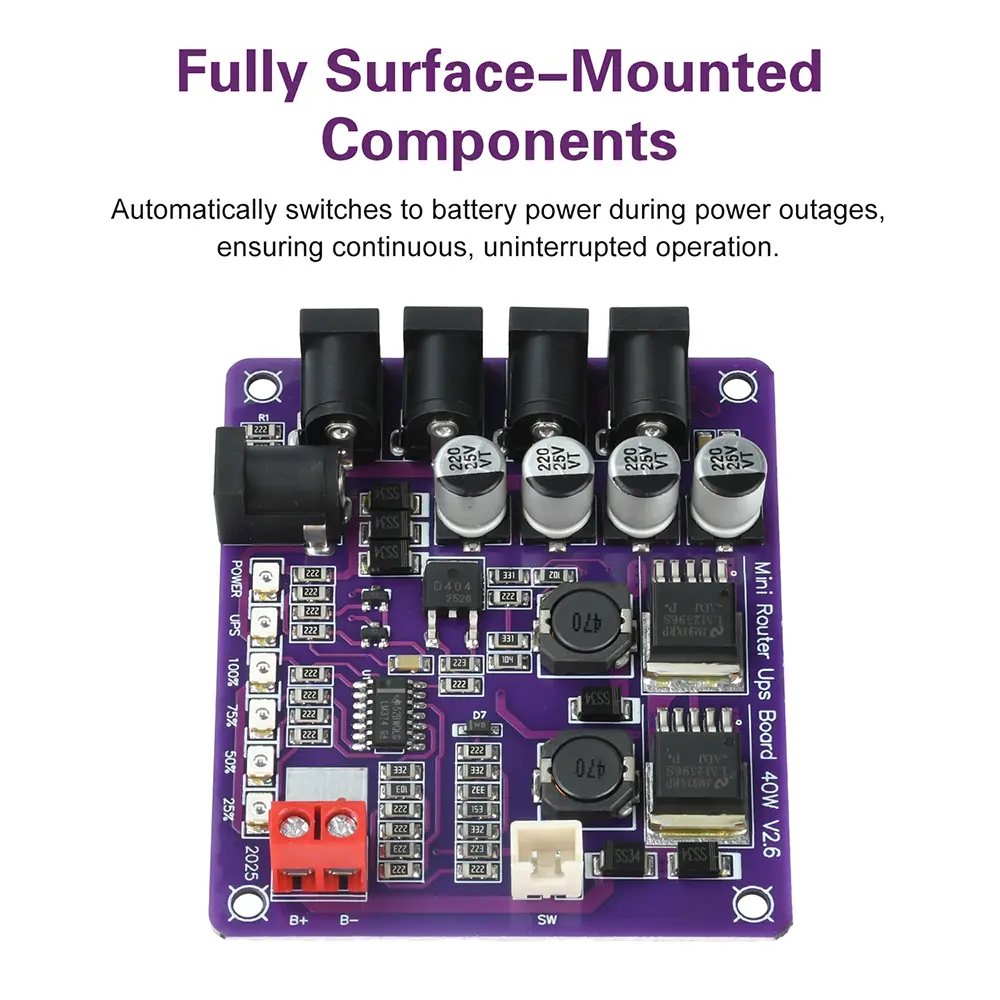

2. Fully surface-mount components, automatic battery power switching upon power failure, ensuring continuous and uninterrupted operation.

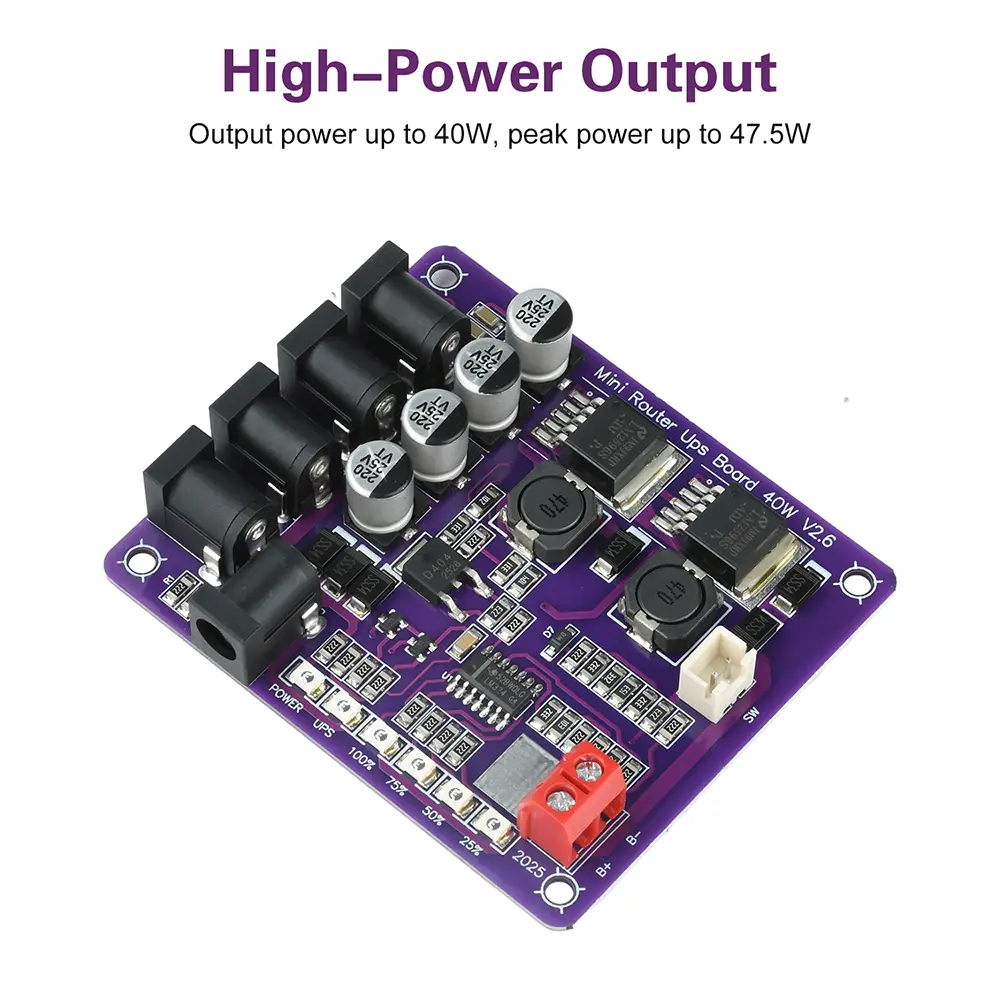

3. High power output, up to 40W, with a peak power of 47.5W.

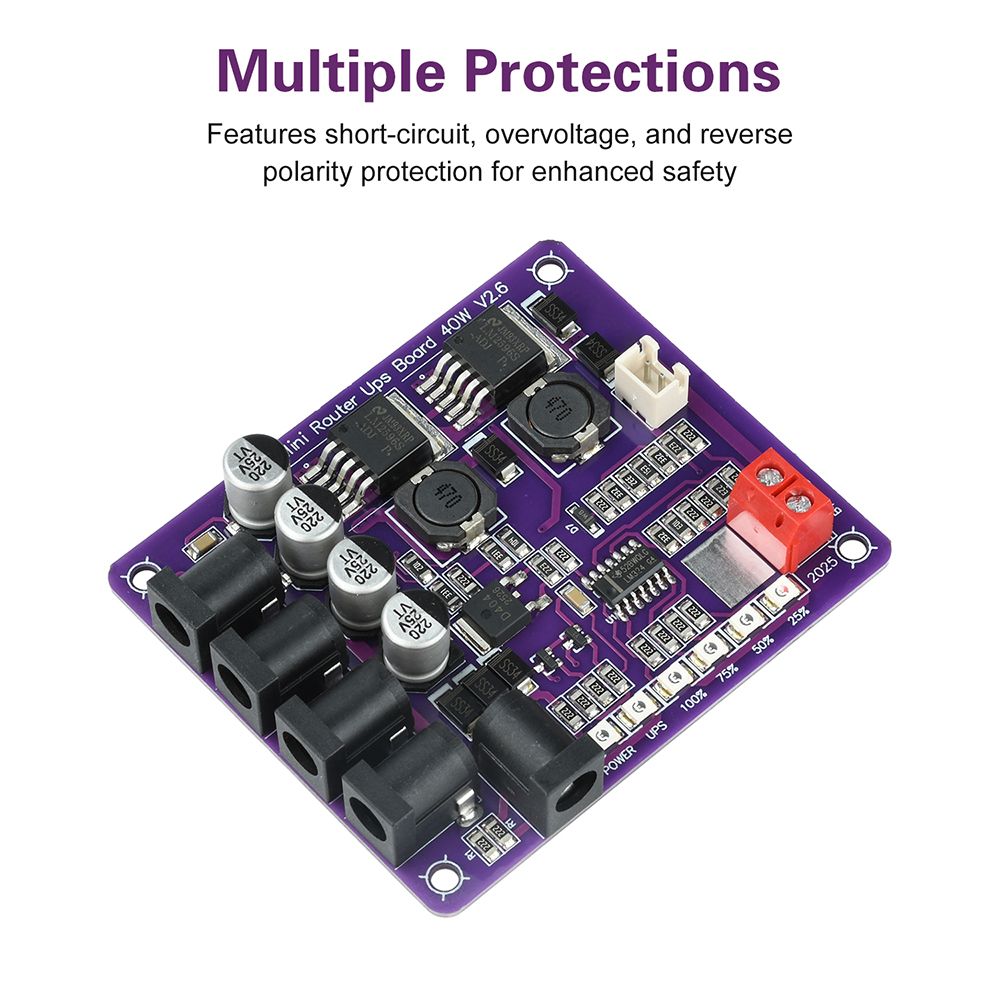

4. Multiple protection features including short circuit, overvoltage, and reverse polarity protection for safer use.

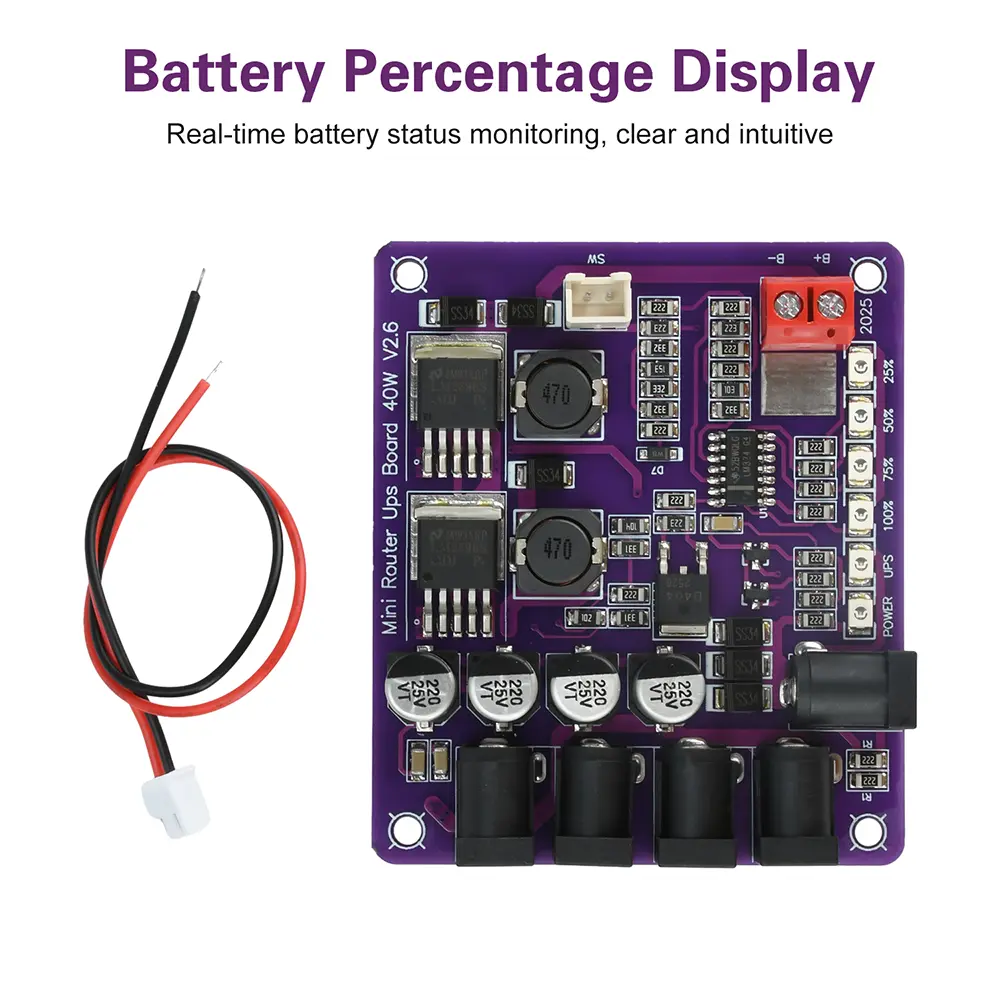

5. Battery percentage indicator for real-time monitoring of battery status, clear and intuitive.

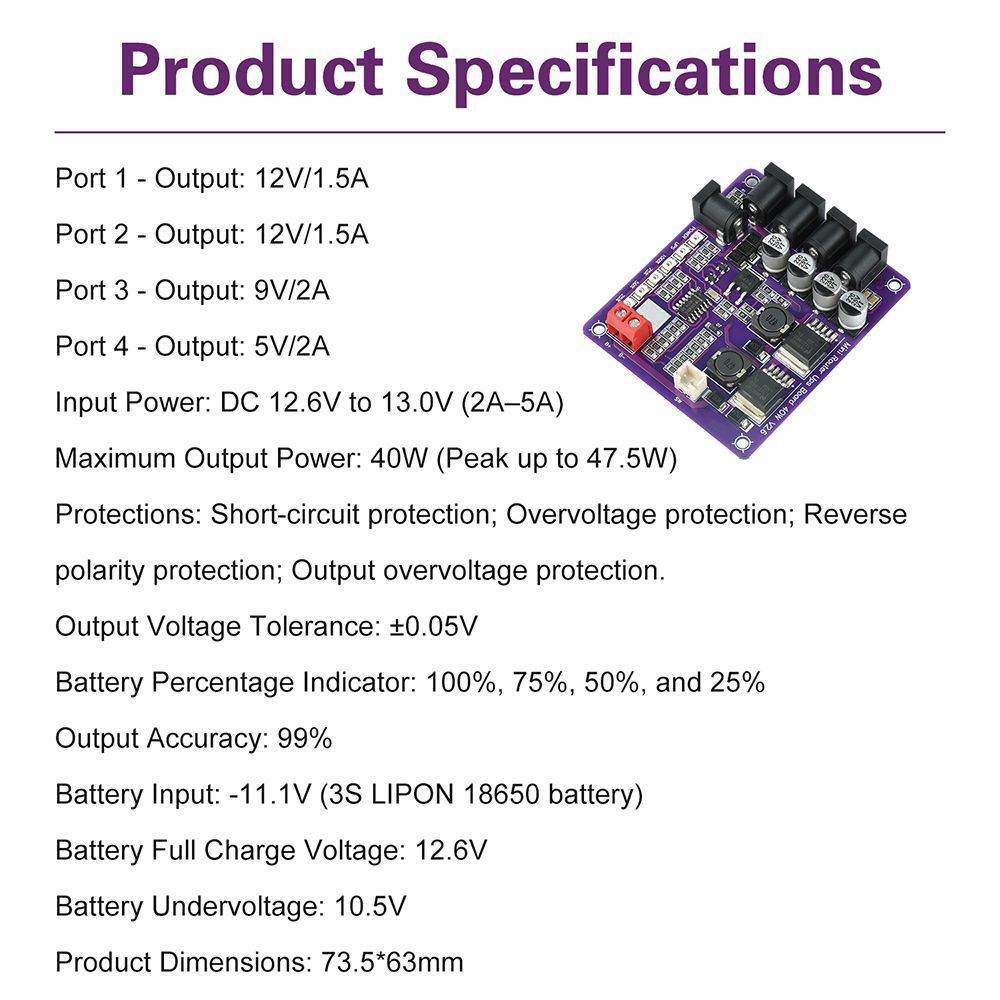

Product Parameters:

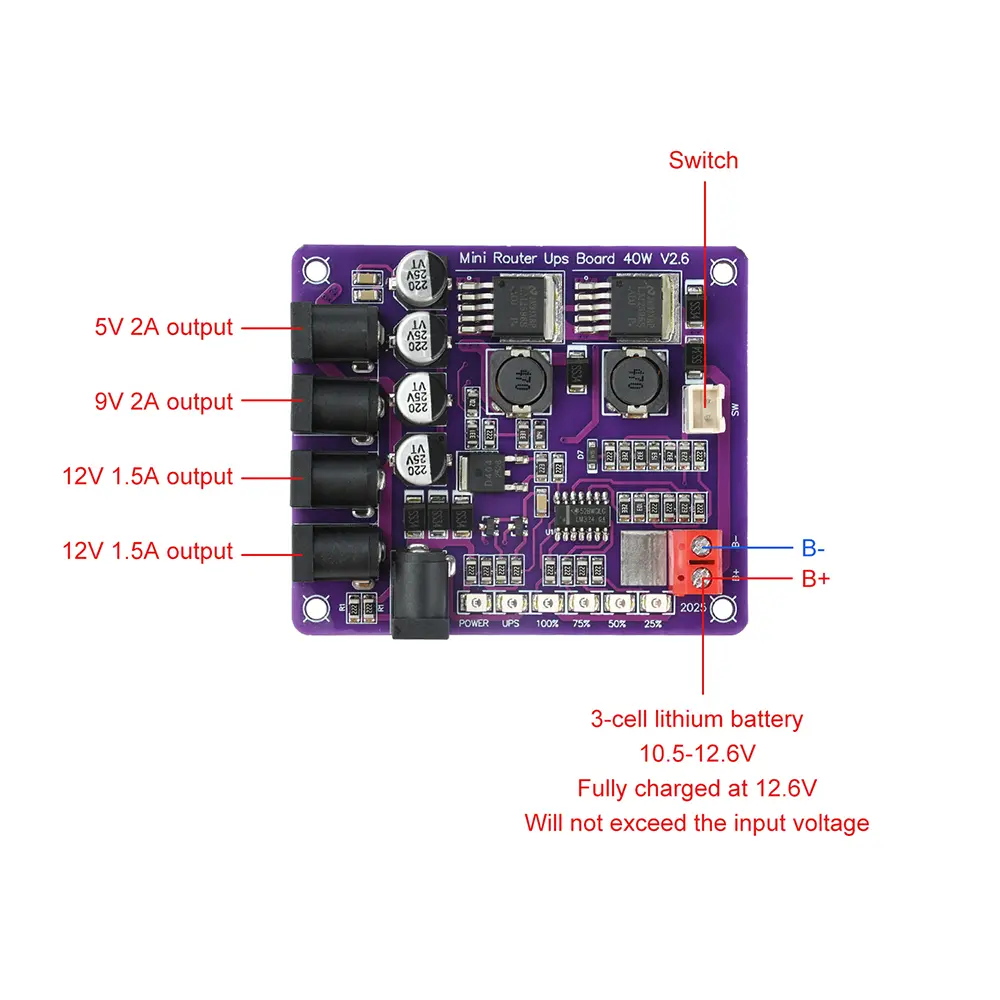

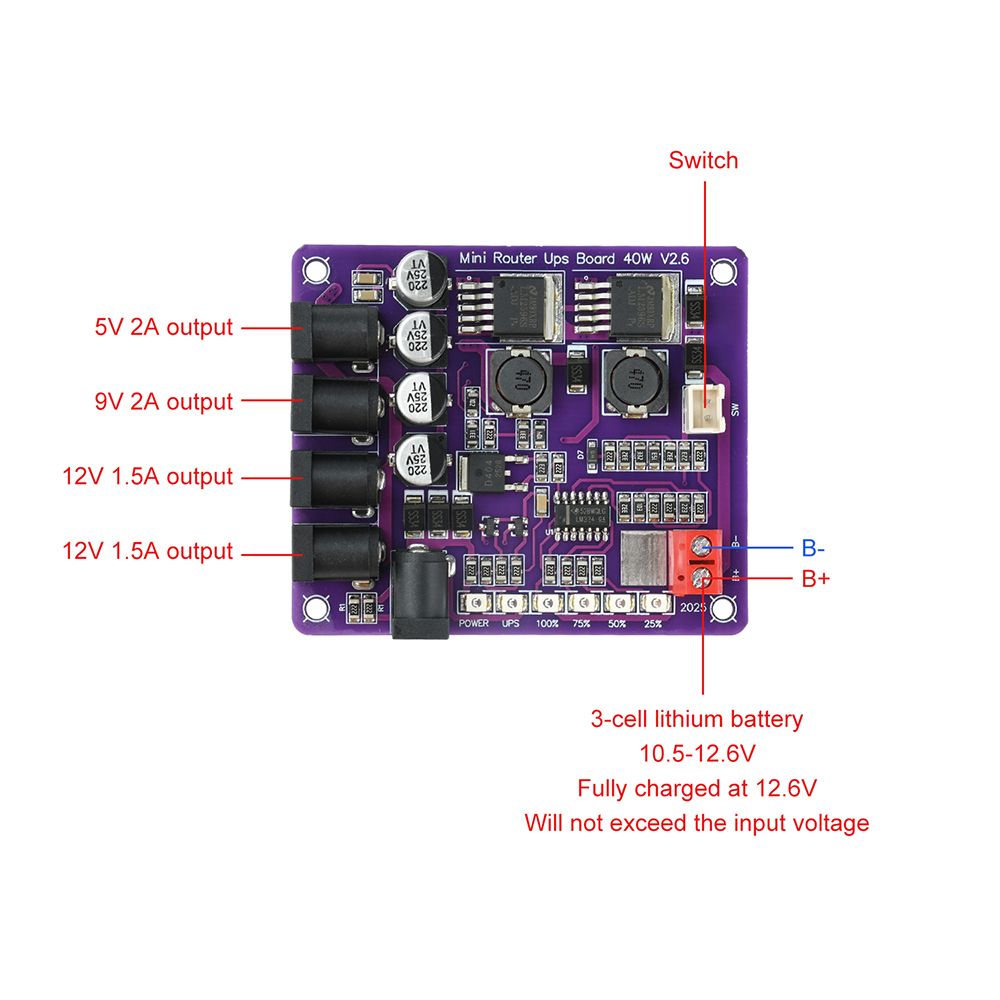

Port 1 - Output: 12V/1.5A
Port 2 - Output: 12V/1.5A
Port 3 - Output: 9V/2A
Port 4-Output: 5V/2A
Input Power: DC 12.6V to 13.0V (2A-5A)
Maximum Output Power: 40W (peak up to 47.5W)
Protection: Short circuit protection; High voltage protection; Reverse polarity protection; Output overvoltage protection.
Output Voltage Tolerance: ±0.05
Battery Percentage Indicator: 100%, 75%, 50%, and 25%
Output Accuracy: 99%
Battery Input: -11.1V (3S LiPo 18650 battery)
Battery Full Charge Voltage: 12.6V
Battery Undervoltage: 10.5V
Product Dimensions: 73.5*63mm
Package List:
1X Power Module
1X Terminal Wire
