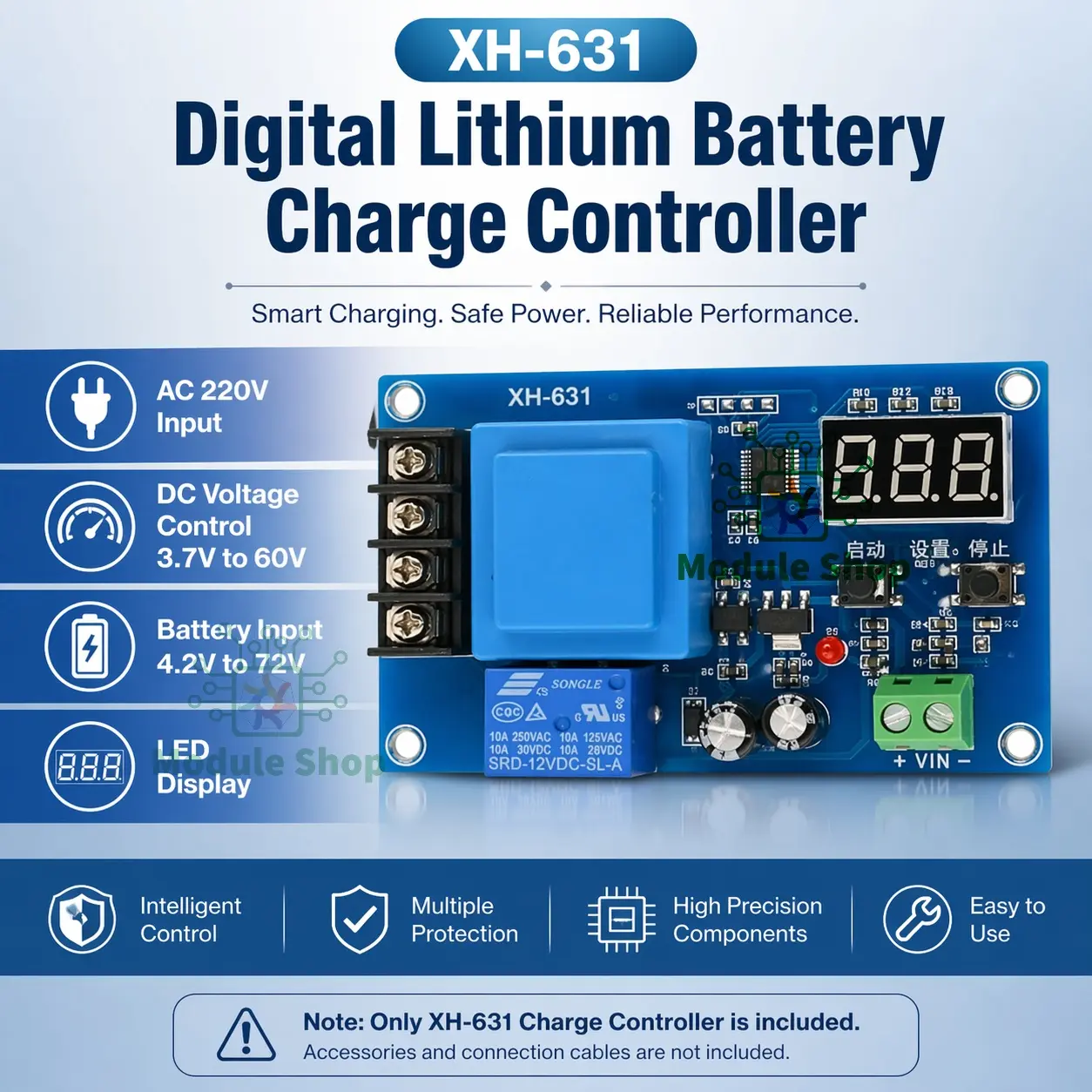

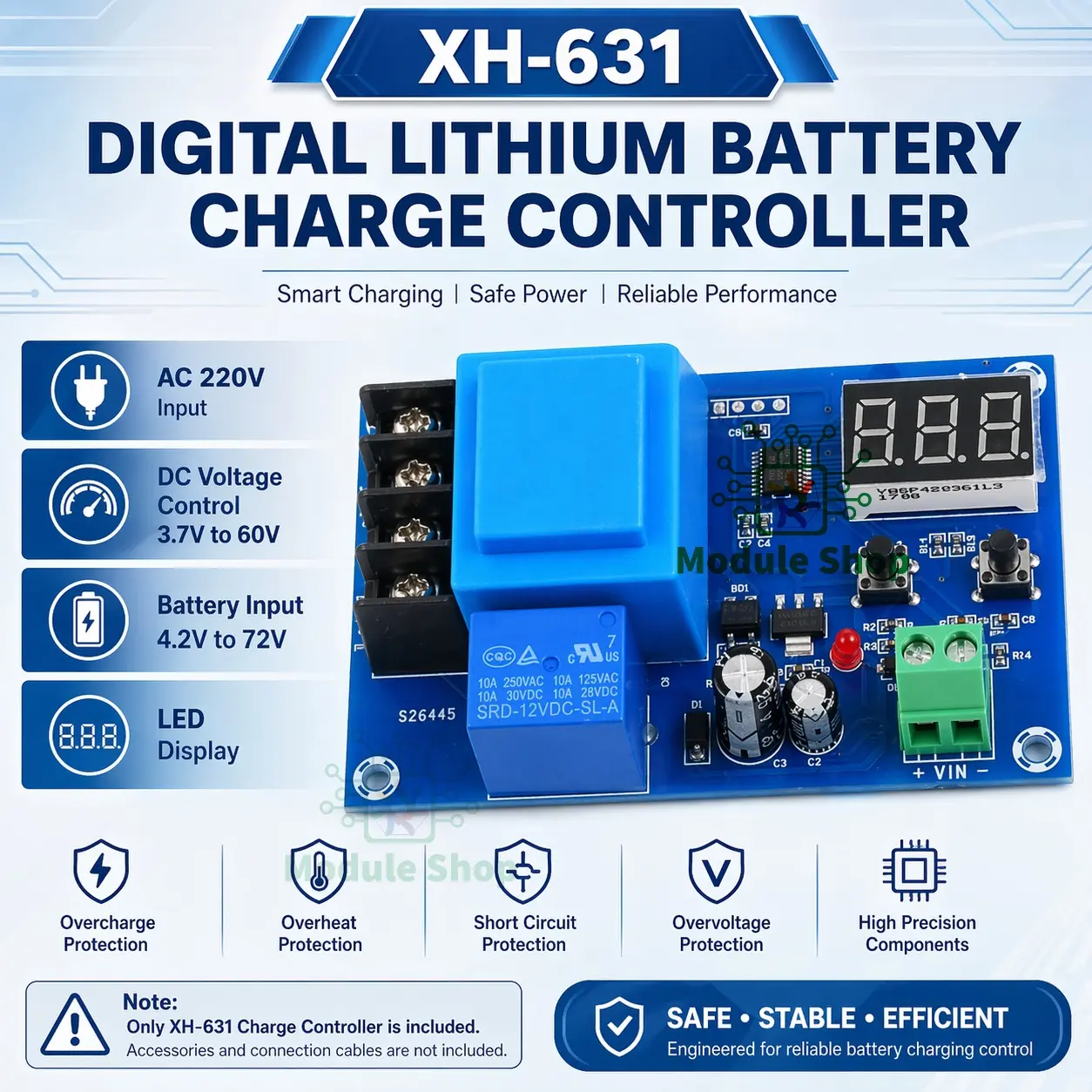

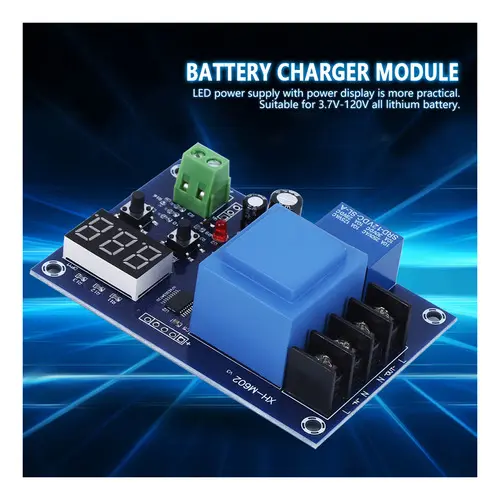

HW-631 Battery Charger Control Module DC 6-60V Storage Lithium Battery Charging Control Switch Protection Board similar XH-M602

Input Voltage: DC 6-60V

• Display Accuracy: 0.1V
• Control Accuracy: 0.1V
• Output Type: direct output
• Voltage Tolerance: ±0.1V
• Apply for: 6-60V MAX 80V battery
• Dimension: 81*54*18mm
• Usage:
• In the setting voltage value, start button play button raised, about stop button role to down key
• 1. Set the start voltage:
• Normal display voltage state, press to a starting voltage button ,to display the start charging voltage. long Press the start button, digital flashes, by start and stop button, set the start charging voltage value.
• 2. Set Stop voltage:
• Normal Voltage normal display mode, press to a Stop voltage button ,to display the Stop charging voltage. long Press the Stop button, digital flashes, by start and stop button, set the Stop charging voltage value.
• 3. Setting Error:
• Energized state while holding down the start / stop button, digital display 888, which is the factory setting.
•
• Package Included:
• 1 x  Digital display Lead acid Battery Charge Control Module
