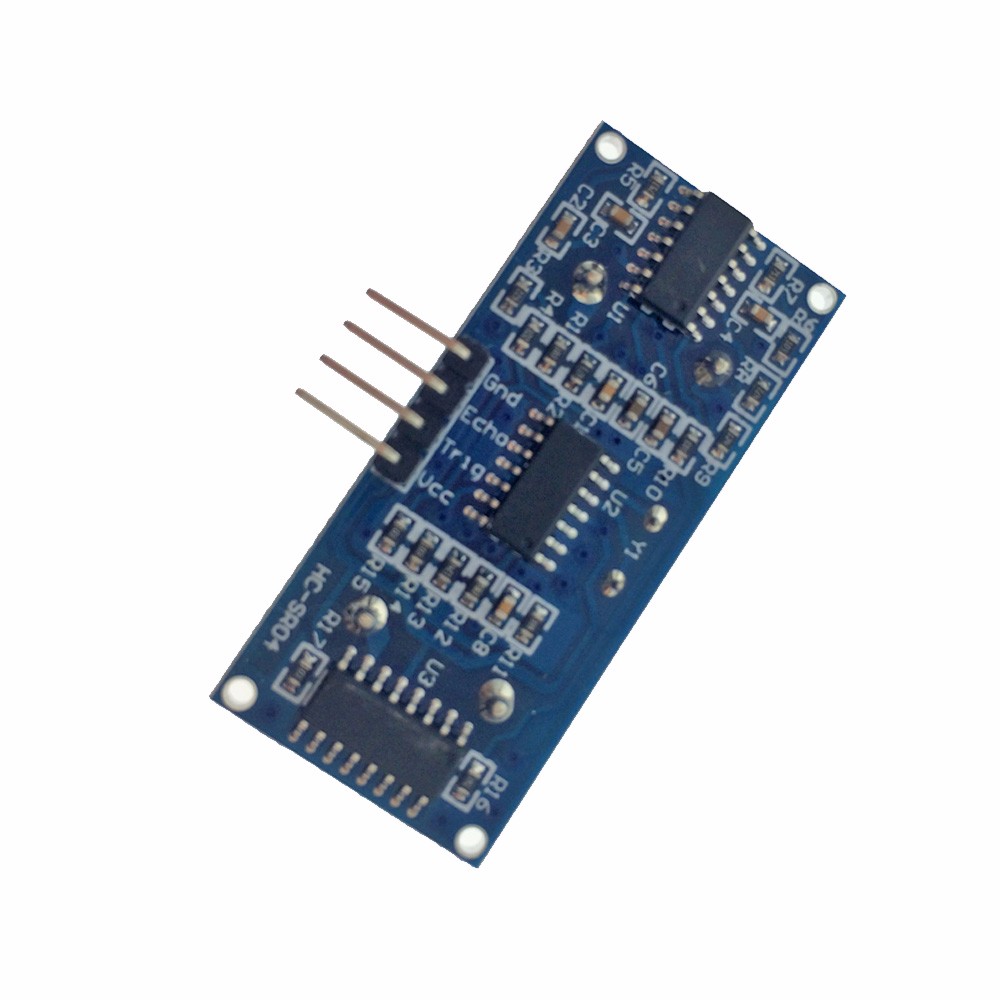

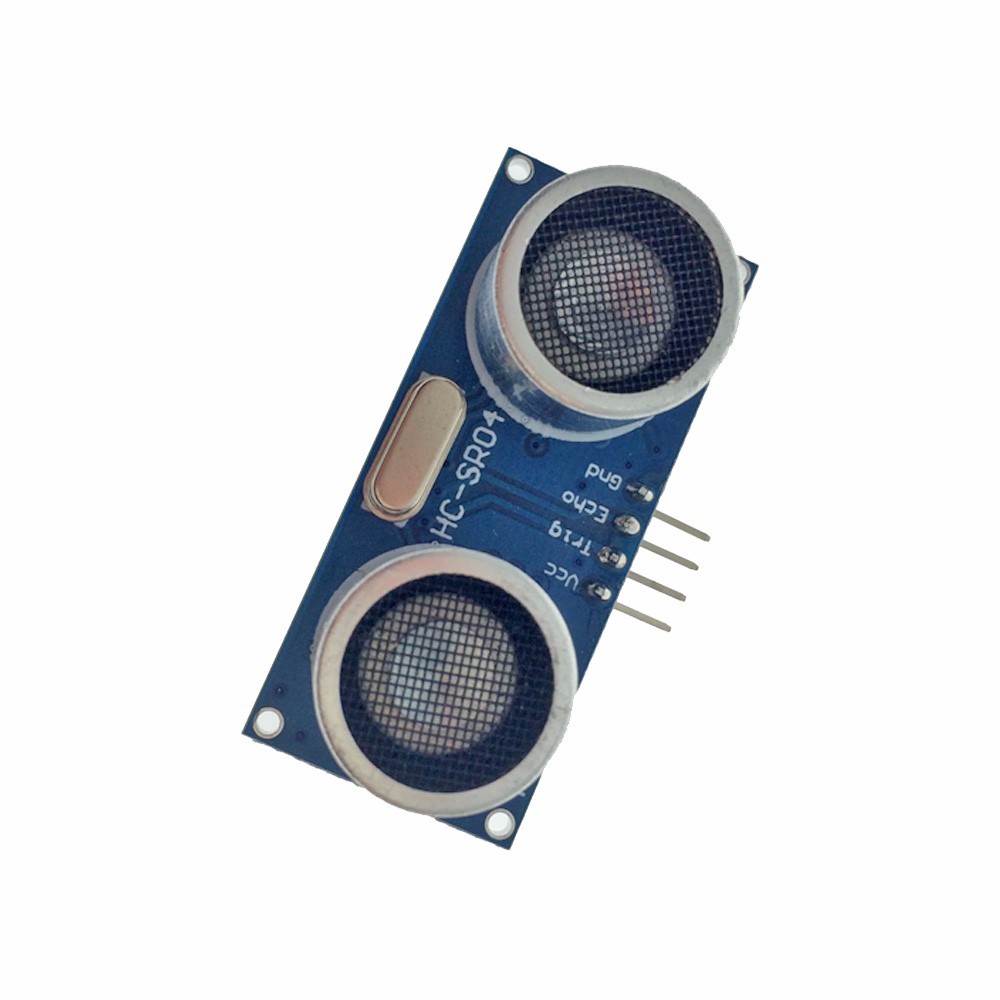

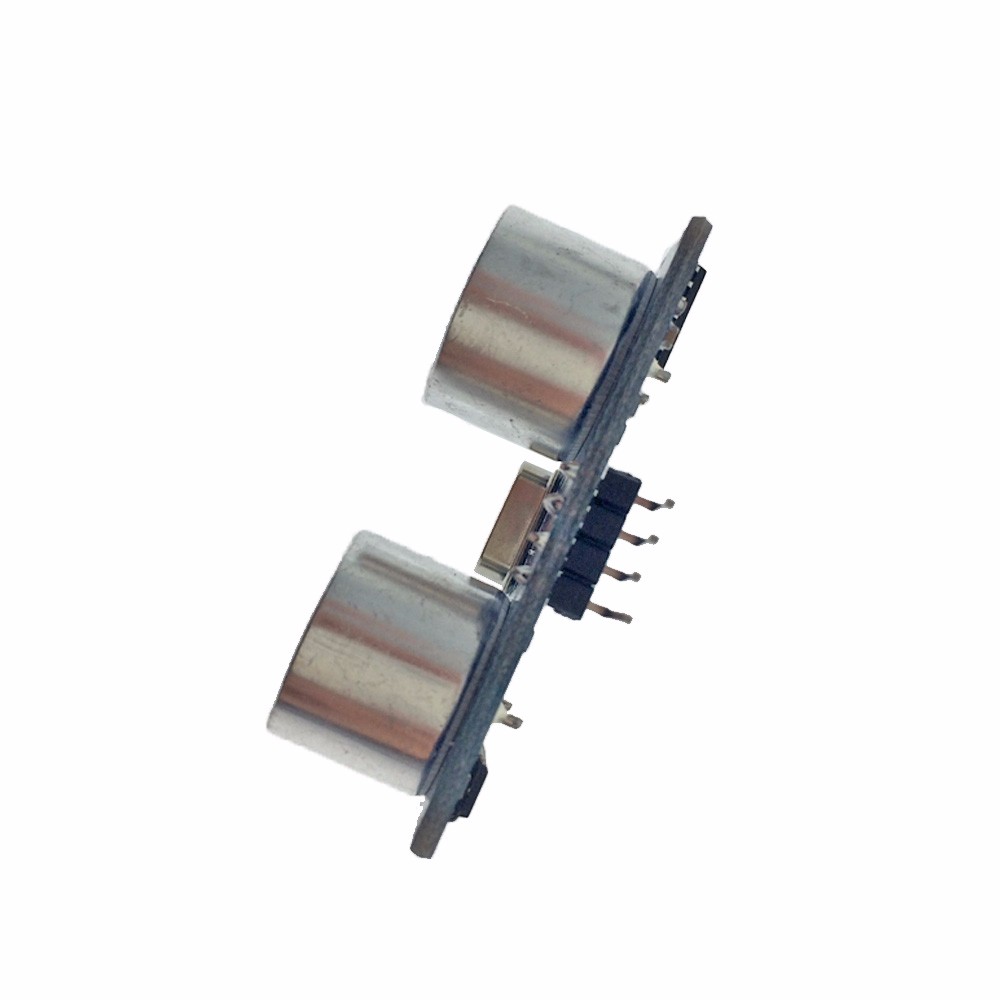

HC-SR04 Module Micro controller Sensor for arduino Uno R3 Blue

Category: Electrical Accessories
SKU: MOS895461
Seller: Module Shop
Tk 120
0 review(s)
  • 1: Voltage: DC5V
  • 2: Quiescent Current: <2mA
  • 3: level output: the output of the high-5V
  • 4: level: the end of 0V
  • 5: Induction Angle: not more than 15 degrees
  • 6: Detection range: 2cm-450cm
  • 7: High precision: up to 0.3cm

Call For Order : 09613-800800

Operating Voltage

5V

logic voltage

3.3V or 5V

Static current

Less than 2mA

Sensor angle

Less than 15 degrees

Detection distance

2cm-450cm

High precision

Up to 3MM

Echo signal

Output TTL PWL signal

Operating frequency

40Hz

Material

PCB

Color

Blue + Black

Size

45*20*15 mm

Weight

10g

Compatible With

Intelligent Tracking / Obstacle Avoidance Car

collocation At Optional

Ultrasonic Sensor Module HC-SR04 Bracket Holder ( As the picture)

Product Decription

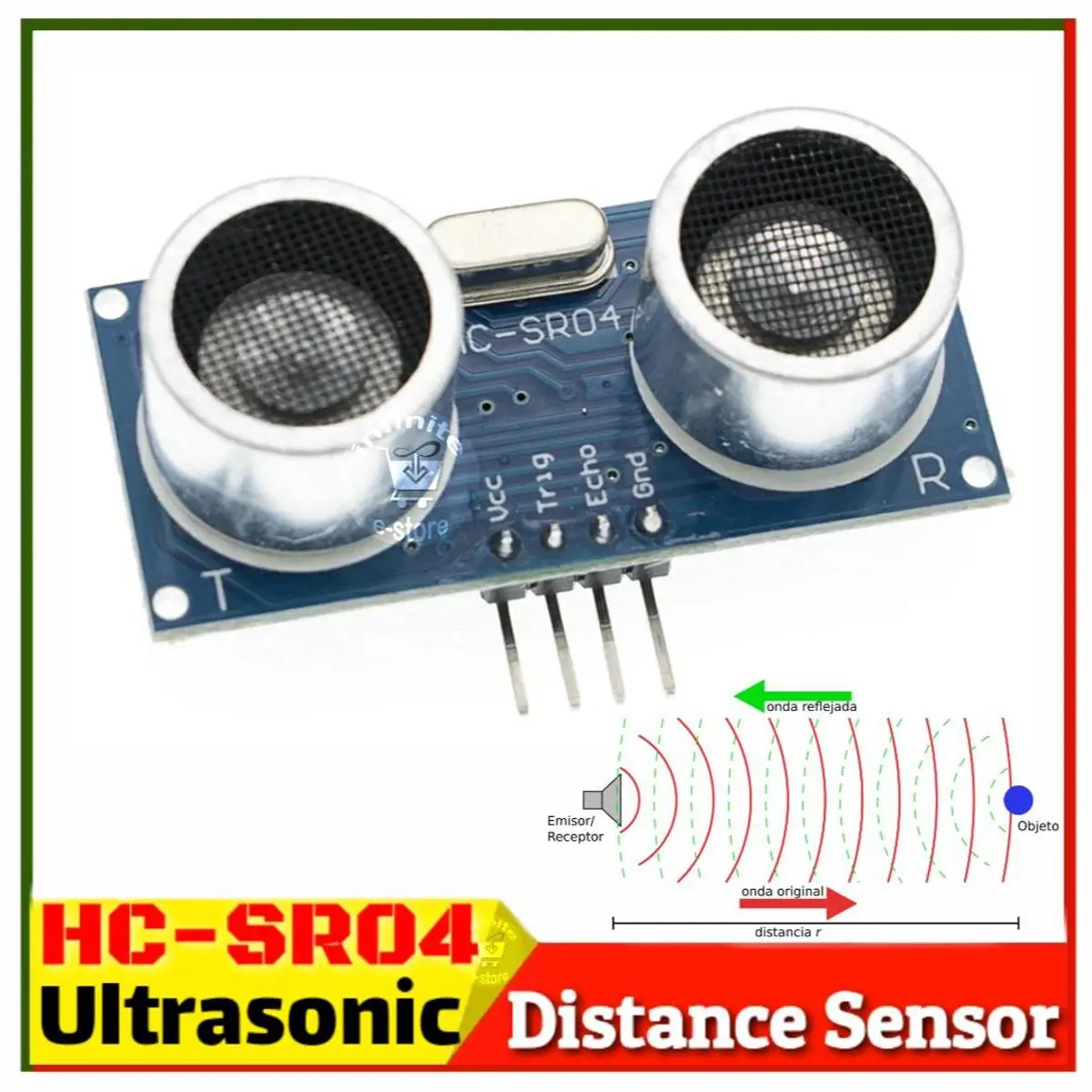

1. HC-SR04 ultrasonic module can offer non-contact distance sensing function;2. includes ultrasonic transmitter, receiver and control circuit.3. Operation requirement: Take IO port TRIG to trigger ranging.It needs 10 us high level signal at least4.Operating principle :can send 8 pro 40 kz square wave automatically, and will test if there is any signal returned.If there is signal returned, output one high level signal via IO port ECHO.The duration of the high level signal is the time from transmitter to receiving with the ultrasonic.

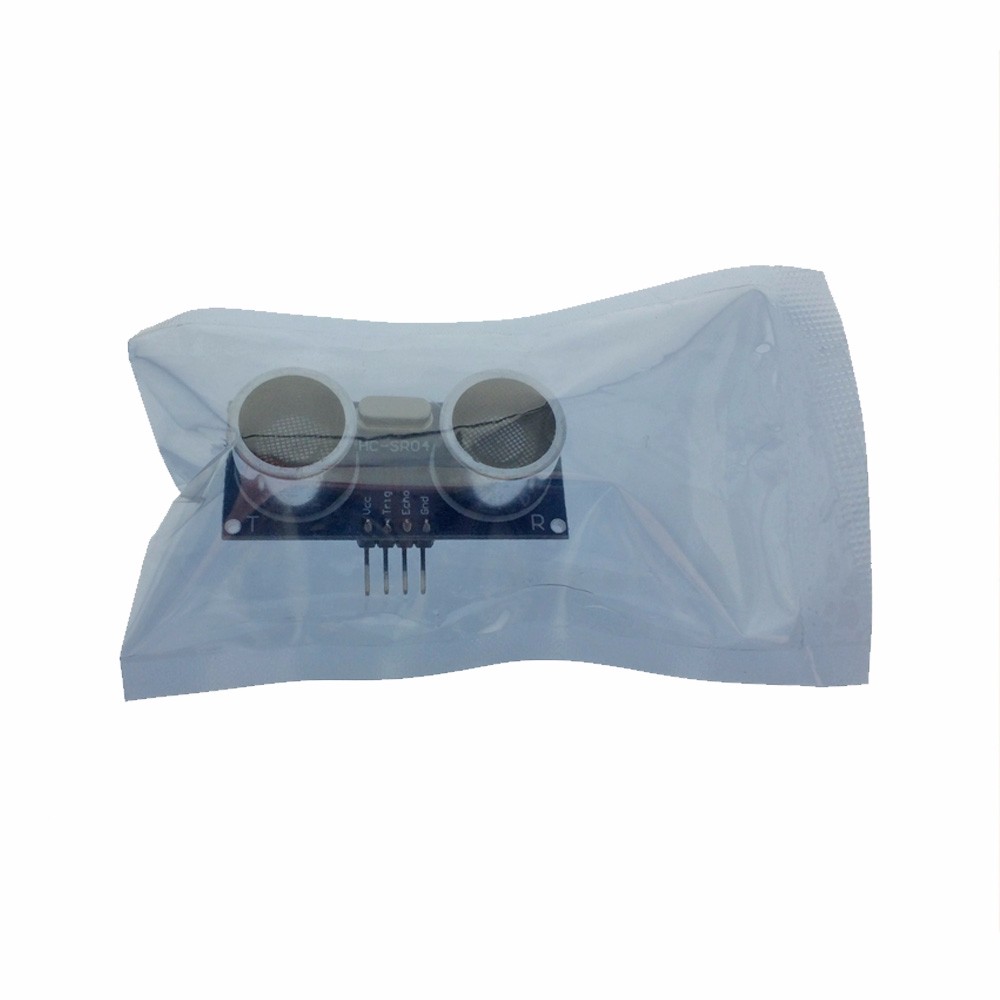

Packing

Packing example:

1. Anti-static bag






  • 1: Voltage: DC5V
  • 2: Quiescent Current: <2mA
  • 3: level output: the output of the high-5V
  • 4: level: the end of 0V
  • 5: Induction Angle: not more than 15 degrees
  • 6: Detection range: 2cm-450cm
  • 7: High precision: up to 0.3cm
