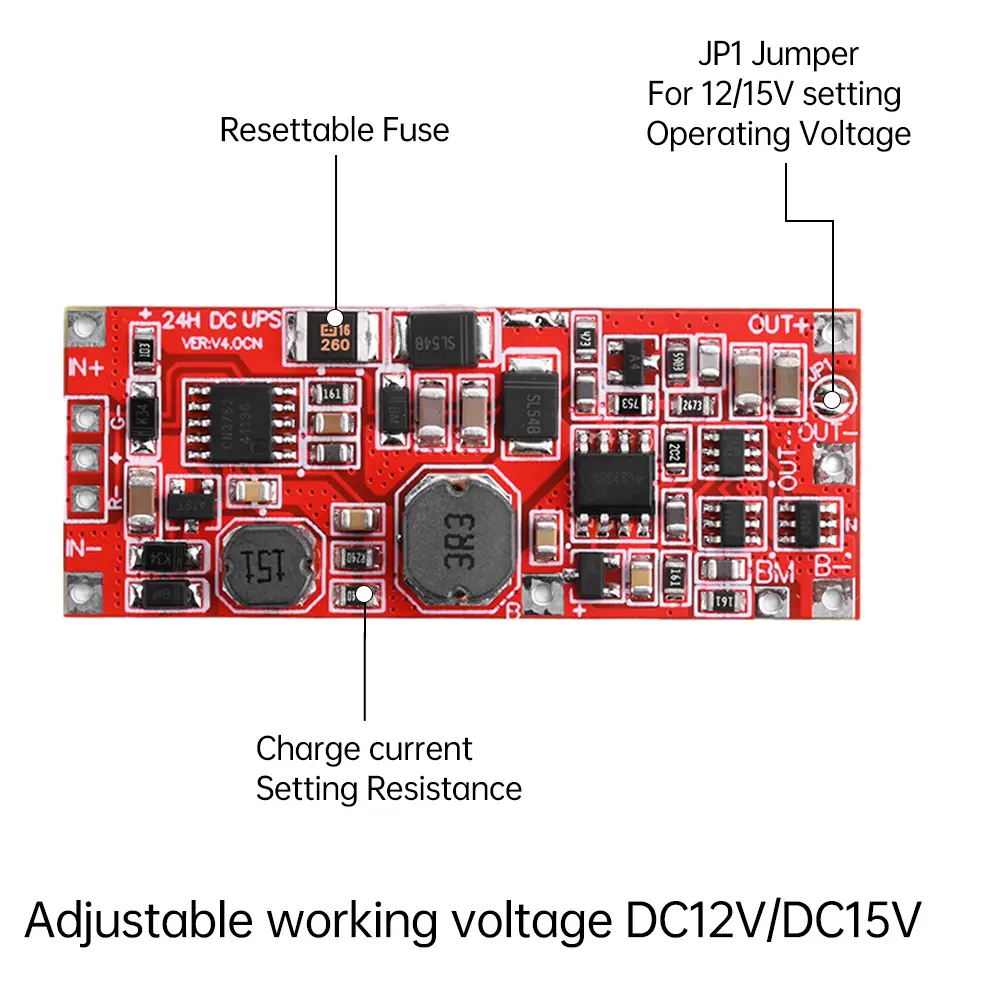

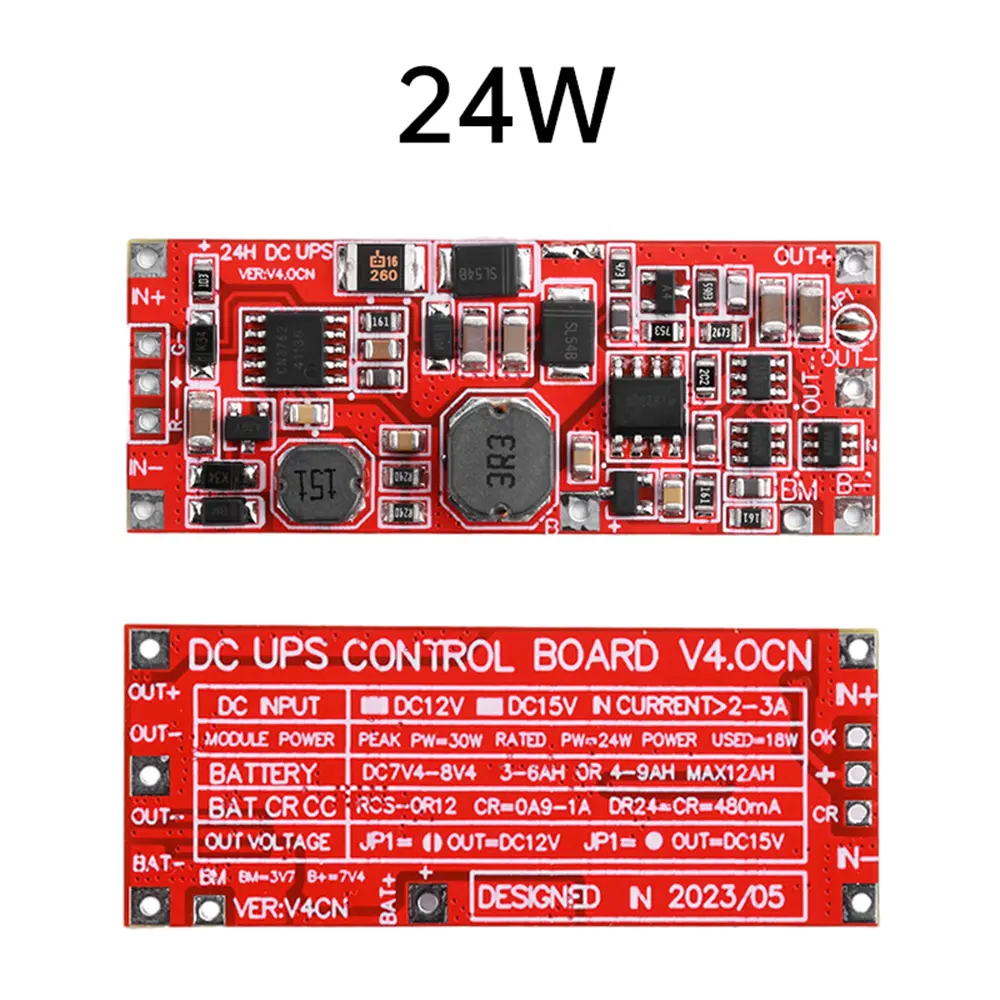

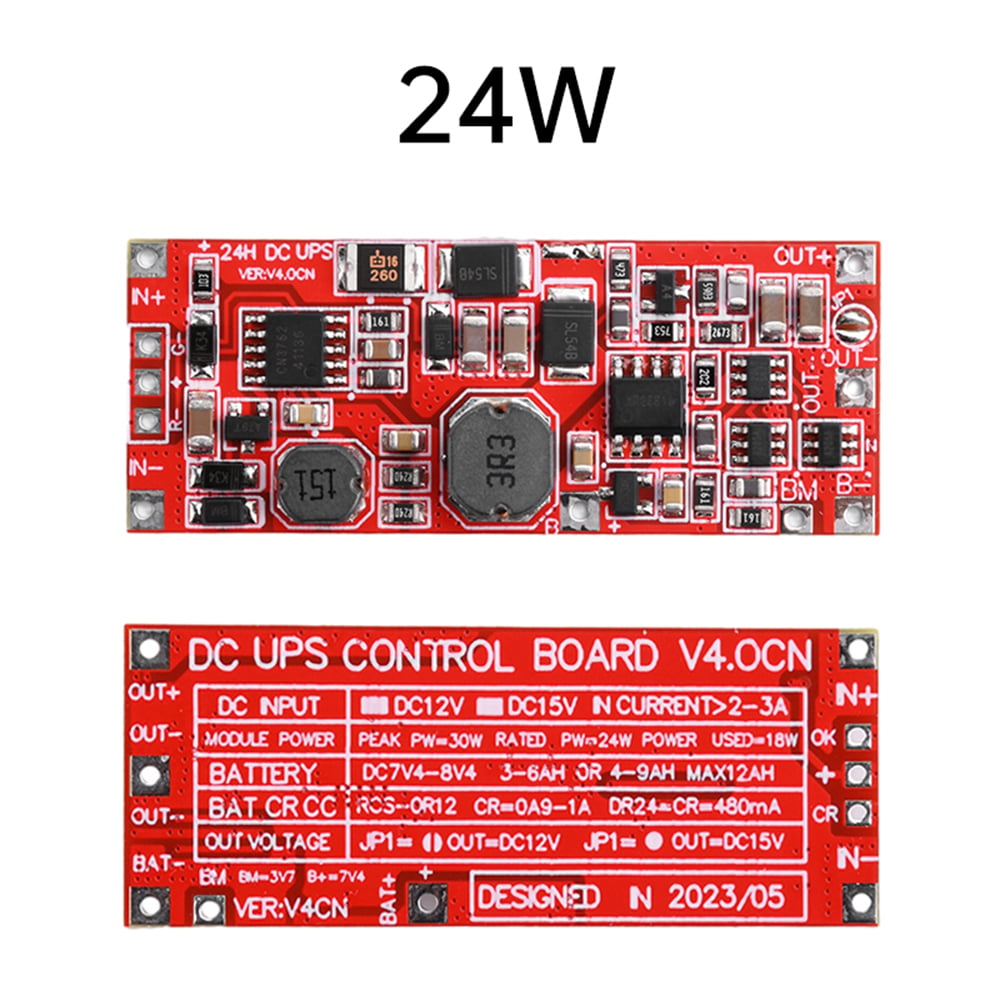

DC 12V/15V 24W 1A UPS Power Supply Module Uninterruptible Power Control Board 2S V4.0CN Charging Step Up Protection Module Multicolor

Color: Red style

Product power: rated 18W (usable 12W)

Downgraded version charging: about 0.5A

Input voltage: DC12V/DC15V

Output voltage: DC12V/DC15V

Applicable batteries: 7.4V-8.4V lithium batteries

No load power consumption: 0.2-0.3mA<0.5mA

Indicator light: External dual color LED indicator

light

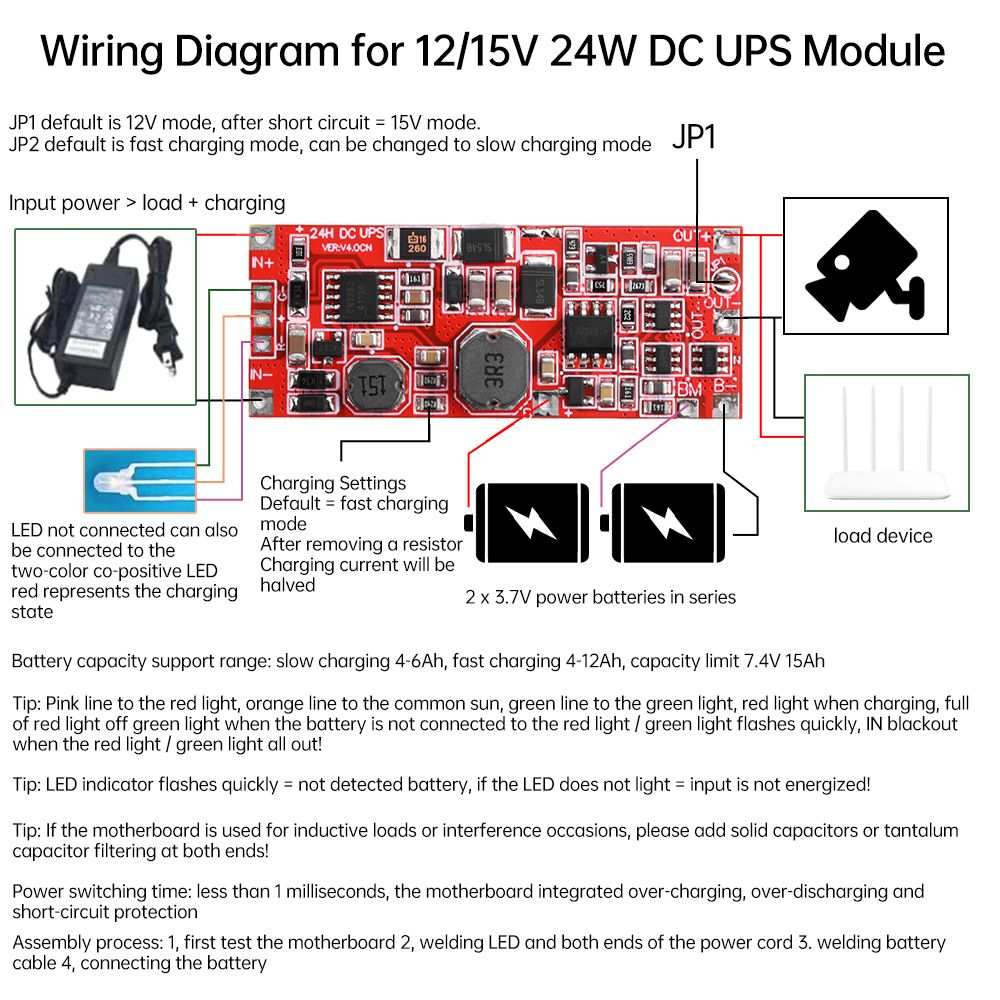

Product features: charging+battery

boost+switching+over discharge protection

Working voltage: default 12V mode/input current should be ≥ 3A

Battery capacity: slow charging for 4-6 Ah, fast charging for 4-12 Ah

Charging voltage: Voltage range 8.2-8.4V (average 8.3V)

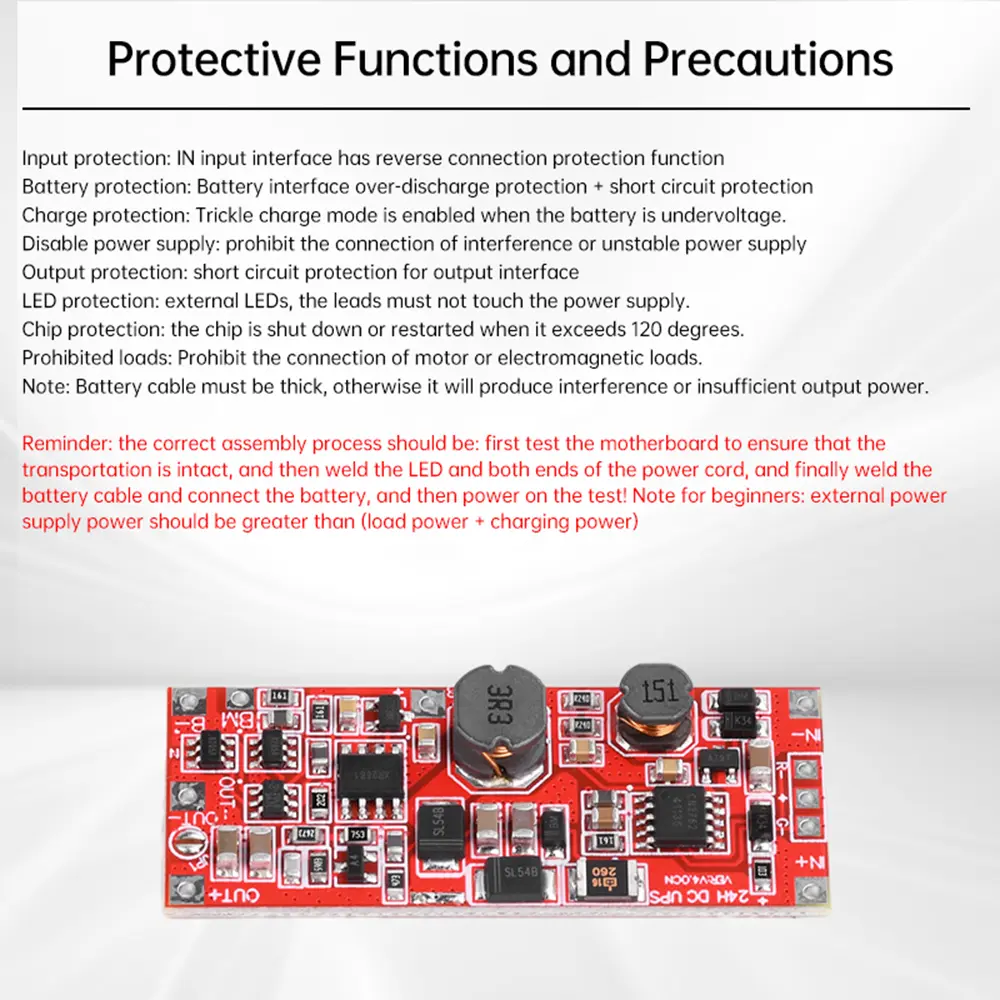

Discharge voltage: When the battery is below 6.0V-6.4V, it will automatically disconnect Path loss: FUSE and SS54 have a loss of approximately 0.4V-0.6V

Battery type: 7.4-8.4V lithium battery/supports 18650

Charging method: Trickle current/constant cu constant voltage three-stage charging Charging current: Fast charging mode approximately 0.9A-1A Charging current
