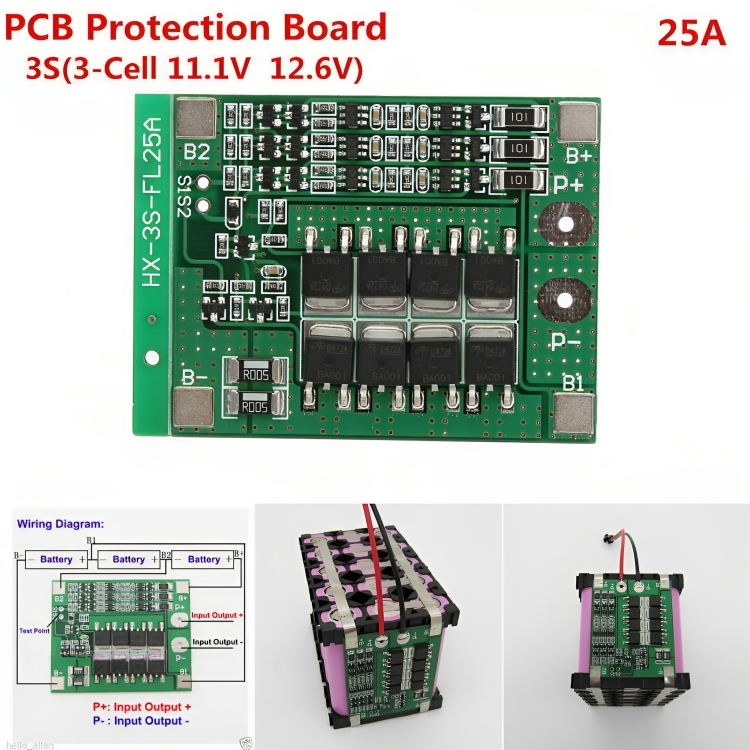

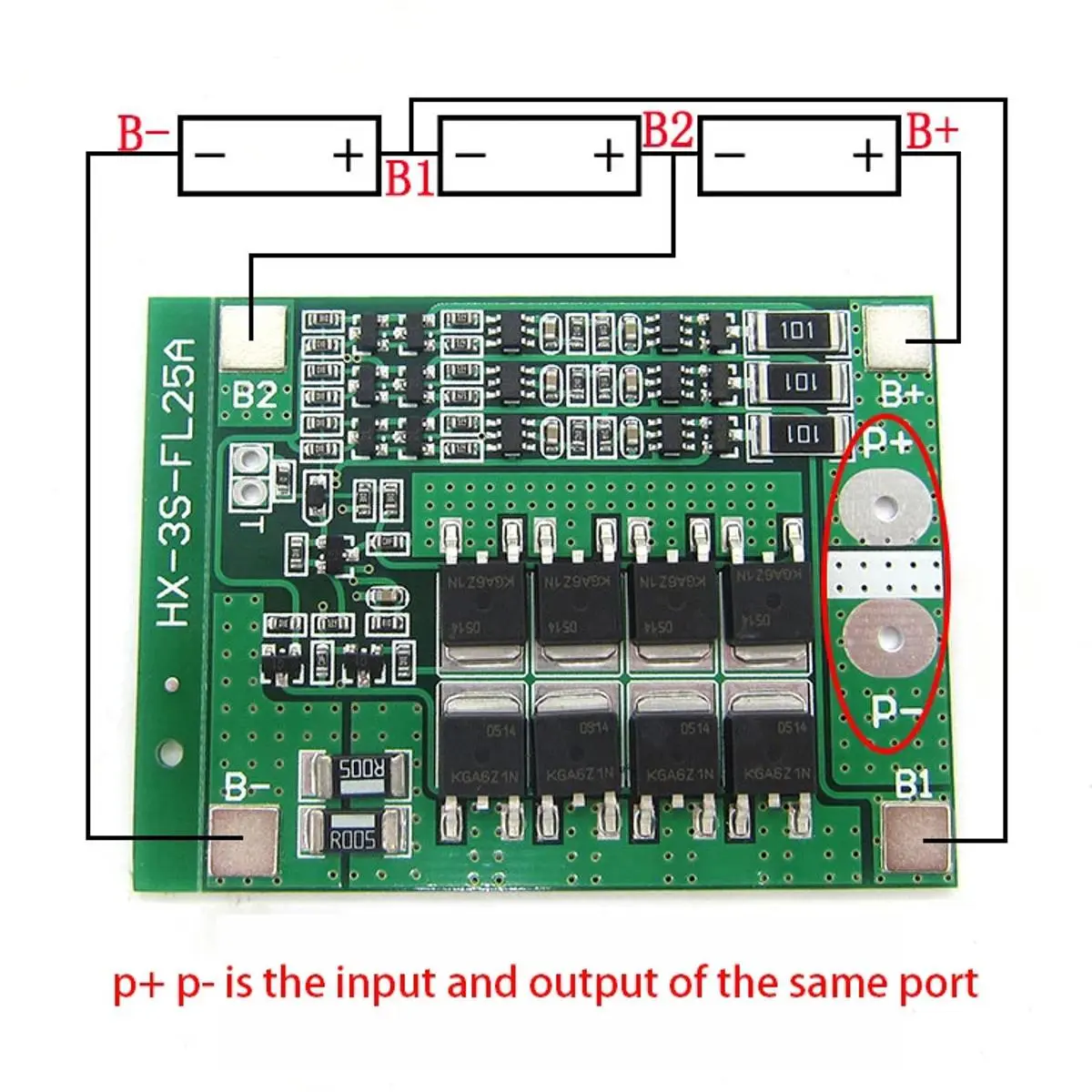

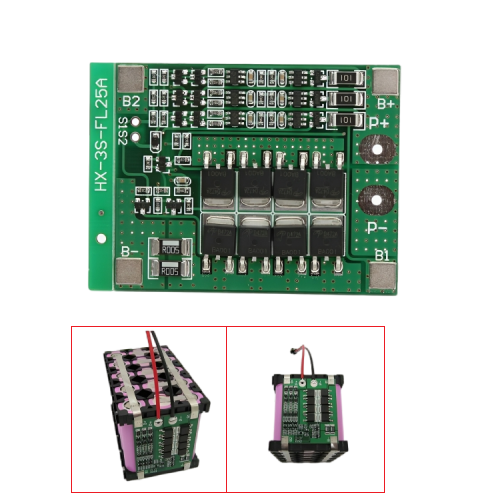

BMS 3S 25A 12.6V Li-ion 18650 Battery Management System PCM battery protection board with balance for li-ion lipo battery cell pack - Multi Plug

Category: IPS & Batteries
SKU: MOS895932
Seller: Module Shop
Tk 300
0 review(s)
  • Over Charge voltage:4.25-4.35v±0.05v
  • Over Discharge voltage: 2.3-3.0v±0.05v
  • Max Working current:25A
  • Max peak current:35-40A
  • Working temperature:-40--+50
  • Storage Temperature:-40- +80
  • Small current:50uA
  • Life cycle:more then 30000 hours
  • Resistance:Less than 100mQ
  • Short Cut:Protectable,

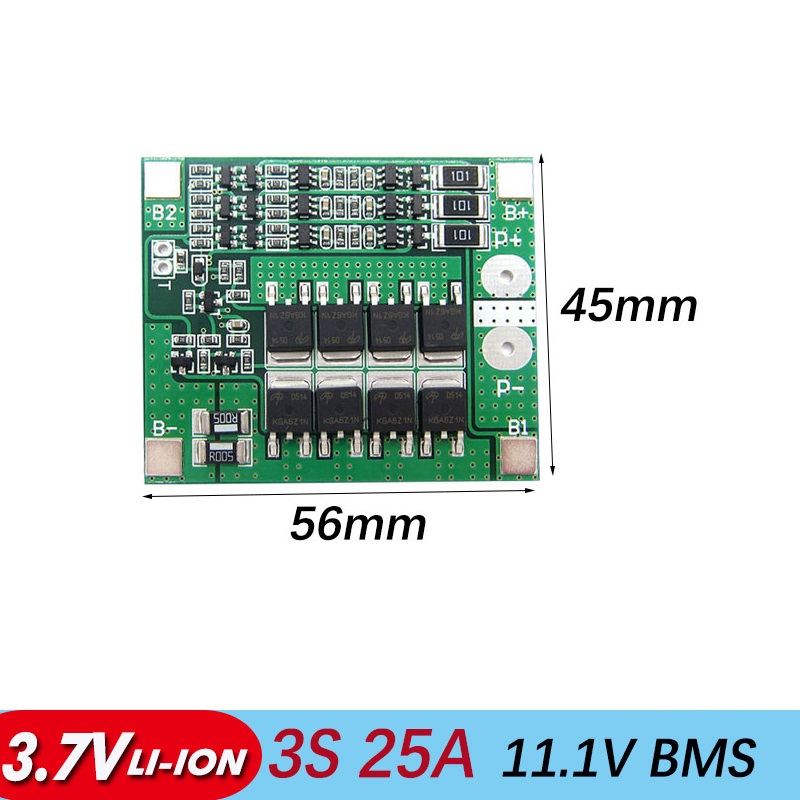

  • Charge can repair Size:56*45*4.0mm
  • #multi plug

Call For Order : 09613-800800





  • Over Charge voltage:4.25-4.35v±0.05v
  • Over Discharge voltage: 2.3-3.0v±0.05v
  • Max Working current:25A
  • Max peak current:35-40A
  • Working temperature:-40--+50
  • Storage Temperature:-40- +80
  • Small current:50uA
  • Life cycle:more then 30000 hours
  • Resistance:Less than 100mQ
  • Short Cut:Protectable,
  • Charge can repair Size:56*45*4.0mm
  • #multi plug
