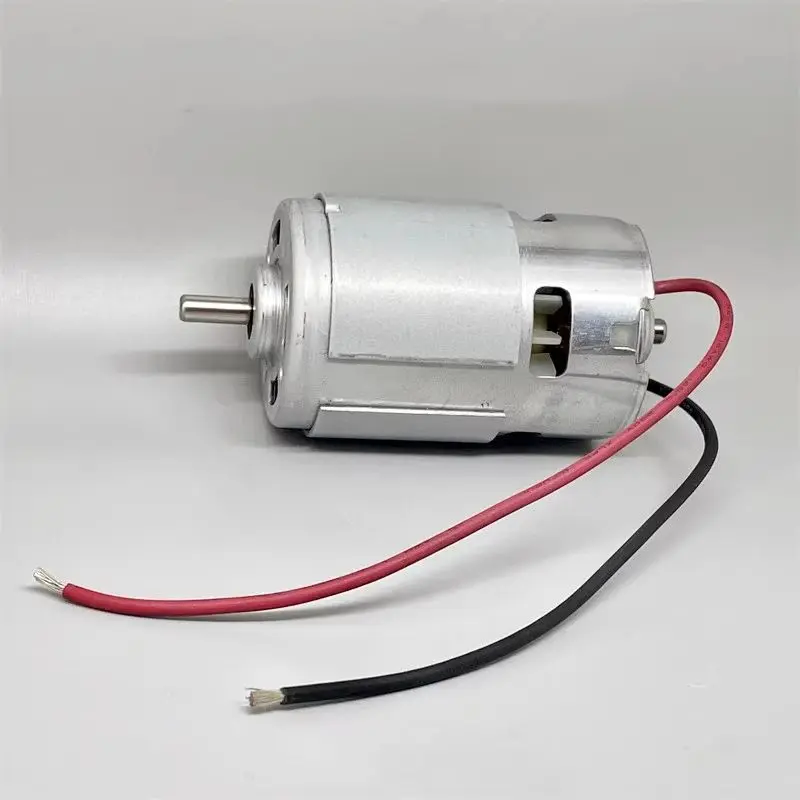

Picture of ACTUATOR AEM718011 RS-775 Motor DC12V 18V 24V 36V 17500RPM High Speed Large Torque Ball Bearing Electric Drill Garden Tool Motor
Picture of ACTUATOR AEM718011 RS-775 Motor DC12V 18V 24V 36V 17500RPM High Speed Large Torque Ball Bearing Electric Drill Garden Tool Motor

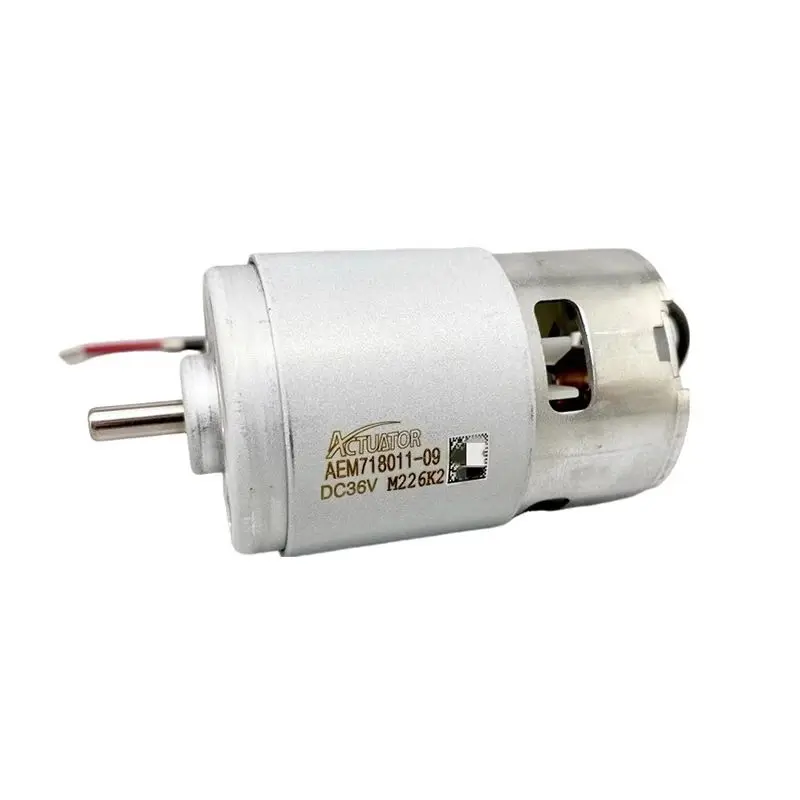

Picture of ACTUATOR AEM718011 RS-775 Motor DC12V 18V 24V 36V 17500RPM High Speed Large Torque Ball Bearing Electric Drill Garden Tool Motor
Picture of ACTUATOR AEM718011 RS-775 Motor DC12V 18V 24V 36V 17500RPM High Speed Large Torque Ball Bearing Electric Drill Garden Tool Motor
Picture of ACTUATOR AEM718011 RS-775 Motor DC12V 18V 24V 36V 17500RPM High Speed Large Torque Ball Bearing Electric Drill Garden Tool Motor

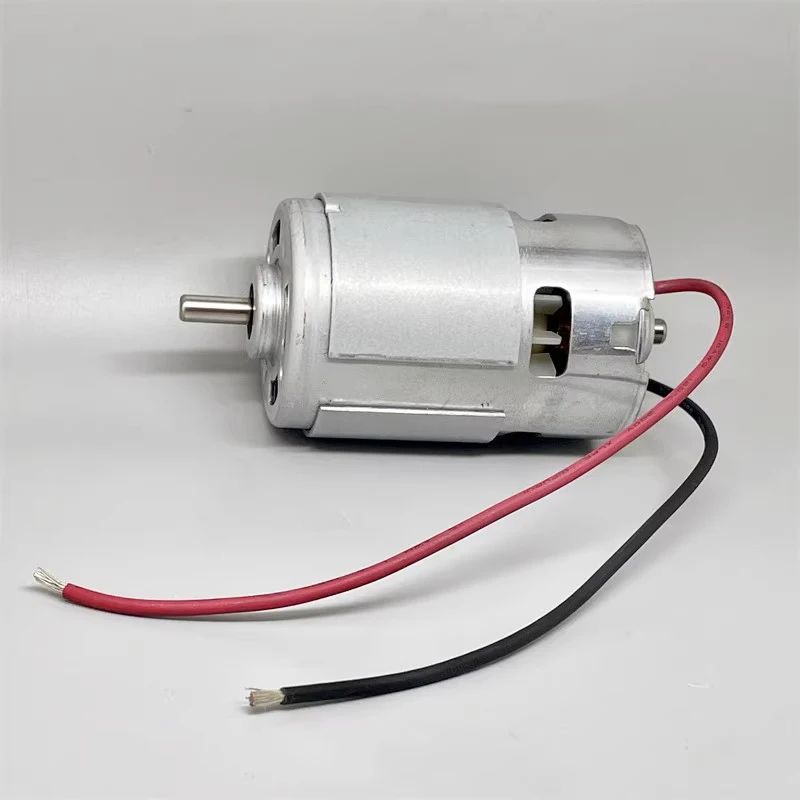

Picture of ACTUATOR AEM718011 RS-775 Motor DC12V 18V 24V 36V 17500RPM High Speed Large Torque Ball Bearing Electric Drill Garden Tool Motor
Picture of ACTUATOR AEM718011 RS-775 Motor DC12V 18V 24V 36V 17500RPM High Speed Large Torque Ball Bearing Electric Drill Garden Tool Motor
Picture of ACTUATOR AEM718011 RS-775 Motor DC12V 18V 24V 36V 17500RPM High Speed Large Torque Ball Bearing Electric Drill Garden Tool Motor
Picture of ACTUATOR AEM718011 RS-775 Motor DC12V 18V 24V 36V 17500RPM High Speed Large Torque Ball Bearing Electric Drill Garden Tool Motor
Picture of ACTUATOR AEM718011 RS-775 Motor DC12V 18V 24V 36V 17500RPM High Speed Large Torque Ball Bearing Electric Drill Garden Tool Motor

ACTUATOR AEM718011 RS-775 Motor DC12V 18V 24V 36V 17500RPM High Speed Large Torque Ball Bearing Electric Drill Garden Tool Motor

Category:
SKU: MOS895810
Seller: Module Shop
Tk 1,200
0 review(s)
  • Brand: ACTUATOR MOTOR
  • Model: AEM718011-09 (RS-775 Motor)

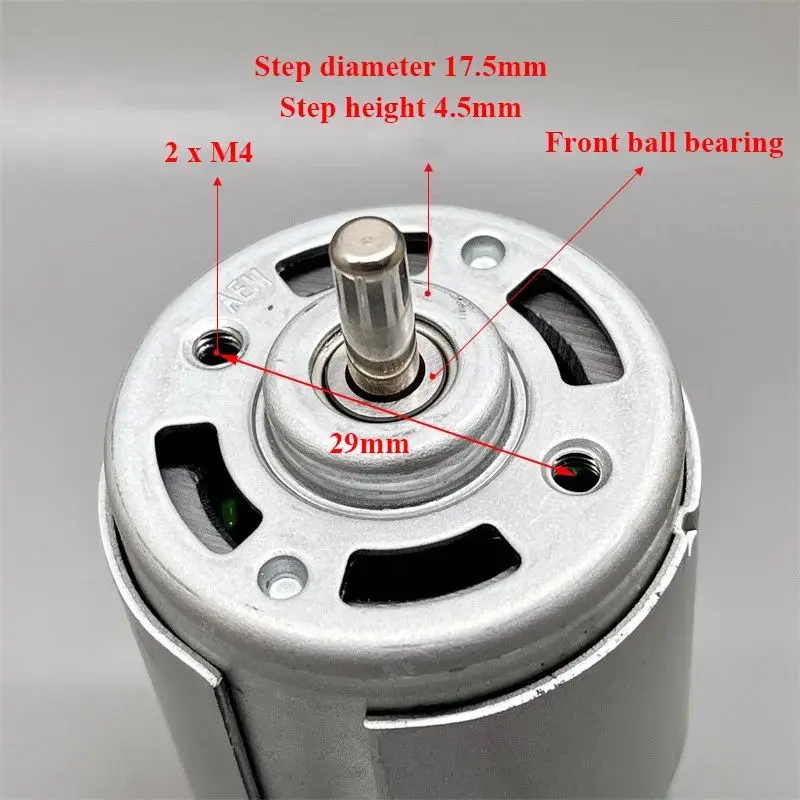

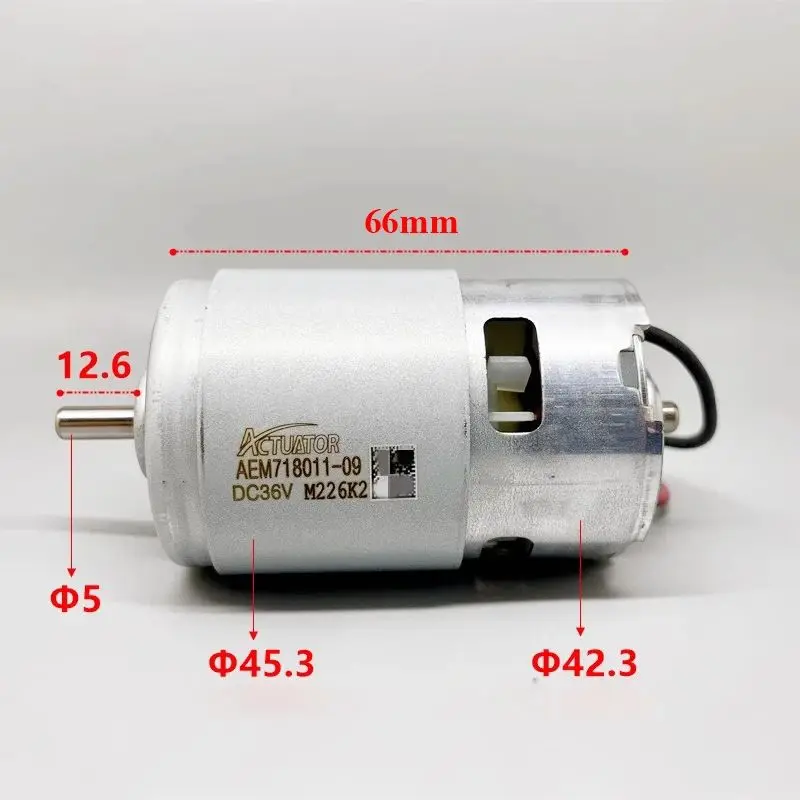

  • Motor diameter: 42.3mm (with cover 45.3mm)
  • Motor height: 66mm
  • Output shaft diameter: 5mm
  • Output shaft length: 12.6mm (not include step height)
  • Weight: 360g
  • Rated voltage: DC 36V
  • Suitable voltage: DC 12V-36V
  • Test data:
  •  ➤ Voltage: 12V ☞ No-load current:0.54A ☞ Speed:5800RPM No-load
  • ➤ Voltage:18V ☞ No-load current:0.56A ☞ No-load speed:8950RPM
  • ➤ Voltage:24V ☞ No-load current:0.75A ☞ No-loadspeed:11950RPM
  • ➤ Voltage:36V ☞ No-load current:1.00A ☞No-load speed:17500RPM

Call For Order : 09613-800800
