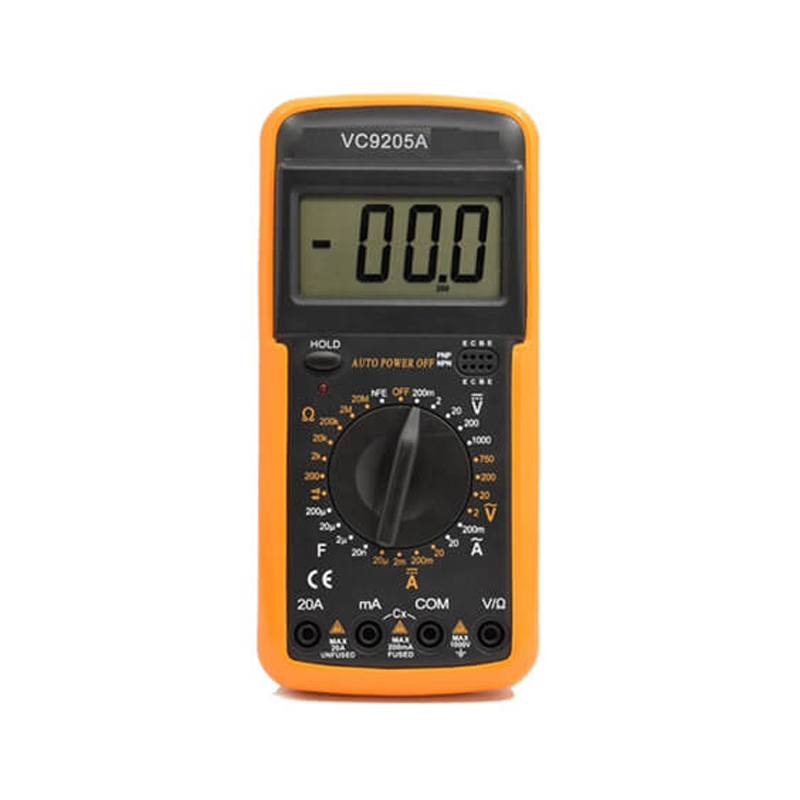

VC9205A Digital Multimeter Capacitance Multi Meter with Probes, Measured Voltage(V), Current(Amp), Resistance(Ohm), Capacitance(Henry),

Name: VC9205A Digital Multimeter Capacitance Multi Meter with Probes, Measured Voltage(V), Current(Amp), Resistance(Ohm), Capacitance(Henry),
Brand: No Brand
SKU: ZNTE1047816
Price: 620.00 BDT
Availability: InStock

Category: Multimeters

SKU: ZNTE1047816

Brand: No Brand

Seller: Zannat Engineering

Tk 620

0 review(s)

Model: VC-9205A
DC Voltage: 200mV / 2V / 20V / 200V / 1000V
AC Voltage: 200mV / 2V / 20V /200V / 700V
DC Current: 2mA / 20mA / 200mA / 20A
AC Current: 2mA / 20mA / 200mA / 20A
Resistance: 200 / 2K / 20K / 200K / 2M / 20M / 200M
Capacitance: 200F / 20F / 2F / 200nF / 20nF
Fuse Protection: 250V / 0.2A
Operating Temperature: -20°C to 400°C

Call For Order : 09613-800800

9205A Digital Multimeter with measures AC and DC voltage, DC current, resistance, electrical capacitance, diode/transistor check etc. This is the perfect addition to the tool set of any hobbyist or students who are searching for relatively cheap but good multimeters.Product DescriptionThe perfect all around tool for working with anything electrical.Very useful for debugging electrical problems including small power wires, car components, small electrical circuits, and more.Automatic shut off after a while of no usage to save on batteries.Please do not try and measure voltages or currents beyond what is supported for safety concerns.Specifications:

Function

Range

Accuracy

DC Voltage

200mV-1000V

±(0.5%+1dgt)

AC Voltage

200mV-700V

±(0.8%+3dgt)

DC Current

2mA-20A

±(0.5%+1dgt)

AC Current

2mA-20A

±(1.0%+3dgt)

Resistance

200Ω-200MΩ

±(0.8%+1dgt)

Capacitance

2000pF-200µF

±(4.0%+3dgt)

Diode Test

Yes

Transistor Test

Yes

Continuity Buzzer

Yes

Auto Power Off

Yes

Data Hold

Power Supply

9V Battery

Maximum Display

1999

Product Net Weight

300g

Product Size

191*89*35mm

Package Includes:1x NT DT-9205A Digital Multimeter1x Set of Multimeter Probes1x Operator's Instruction Manual
