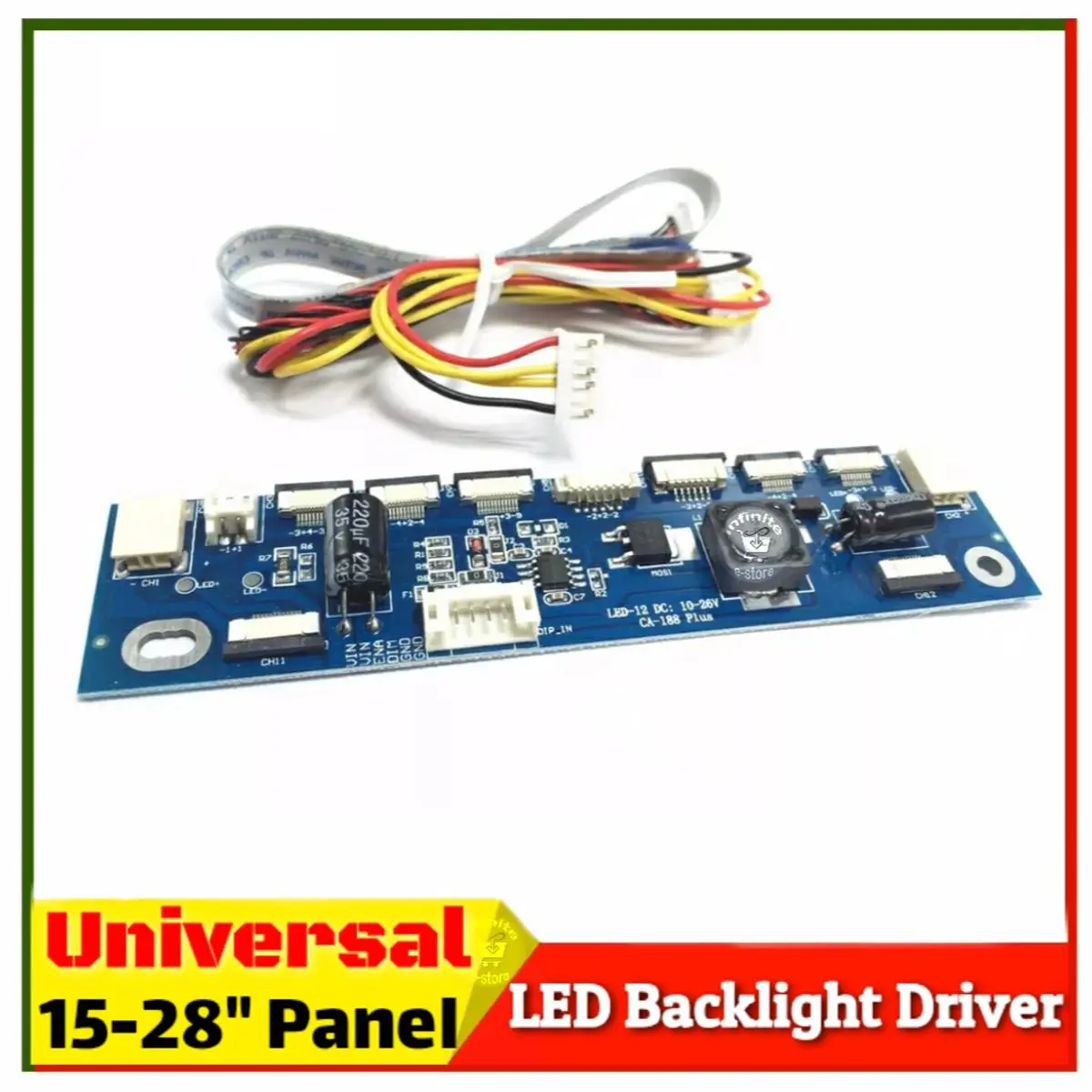

Universal LED Backlight Driver for 18.5" to 24" LED Backlight Panel Replacement Parts Blue

Multifunction Inverter for Backlight LED Constant Current Board Driver Board 12 connecters LED Strip Tester

Specification:

100% Brand New

Size : 120mm(L)×30mm(W)

Input Voltage: 6V-20V

Supported: 15inch-24inch panel

Supporting 12 kinds of Definition with 7pcs cables

Support LED Port :

-5+2-5: single 12pin

-3+4-3: double or single 10pin

-4+2-4: double or single 10pin

+3-9:12pin

-2+2-2: 6pin,

-1+1:2pin

-2+2-2:1.0 6PIN

-2+2-2:0.5 6pin

2PIN:BH2.0

BH 3.5 double or single BH 3.5

Package include:

1x constant current board

7x cables

Notice:

The connection of leds must pay attention to the interface definition of only the positive and negative points.

the positive input power supply.Don't pick up or wrong!

Connection just for reference

• Universal LED Backligh Driver
• Input Vol:6V-20V
• supported: 14inch-28inch LED panel
• For:LED panel backlight
• Supporting 12 kinds of Definition with 7pcs cables
