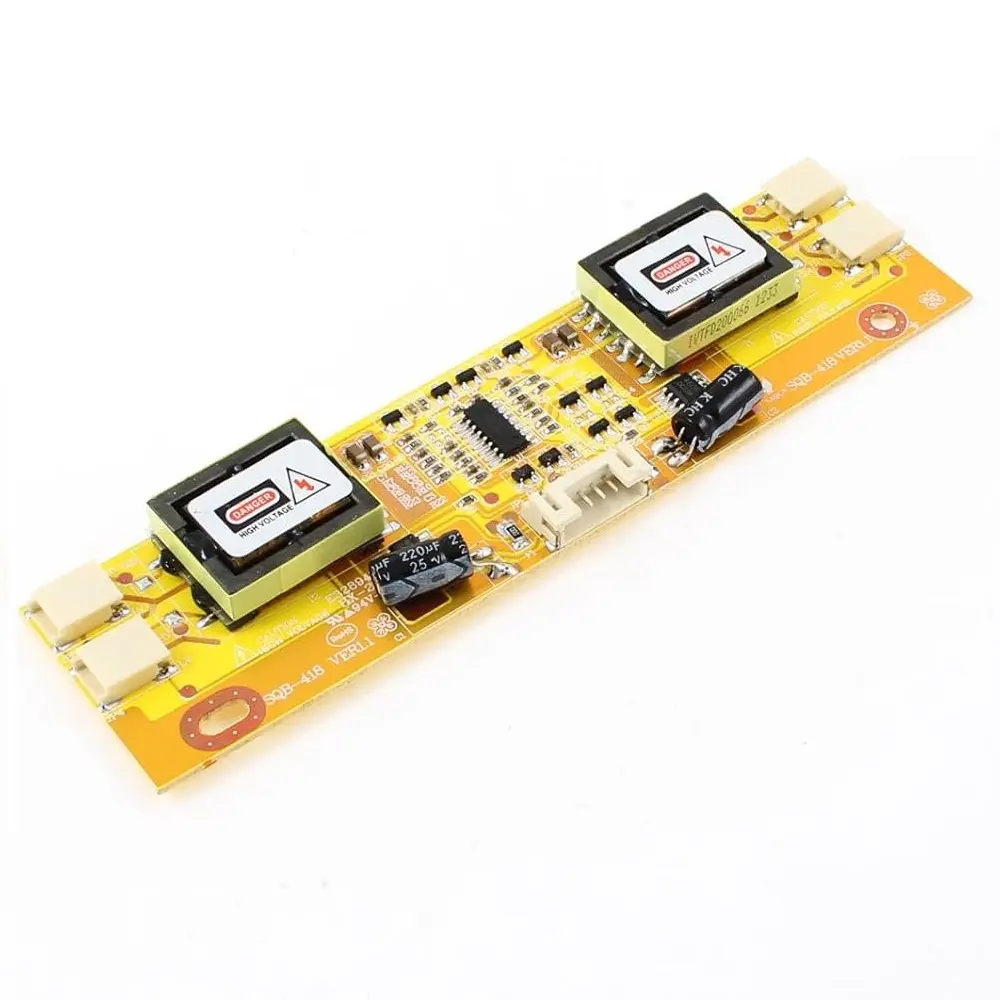

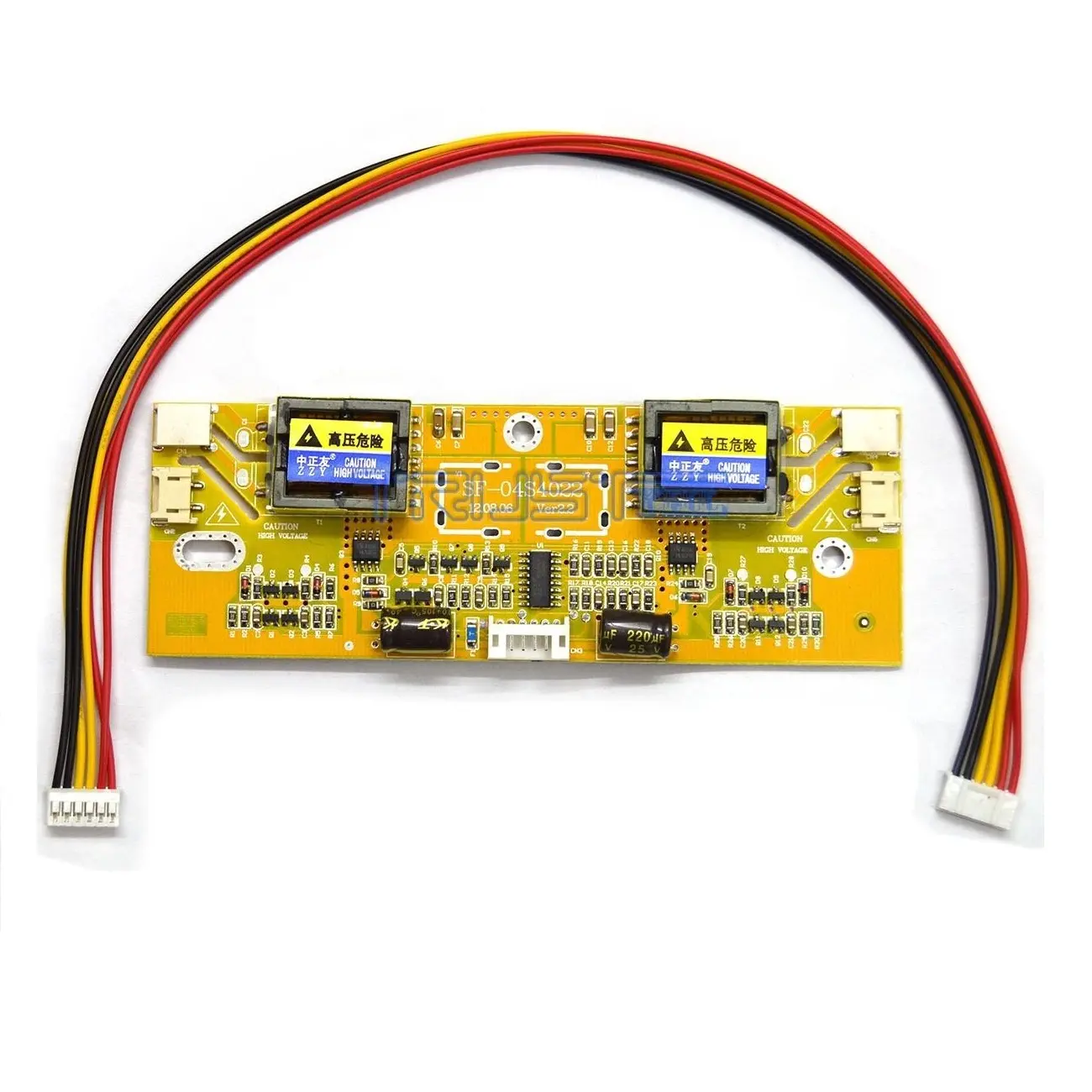

Universal 4 Lamp CCFL LCD Backlight Inverter board for 12"-24" Inch for TV Mnitor LapopDslay 4 Lamp Inverter

Description:

This DC-AC Inverter was developed for 4CCFL lamps of LCD back lighting system.High performance low consumption special operating temperature,Open lamp protection,Lamp Current Balance Control

The DC to AC back-light inverter is special designed on any type LCD display in implement (Is suitable in 12 -24 the liquid crystal display runs).

Feature:

Size:140*32*1.6mm.

Weight:55g

AC Current output:Connected by CN2-CN3-CN4-CN5

DC Input:Controled by 6x2.0 connector to this PCB board

Controled by 6x2.0 connector to this PCB board

• Laptop/TV LCD Backlight CCFL Lamp Inverter
• Input: 8-28 V
• Screen: 12-24 inch
• High performance, low consumption.
• Open lamp protection
• Wide Dimming Range
• Input current overload protected ( fuse protect )
