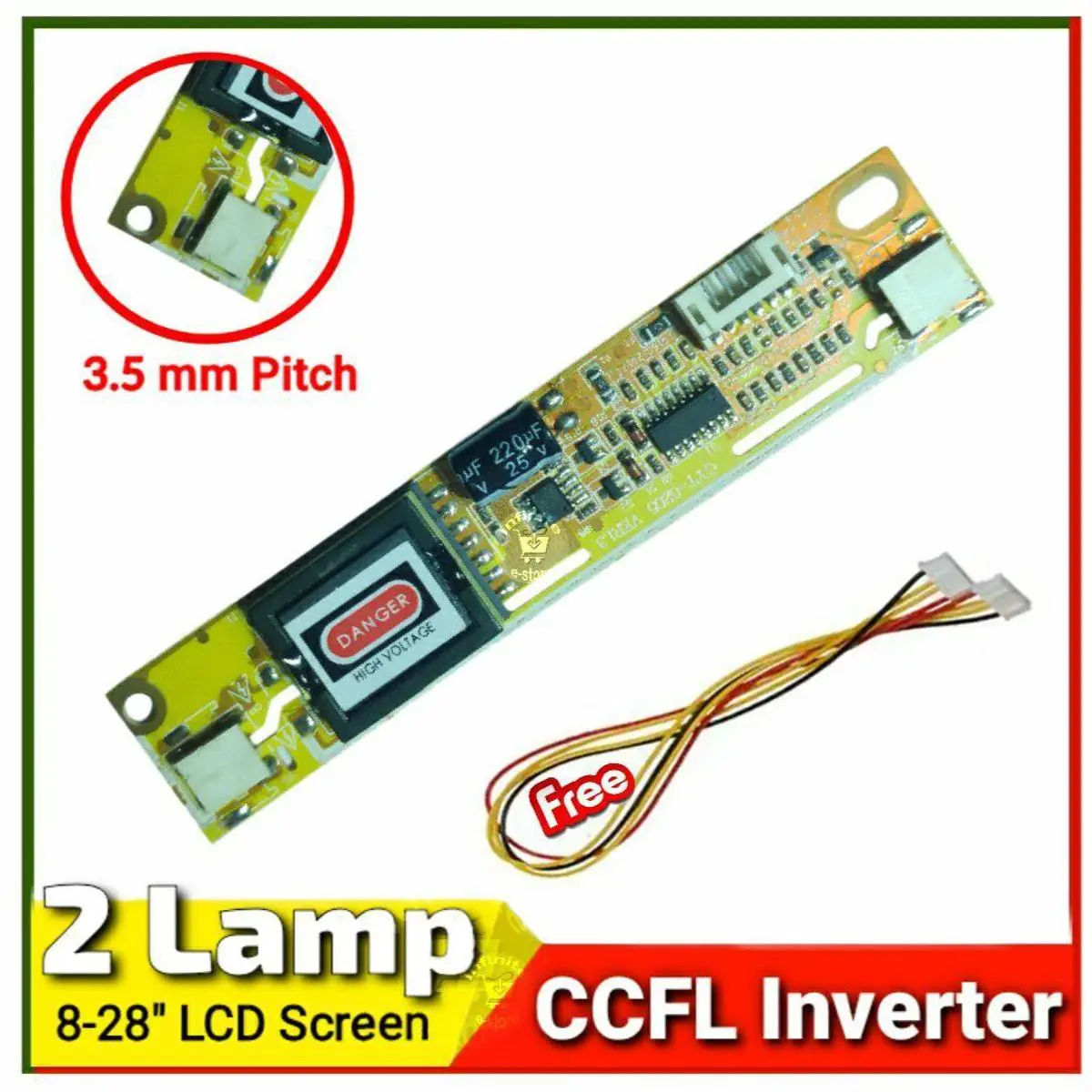

Picture of Universal 2 Lamp Backlight Laptop LCD CCFL Inverter Board 125*25mm For 10-19" Screen 10V-20V For Screen Module DC To AC Board Yellow
Picture of Universal 2 Lamp Backlight Laptop LCD CCFL Inverter Board 125*25mm For 10-19" Screen 10V-20V For Screen Module DC To AC Board Yellow

Universal 2 Lamp Backlight Laptop LCD CCFL Inverter Board 125*25mm For 10-19" Screen 10V-20V For Screen Module DC To AC Board Yellow

Category: Computers, Components & Accessories
SKU: MOS895434
Seller: Module Shop
Tk 350
0 review(s)
  • Laptop/TV LCD Backlight CCFL 2 Lamp Inverter
  • Input: 8-28 V
  • Screen: 10-19 inch
  • High performance, low consumption.
  • Open lamp protection
  • Wide Dimming Range
  • Input current overload protected ( fuse protect )

Application

The DC to AC back-light inverter is special designed on any type LCD display in implement (i.e. LCD monitor, notebook,laptop computers etc.)

Call For Order : 09613-800800

Specification:

Board Size: 125*25mm

Voltage in: DC 10-20V

Suitable for 2 lamps CCFL 10''-19'' LCD panel


6 pin out cable interface definition:

PIN Sequence

Definition

Description

1

12V

12V Voltage (VCC)

2

12V

12V Voltage (VCC)

3

EN

Enable (Switch, ON/OFF)

4

ADJ

Luminance Adjustment

5

GND

Ground

6

GND

Ground

Package include: Inverter * 1pcs

cable * 1pcs






  • Laptop/TV LCD Backlight CCFL 2 Lamp Inverter
  • Input: 8-28 V
  • Screen: 10-19 inch
  • High performance, low consumption.
  • Open lamp protection
  • Wide Dimming Range
  • Input current overload protected ( fuse protect )

Application

The DC to AC back-light inverter is special designed on any type LCD display in implement (i.e. LCD monitor, notebook,laptop computers etc.)
