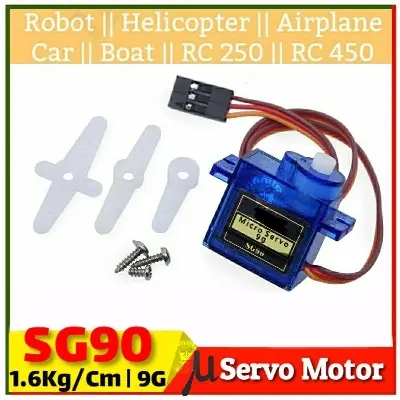

Picture of Rc Mini Micro 9g 1.6KG Servo SG90 for RC 250 450 Helicopter Airplane Car Boat Blue
Picture of Rc Mini Micro 9g 1.6KG Servo SG90 for RC 250 450 Helicopter Airplane Car Boat Blue

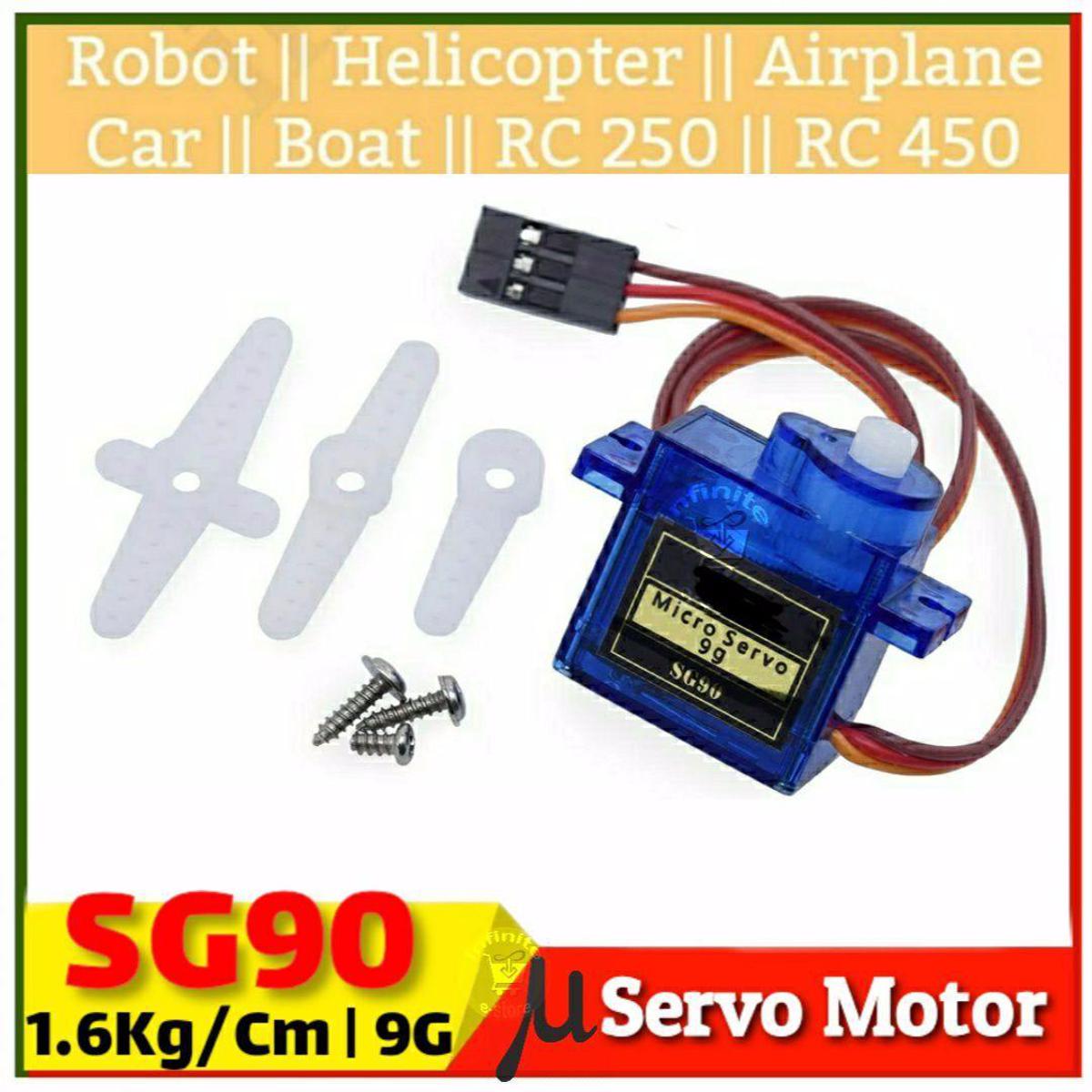

Rc Mini Micro 9g 1.6KG Servo SG90 for RC 250 450 Helicopter Airplane Car Boat Blue

Category: Accessories
SKU: MOS895225
Seller: Module Shop
Tk 220
0 review(s)
  • Steering gear definition of three lines
  • Dark gray: GND
  • Red: VCC 4.8-7.2V
  • Orange line: pulse input
  • Model: SG90
  • Technical data given by the manufacturers:
  • Size: 21.5mmX11.8mmX22.7mm
  • Weight: 9 grams
  • No-load speed: 0.12 seconds / 60 degrees (4.8V)
  • Stall torque of 1.2 - 1.4 kg / cm (4.8V)
  • Operating temperature: -30 to +60 degrees Celsius
  • Dead-set: 7 microseconds
  • Operating voltage: 4.8V-6V

Call For Order : 09613-800800

Steering gear definition of three lines:

Dark gray: GND

Red: VCC 4.8-7.2V

Orange line: pulse input

Model: SG90 Technical data given by the manufacturers:

Size: 21.5mmX11.8mmX22.7mm

Weight: 9 grams No-load speed: 0.12 seconds / 60 degrees (4.8V)

Stall torque of 1.2 - 1.4 kg / cm (4.8V)

Operating temperature: -30 to +60 degrees Celsius Dead-set: 7 microseconds Operating voltage: 4.8V-6V sg90






  • Steering gear definition of three lines
  • Dark gray: GND
  • Red: VCC 4.8-7.2V
  • Orange line: pulse input
  • Model: SG90
  • Technical data given by the manufacturers:
  • Size: 21.5mmX11.8mmX22.7mm
  • Weight: 9 grams
  • No-load speed: 0.12 seconds / 60 degrees (4.8V)
  • Stall torque of 1.2 - 1.4 kg / cm (4.8V)
  • Operating temperature: -30 to +60 degrees Celsius
  • Dead-set: 7 microseconds
  • Operating voltage: 4.8V-6V
