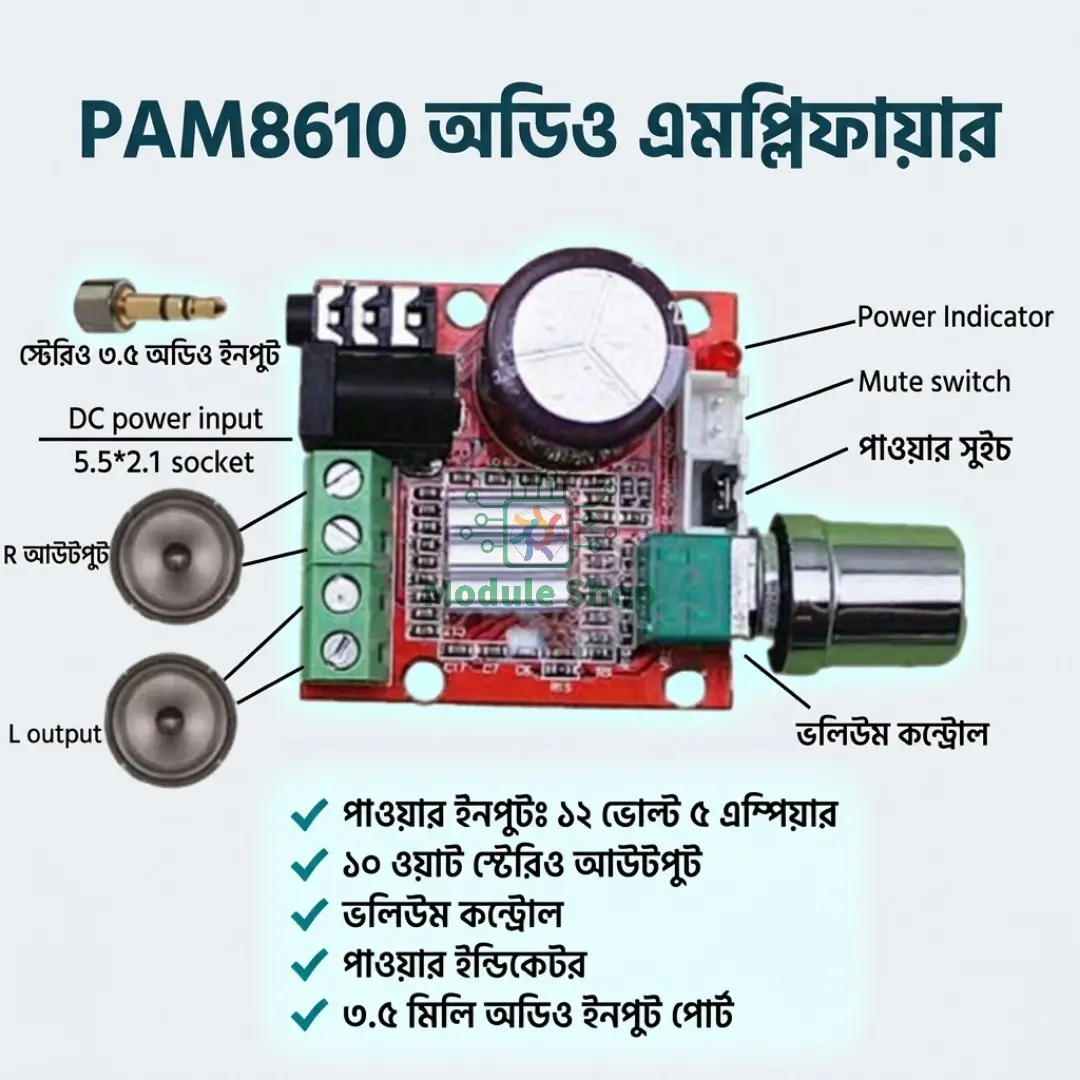

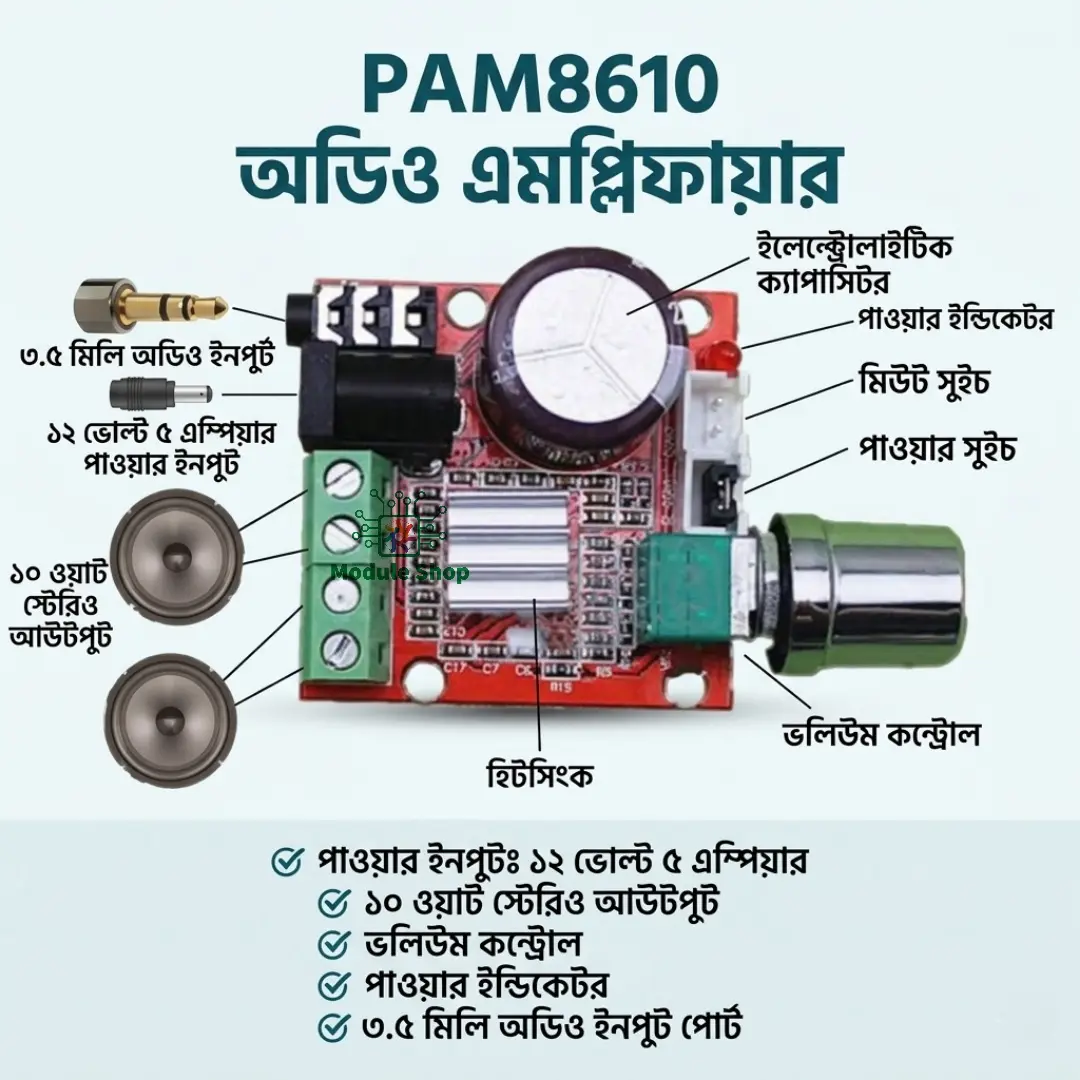

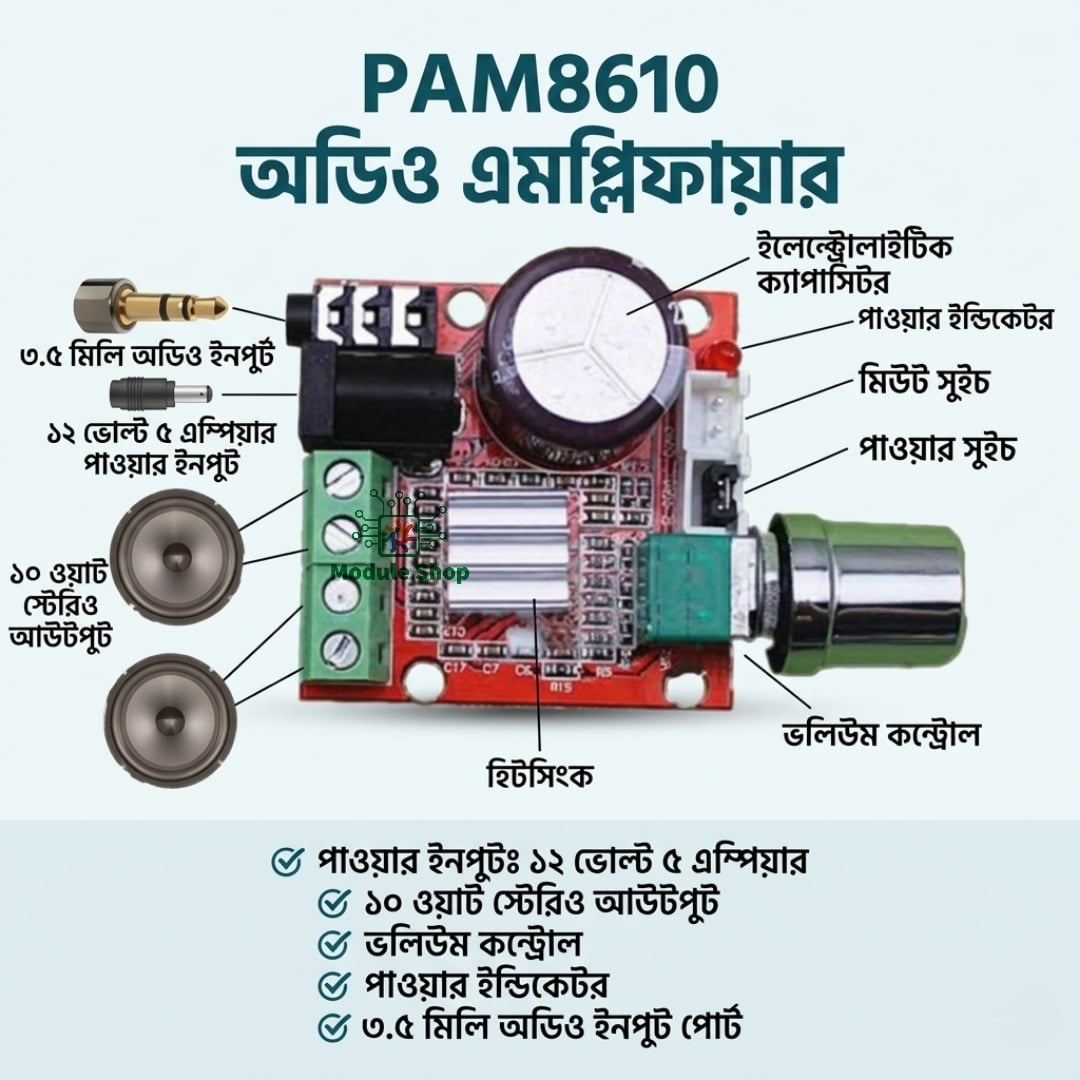

PAM8610 Volume Control Audio Amplifier 2x15W Stereo Similar TDA2030 XH-M139

Product Description

PAM8610 Digital Amplifier Board 2*15W Two Channel Stereo Class DTechnical parameters:

How to use:1. The power supply voltage limit is 16.5V, do not use more than this voltage.2. The power supply is recommended for 12v, 3A power supply filter better.3. 4-8 inch stereo speakers recommended.4. Do not short-circuit the audio output to each other or shorted to ground.5. Carefully check before electricity, ensure wiring is correct before electricity

• PAM8610 Class D Chip
• Supply : 7-15V DC
• Output power: 15W +15W
• Efficiency : 90 %
• Shutdown Current: 4uA
• Quiescent current;20mA
• SNR : 86 %
• Total harmonic distortion : 5W / 1KHz / 8-01 % Frequency range: 20Hz-20KHz
• Input impedance: 15K
• Output Impedance: 4-8 11.
• Amplifier board size: 30mm25mm 2.5mm
• Application:Flat Monitor /LCD TVS, Multi-Media Speaker System, DVD Players, Game Machines, Boom Box ,Music Instrument etc.
