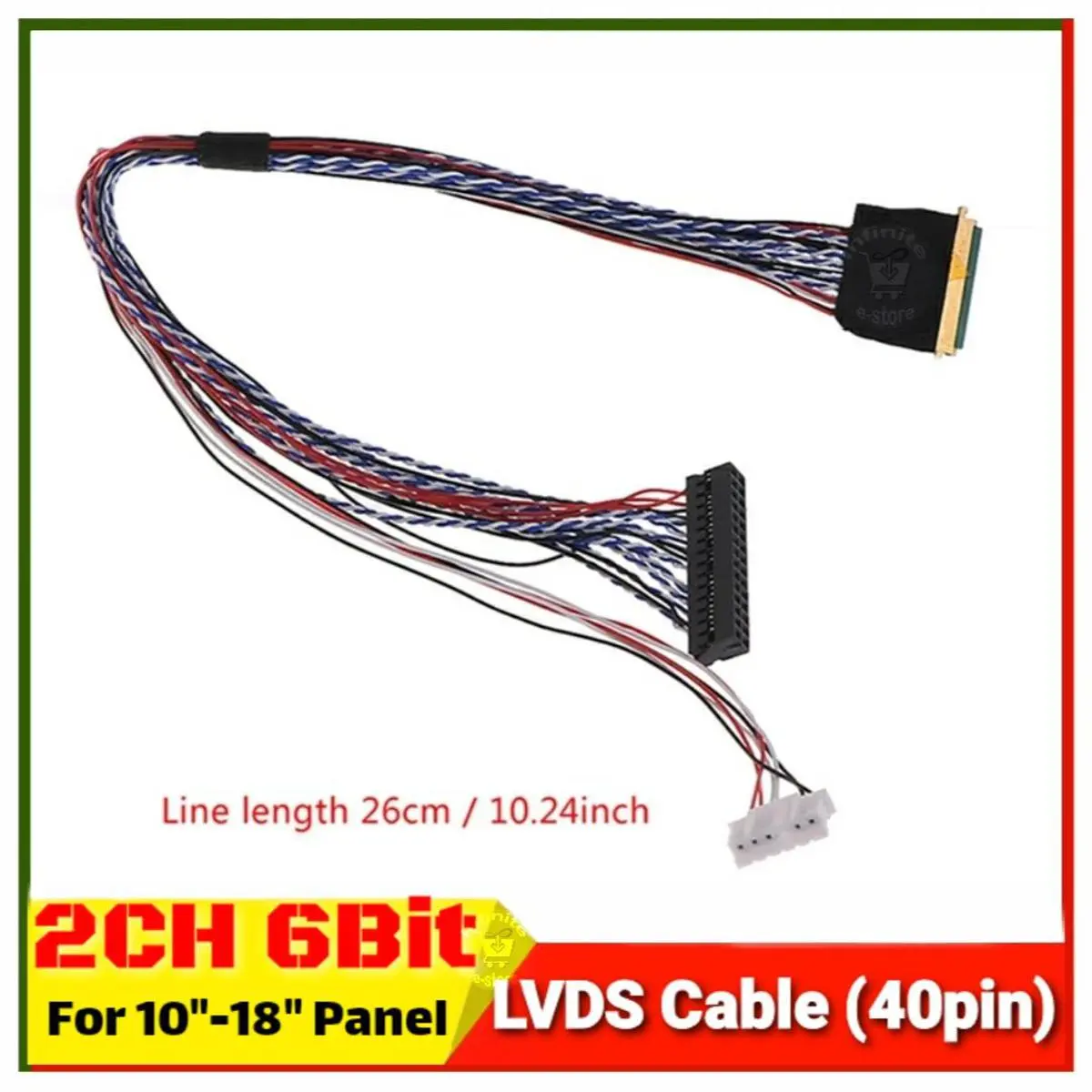

LVDS Cable 2ch 6bit I-PEX 20455-040E 40 Pins Pitch 0.5mm for 1280x800 1440x900 1920x1080 Resolutions LED Backlight Panel 3.3V Only Support 40 pin Laptop Display

Category: Computers, Components & Accessories
SKU: MOS895489
Seller: Module Shop
Tk 350
0 review(s)
  • Item: LED screen line
  • Type: 40pin
  • Pin Pitch: 0.5mm
  • Model Number: LP140WH1 or other
  • Cable Length: 30cm (1-2cm error)
  • Package Include:
  • 2ch 6-bit 40pins LED screen Cable

Call For Order : 09613-800800

Available size: 8.9''/10.1''/12.5''/13.3''/14''/15.6''inch LED screen

Connection the LCD Panel:

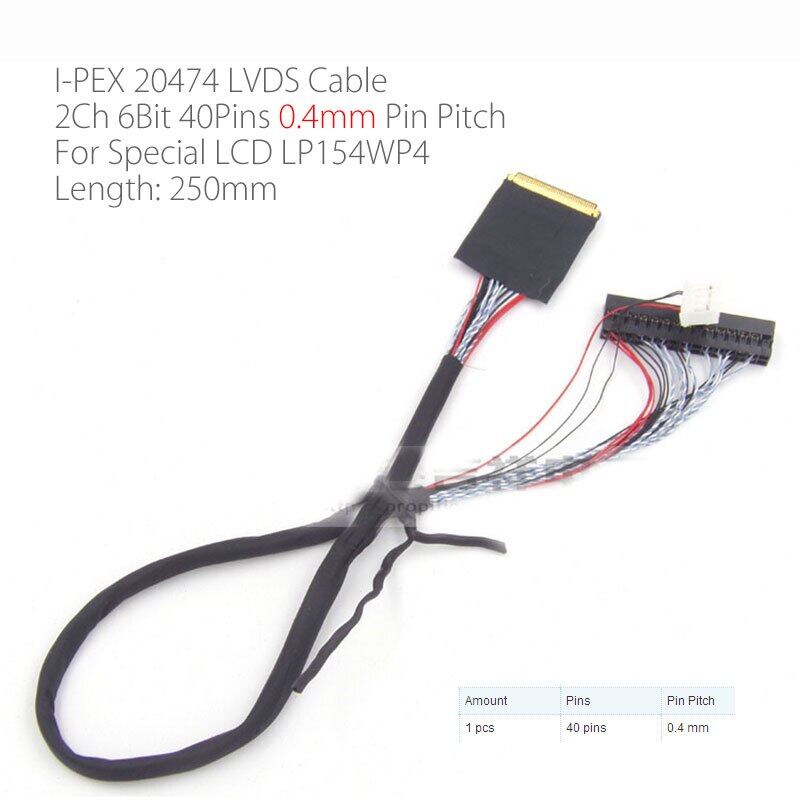

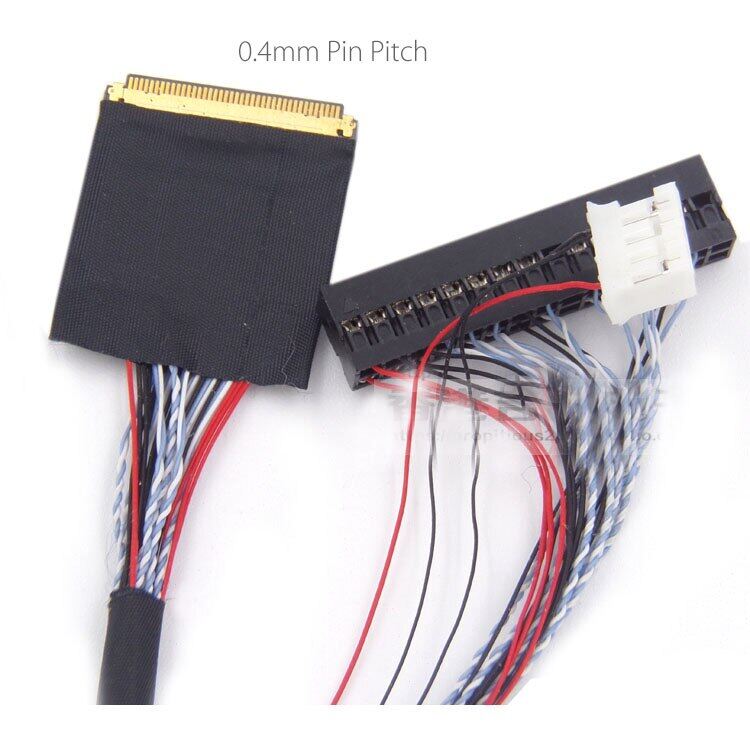

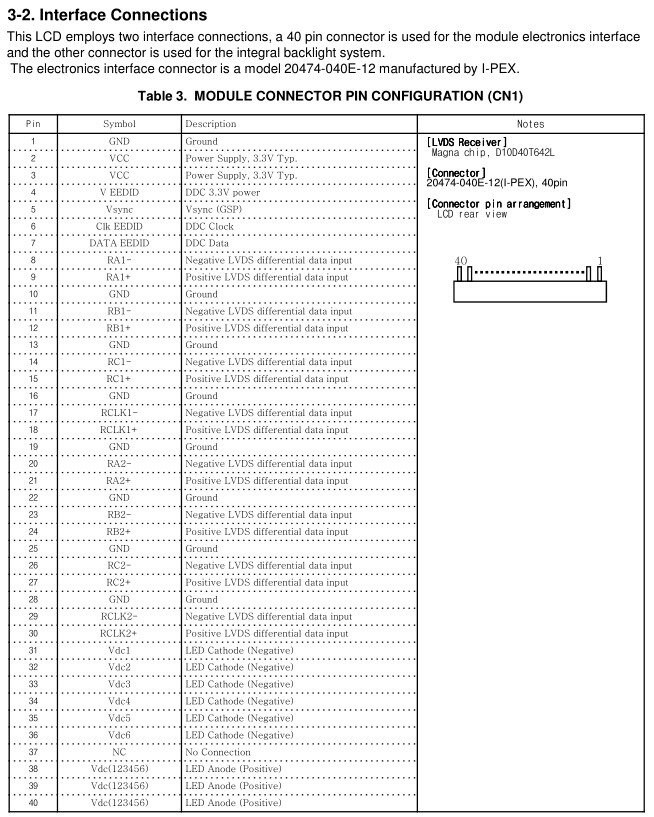

40Pin 2 Channel 6 Bit LED LCD LVDS Screen Cable with 0.4mm Pin PitchFeature:This cable special use for few LED screen, because it integrated cross flow plate, so you do not need to buy high pressure article lampVoltage: 3.3VSignal Interface: 2ch 6bit 40pinsPin Pitch:0.4mmLength: 250mmPackage included:1 x 2ch 6bit 40Pin 0.4mm Pin Pitch CableLVDS Datesheet

Package includes:

1x I-PEX 20455-040E-12 0.5mm 40 Pins 1 ch 6-bit LVDS cable






  • Item: LED screen line
  • Type: 40pin
  • Pin Pitch: 0.5mm
  • Model Number: LP140WH1 or other
  • Cable Length: 30cm (1-2cm error)
  • Package Include:
  • 2ch 6-bit 40pins LED screen Cable
