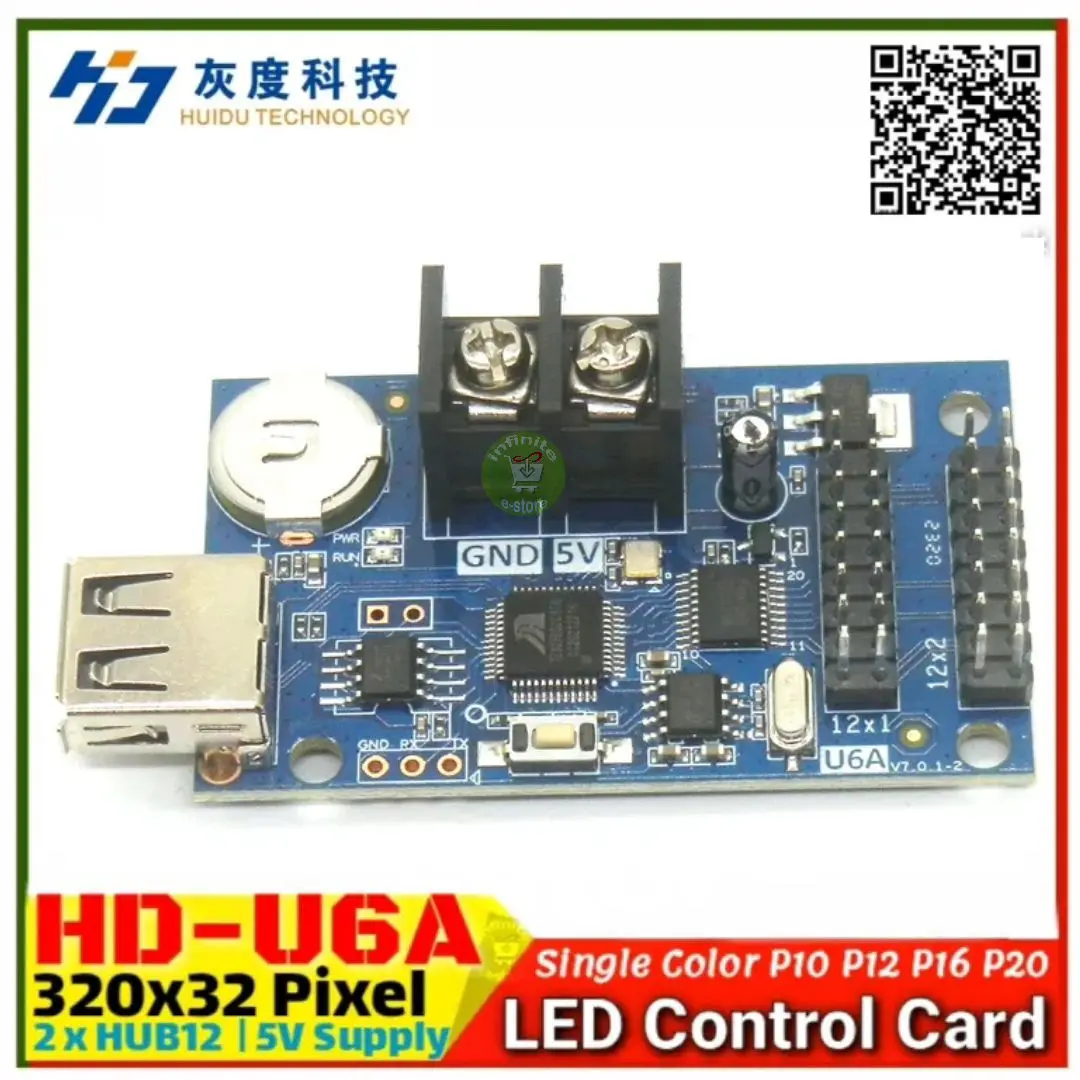

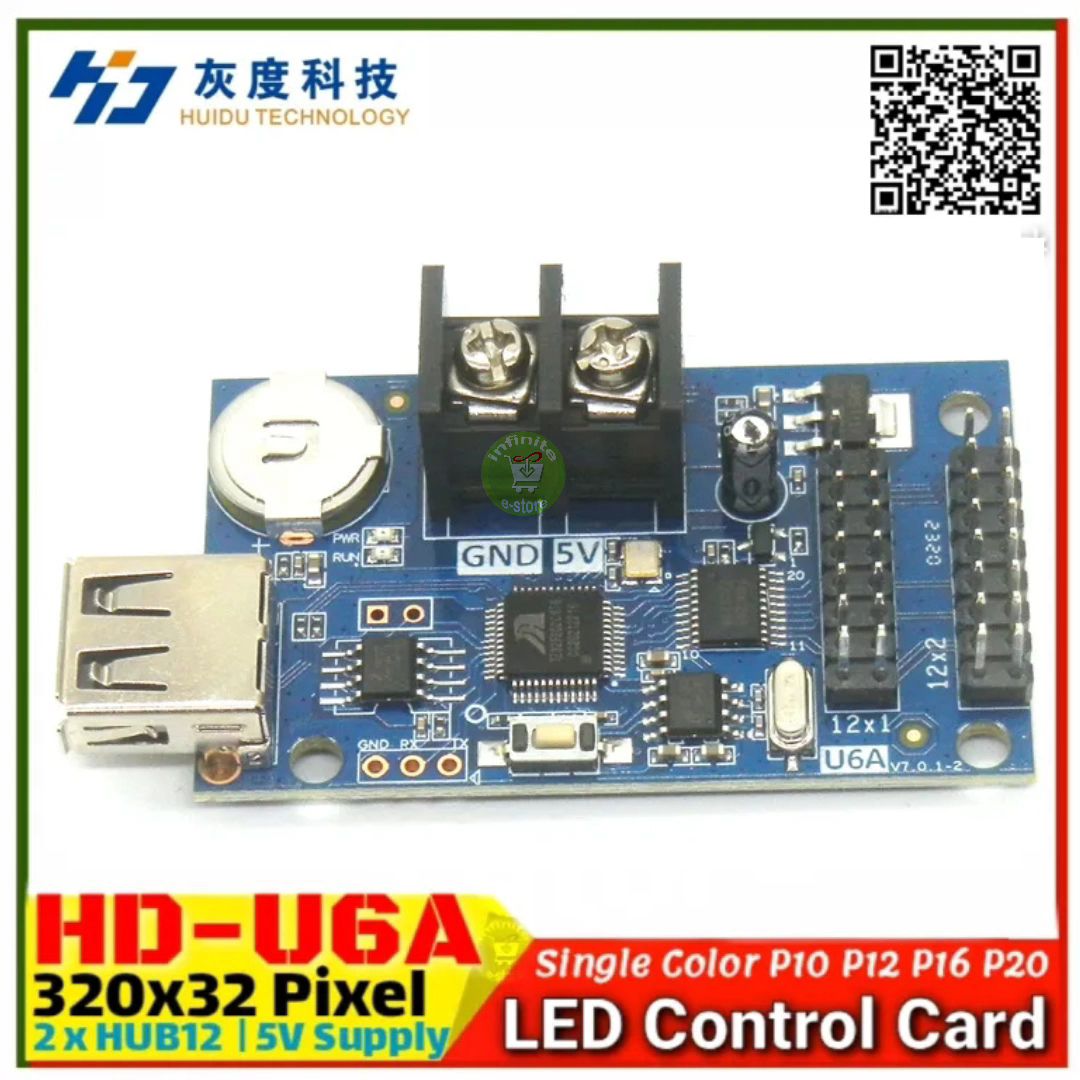

Picture of Huidu HD-U6A Single Color 2 Line Hub 12 LED Control Card 2 Line Pixel Support P10 P16 P20 Single Color Panel Replace HD-WF1 HD-D15
Picture of Huidu HD-U6A Single Color 2 Line Hub 12 LED Control Card 2 Line Pixel Support P10 P16 P20 Single Color Panel Replace HD-WF1 HD-D15

Huidu HD-U6A Single Color 2 Line Hub 12 LED Control Card 2 Line Pixel Support P10 P16 P20 Single Color Panel Replace HD-WF1 HD-D15

Category: Electrical Accessories
SKU: MOS895626
Seller: Module Shop
Tk 500
0 review(s)
  • HD-U6A LED display module controller specification:
  • Model No.:HD-U6A
  •  Pixel:
  • Single color control pixels: Max 32*320
  • Dual color control pixels: Max  32*160
  • Communication: USB port
  • Interface: 2xT12
  • Scanning way: 1/16,1/8,1/4, 1/2 scanning and static of monochrome/double color LED display
  • 20 programs are available,which can be switched by buttons or remote control
  • JPG,BMP,GIF support
  • Support four partitions
  • Display mode:display in order,switched by button or remote control
  • Display Effect:1.Text ,image,time,count,animated characters ect.
  •                             2.support the settings of program/area/custom borders
  •                             3.various action modes
  •                             4.over 40 special character effects
  •                             5.support simple animated characters
  •                             6.support hollow/stroked characters
  •                             7.support the background setting of area characters
  •
  • Function of clock:1.support calendar/anolog clock
  •                                   2.count up/ count down display
  •                                   3. The font,size,color and position can be set freely
  •                                   4.support multiple time zones
  • Expandar:Temperature sensor  CAN NOT support
  • Brightness settings:support 50 levels brightness adjustment

Call For Order : 09613-800800





  • HD-U6A LED display module controller specification:
  • Model No.:HD-U6A
  •  Pixel:
  • Single color control pixels: Max 32*320
  • Dual color control pixels: Max  32*160
  • Communication: USB port
  • Interface: 2xT12
  • Scanning way: 1/16,1/8,1/4, 1/2 scanning and static of monochrome/double color LED display
  • 20 programs are available,which can be switched by buttons or remote control
  • JPG,BMP,GIF support
  • Support four partitions
  • Display mode:display in order,switched by button or remote control
  • Display Effect:1.Text ,image,time,count,animated characters ect.
  •                             2.support the settings of program/area/custom borders
  •                             3.various action modes
  •                             4.over 40 special character effects
  •                             5.support simple animated characters
  •                             6.support hollow/stroked characters
  •                             7.support the background setting of area characters
  •
  • Function of clock:1.support calendar/anolog clock
  •                                   2.count up/ count down display
  •                                   3. The font,size,color and position can be set freely
  •                                   4.support multiple time zones
  • Expandar:Temperature sensor  CAN NOT support
  • Brightness settings:support 50 levels brightness adjustment
