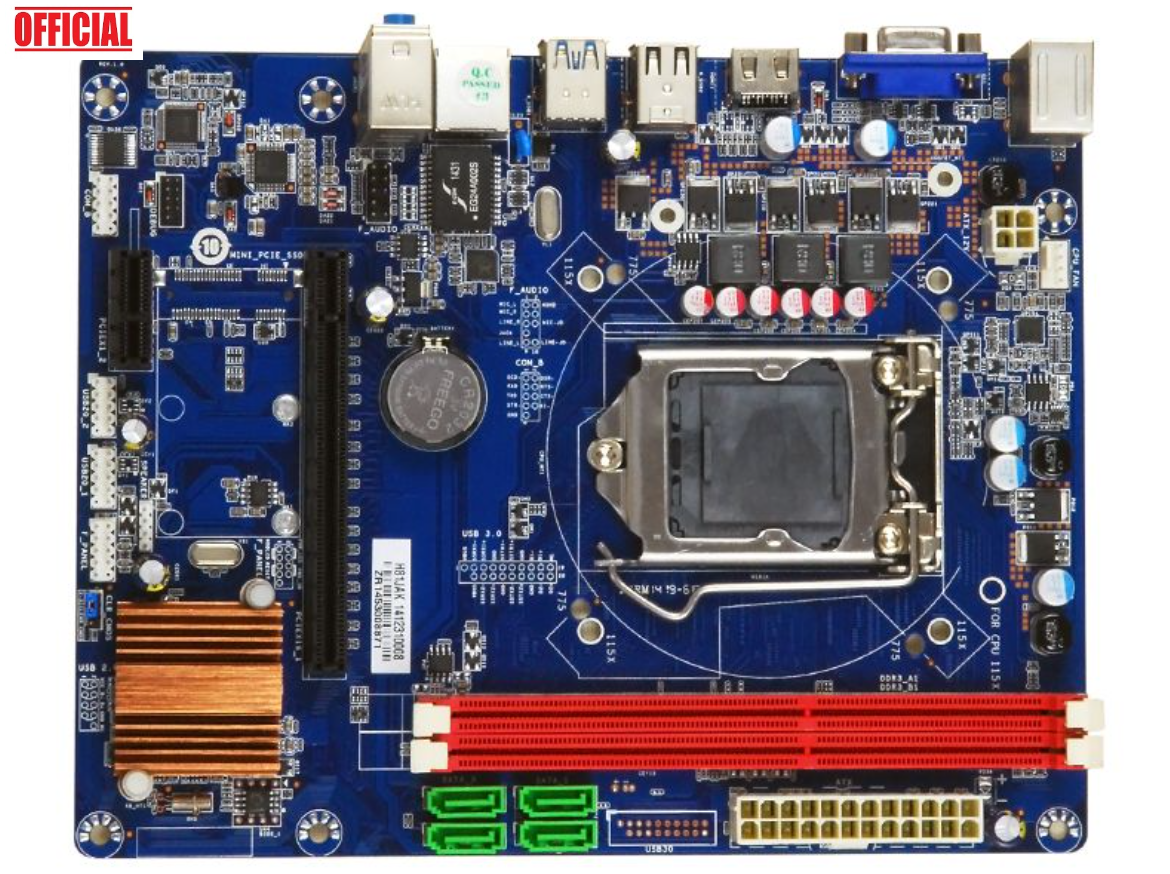

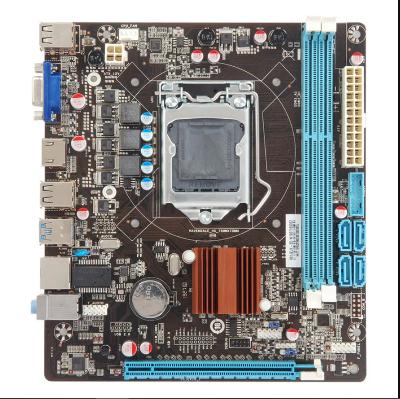

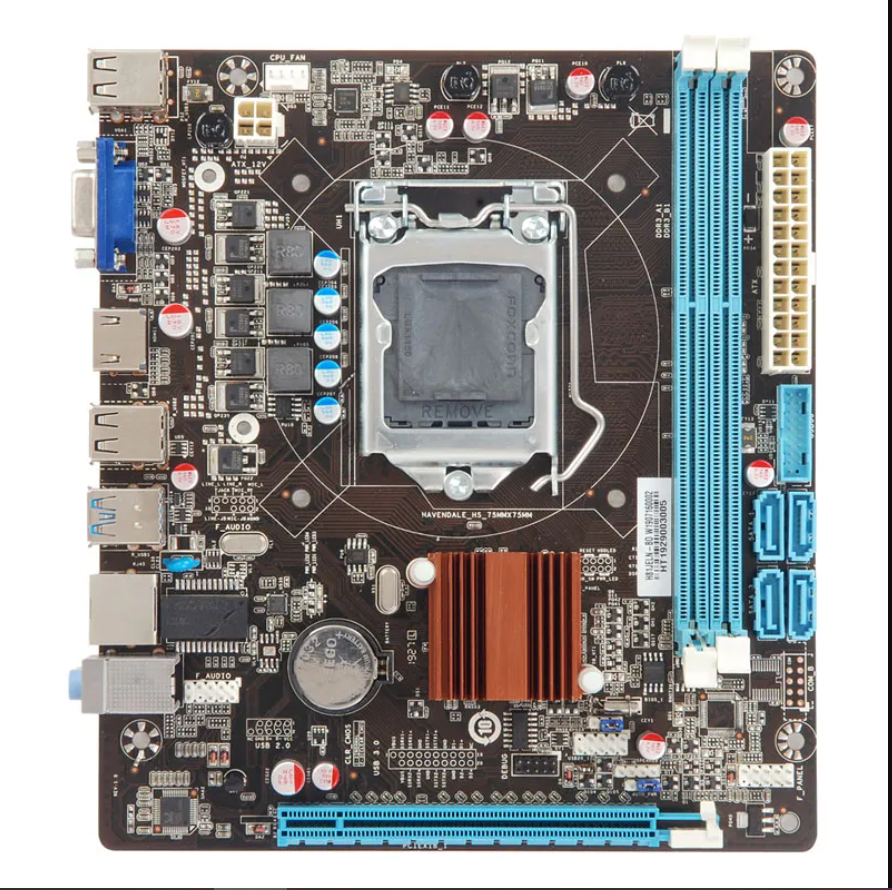

ESONIC Motherboard H81 LGA 1150 DDR3 Mainboard for 4th Intel CPU

Chipset

Intel® H81 Chipset

Processor Support

Supports Intel Corei3/i5/i7 Serials processors

in LGA1150 package.

Support Intel 4th Gen multi-core processors

Memory Support

DDR3 1600/1333 SDRAM 2 DDR3 DIMMs (240 pin/ 1.5V)

(For more information on compatible components, please check with manufacturer)

LAN

Onboard Realtek® 100Mbps LAN(1000M Optional)

Audio

Chip integrated by Realtek®662

Flexible 6-channel

SATA

4 SATA 3 ports

Supports storage and transfers up to 6Gbps

SLOTS

1 PCI Express x16 slot

Back panel

1 VGA port

1 HD,MI port

2 USB 3.0 Ports

4 USB 2.0 Ports

1 LAN jack

3 flexible audio jacks

On-Board Pinheaders / Connectors

1 USB 3.0 pinheader

1 USB 2.0 pinheader

1 Front Panel pinheader

 Form Factor

Micro-ATX (19 cm X 17 cm)

6 mounting holes

Accessories

SATA data cable (optional)

1* I/O Backboard 1* User Manual

1* Drives installed CD
