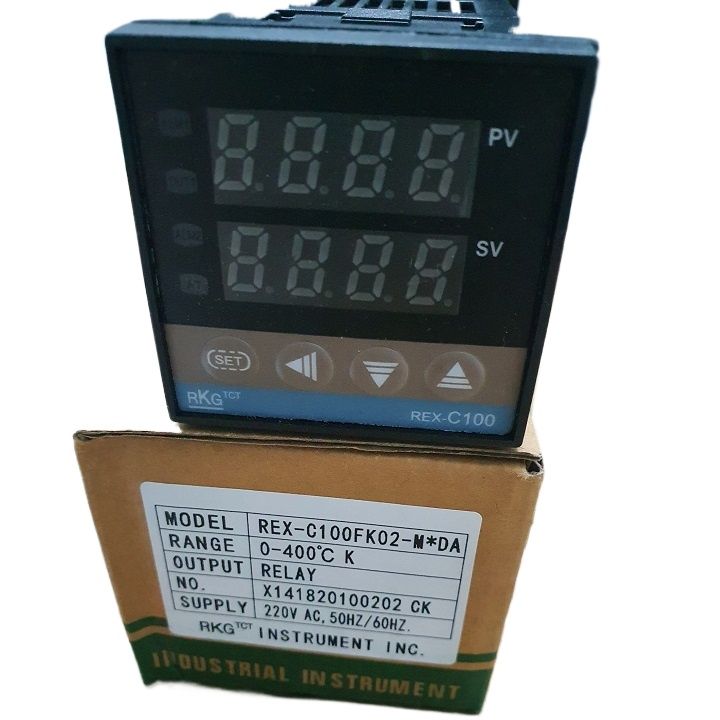

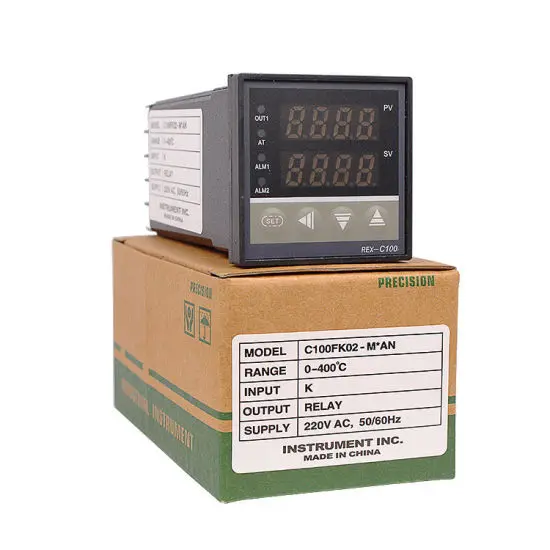

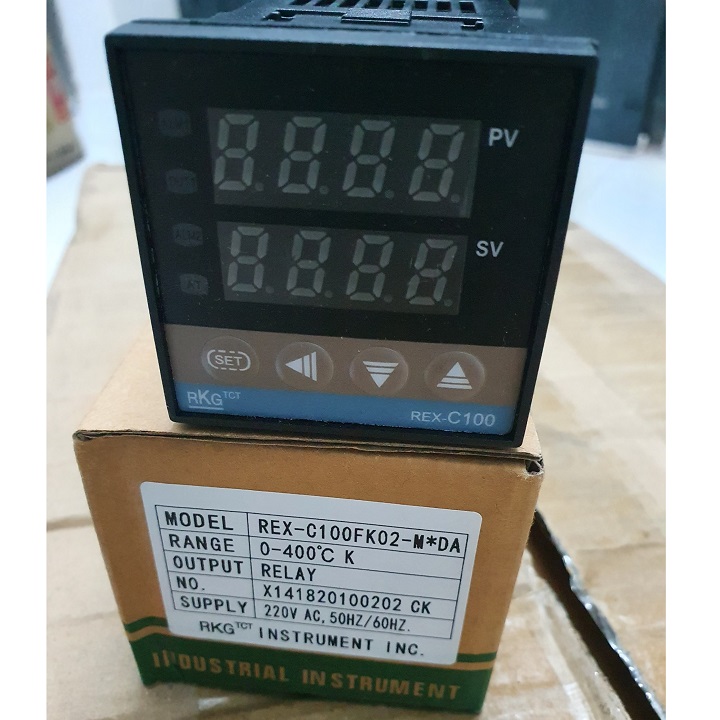

• Model: REX-C100+K thermocouple PID control
• Display: Dual display for Celsius (°C)
• Range:0~400°C (this range is just for the temperature controller, the attached K type thermocouple is just for 400°C)
• Thermocouple: K,J,S,E,R,Wre3 ~ Wre25
• Thermo Resistor: PT100, Cu50
• Main Output: Relay:
• PID cooling/heating control
• 1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC
• 7 different Dual Output combinations with: high / low / high deviation / low deviation /interval / out of interval / breakage alarm
• Accuracy: 0.5%
• Dimension: DIN: 1/16 (48mm x 48mm x 110mm)
• Weight: about 200g
• Individually programmable PID control parameters.
• P, I, d, controlling period, digital filter coefficient, and more
• Relay control ready to connect

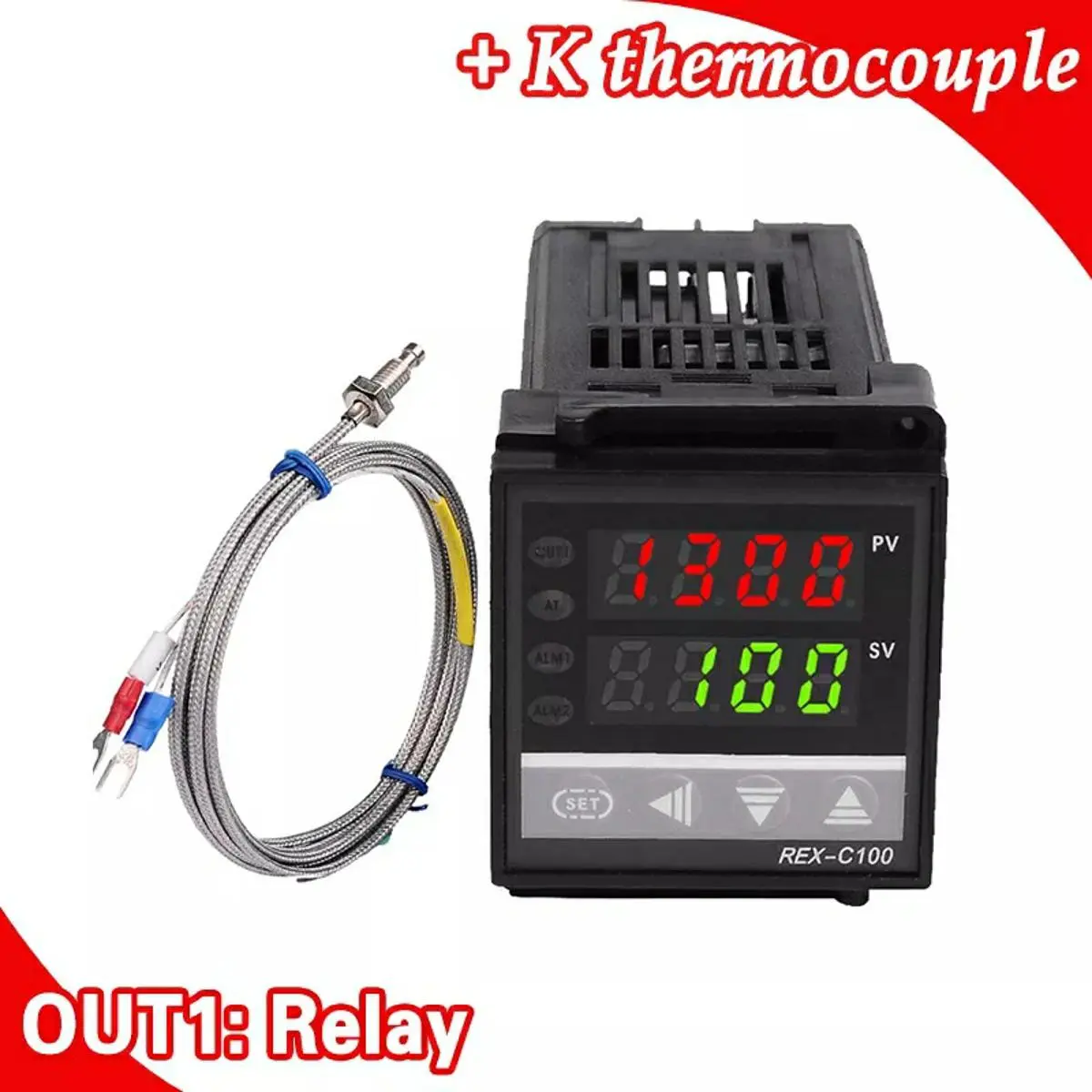

• K type thermocouple: 0-400C, 2m cable (6 feet).
• Compact design:
• DIN 1/8 great form-factor to be included/build-in to your product.
• Input: TC(K, J, S, E) / RTD (Pt100, CU50) universal input, or 0-20mA signal.
• Control output: RELAY
• Alarm output: 1 line output, 7 kinds of alarm mode: high/low/high deviation/low deviation/interval/out of interval/breakage alarm.

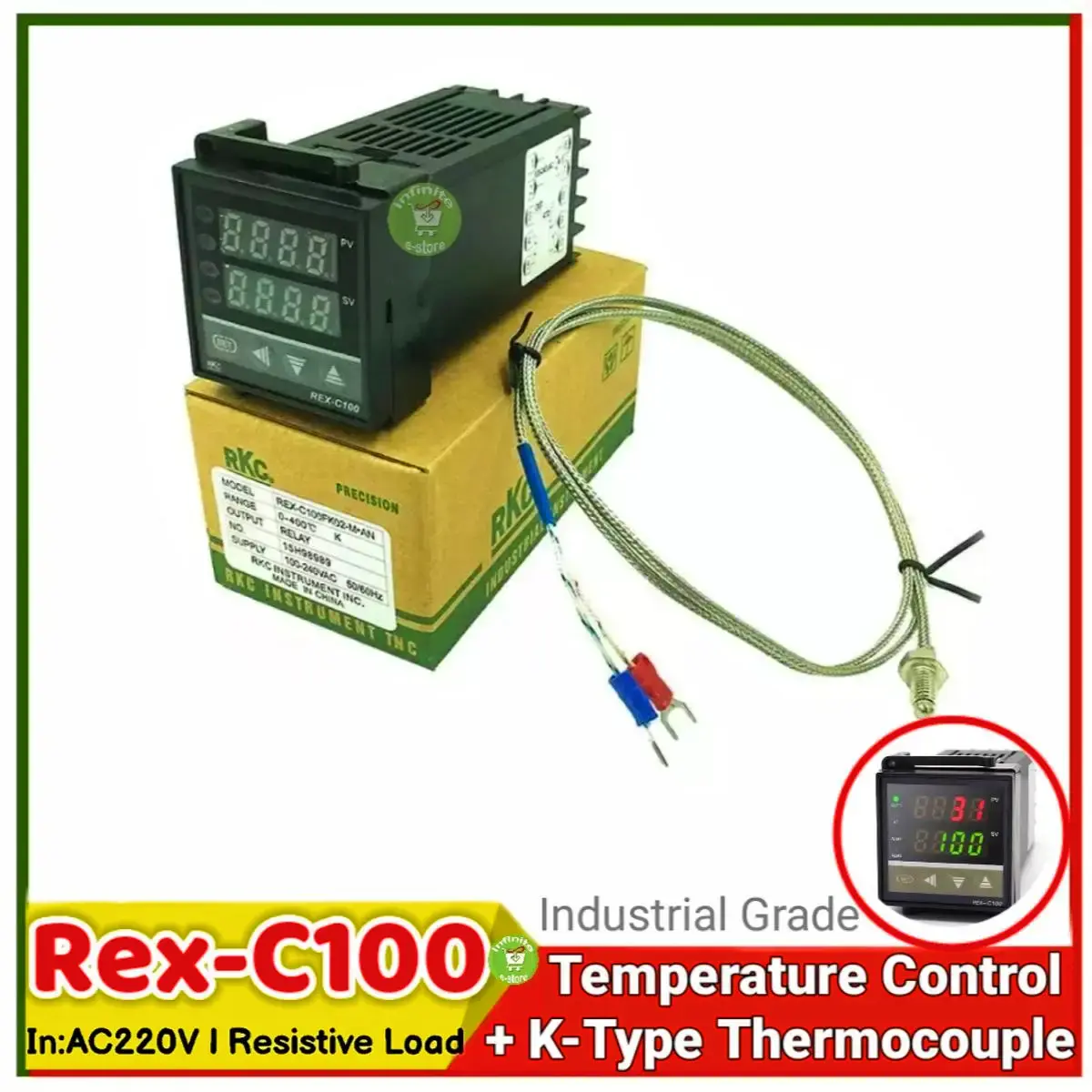

• Package Included:
• 1x REX-C100 PID Temperature Controller
• 1x K thermocouple ( 0~400°C, 2m cable (6 feet).)
• 1x User Manual in English
