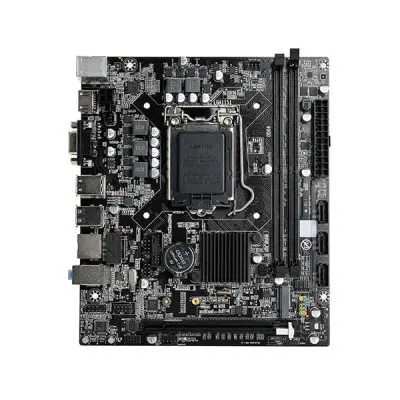

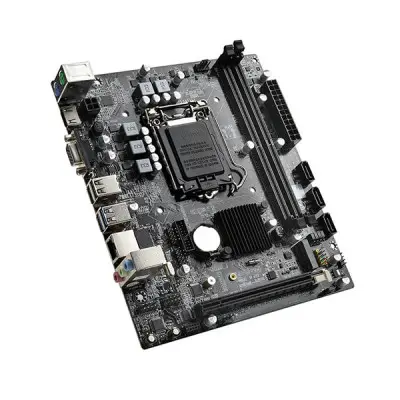

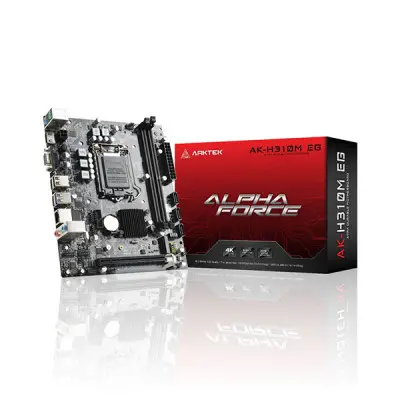

ARKTEK MOTHERBOARD H310M, (INTEL 6TH,7TH,8TH,9TH GEN SOCKET,DDR4,NVME,HDMI,VGA,USB) 3Y Warranty,M.2 Slot) micro-ATX 310 Motherboard

CPU Support

Intel socket 1151, supports Intel i3/i5/i7series CPU

Chipset

Intel H310 Chipset

On-Board Graphics

Integrated Graphics Processor-Intel HD Graphics support

Memory

Dual Channel DDR4 2133/2400/2666/3200MHz (Max. Supports up to 16GB Memory)

DIMM

2 x Memory Slots

LAN

On board Realtek RTL8111e 1000Mbps adaptive network card interface

Audio

Chip integrated by Realtek 662 on board, Supports 6-channel audio-out

SATA

3 x SATA 3.0 port

1 x M.2

Rear I/O

1 x PS/2 mouse port

1 x PS/2 keyboard port

1 x VGA port

1 x HDMI port

2 x USB 2.0 port

2 x USB 3.0 port

1 x LAN jack 3 x Audio jack

Internal I/O

2 x USB 2.0 header supports additional 4 USB 2.0 ports

1 x USB 3.0 header supports an additional 2 USB 3.0 ports

1 x Front Panel Audio header

Expansion Slots

1 x PCI Express x16 slot

Form Factor

Micro-ATX (19.7 x 17 cm)

OS Support

Support Windows 7 / 8 / 8.1 / 10(x64)

Mounting

6 mounting holes

Accessories

1 x SATA cable 1 x I/O Backboard 1 x User Manual 1 x Driver CD

Warranty

3-Year Brand Warranty
