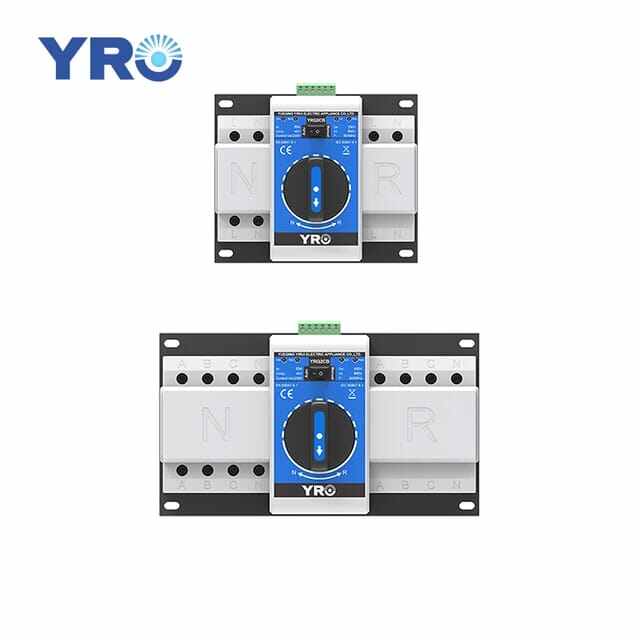

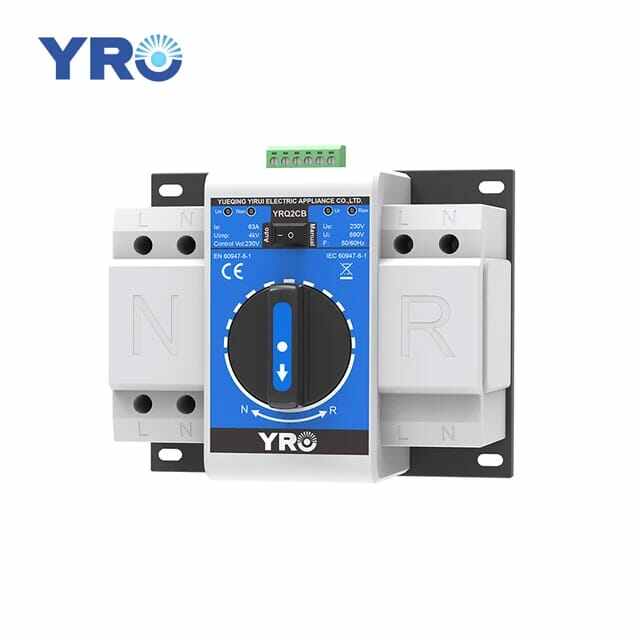

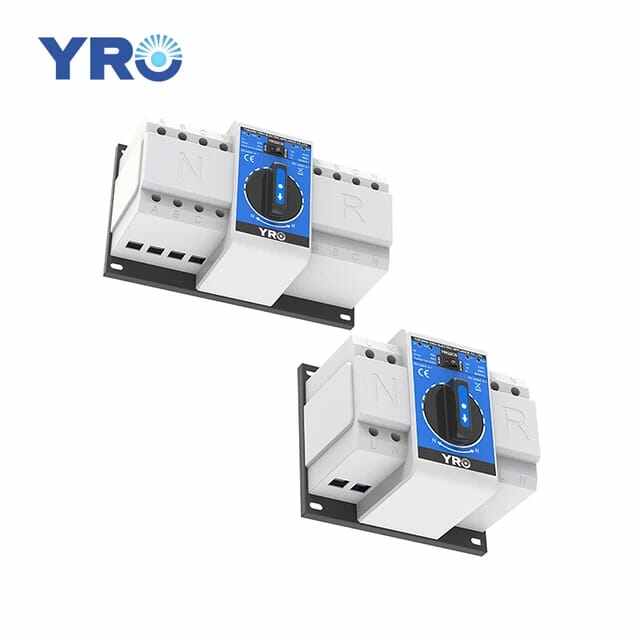

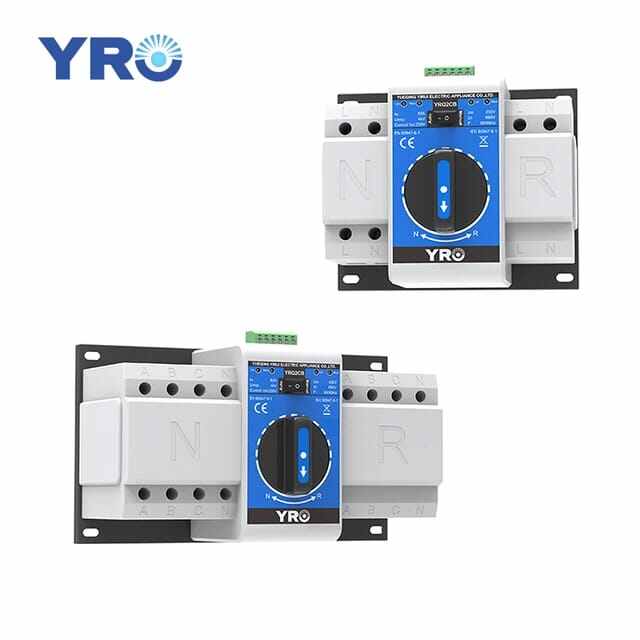

YRO Auto/Manual Switching Circuit Breakers YRQ2CB-63 2P 63A Dual Power Automatic Transfer Switch AC230V 50/60Hz MCB - White-Blue

Name: YRO Auto/Manual Switching Circuit Breakers YRQ2CB-63 2P 63A Dual Power Automatic Transfer Switch AC230V 50/60Hz MCB - White-Blue
Brand: YRO
SKU: MPTL1035334
Price: 6000.00 BDT
Availability: InStock

Category: Electric Hardware & Tools

SKU: MPTL1035334

Brand: YRO

Seller: MAXLAN POWER TECHNOLOGY

Tk 6,000

0 review(s)

Call For Order : 09613-800800

Product details of YRO Auto/Manual Switching Circuit Breakers YRQ2CB-63 2P 63A Dual Power Automatic Transfer Switch AC230V 50/60Hz MCB

Description

Type: CB

Number of Pole: 2

Voltage: 230V

Frequency: 50/60Hz

Rated Current: 63A

Brand Name: YRO

Model Number: YRQ2CB-63

Product Name: ATS transfer switch

Warranty: 6 Months

Product Description

YRQ2CB-63 series automatic transfer switch is designed and developed by our company according to universal customers' requirements. This switch uses YRCB-63(C45=CB2) miniature circuit breaker as the actating element, is equipped with the new type control mechanism. With the smallest volume among the similar products, it also has the functions like the fire control(OPINIONAL) and power generation, and it is specially used in the important power supply locations where the power failure is not allowed.

Specification

Type	YRQ2CB-63
Specification current Ie(A)	6/10/16/20/25/32/40/50/63
Rated operating voltage, Ue (V)	AC230V/AC400V
Rated insulating voltage Ui (V)	AC 690V
Rated impulse withstand voltage (KV)	4KV
Rated short circuit making capacity Icm	6KA
Rated short circuit breaking capacity Icn	4.5KA
Service life	5000 times
Electric equipment grade	CB Class
Controller	Type A(basic type)
Rated control supply voltage,Us(V)	230V 50/60Hz
Operating transfer time (no time delay)	≤3s
keyword	AC ATS automatic transfer switch
