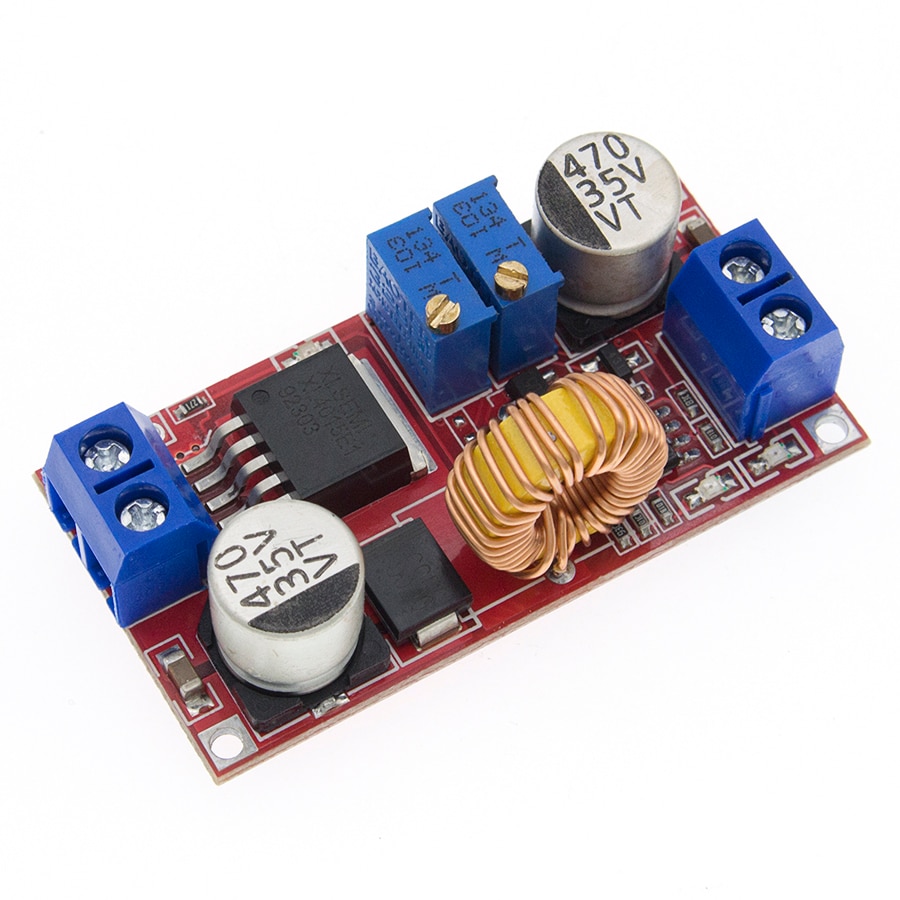

XL4015 5A DC to DC CC CV Lithium Battery Step down Charging Board Led Power Converter Lithium Charger Step Down Module XL4015E1 (Red)

Name: XL4015 5A DC to DC CC CV Lithium Battery Step down Charging Board Led Power Converter Lithium Charger Step Down Module XL4015E1 (Red)
Brand: No Brand
SKU: DVDR937023
Price: 350.00 BDT
Availability: InStock

Category: IPS & Batteries

SKU: DVDR937023

Brand: No Brand

Seller: Device & Dreams

Tk 350

0 review(s)

Call For Order : 09613-800800

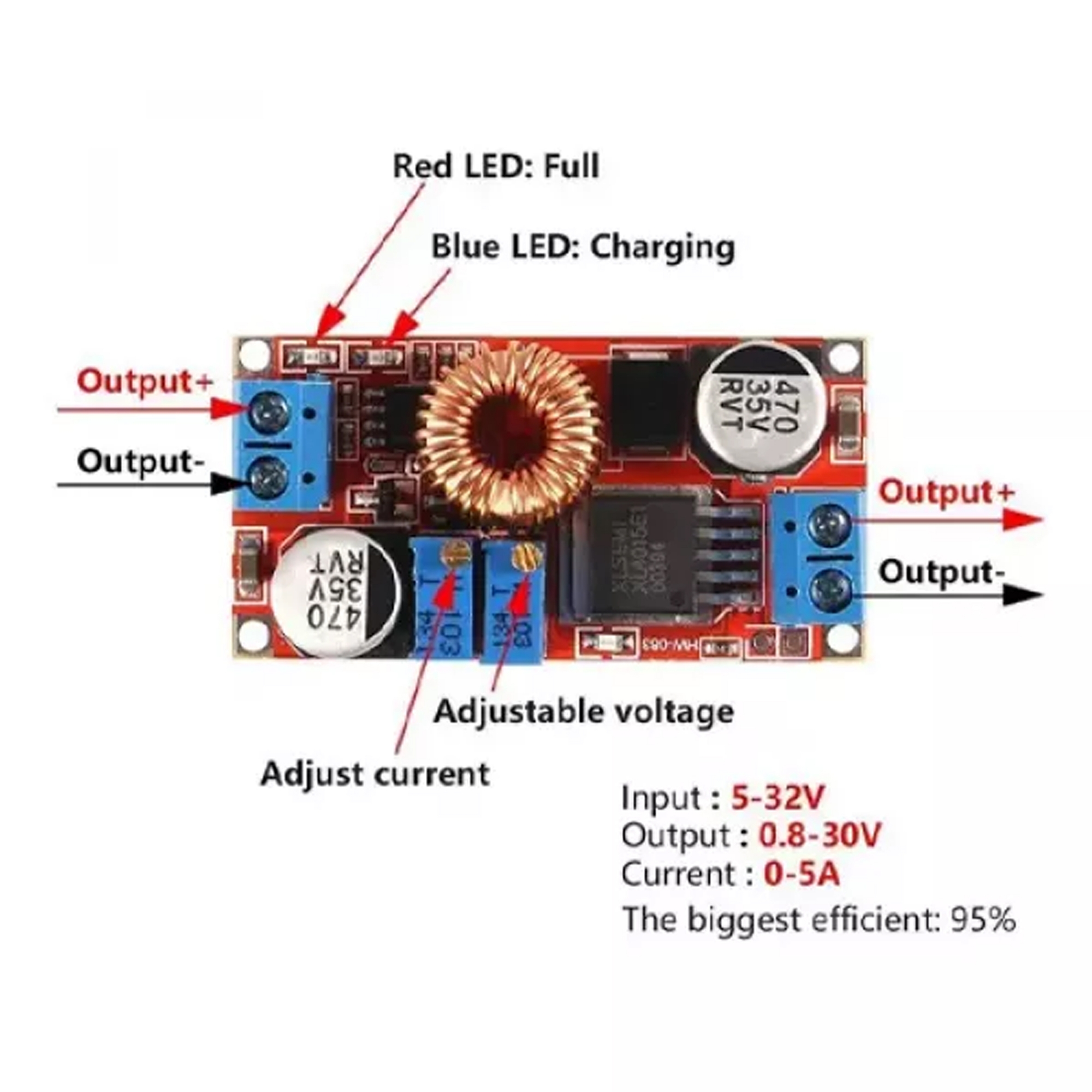

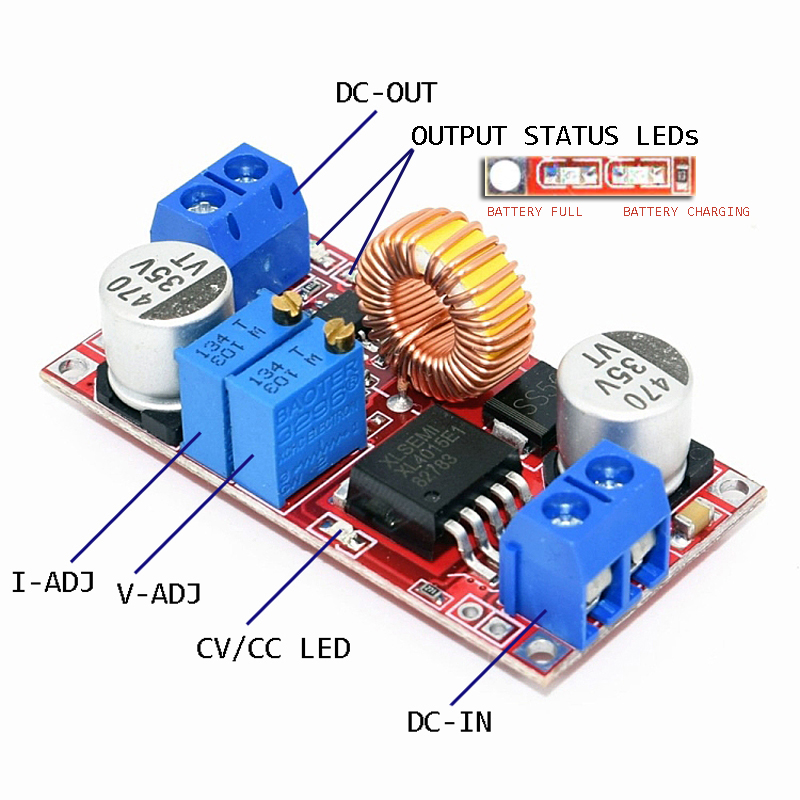

Product details of XL4015 CC/CV 5 Amp DC to DC Adjustable Step Down Buck Converter Module Use Lithium Battery Charging (5-32V To 0.8-30V) XL4015 CC/CV 5 Amp DC to DC Adjustable Step Down Buck Converter Module Use Lithium Battery Charging (5-32V To 0.8-30V) Size: 51 * 26.3 * 14 (L * W * H) (mm) Operating Temperature: -40 ° to +85 ° Voltage Regulation: ± 2.5% Load Regulation: ± 0.5% Output ripple: 50mV (max) 20M bandwidth Switching frequency: 300KHz Conversion efficiency: 95% (the highest) Input voltage: 5V-32V Output voltage: 0.8V-30V Output current: adjustable maximum 5A Rectification: non-synchronous rectification Module Properties: non-isolated constant current and voltage module. This Step Down Buck Converter Modulehas constant voltage and constant current function (CC CV). and it has a good performance.When you use it as a charger. this module use good chip as core and it is stable. also its ripple is low to 50mV. Operating Temperature: -40 ° to +85 °,Input voltage: 5V-32V,Output voltage: 0.8V-30V,Output current: adjustable maximum 5A. CC CV Low ripple When the module charges a battery, it first use constant current to protect the battery. check the curse above. Specifications of XL4015 CC/CV 5 Amp DC to DC Adjustable Step Down Buck Converter Module Use Lithium Battery Charging (5-32V To 0.8-30V)
