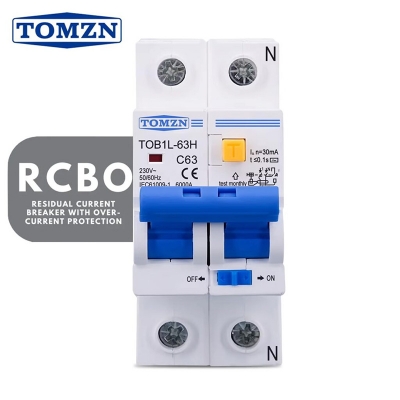

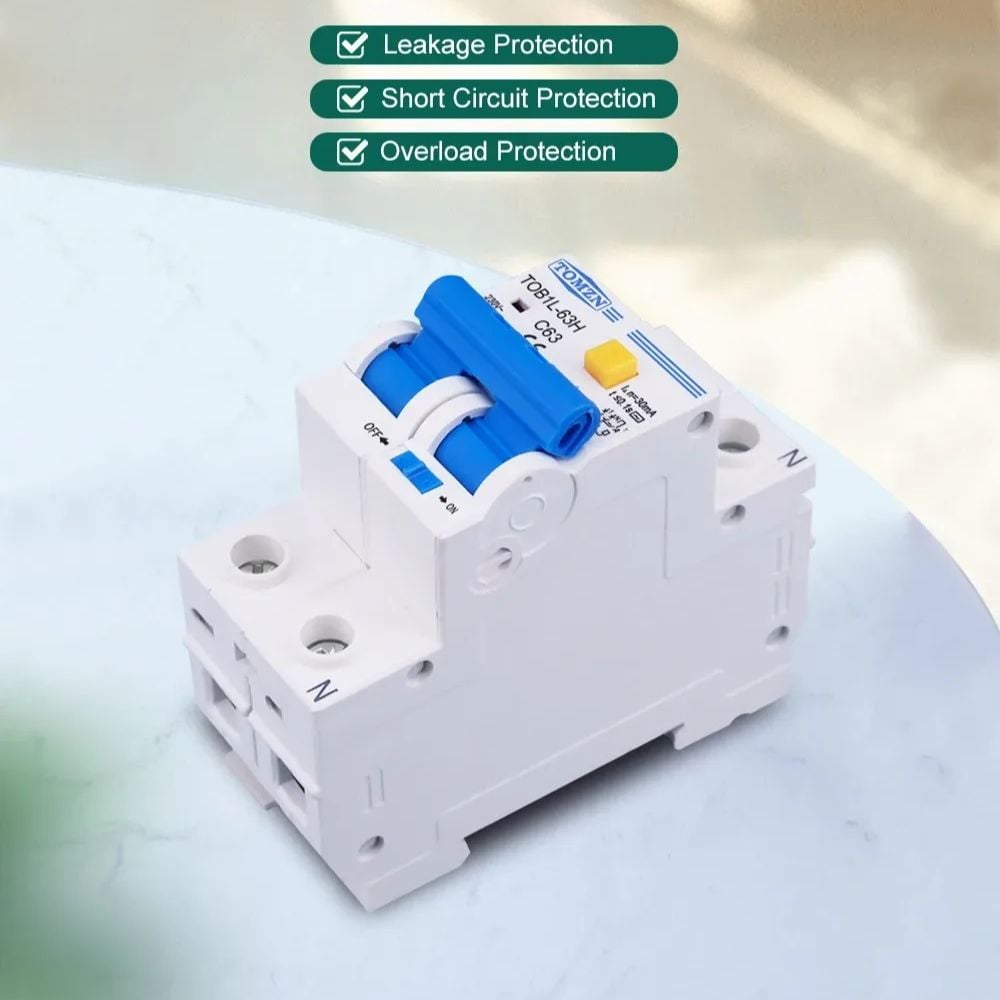

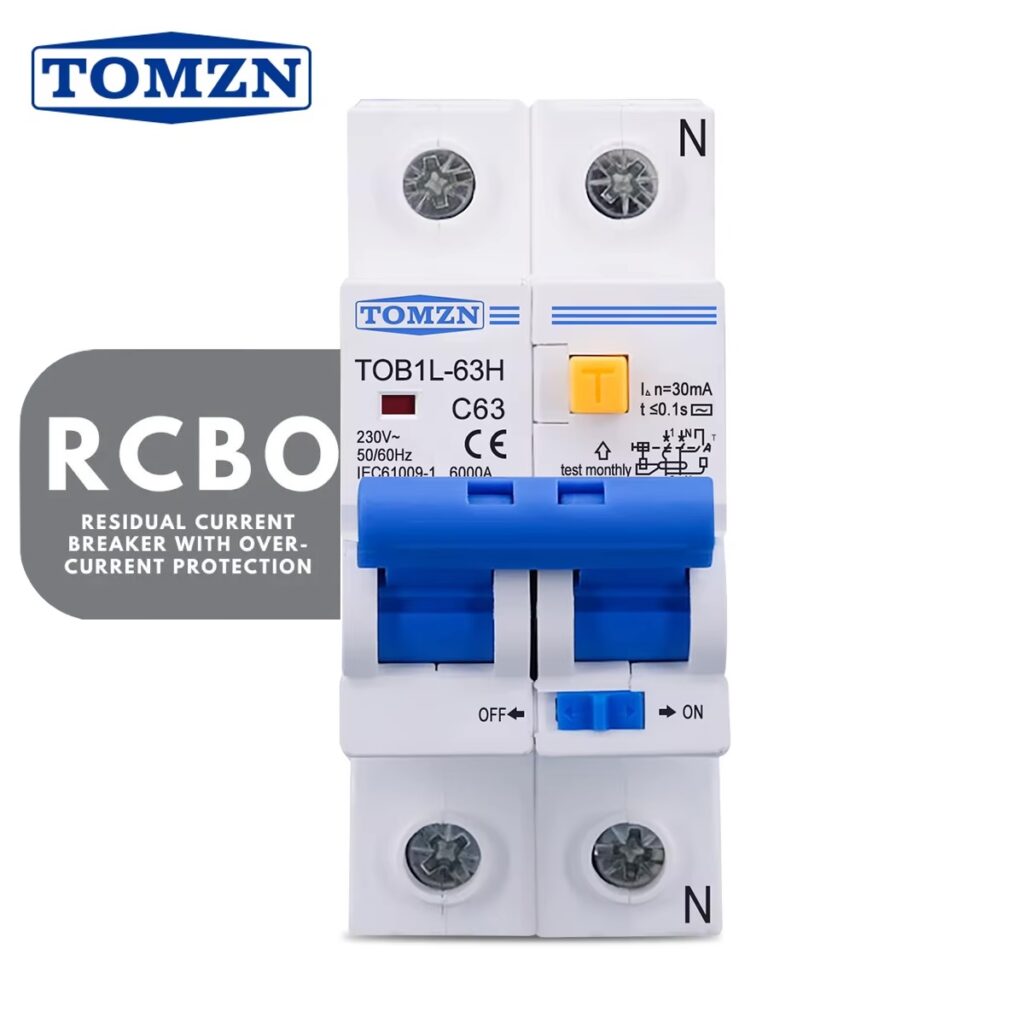

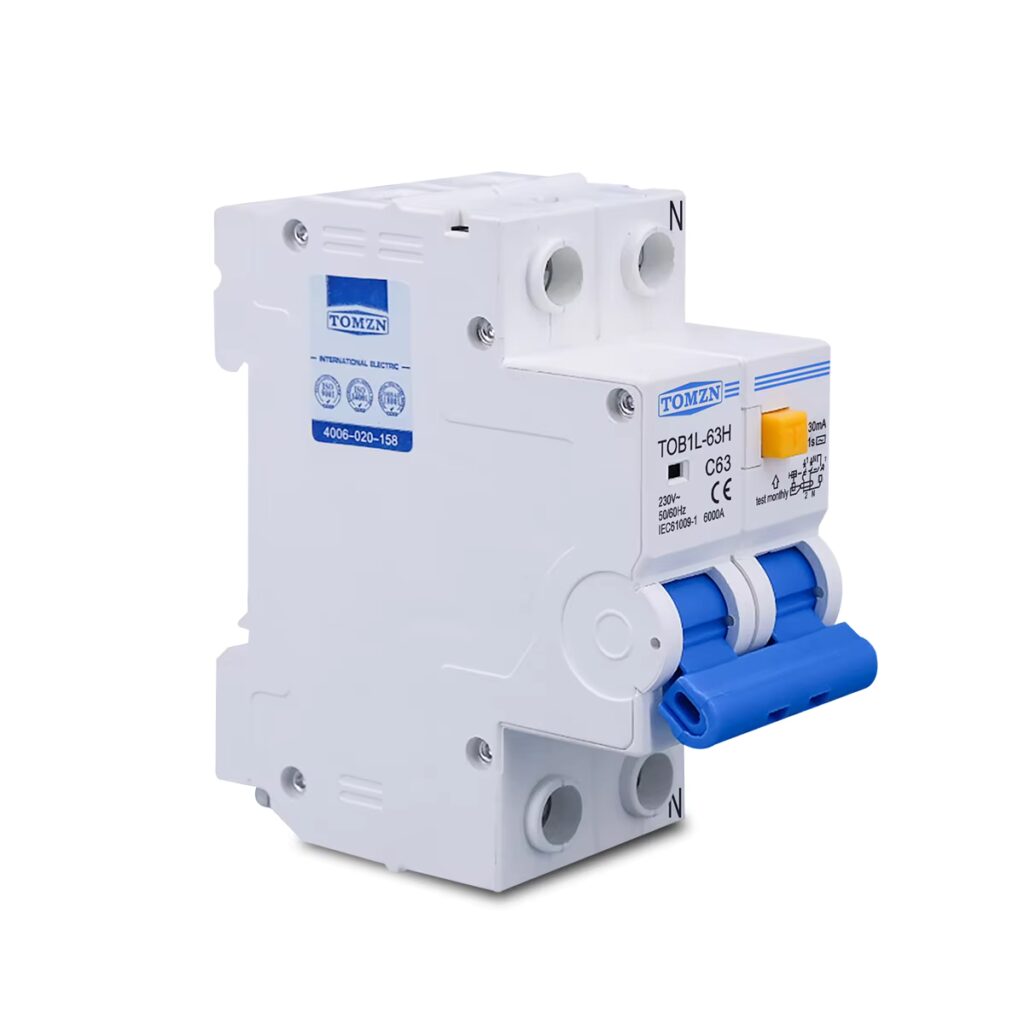

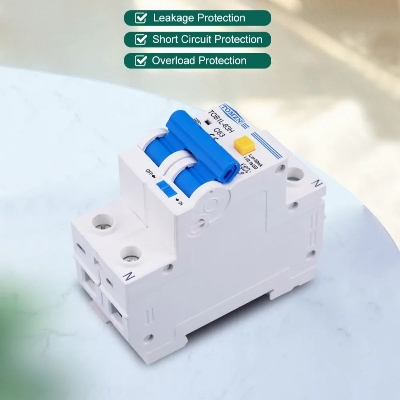

TOMZN RCBO TOB1L-63H 2P 63A 230V AC 50Hz/60Hz Residual Current Circuit breaker with over current and Leakage protection RCBO(white)

Name: TOMZN RCBO TOB1L-63H 2P 63A 230V AC 50Hz/60Hz Residual Current Circuit breaker with over current and Leakage protection RCBO(white)
SKU: BLHH834635
Price: 1050.00 BDT
Availability: OutOfStock

Category: Electrical Accessories

SKU: BLHH834635

Seller: Belayet H. Hridoy

Tk 1,050

0 review(s)

SoldOut

Call For Order : 09613-800800

TOMZN RCBO TOB1L-63H Residual Current Circuit Breaker Price In Bangladesh

Key Specifications:

Specification	Description
Model	TOB1L-63H
Brand	TOMZN
Poles	2P (Phase + Neutral)
Rated Current (In)	63A
Rated Voltage (Ue)	230V AC
Frequency	50Hz / 60Hz
Residual Operating Current	30mA (typical, adjustable in some models)
Breaking Capacity	6kA
Tripping Characteristic	Type C (standard usage, handles moderate inrush currents)
Protection	Overcurrent, Short Circuit, Earth Leakage
Mounting	DIN Rail 35mm (standard)
Cut-off	Cuts both L (Live) and N (Neutral) during fault condition
Application	Residential, commercial, and light industrial usage

Features:

RCBO (Residual Current Breaker with Over-current): Combines the functionality of MCB + RCD in one compact unit.
Double-pole Cut-off (L+N): Enhances safety by disconnecting both lines during faults.
Quick Trip Response: Responds rapidly to ground fault or overload.
Compact DIN rail design: Easy installation inside distribution boards.
Fire and shock protection: Provides added protection against electrical fires and electrocution.
High sensitivity: Can detect leakage as low as 30mA.

Use Case Scenarios:

Household electrical circuit protection
Air conditioner or geyser line protection
Solar inverter AC output protection
Small office distribution board
Shops and light commercial spaces

Important Note:

Always install RCBOs with correct wiring and grounding.
Make sure the selected current rating suits your load.
It is recommended to install by a qualified electrician.
