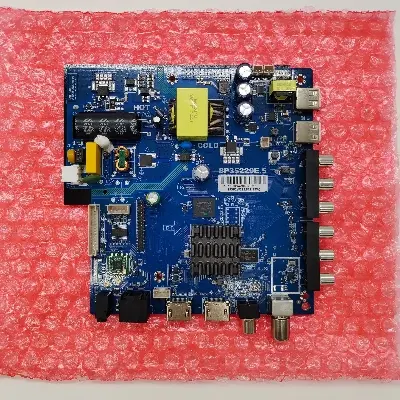

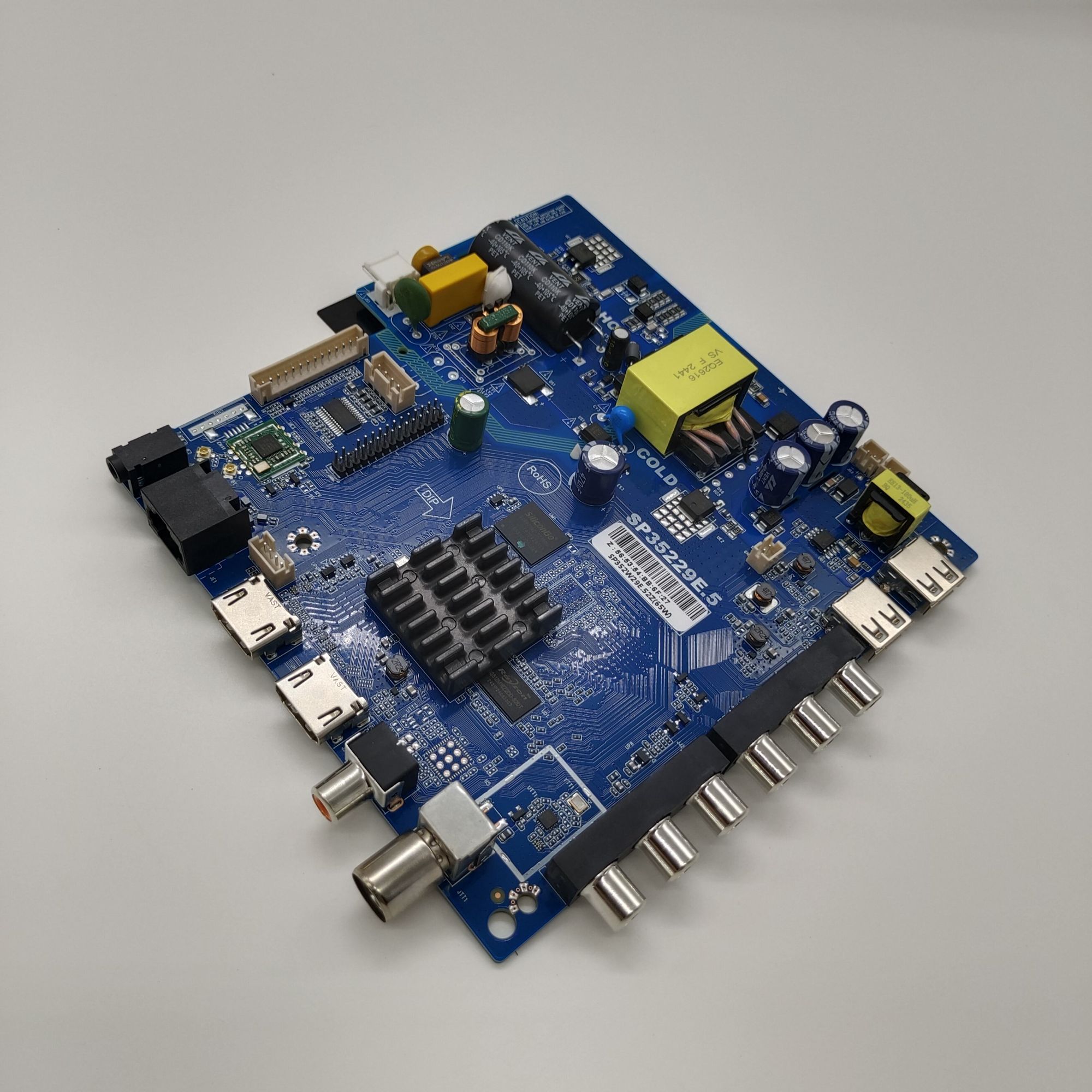

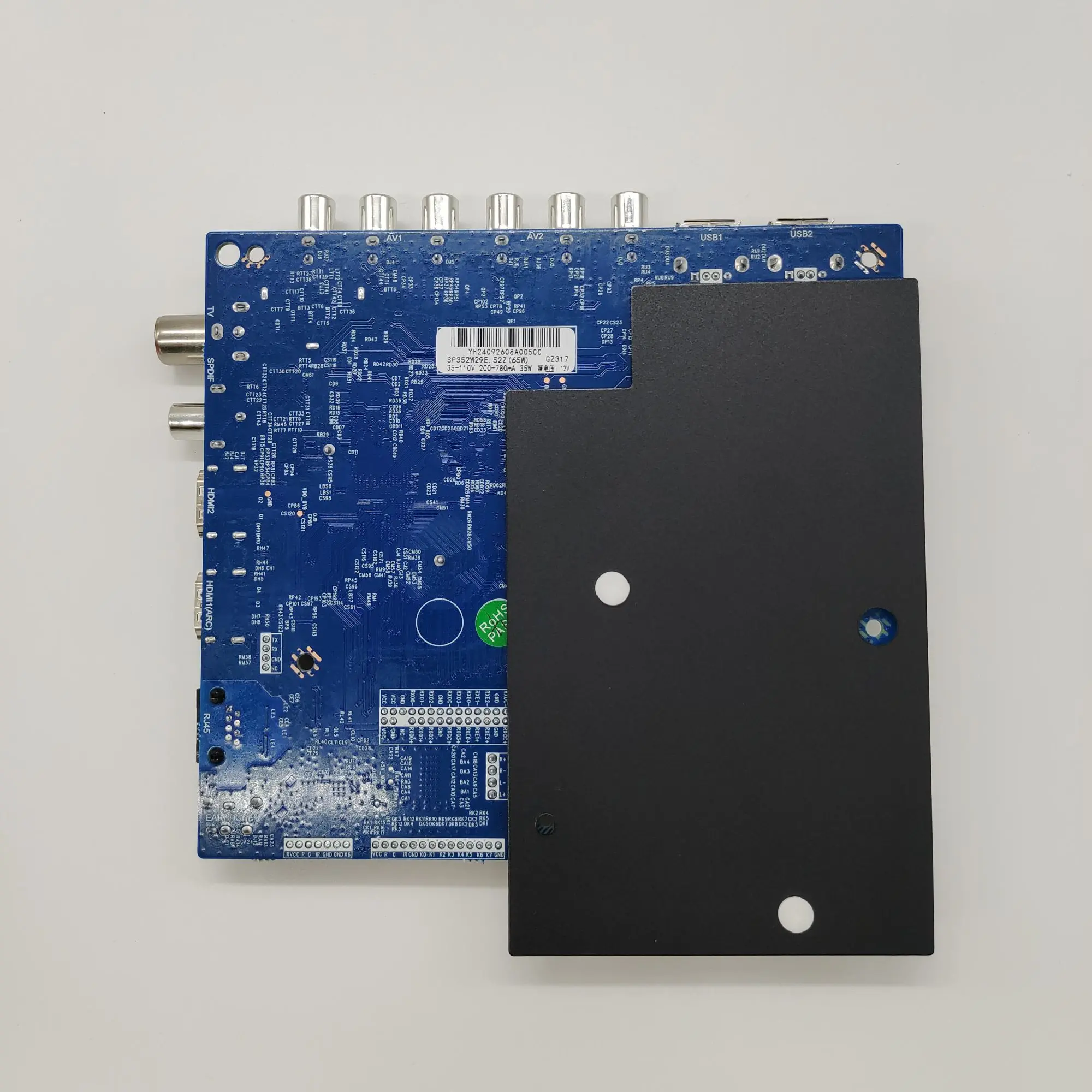

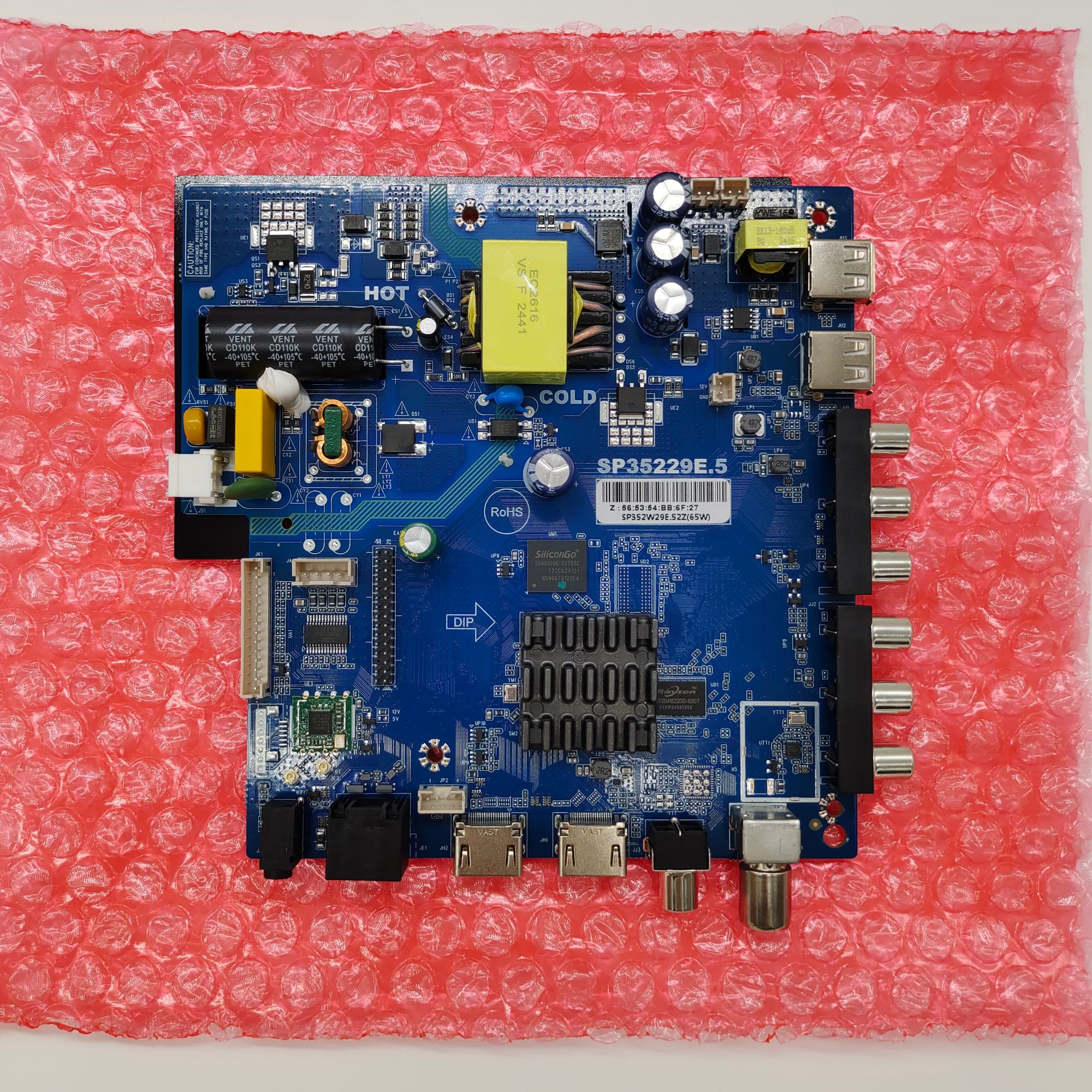

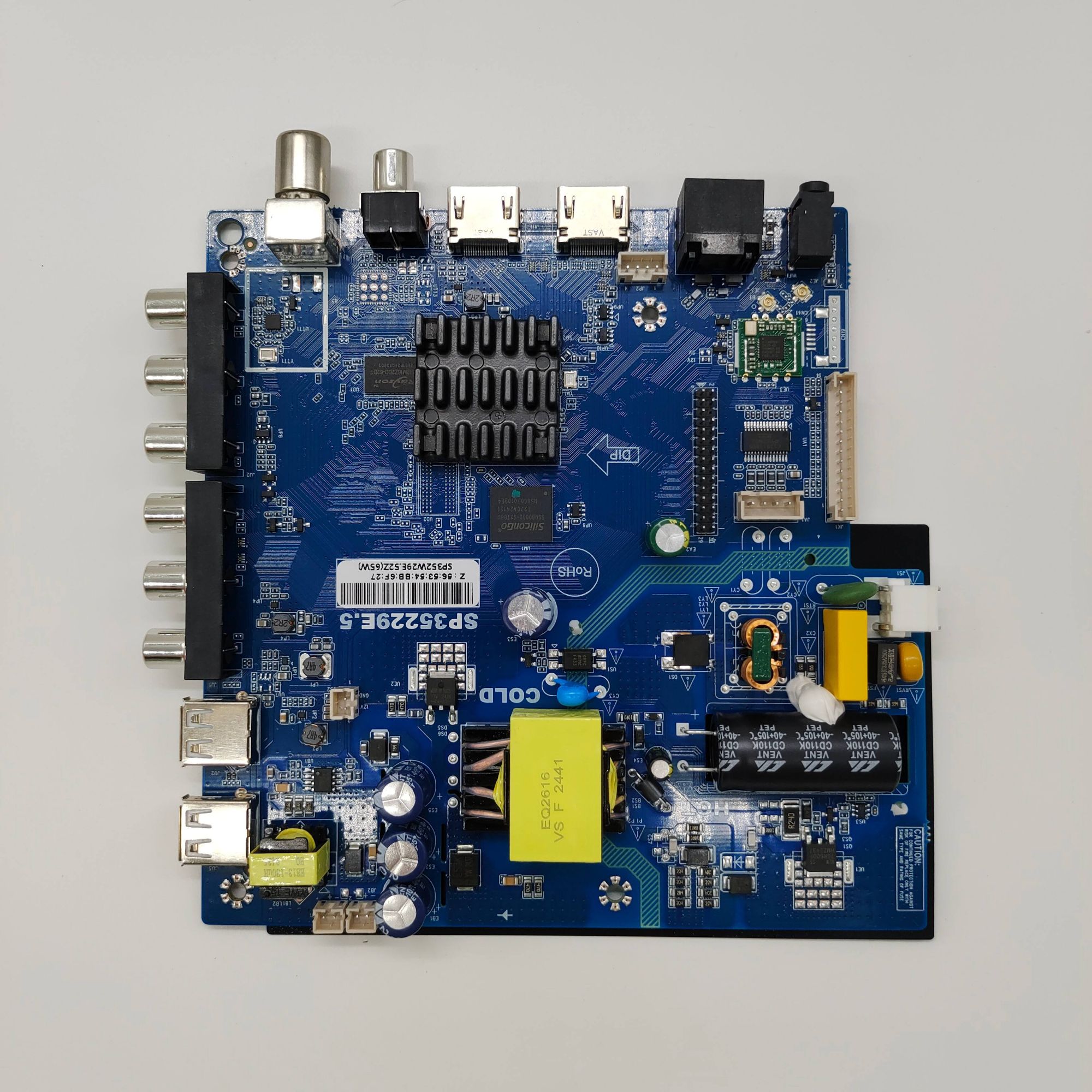

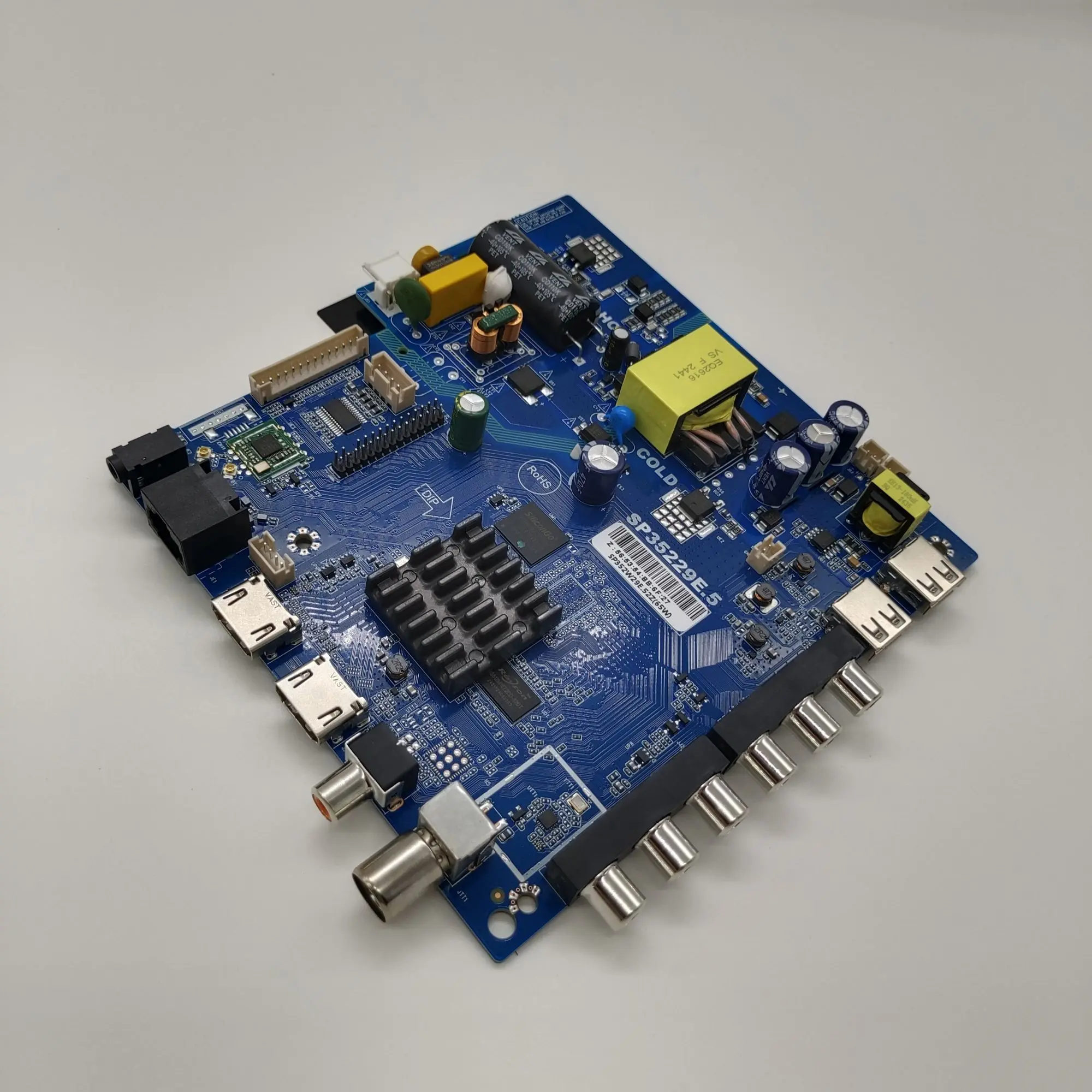

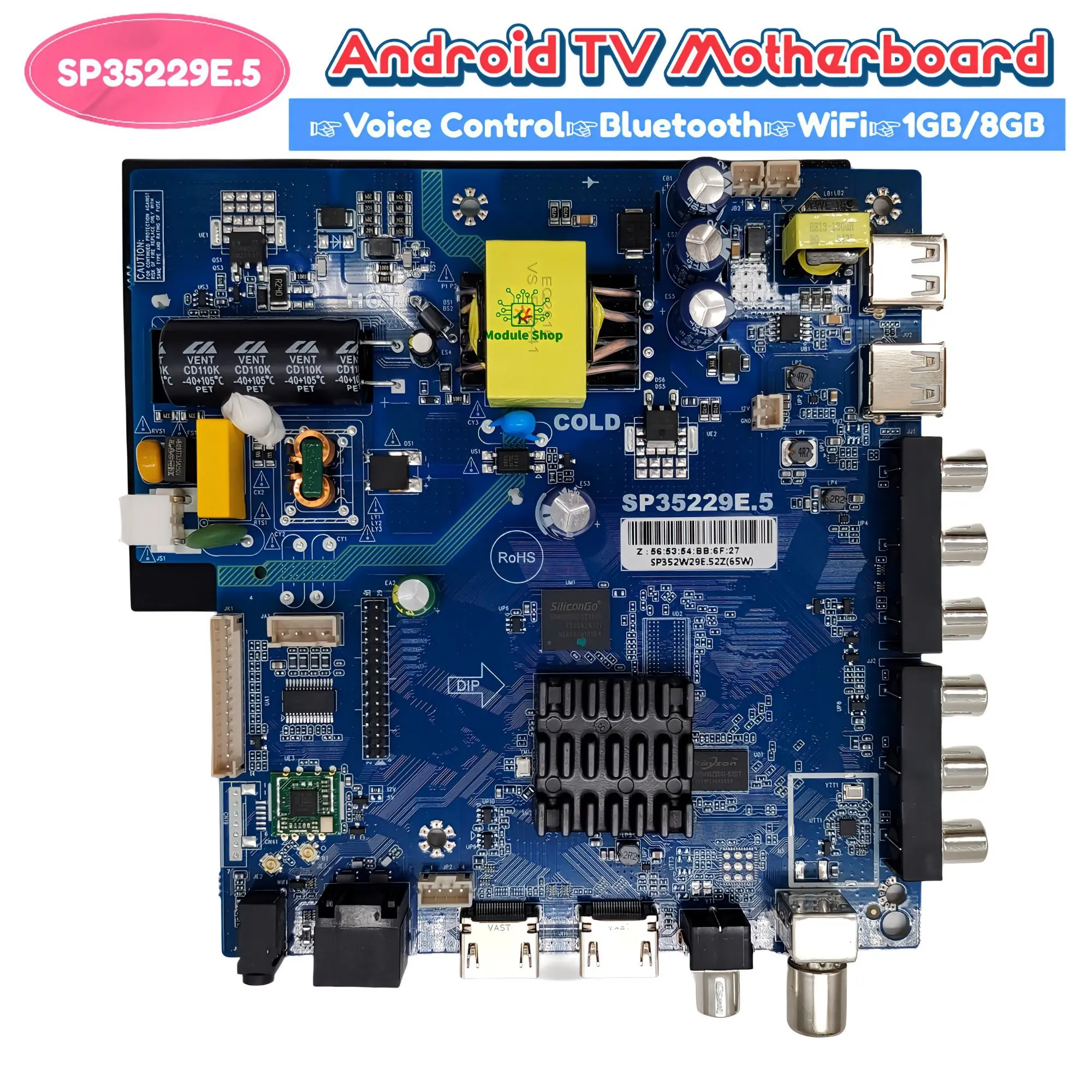

SP35229E.5 Bluetooth Vouce Control Smart WiFi LED TV Board with 35-110V Backlight Voltage and 1G + 8G Android 14 for 25W 35W 50W 32-42 Inches

Category: Electrical Accessories
SKU: MOS896933
Seller: Module Shop
Tk 5,000
0 review(s)
  • SP35229E.5 is an integration board of power supply, LED driver and TV board.
  • SP35229E.5 is a network function TV board.
  • SP35229E.5's USB slot can be used for Software upgrade, multimedia playback, RJ45 network interface supports 10/100M auto-identification and DHCP. HDMI 1.3/1.4 compliant, HDCP 1.2 compliant.
  • SP35229E.5 supports ATV+DVB-C,ISDB,DTMB, ATSC.
  • SP35229E.5's power part is a high efficiency AC-line switching power supply unit. It fits for 32 to 46 inches LED backlight TFT panel.
  • 2.Configuration & General Precautions
  • For safety issue, please keep the board 8.0mm away from metal parts of the TV at least.
  • Protect the board from static electrostatic in care of damage to the IC.
  • Keep the board away from conductor when it is working. Don't press, distort or disassemble the board. Clean the board with soft dry cloth when it's dirty. Don't switch on the power supply before panel is correctly connected.
  • Relative humidity:≤80%
  • Storage temperature: -10~60℃
  • Operation temperature: 0~40°C
  • The brightness of panel is influenced greatly by temperature, you should measure it after power on 10~30 minutes.
  • Keep the board surface clean. Check the appearance of the board if there has any defective parts, such as damaged, weighty nick, etc.
*

Call For Order : 09613-800800

  • SP35229E.5 is an integration board of power supply, LED driver and TV board.
  • SP35229E.5 is a network function TV board.
  • SP35229E.5's USB slot can be used for Software upgrade, multimedia playback, RJ45 network interface supports 10/100M auto-identification and DHCP. HDMI 1.3/1.4 compliant, HDCP 1.2 compliant.
  • SP35229E.5 supports ATV+DVB-C,ISDB,DTMB, ATSC.
  • SP35229E.5's power part is a high efficiency AC-line switching power supply unit. It fits for 32 to 46 inches LED backlight TFT panel.
  • 2.Configuration & General Precautions
  • For safety issue, please keep the board 8.0mm away from metal parts of the TV at least.
  • Protect the board from static electrostatic in care of damage to the IC.
  • Keep the board away from conductor when it is working. Don't press, distort or disassemble the board. Clean the board with soft dry cloth when it's dirty. Don't switch on the power supply before panel is correctly connected.
  • Relative humidity:≤80%
  • Storage temperature: -10~60℃
  • Operation temperature: 0~40°C
  • The brightness of panel is influenced greatly by temperature, you should measure it after power on 10~30 minutes.
  • Keep the board surface clean. Check the appearance of the board if there has any defective parts, such as damaged, weighty nick, etc.





  • SP35229E.5 is an integration board of power supply, LED driver and TV board.
  • SP35229E.5 is a network function TV board.
  • SP35229E.5's USB slot can be used for Software upgrade, multimedia playback, RJ45 network interface supports 10/100M auto-identification and DHCP. HDMI 1.3/1.4 compliant, HDCP 1.2 compliant.
  • SP35229E.5 supports ATV+DVB-C,ISDB,DTMB, ATSC.
  • SP35229E.5's power part is a high efficiency AC-line switching power supply unit. It fits for 32 to 46 inches LED backlight TFT panel.
  • 2.Configuration & General Precautions
  • For safety issue, please keep the board 8.0mm away from metal parts of the TV at least.
  • Protect the board from static electrostatic in care of damage to the IC.
  • Keep the board away from conductor when it is working. Don't press, distort or disassemble the board. Clean the board with soft dry cloth when it's dirty. Don't switch on the power supply before panel is correctly connected.
  • Relative humidity:≤80%
  • Storage temperature: -10~60℃
  • Operation temperature: 0~40°C
  • The brightness of panel is influenced greatly by temperature, you should measure it after power on 10~30 minutes.
  • Keep the board surface clean. Check the appearance of the board if there has any defective parts, such as damaged, weighty nick, etc.
