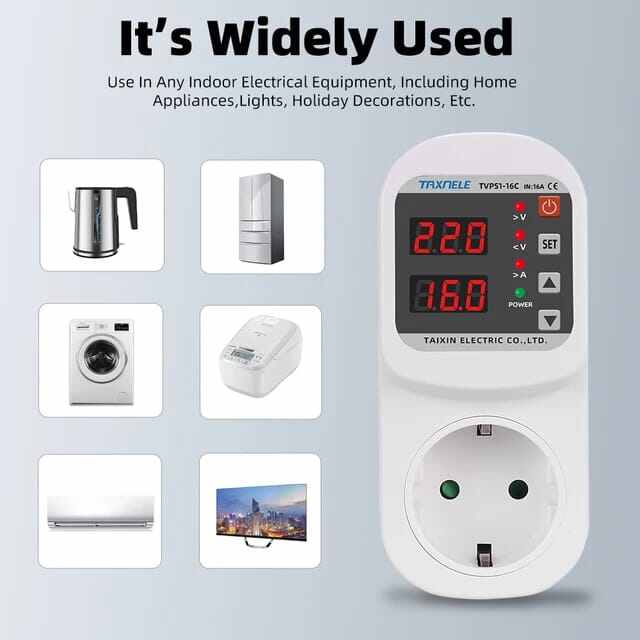

Over Voltage Current Under Voltage Protector Socket AC 220V Adjustable 16A Surge Protector EU Plug Socket Safe Protect - White

Product details of Over Voltage Current Under Voltage Protector Socket AC 220V Adjustable 16A Surge Protector EU Plug Socket Safe Protect

Product descriptions from the supplier

Overview

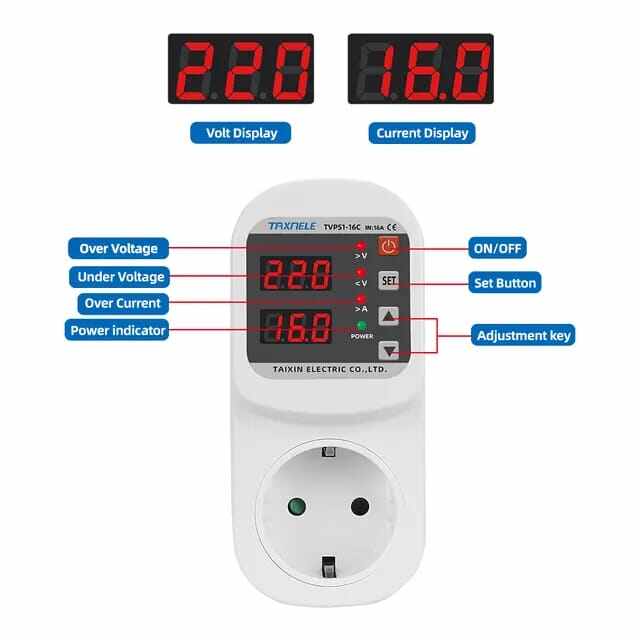

Functions:

1.Over-voltage protection 2.Under-voltage protection 3.Over-current protection 4.Automatic recovery 5.Voltage display(voltage measurement) 6.Current display (current measurement) 7. Voltage calibration: Voltage -9.5% to 9.5% adjustable.

8. Current calibration: Current -9.5% to 9.5% adjustable.

9. Restore factory settings: press the down button for more than 12s 10. Fault inquiry: Press the UP button from more than 12S

Product Parameters:

3.Max.Loading power: 1~16A  Adjustable(default:16A) 4.Over-voltage protection value range:100V~300~OFF(default:270V) Over-voltage recovery voltage range: 95V--295V(default:265V) Over-voltage protection action time:0.1s~30s(default value:0.5s) Over-voltage recovery delay time:1s~500s(default:30s) 5.Under-voltage protection value range:80V--210V --OFF(default:170V) Under-voltage recovery voltage range:85V--215V (default:175V) Under-voltage protection action time:0.1s~30s(default:0.5s) Under-voltage  recovery delay time:1s~500s(default:30s) 6.Over-current adjustment range:1-16A  (default:16A)    Over-current action range:0.1~30 second (default:0.5s) Over-current   recovery delay time:1s~500s(default:30s) 7.Power-on delay time:1s~500s(default:10s) 8.Power consumption : <2W 9.Electric machinery life : 100,000 times 10.Installatin:35mm DIN rail

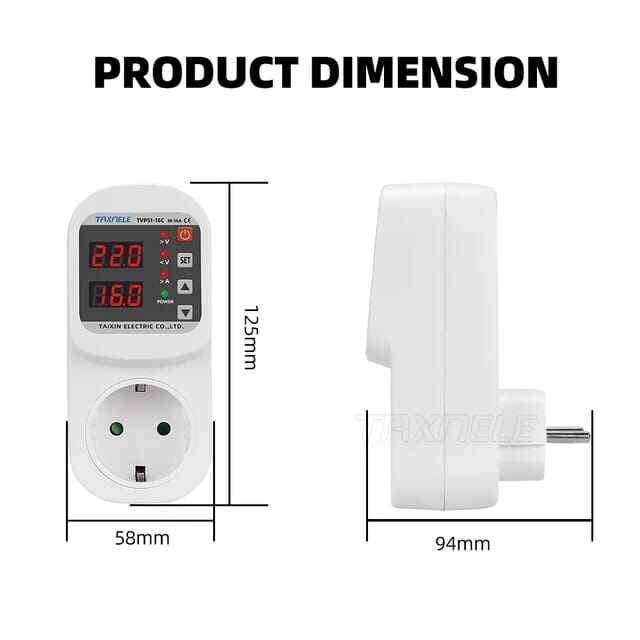

Product display
