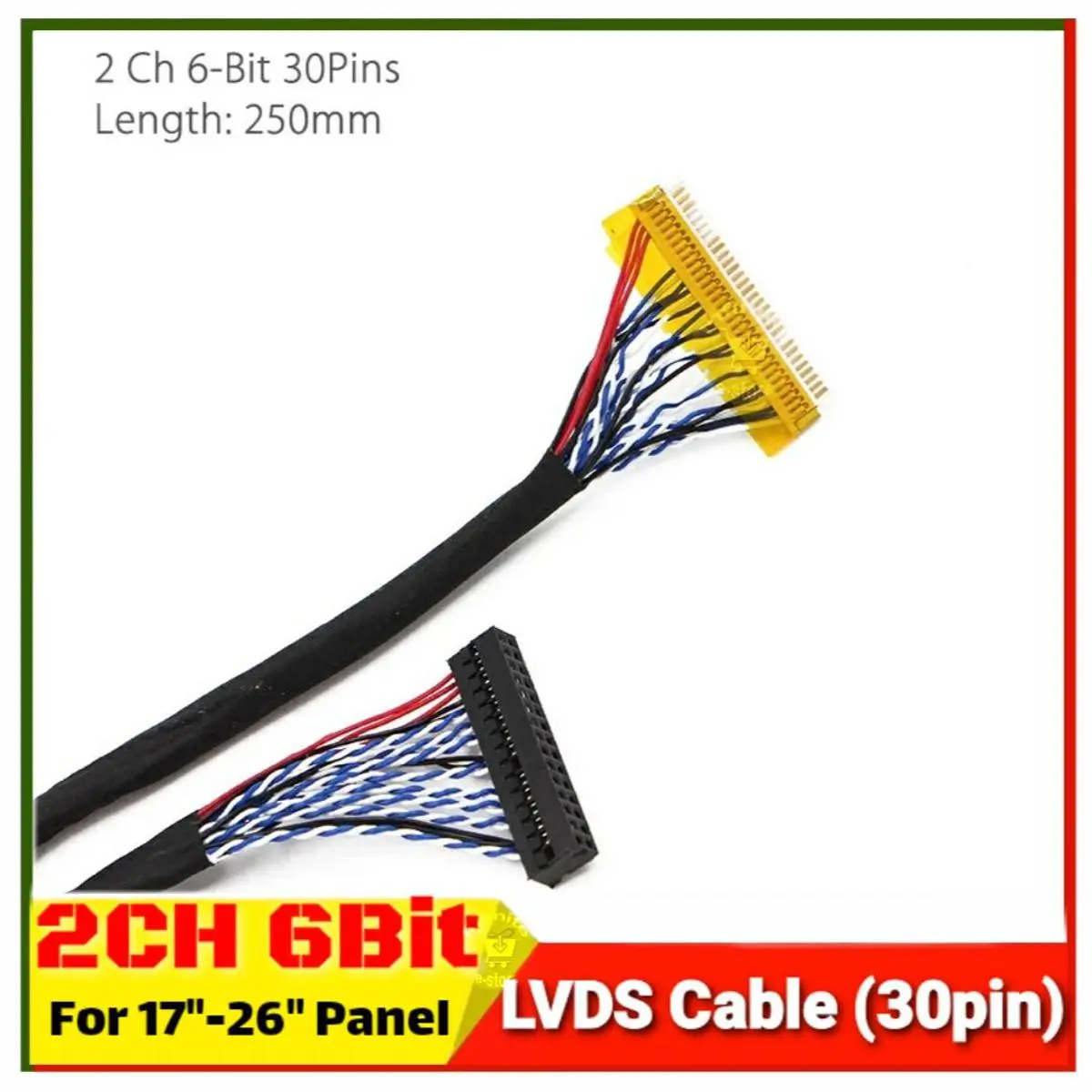

LVDS Cable 2CH 8Bit 6Bit 30Pin Left Power for 1440x900 1920x1080

Name: LVDS Cable 2CH 8Bit 6Bit 30Pin Left Power for 1440x900 1920x1080
SKU: MOS895487
Price: 220.00 BDT
Availability: InStock

Category:

SKU: MOS895487

Seller: Module Shop

Tk 220

LVDS Cable for LED / LCD Panel
Two Channel 6it
Application: Compatible with our LCD/LED controller Suitable for LCD/LED display with 2ch LVDS interface (RGB 8-bits data, 10 pairs of differential signal)Good for 17,19,22,26 inch LCD/LED panels
250mm/450mm LVDS Cable FIX-30P-D8 FIX 30Pins D8 Double 1ch 8bit 1.0mm Pitch for 17-21 LCD Display Panel Screen Controller Board

Package including: 1pc “FIX 30 2ch 6bit LVDS cable”

Connection the LCD controller board:

PIN #	SIGNAL NAME	DESCRIPTION
1	NC	No connection
2	NC	No connection
3	NC	No connection
4	GND	Ground
5	RXO0-	Negative LVDS differential data input
6	RXO0+	Positive LVDS differential data input
7	GND	Ground
8	RXO1-	Negative LVDS differential data input
9	RXO1+	Positive LVDS differential data input
10	GND	Ground
11	RXO2-	Negative LVDS differential data input
12	RXO2+	Positive LVDS differential data input
13	GND	Ground
14	RXOC-	Negative LVDS differential clock input
15	RXOC+	Positive LVDS differential clock input
16	GND	Ground
17	RXO3-	Negative LVDS differential clock input
18	RXO3+	Positive LVDS differential clock input
19	GND	Ground
20	NC	No connection
21	NC	No connection
22	NC	No connection
23	GND	Ground
24	GND	Ground
25	GND	Ground
26	VCC	+5V Power Supply
27	VCC	+5V Power Supply
28	VCC	+5V Power Supply
29	VCC	+5V Power Supply
30	VCC	+5V Power Supply

Connection the LCD Panel:

1	Odd_RxIN0-	Negaive LVDS differential data input(Odd data)
2	Odd_RxIN0+	Positive LVDS differential data input(Odd data)
3	Odd_RxIN1-	Negaive LVDS differential data input(Odd data)
4	Odd_RxIN1+	Positive LVDS differential data input(Odd data)
5	Odd_RxIN2-	Negaive LVDS differential data input(Odd data, H-Sync,V-Sync,DSPTMG)
6	Odd_RxIN2+	Positive LVDS differential data input(Odd data, H-Sync,V-Sync,DSPTMG)
7	GND	Ground
8	Odd_RxCLKIN-	Negaive LVDS differential clock input(Odd clock)
9	Odd_RxCLKIN+	Positive LVDS differential clock input(Odd clock)
10	Odd_RxIN3-	Negaive LVDS differential data input(Odd data)
11	Odd_RxIN3+	Positive LVDS differential data input(Odd data)
12	RxEIN0-	Negative LVDS differential data input (Even data)
13	RxEIN0+	Positive LVDS differential data input(Even data)
14	GND	Ground
15	RxEIN1-	Negative LVDS differential data input (Even data)
16	RxEIN1+	Positive LVDS differential data input(Even data)
17	GND	Ground
18	RxEIN2-	Negative LVDS differential data input (Even data)
19	RxEIN2+	Positive LVDS differential data input(Even data)
20	RxECLKIN-	Negative LVDS differential clock input (Even clock)
21	RxECLKIN+	Positive LVDS differential clock input (Even clock)
22	RxEIN3-	Negative LVDS differential data input (Even data)
23	RxEIN3+	Positive LVDS differential data input(Even data)
24	GND	Ground
25	GND	Ground
26	NC	No Connection
27	GND	Ground
28	VCC	Power Supply
29	VCC	Power Supply
30	VCC	Power Supply

Can work with below LCD (Not including all of 18.5inch model No.If you LCD panel is 30P 1ch 8bit as above definition, This LVDS can work):

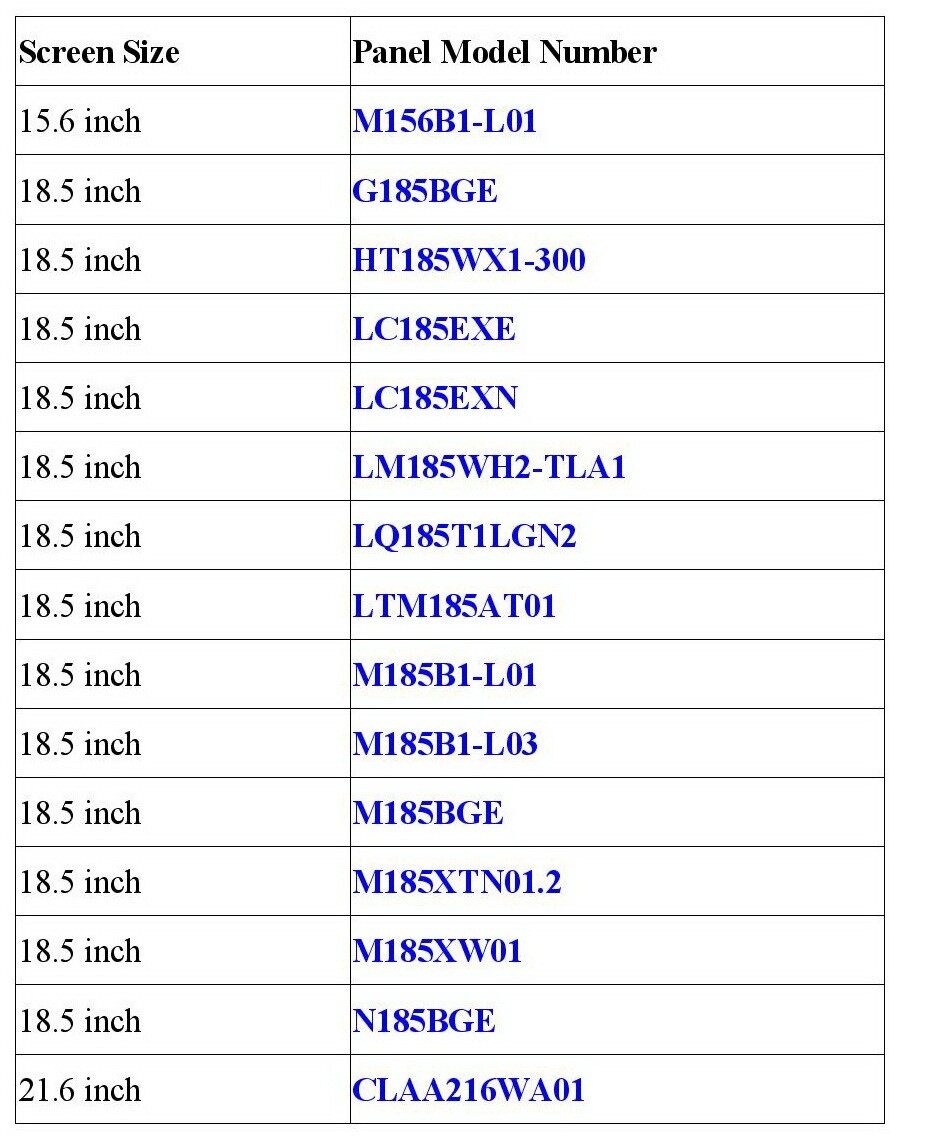

Compatible LCD panel model number list:
